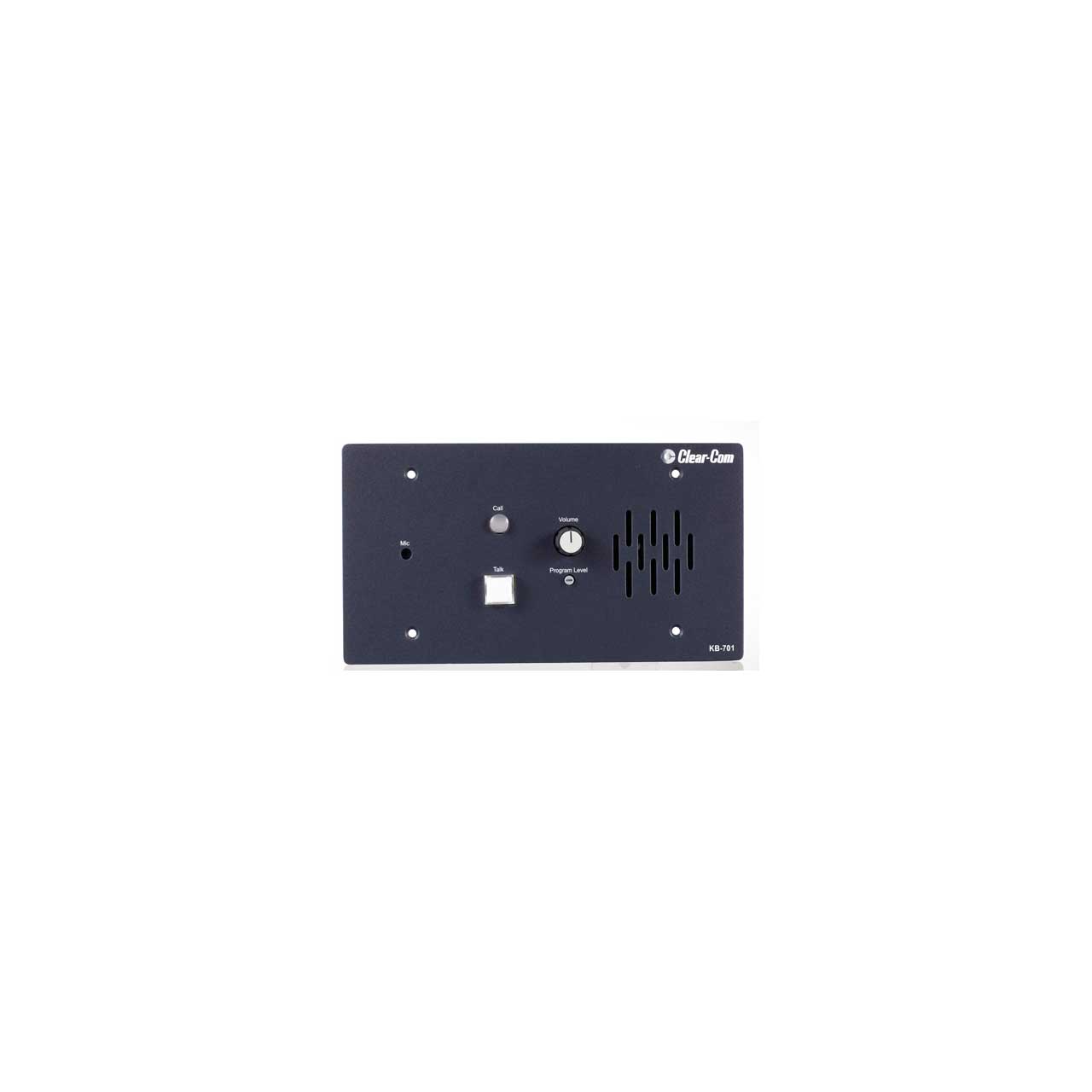

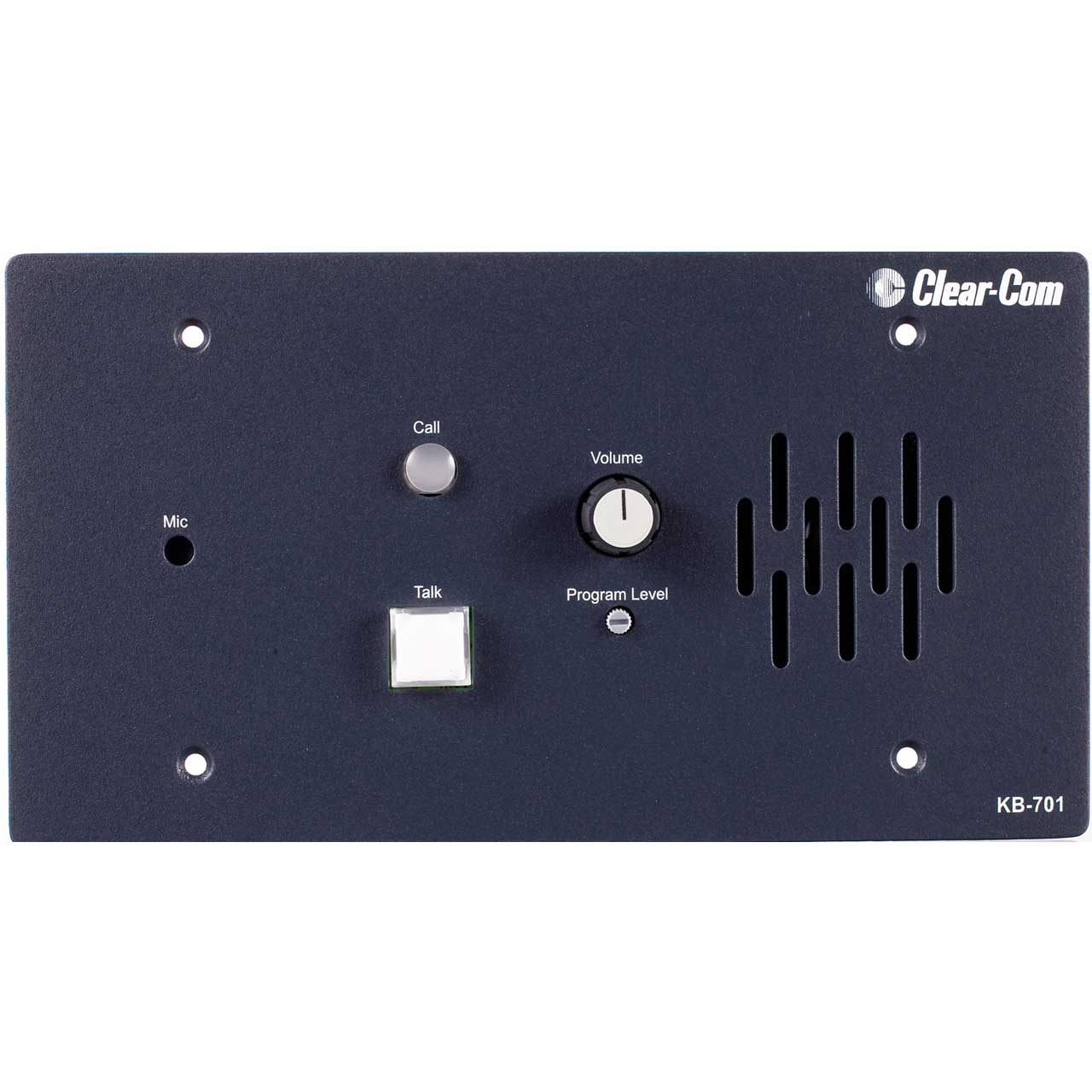

Clear-Com KB-701 Encore Intercom System Single Channel Speaker Station

ITEM #: KB-701 MFG #: KB-701

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    KB-701 - Overview

    The Clear-Com KB-701 Encore Intercom System Speaker Station is designed for use in theatres, live performances, industrial environments, and small television facilities. It features speech intelligibility, even at high-noise levels, and can be customized through its programmable options. Local or remotely controlled talking or listening is selectable and allows either hands-on or hands-free operation. The talk button operates in momentary mode. The integral microphone and speaker offer half-duplex communication.

    The KB-701 offers both visual and audible call signaling to attract the attention of operators. A balanced program input allows the monitoring of external audio through the speaker. This program input can also be used as a paging function. The integral speaker's volume level can be adjusted using a front-panel knob. An internal control allows setting a minimum speaker level. An automatic speaker switching circuit will quiet the speaker when the talk button is activated.

    The KB-701 receives power from the Clear-Com intercom line. The unit mounts either in a standard four-gang electrical outlet box or in an optional Clear-Com V-Box. The extra-thick front panel and compact surface-mount circuitry maintains Clear-Com ruggedness. The intercom channel connects to a plug-on-screw terminal strip. Male and female three-pin XLR connectors are provided on the optional V-Box to offer a through connection to the intercom channel.

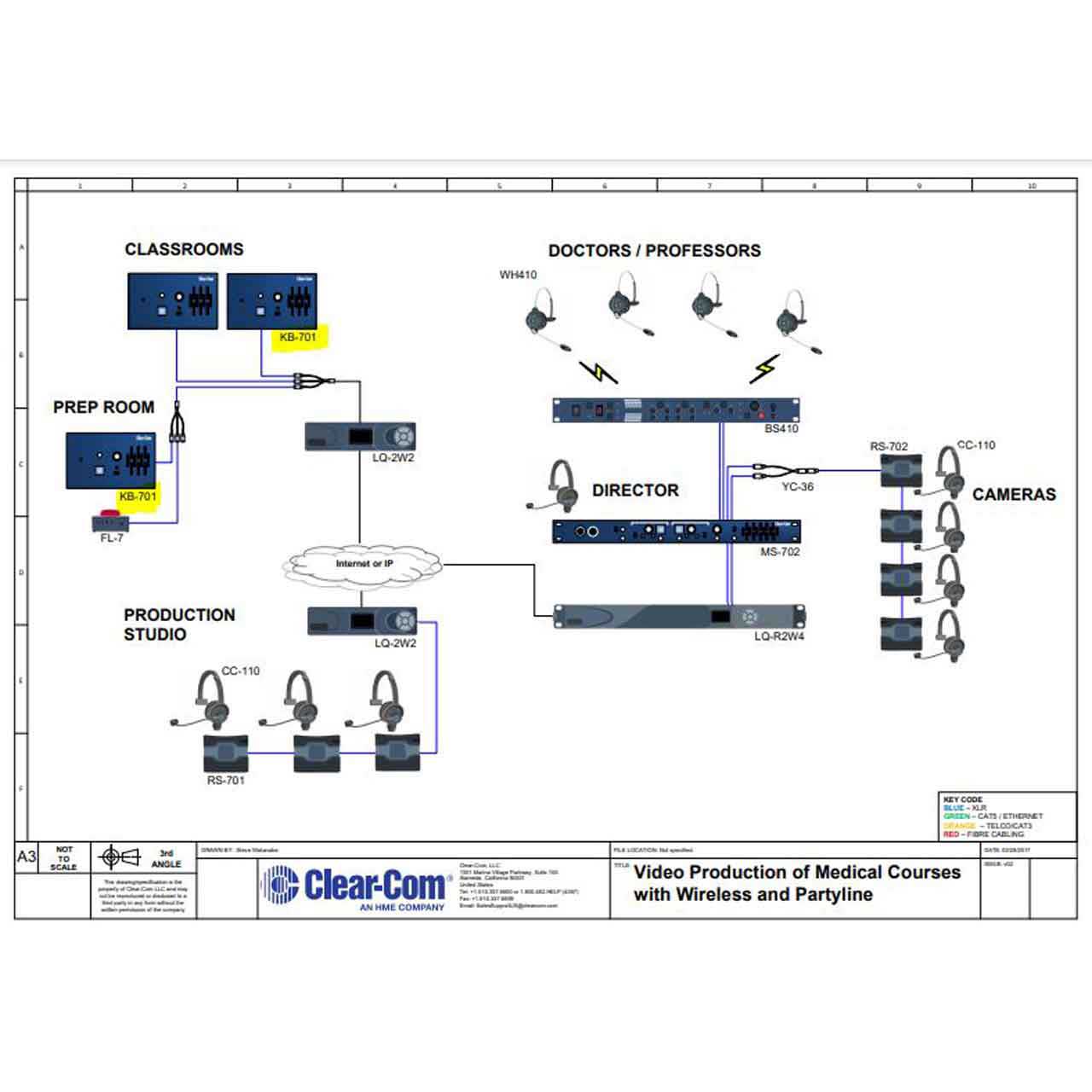

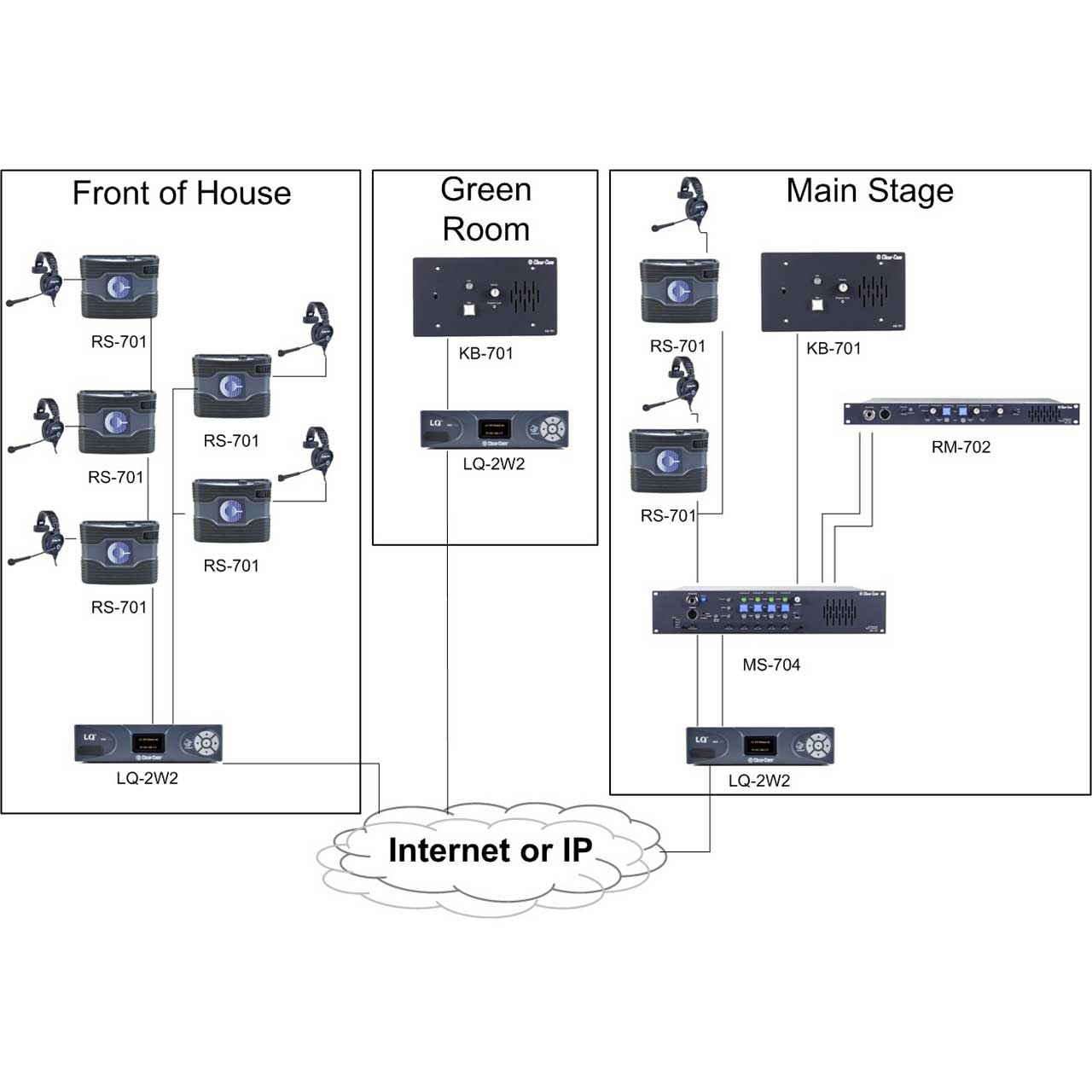

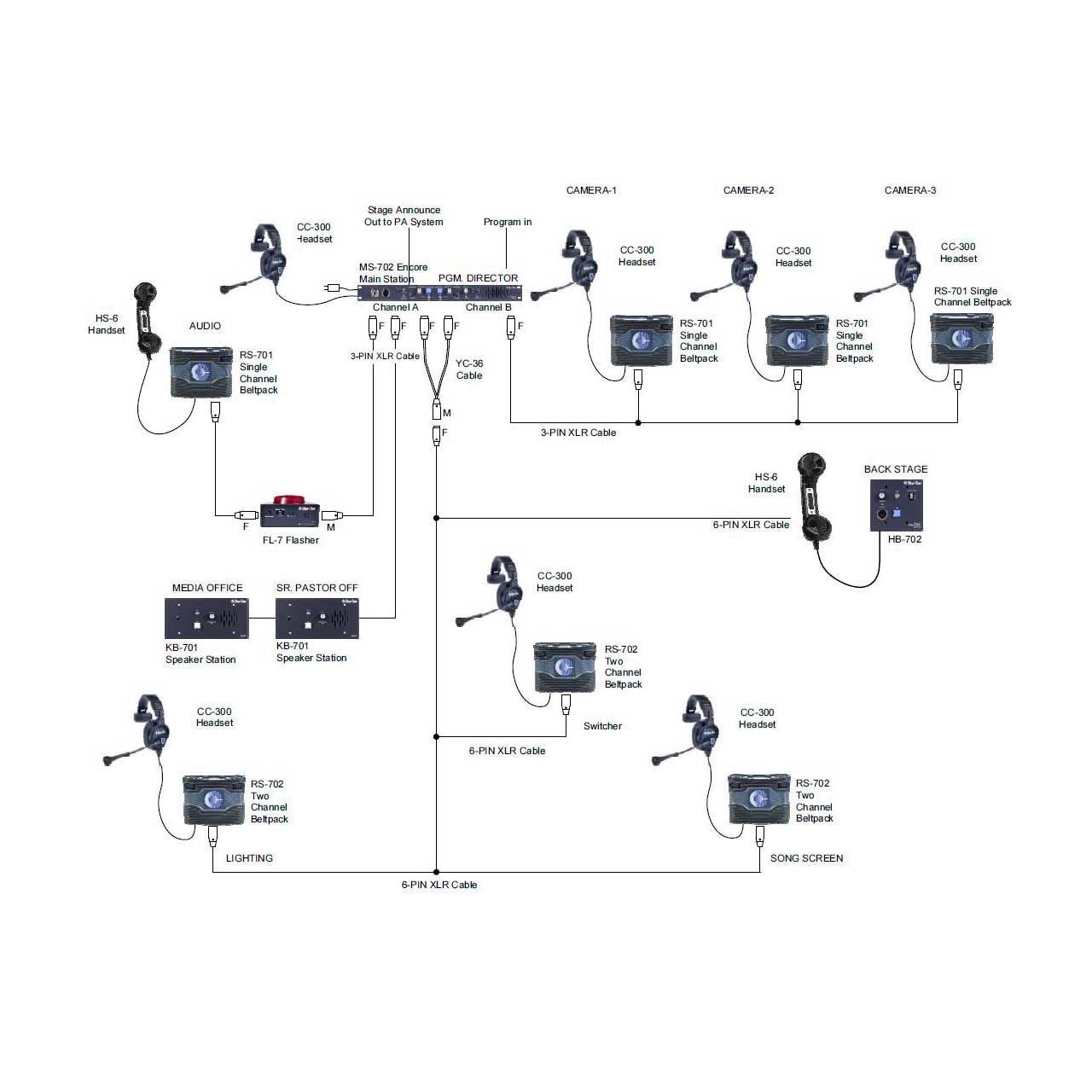

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.

    • Features:

      • Single-Channel Remote Speaker Station
      • Half-duplex, push-to-talk functionality
      • Four modes of operation that are internally programmable
      • Microprocessor controlled logic and switching
      • Balanced local program input with separate level control
      • Visual and audible call signaling
      • Optional 4-wire daughter board for flexibility
      • Wall or console mountable, or optional V-Box for portable or desktop use
      • Built-in speaker
    • Specifications:

      • Program Line Input
      • Maximum Level before Clipping: >= 20dBu
      • Input Impedance: >= 5K

        Speaker Output
      • Load Impedance: >= 4
      • Max Output Level before 1% Distortion: 20dBu ± 2dBu

        Partyline Output
      • O Noise: < -74dBu
      • Output Impedance: >10K

        Partyline Input
      • Crosstalk: < -60dB
      • Max level before Clipping: >= 12dBu

        Frequency Response
      • Program Input - Speaker Out: 200 - 18kHz ± 3dB
      • Partyline- Speaker Out: 200 - 18kHz ± 3dB

        Max Distortion
      • Program Input - Speaker Out: <= 0.5%
      • Partyline- Speaker Out: <= 0.5%

      • Program Input - Speaker Out: < -60dBu
      • Partyline- Speaker Out: < -50dBu

        Max Gain
      • Program Input - Speaker Out: >= 24dB
      • Partyline- Speaker Out: >= 40dB

      • Input Voltage Range: 20-30V DC
      • Input Current (Idle): <= 90mA
      • Input Current (Max): <=110mA

        Internal Connectors and Jumpers
      • Intercom: Line Five terminal connector
      • Program Input: Three terminal connector
      • Option Switches: Three DIP switches

      • 32 - 122o F (0 - 50o C)
