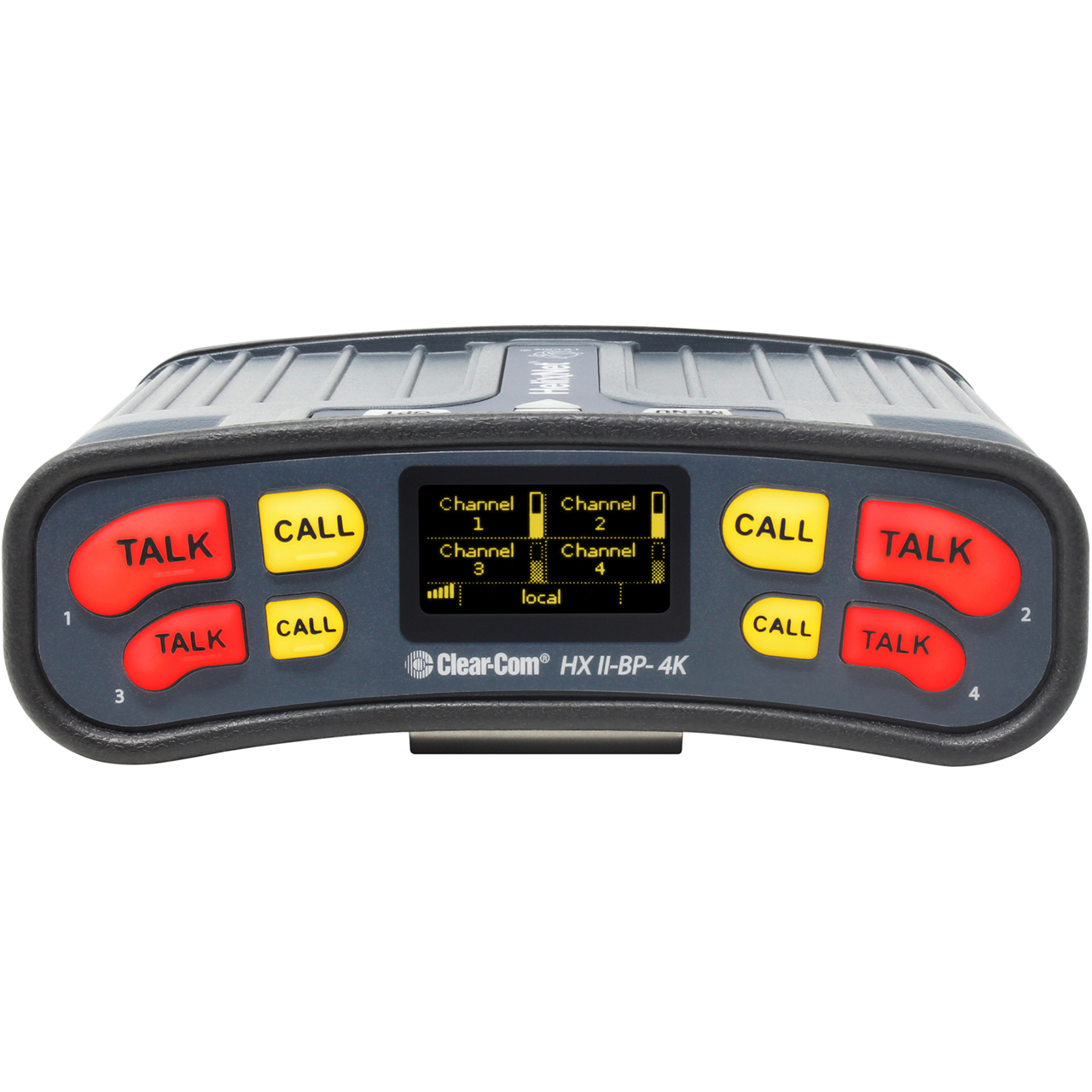

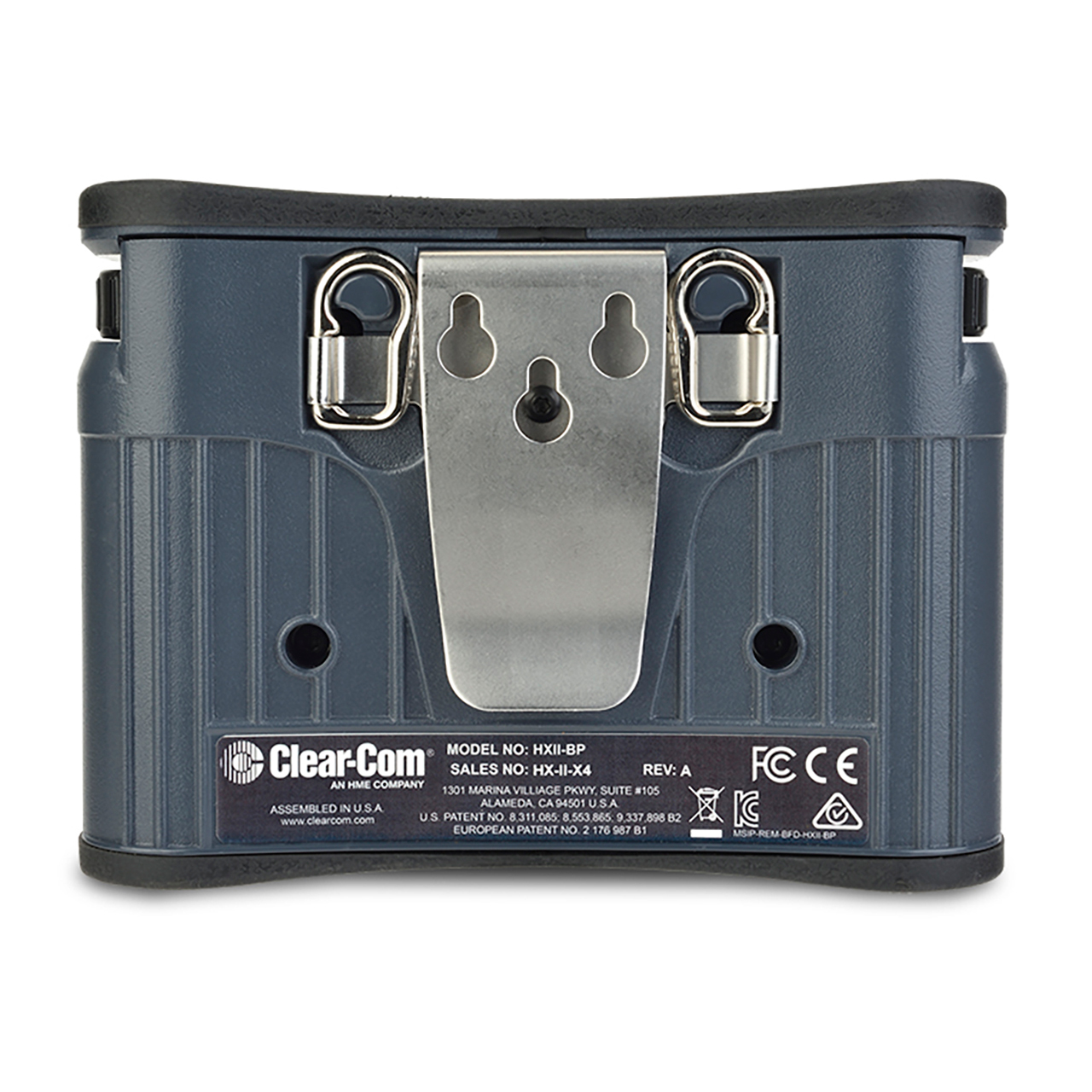

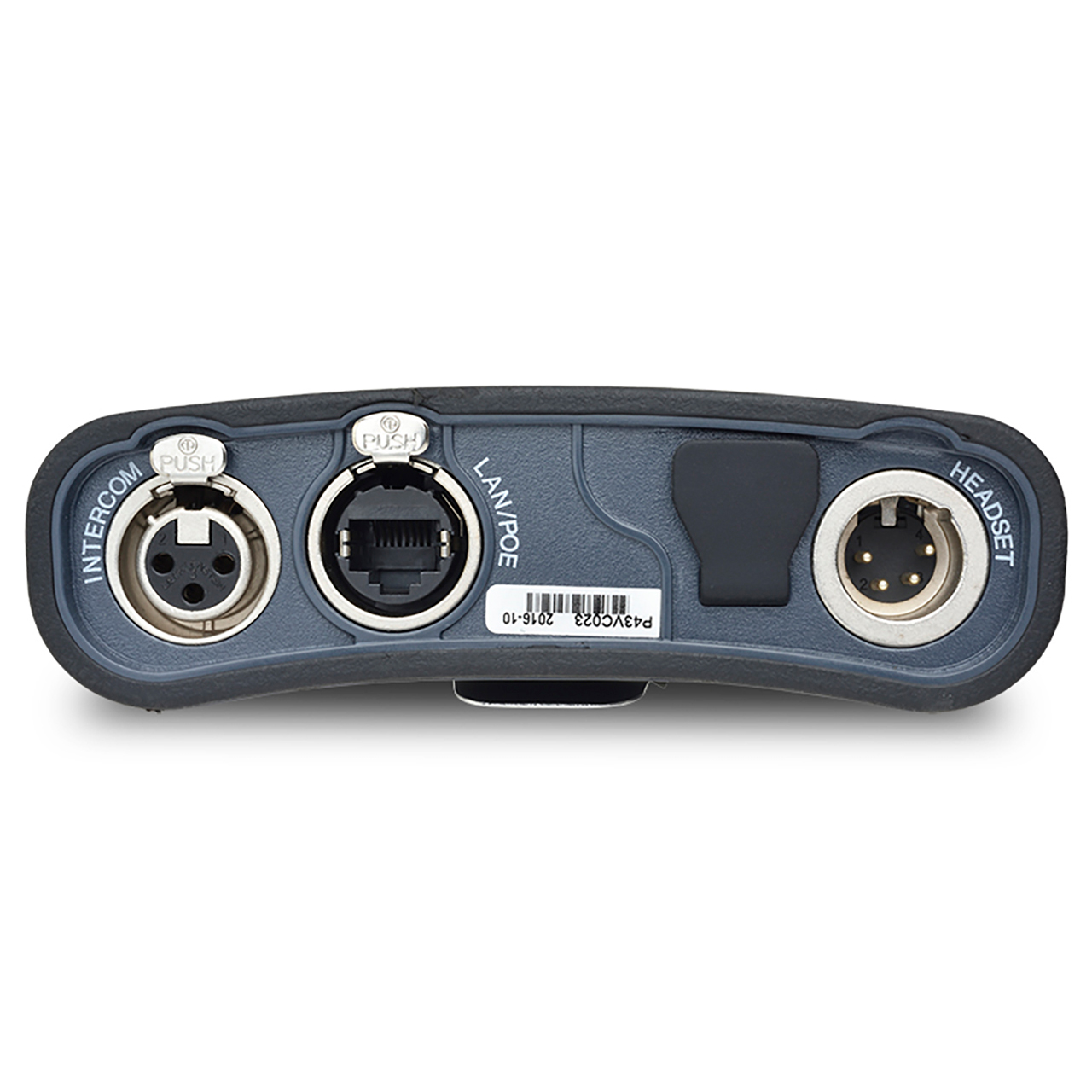

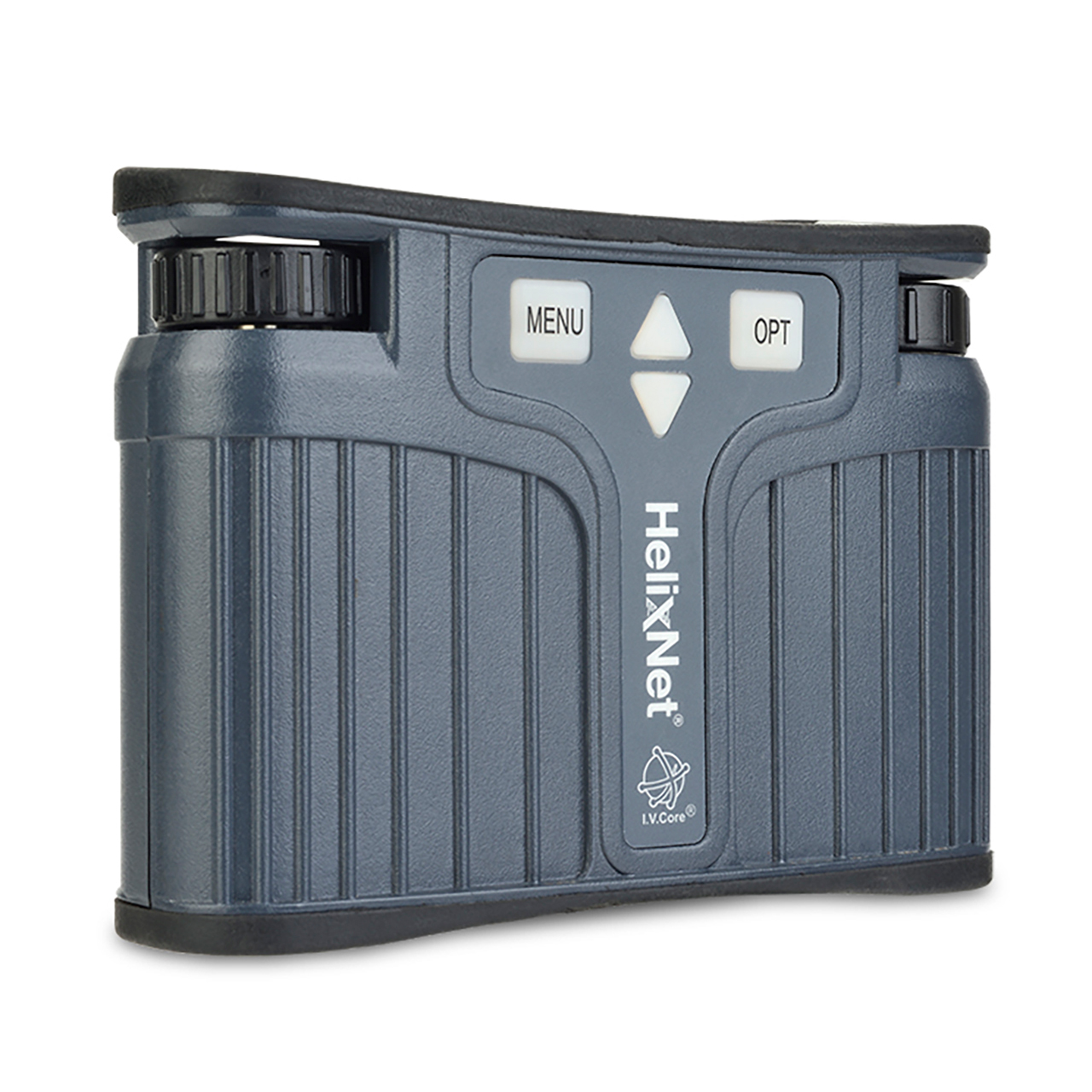

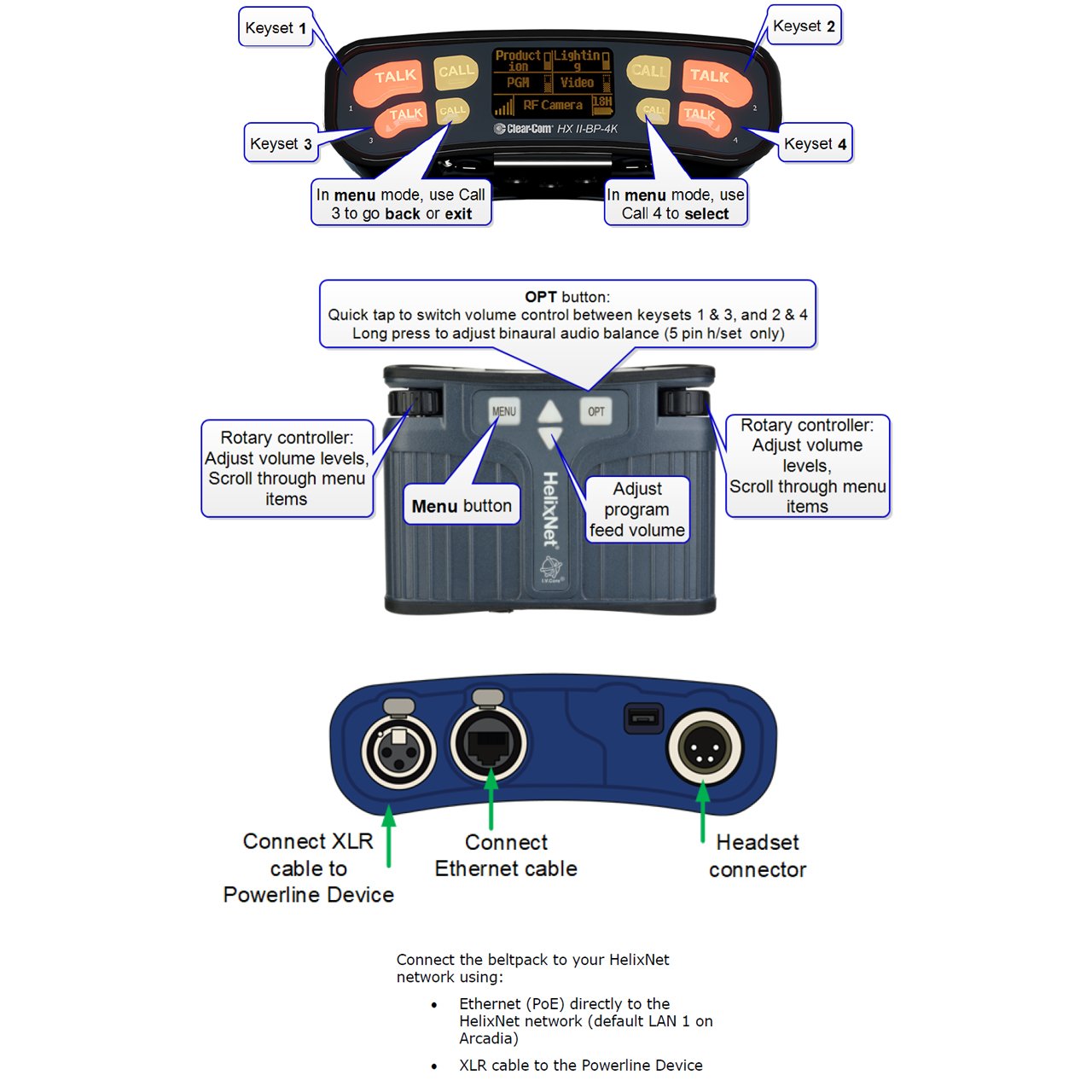

Clear-Com HelixNet HXII-BP-4K is a best-in-class multi-channel duplex digital intercom beltpack extending the capabilities of the HelixNet product family with the addition of a 4-key beltpack that works with existing HelixNet systems running on HMS-4X, and Arcadia. The HelixNet beltpack is a four-channel and program audio intercom user station hosted by Arcadia® Central Station or legacy HelixNet HMS-4X main station in a two-channel compatibility mode. The beltpack connects to the intercom system and via PoE Ethernet or XLR Powerline.
The HelixNet® family of wired partyline intercom user stations and interfaces delivers the intuitive and familiar workflows of Clear-Com's analog partyline in a fully networked intercom system. Built on Clear-Com's heritage and experience with elegantly simple and easy-to-use analog partyline systems, HelixNet is a next-generation partyline intercom system for users requiring fast system setups, effortless management, scalability, and deployment quality. Equally deployable on traditional and modern cabling infrastructure without interference from crosstalk between channels, noise, or buzzes.
Please Note: For Powerline splitting, the following must be ordered:
• SP-2 (for daisy chaining)
• SP-3 (for splitting)
Recommended Ethernet Switch Features:
• Managed Ethernet Switch
• 100/1000 Base-T Ports
• 1000 Base IP Switch Trunks
• QoS configuration
• Energy Efficient Ethernet bypass option
• IGMP Snooping bypass option
