Clear-Com CC-220-X4 Premium Lightweight Double On Ear Intercom Headset - Field Removable Four-pin Female XLR

ITEM #: CLCM-CC-220-X4 MFG #: CC-220-X4

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$315.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    CC-220-X4 - Overview

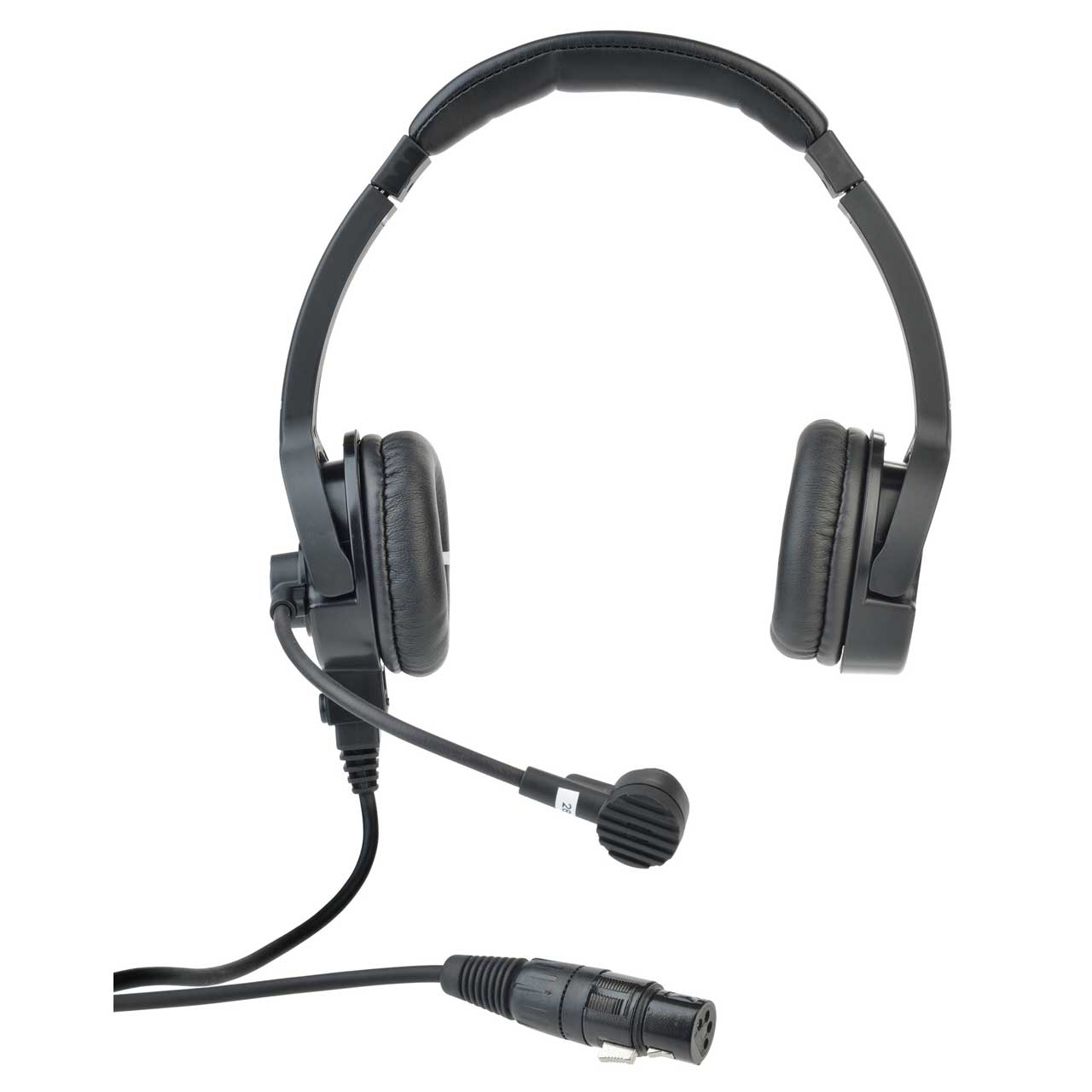

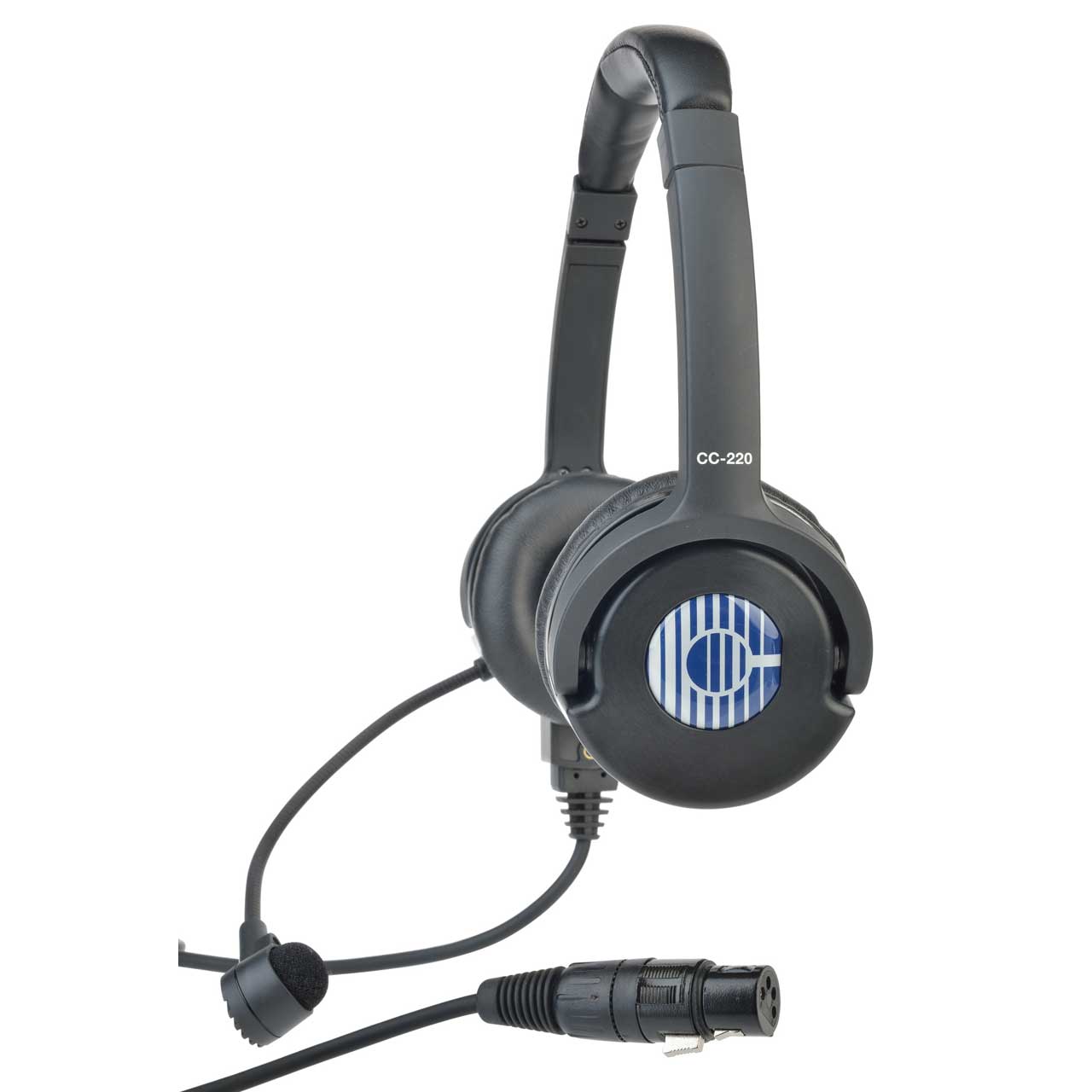

    The Clear-Com CC-220-X4 is a Premium Lightweight Double On Ear Intercom Headset with a Field Removable Four-pin Female XLR for FreeSpeak and HelixNet Beltpacks. The CC-220 headset can be easily adjusted to accommodate the preference of any user. The microphone boom has a 300° rotation to allow the microphone to be worn on the left or right side of the head. Users can make the headset larger or smaller by using the slide adjusts on either side of the headband. Cushioned with super-soft leatherette or foam padding, the headphones sit on the ear to provide a comfortable fit for users. A rotating, flexible gooseneck is included for optimal positioning.

    Integrated Mute Switch Operation
    The CC-200 headset microphones can be turned on and off by simply moving the microphone boom! To turn ON the microphone, pull the boom gently downwards (past the 10 o'clock/2 o'clock position). To turn the microphone OFF, push the boom gently upwards (above the 10 o'clock/2 o'clock position).

    Interchangeable Cabling
    The CC-220 headsets have been designed so that the cabling and connector type can be adapted quickly to the application. Users can order cables with different XLR connector choices and appropriate pin-outs. To change the connector cable in the field, simply disconnect the cable from the headset and exchange the cable with a standard Phillips screwdriver. The same process can be used to repair and replace a damaged cable on the fly.

    • Features:

      • Double-ear premium light-weight headset
      • High quality dynamic cardioid microphone
      • 20Hz -20KHz frequency response
      • Choice of earpads: leatherette or foam
      • Flexible gooseneck microphone positioning
      • Boom rotation ON/OFF switch for quick microphone muting
      • Interchangable cabling for easy connector changing and repair
      • Fully serviceable headset
      • Rugged design

    • Specifications:

      • Headphone
      • Type: Closed-back
      • Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
      • Frequency Response: 20Hz - 20kHz

        Microphone
      • Element: Dynamic
      • Driver: 15mm, neodymium magnet
      • Polar Pattern: Cardioid
      • Frequency Response: 250Hz - 20kHz

        Sensitivity
      • Open Circuit Sensitivity: -64 dB ±3.5 dB; at 1kHz, typical
      • 99 dB ±3 dB (SPL); at 1kHz typical

        Power
      • Maximum: 500mW
      • Impedance: 400 ohms ±30%; at 1kHz typical

        Connector
      • Cable: 5ft (1.55m) long with 8-pin connector at
      • headset end; 4-pin Female XLR

        Dimensions
      • Packaging for CC-220: 6.7 x 8 x 3.5 in (WxHxD) (170 x 205 x 90 mm)

        Weight
      • 6.8 oz (195g) without 8-pin cable assembly and M3*18mm SCREW

    • GTIN:

      0657248931551
