HXII-BP-4K-X5 - Overview

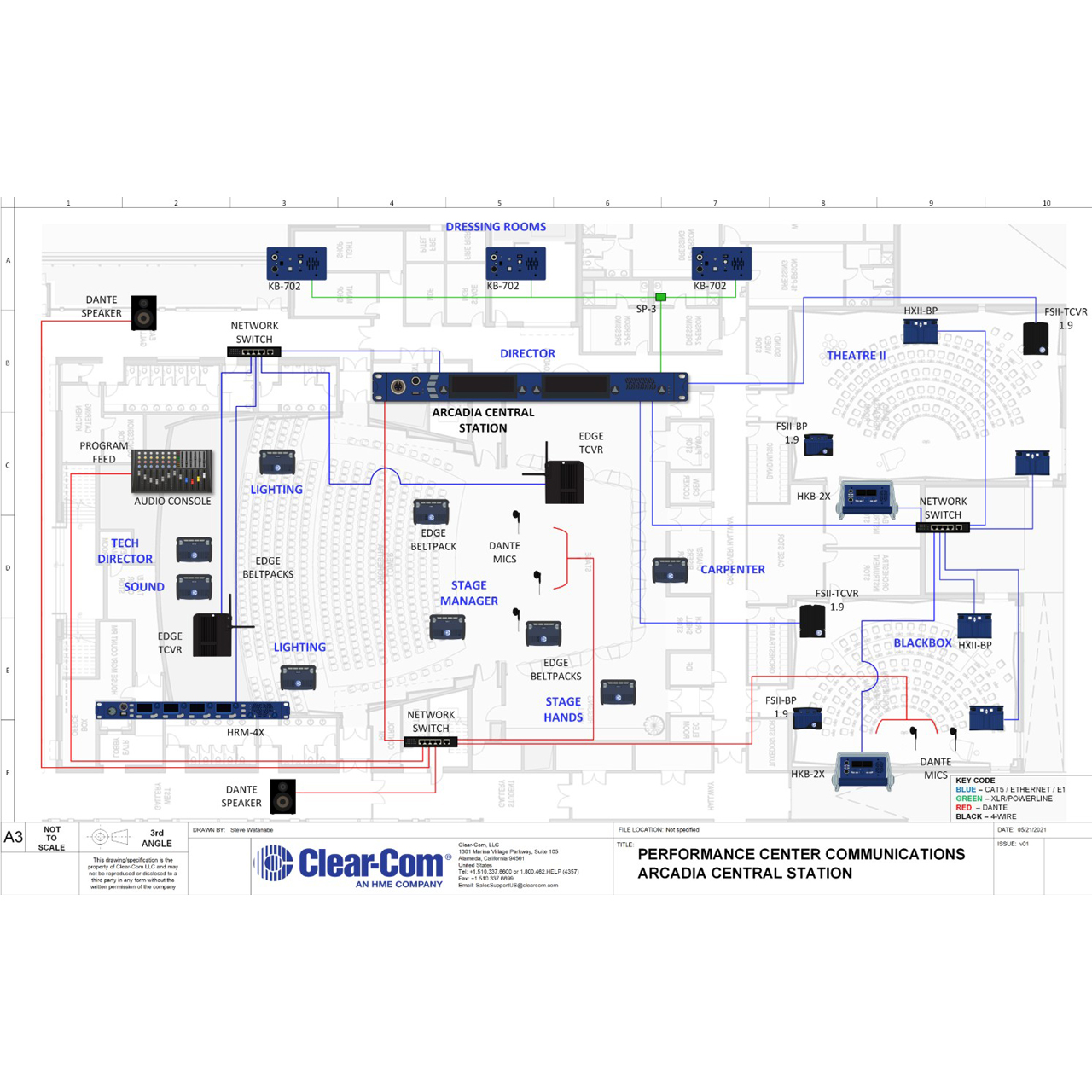

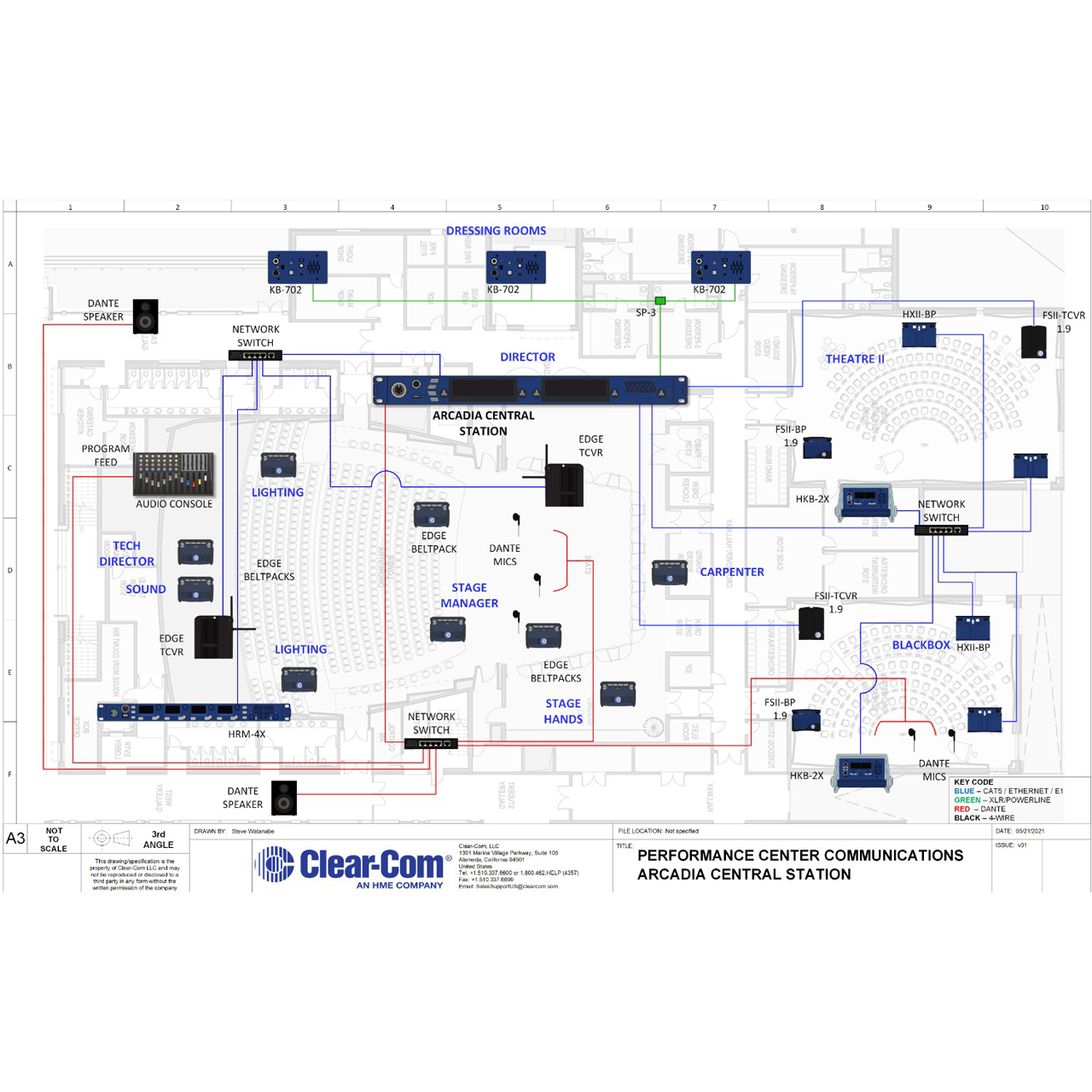

The ClearCom HelixNet HXII-BP-4K-X5 beltpack is a four-channel and program audio intercom user station hosted by Arcadia Central Station or legacy HelixNet HMS-4X main station in a two-channel compatibility mode. The beltpack connects to the intercom system and via PoE Ethernet or XLR Powerline. HelixNet is a networked partyline intercom, with up to 24 channels of full-duplex audio and program audio over any shielded twisted-pair or CAT-5/6 cable.

HelixNet System Hosts
Arcadia: Supports up to 128 HelixNet User Stations over Ethernet or Powerline via HXIIDPL. Up to 24 channels can be HelixNet enabled using a Licensed Port for assignment to any HelixNet User Station keyset.

HMS-4X: Supports up to 64 endpoints (Remote Stations, Speaker Stations, Beltpacks, HLI-2W2, HLI-4W2, LQ port). User stations can connect directly to the 2 HMS-4X or via optional HLI-ET2 module using HXII-DPL or 3rd party network switch connection. HMS-4X allows use of 12 channels which can be expanded to 24 using optional license.

Features:

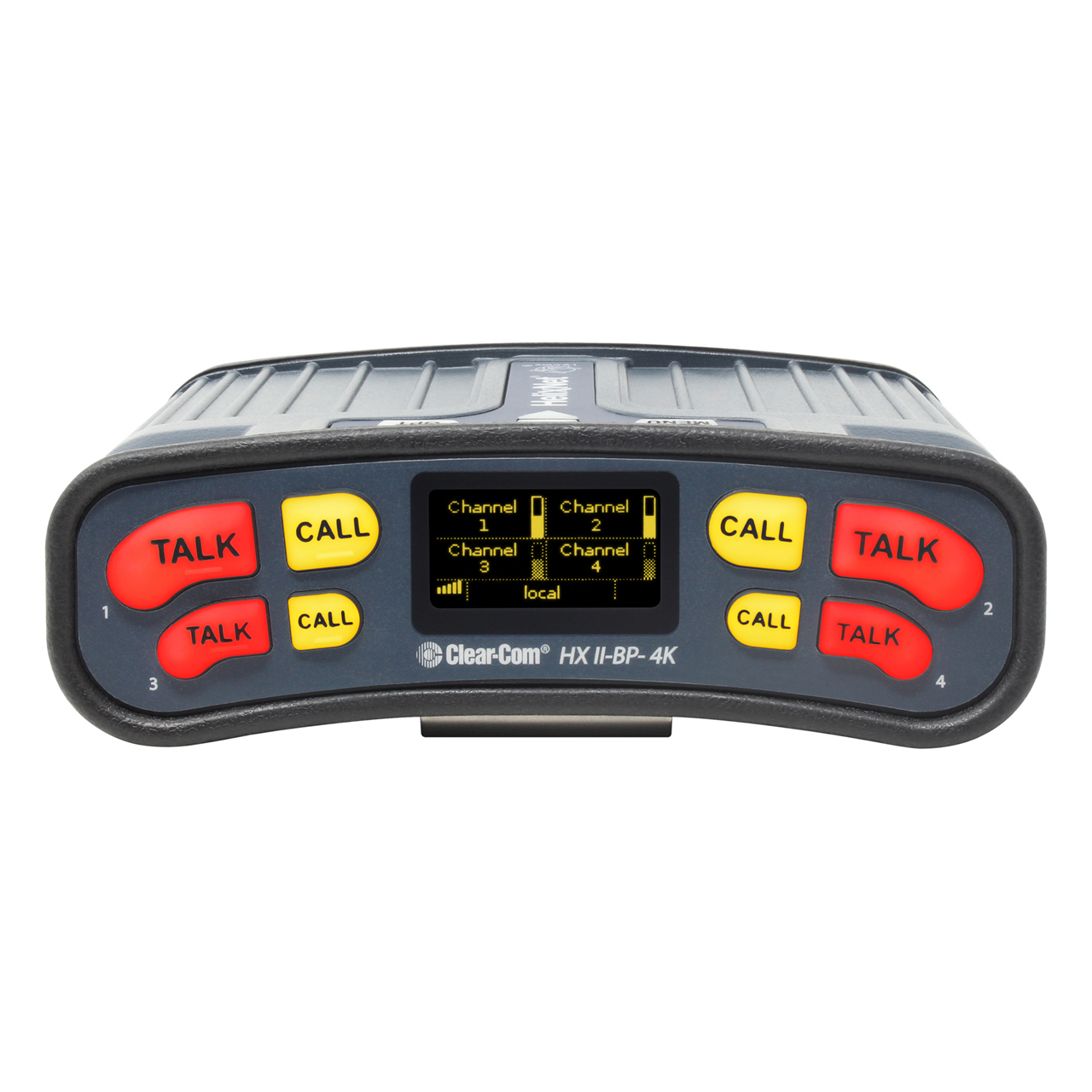

- Easy to use front panel with OLED display & backlit keys
- 4 Keysets assignable to channels
- Stacked keys allow unique combination of channels
- Independent Program Audio control
- USB call signal flasher
- Binaural controls on HXII-BP-4K
- 2 Keyset mode for use with legacy HMS-4
- Ethernet Network port with PoE
- Powerline via XLR cable
- Multiple mounting options
- Rugged, lightweight polycarbonate enclosure
- IP53 environmental rating
- Easy to use CCM browser configuration
- Fast front panel control & configuration
- Central discovery & pairing on Arcadia
- Plug-and-go powerline option
- Central firmware upgrades from host

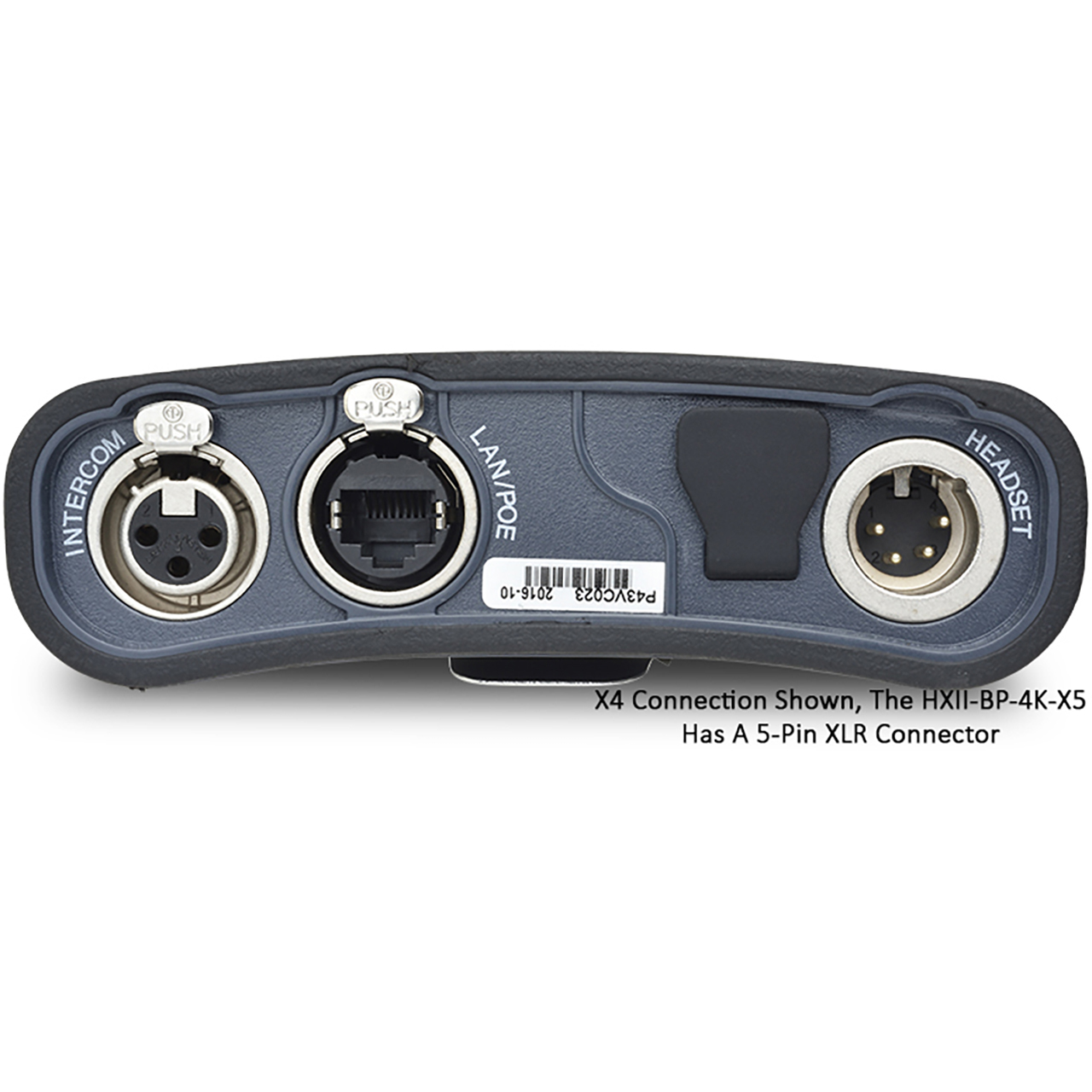

Specifications:
- Intercom Line: 3-pin XLR-F
- LAN/PoE: RJ45 etherCON
- Headset: 4-pin XLR-M (-X4) or 5-pin XLR-F (-X5)
- USB: Micro AB

  Microphone Pre-Amplifier
- Headset Mic Impedance: 200Ω (Dynamic)
- Headset Mic Voltage: 1.7V (Electret selectable)
- Limiter: +23dB

  Route to 4-wire Output at 0dBu Out
- Mic Gain: 60dB (Dynamic), 45dB (Electret)
- Frequency Response: 300Hz - 10kHz ±3dB contoured for intelligibility
- Distortion: <0.2% THD @ 1kHz
- Noise: <-55dBu (Dynamic), <-65dBu (Electret)

  Headphone Amplifier
- Load Impedance: >32Ω
- Output Level: +12dBu before clipping
- Sidetone: -12dB (selectable)

  Route from a 4-wire Input at 0dBu In
- Max Gain: 0dB
- Frequency Response: 40Hz - 10kHz ±3dB
- Distortion: <0.2% THD @ 1kHz
- Noise: -65dBu
- Headphone Limiter: 0dB (selectable)

  Device Power
- Voltage: 30V - 60V DC
- Current (Max): 0.09A
- Power (Max): 4W
- BTU (Max): 13BTU/hr

  Power
- PoE - Power over Ethernet: IEEE 802.3af-2003 - Class 1
- PSE: 4.0W DC max @ Power Source Req
- PD: 3.84W DC max @ Powered Device Draw

  Powerline
- Input Voltage: ±29.5V DC
- Input Current (Max): 0.13A
