Clear-Com PRC2-21 UHF IFB Beltpack Receiver Frequency Block 21

ITEM #: CLCM-PRC2-21 MFG #: PRC2-21

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CLCM-PRC2-21

PRC2-21 - Overview

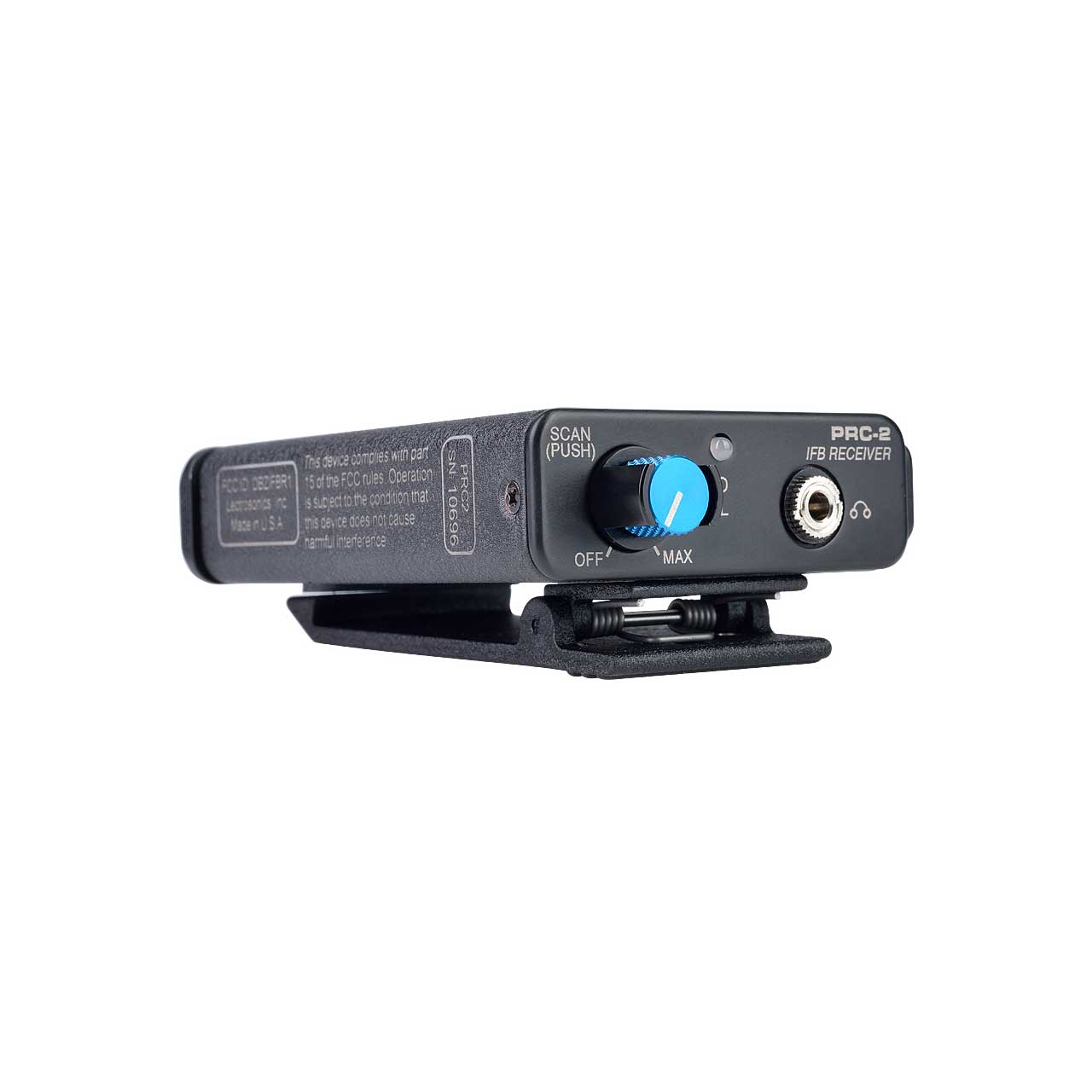

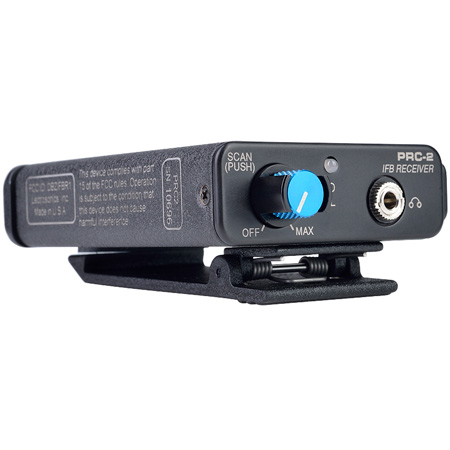

Clear-Com PRC2-21 is a UHF wireless IFB receiver beltpack. Operate between 486.4 and 639.9MHz. Preset (default) frequency can be set without power or transmitter signal. Frequency agile with 256 frequencies. Scan mode stores up to five additional frequencies.

  • Features:

    • UHF Wireless IFB Receiver Beltpack
    • Operate between 486.4 and 639.9MHz
    • Preset (default) frequency can be set without power or transmitter signal
    • Frequency agile with 256 frequencies
    • Scan mode stores up to five additional frequencies
    • High sensitivity for extended operating range indoors or outdoors
    • 8 hours battery life (alkaline)
    • 20 hours battery life (lithium)
    • NOTE: This product is not approved for sale in Europe.

  • Specifications:

    • Operating Frequencies
    • 486.4 to 639.9 MHz
    • Block 21: 537.6 to 563.1 MHz
    • Frequency control: Crystal Controlled PLL Sensitivity: 1 uv (20 dB SINAD)
    • Signal/Noise ratio: 95 dB A-weighted
    • Squelch quieting: 90 dB
    • AM rejection: 50 dB, 10 uV to 100 mV Modulation acceptance: ±20 kHz

      Spurious Rejection
    • Greater than 70 dB
    • Third order intercept: 0 dBm
    • Frequency response: 100 Hz to 10 kHz, (±1db)
    • Pilot tone: 29.997 kHz, 4.5 kHz deviation (fixed crystal controlled)
    • Audio output: 1V RMS into 50 Ohms minimum
    • Antenna: Headphone cable
    • Programmable memory: Switches set default frequency; up to five additional frequencies can be stored in memory

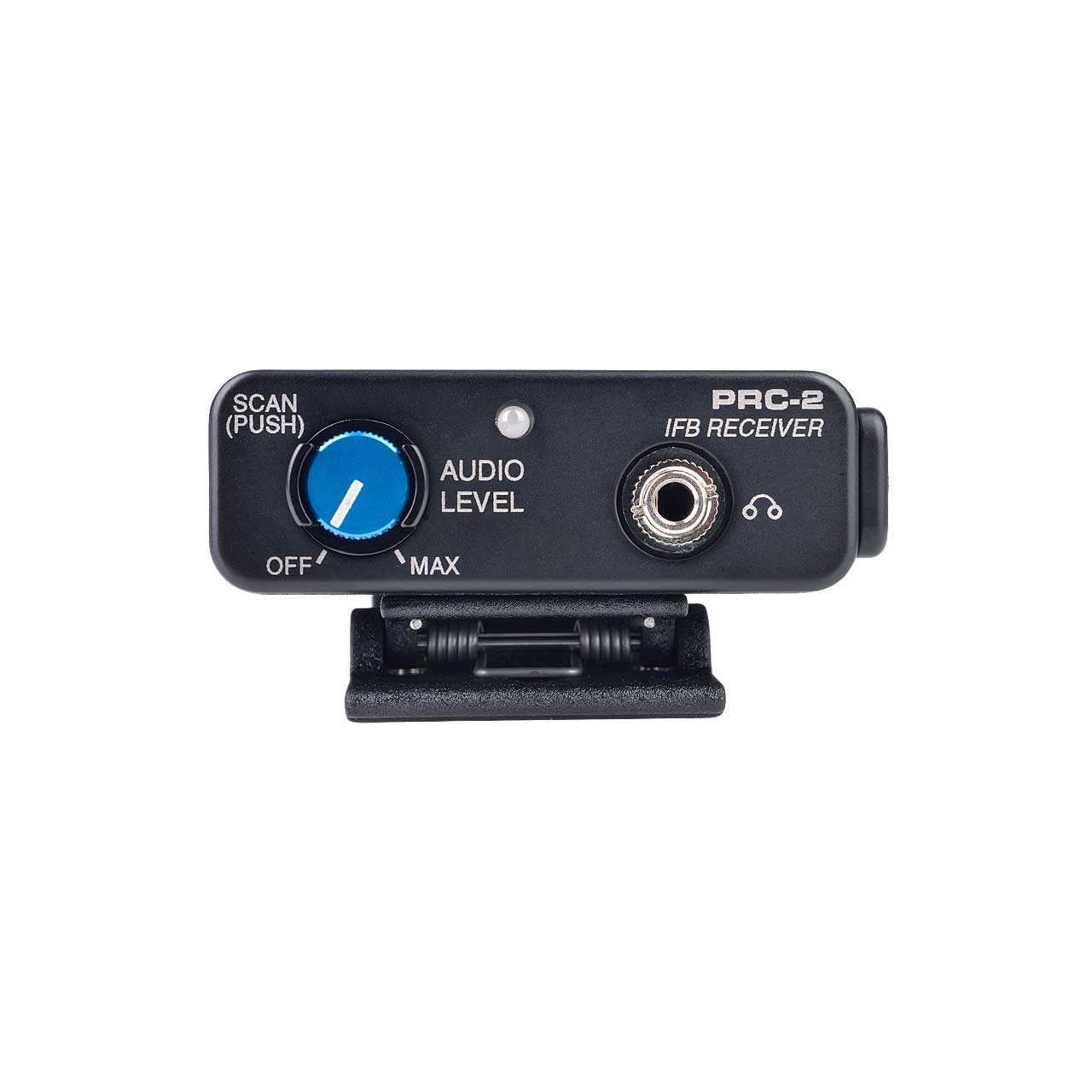

    • Front panel controls: Single knob controls Audio Output Level, Power on, programming and Scan Frequency Selection
    • Indicators: Multi-color LED indicator for power on and battery status. Blinks to indicate channel number and during scanning.

      Power Requirement
    • 9V alkaline battery lasts about 8 hours
    • 9V lithium battery lasts about 20 hours
    • Power consumption: 60 mA
    • Weight: 7.3oz with battery
    • Size: 3.6 x 2.4 x 0.8" (housing only) (belt clip and knob extend beyond the housing)
