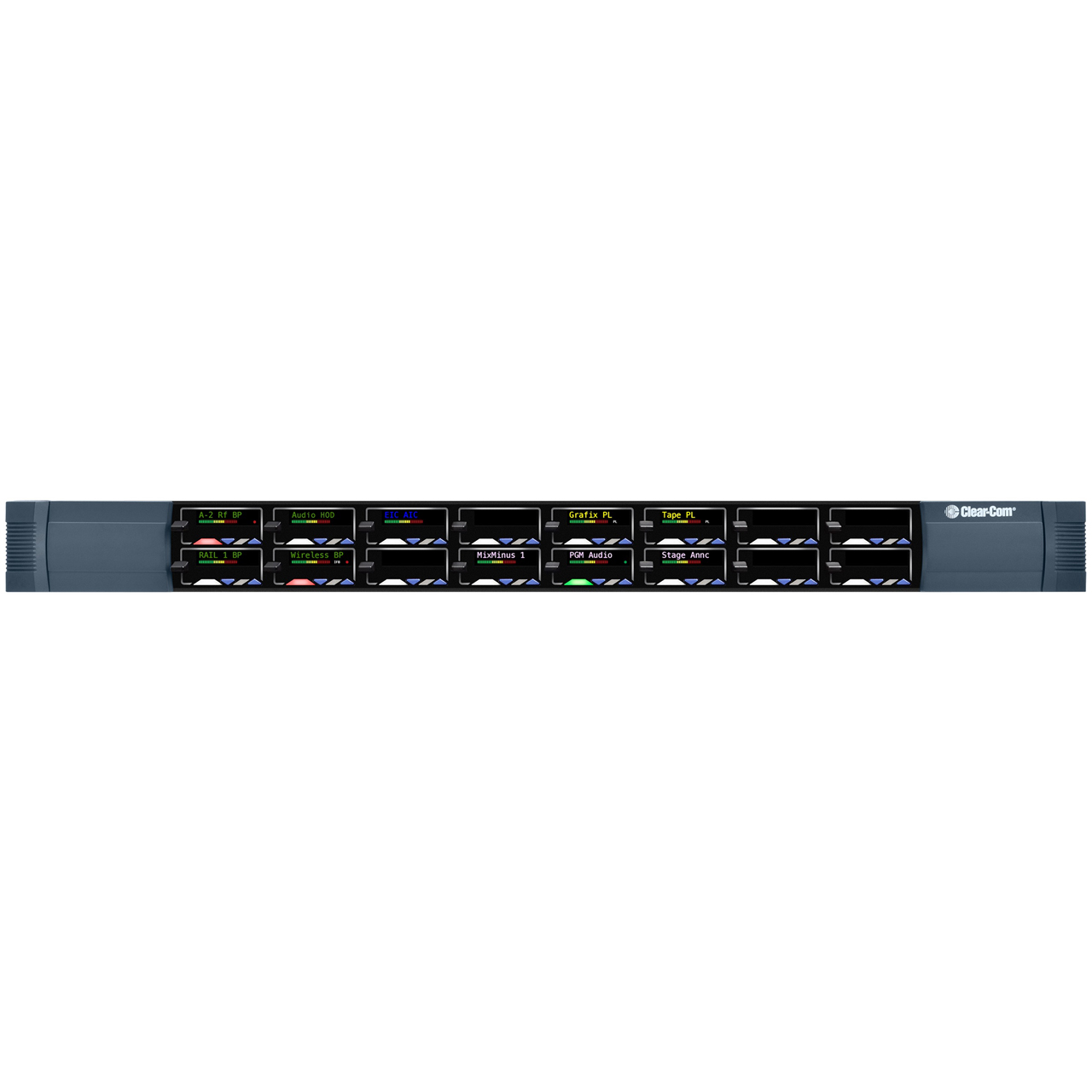

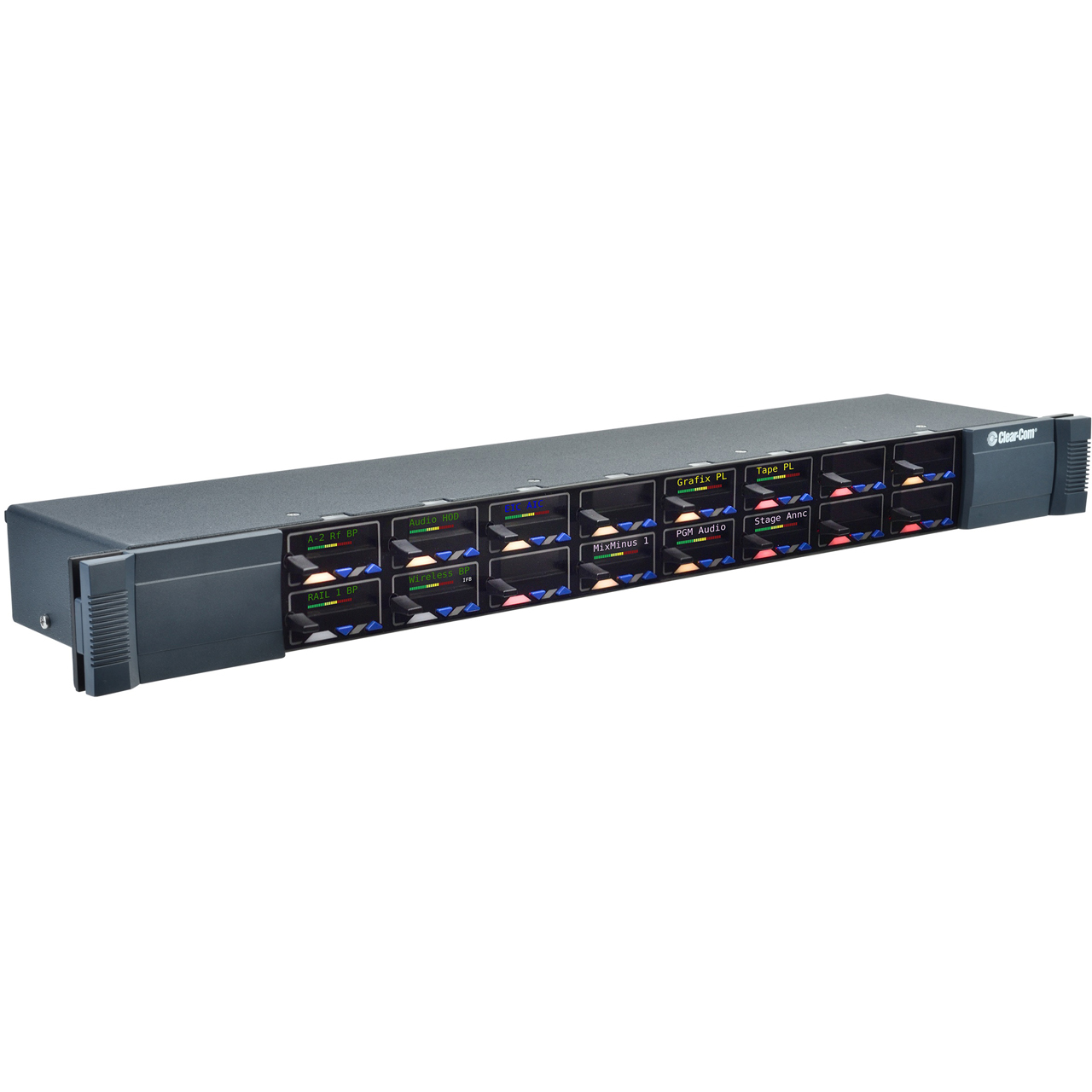

Clear-Com VI-EXPB-16L V-Series IrisX Lever 1RU 16-Key Intercom Expansion Panel with 4-Pin XLR Male Headset Connector

VI-EXPB-16L-X4 - Overview

• Features:

  • Keypanel
    - Rotary, Lever, or Pushbutton
    - 12, 24, 32 Keysets with Level control
    - 10 Character High Brightness Color Display with volume bar and a tally light
    - Headset or hands-free support with speaker and mic
  • Connectivity - Local
    - External Inputs & Outputs
    - Second Headset
    - Hot Mic Output
    - Main Line Level Output
    - Logic GPIO
  • Connectivity - System
    - Local Networks - AES67 Capable Networks
    - Global Network - I.V. Port
    - Redundant Networks2 - 2022-73
    - Direct Connection2 - Eclipse MVX
  • Eclipse Digital Matrix System
    - Channel, Group, IFB, Role, Interface, Sort Group, Dynam-EC Key Group, Control, Telephone
    - Separate Talk/Listen Key Assignment
    - Key Stacking
    - Shift Pages
    - Local Mixer with Adjustable Routing, Filters, Dynamics & Remote IFB Controls
    - Hosted IP Direct Ports
    - Expansion Panels
    - Latin (vertical or horizontal), Cyrillic, Hangul, Kanji, Katakana and Arabic fonts
    - Fast Key & Local Assignments
    - Listen Again

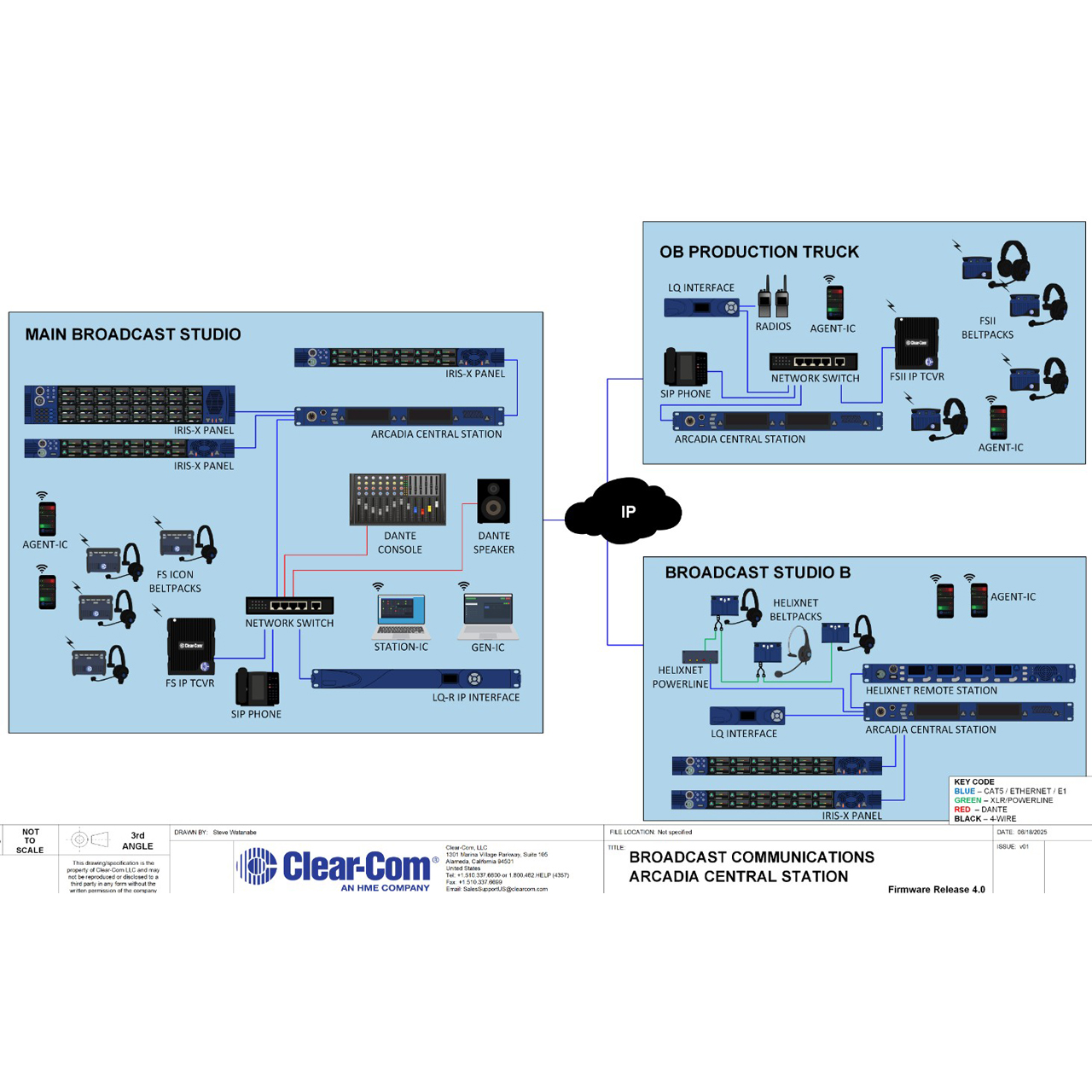

  • Arcadia Central Station - Essential
    - Channel, Group, IFB**, Role, Interface
    - Combined Talk/Listen Key Assignment
    - Single Page
    - Second Headset Listen
    - Local Mixer with Fixed Configuration
    - Listen Again


• Specifications:

  Keypanel
  • Headset: 4-pin XLR-M
  • Gooseneck Mic: 3-pin Tuchel
  • Auxiliary Audio: 1x DB25M (Headset 2, External I/O 1 & 2, Main Out, Hot Mic Out)
  • GPIO: 1x DB25F (4x GPI, 2x GPO)
  • USB: Type A (Front, Rear)
  • LAN: 2x RJ45
  • DC Power Connector: KPJX-4S-S
  • Grounding Screw: Terminal

    Controls and Indicators
  • Front Panel Keypanels:
    - 1x Mic mute Button
    - 1x Headset/Gooseneck Mic Input Select Button
    - 1x Menu Access Button
    - 1x Shift Page Button
    - 1x Main Level Control
    - 1x Aux Level Control

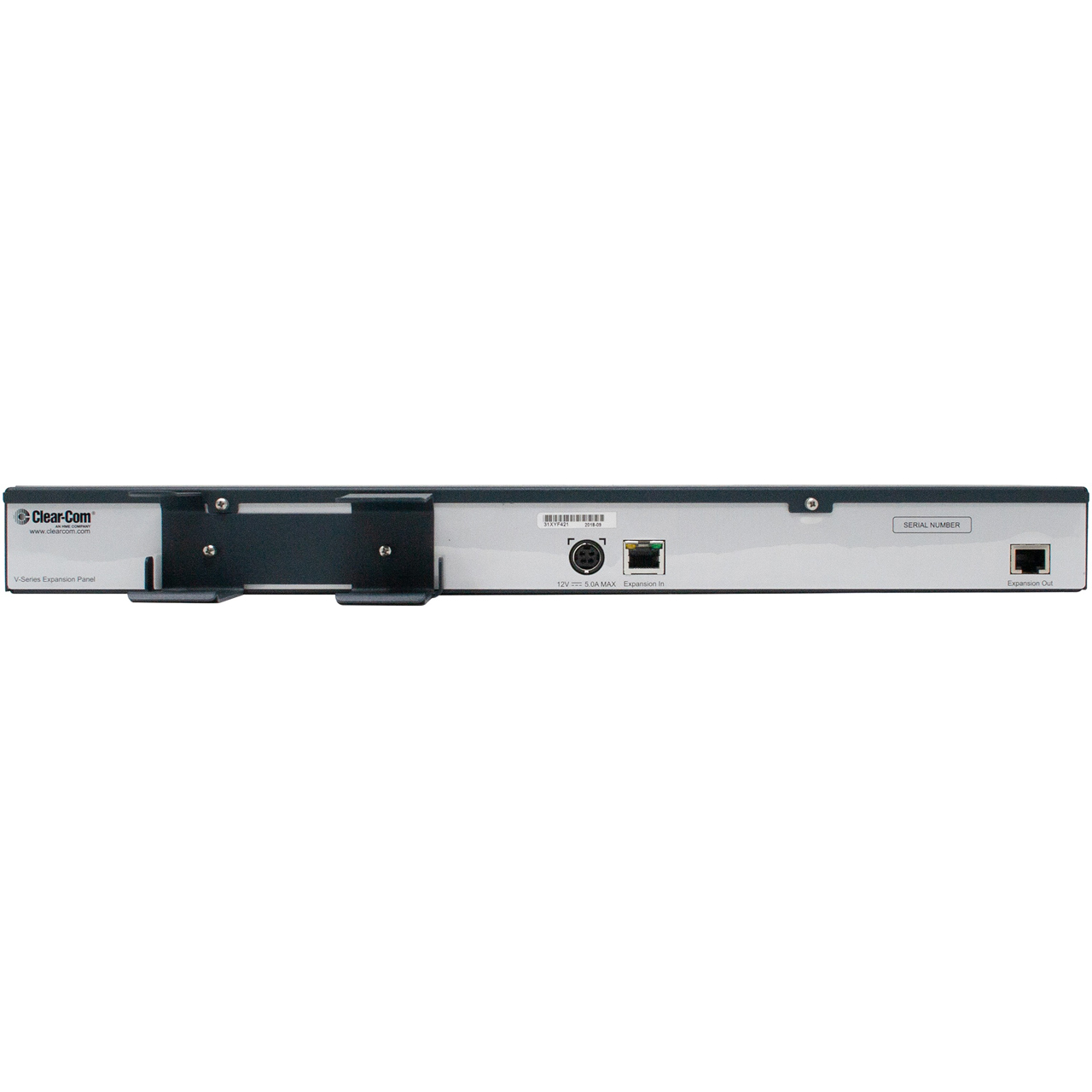

  • Rear Panel Keypanels:
    - 2x LAN RJ45 Link/Activity LEDs

    Microphone
  • Input Type: Dynamic/Electret - Selectable
  • Microphone Voltage: 5V
  • Frequency Response: 150Hz - 20kHz ±3dB
  • Impedance (Electret): 1700Ω ±10%
  • Impedance (Dynamic): 1000Ω ±10%

    Headset
  • Earphone Impedance: >= 32Ω
  • Output: 75mW into 50Ω @ <1% THD

    Loudspeaker
  • Frequency Response: 40Hz - 20kHz ±3dB

    DC Power Input
  • Voltage: 12V DC ±5%
  • Current (Max): 5A
  • Power (Max): 60W
  • BTU (Max): 205 BTU/hr
  • Input Power Connector: KPJX-4S-S

    AC Adapter - Inline:
  • Type: PSU-EXT-002 (supplied)
  • Input Voltage Range: 100V - 240V AC
  • Input Frequency Range: 50 - 60Hz
  • Input Power Connector: IEC-C14
  • Output Voltage: 12V DC ±5%
  • Output Current (Max): 5A
  • Output Power (Max): 60W
  • Output Power Connector: KPPX-4-P
  • Ground: Isolated

    Environmental
  • Operating: 32°F - 113°F (0°C - 45°C)
  • Storage: 32°F - 158°F (0°C - 70°C)
  • Humidity: 20% - 90%, Non-Condensing
  • Dimensions (WxHxD): 19" x 1.76" x 6.59" (483mm x 44mm x 166mm)
  • Weight: 3.5lbs (1.6kg)


• Item Includes:

  • 1x VI-EXPB-16L-X4
