Cleerline SSF-PM100 Optical Power Meter - Calibrated to Measure and Read Optical Wavelengths

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Cleerline SSF-PM100 Optical Power Meter - Calibrated to Measure and Read Optical Wavelengths

    Item #: CLT-SSF-PM100   •   MFG #: SSF-PM100



    List Price:$374.98
    Our Price:$299.98

    free ship


    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

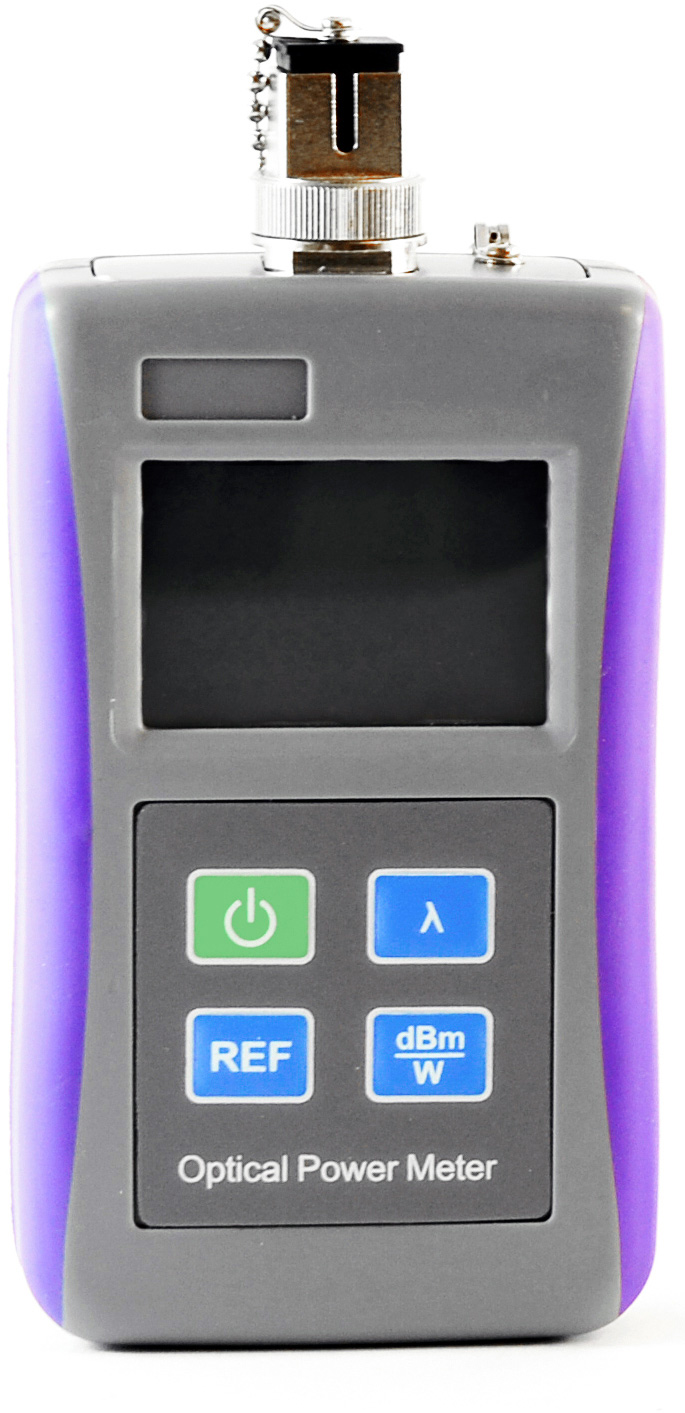

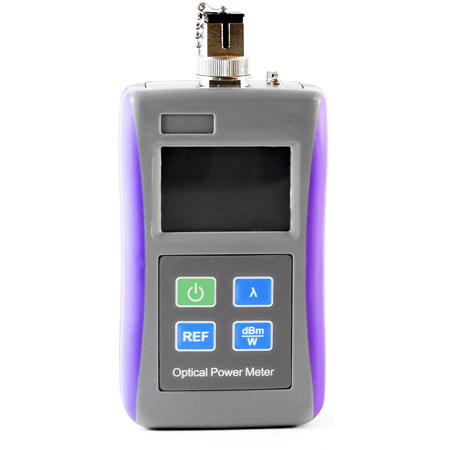

      The SSF-PM100 is a handheld optical power meter which can be used for absolute optical power measurements and relative loss measurements on both single mode and multimode fibers.


      • Features

        • High measurement accuracy and display resolution
        • Quick response and measurement; real-time display of output power
        • Wide measurement range (80dB)
        • Six calibrated wavelengths
        • Absolute and relative power measurements
        • Real-time monitoring and display of batter level
        • Auto shut-off function
        • Backlight function
        • Alkaline battery operation

      • Specifications

        • Wavelength (nm): 800 - 1650nm
        • Detector Type: InGaAs
        • Measurement Range (dBm): -70 - +10 -50 - +26
        • Accuracy: <±3% (-10dBm, 22°C)
        • Calibrated Wavelength: (nm) 850, 1300, 1310, 1490, 1550, 1625
        • Resolution (dB) Linearity: 0.1%, Non-linearity: 0.01 dBm
        • Optical Connector: SC, LC with Adapters
        • Power Supply Alkaline Battery: (3 AAA 1.5V batteries)
        • Battery Operating Time: 120 h (without backlight)
        • Operating Temperature: (°C) -10 - +50
        • Storage Temperature: (°C) -20 - +70
        • Relative Humidity: 90% (+30°C)
        • Dimension (mm / in): 125x65x29 / 4.92x2.56x1.14
        • Weight (g / oz): 160 / 5.64

      • GTIN:

        0609385491504
