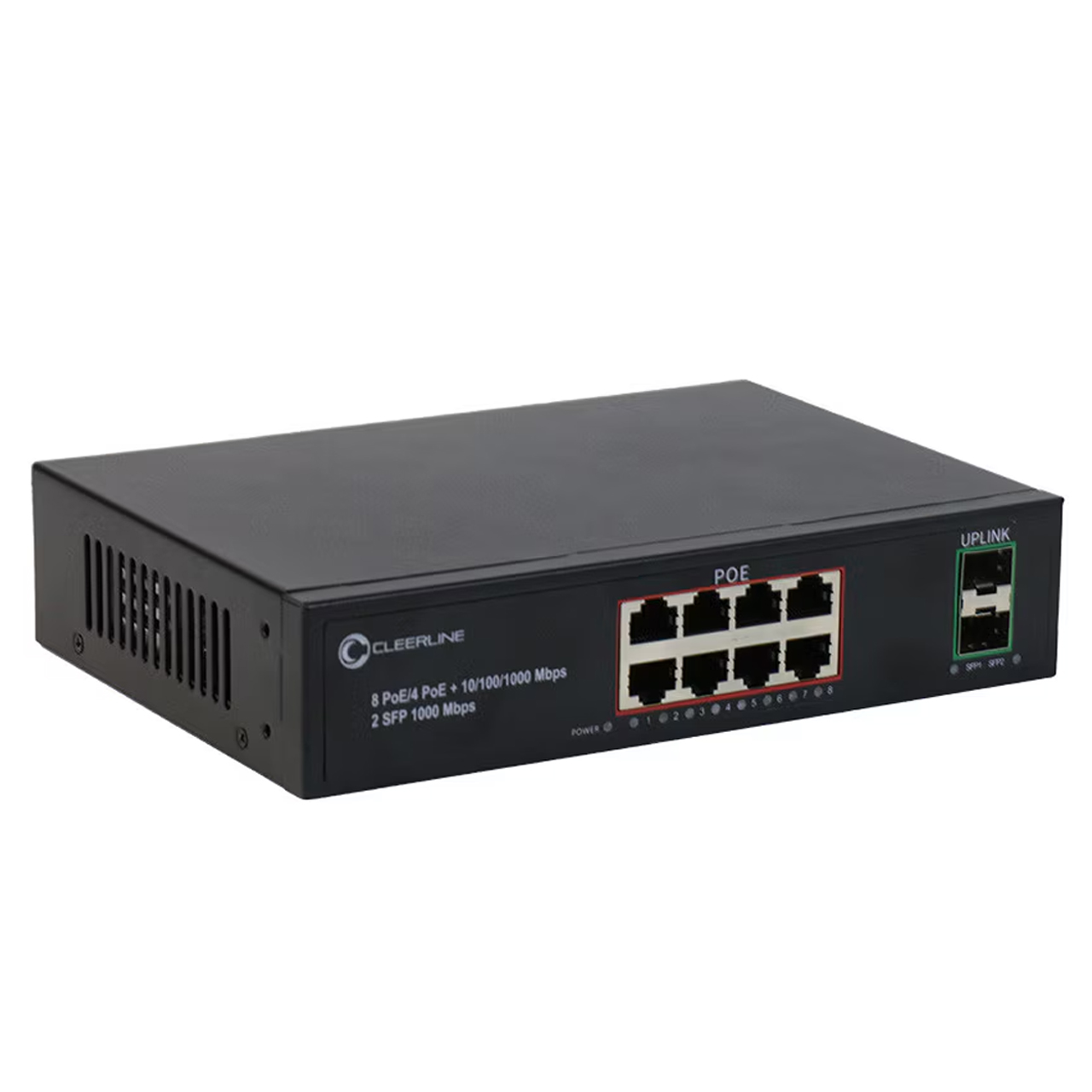

Cleerline SSF-2SFPx8RJ45POE-1G PoE+ Uplink Gigabit Non-Managed Ethernet Switch - Two SFPs to Eight RJ45 - 328Ft Distance

SSF-2SFPX8RJ45POE-1G - Overview

Provide power and data from a single point, using PoE+ over a single Cat-X cable!

• Features:

  • 8x 10/100/1000mbps RJ45 POE+ port, UP-Link 2x 1000mbps SFP port
  • 328ft/100m Transmission Distance, 1-8 port support VLAN mode
  • Compatible with IEEE802.3AF/AT
  • Built-in power supply - 120W PoE (52V 2.3A) Full duplex
  • All port supported by MDI/MDIX auto flip and self-negotiation
  • Supply 8ea 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port
  • Max port power 30W/4 PoE+ or 15W/8 PoE
  • Low heat design, safe and reliable, high stability

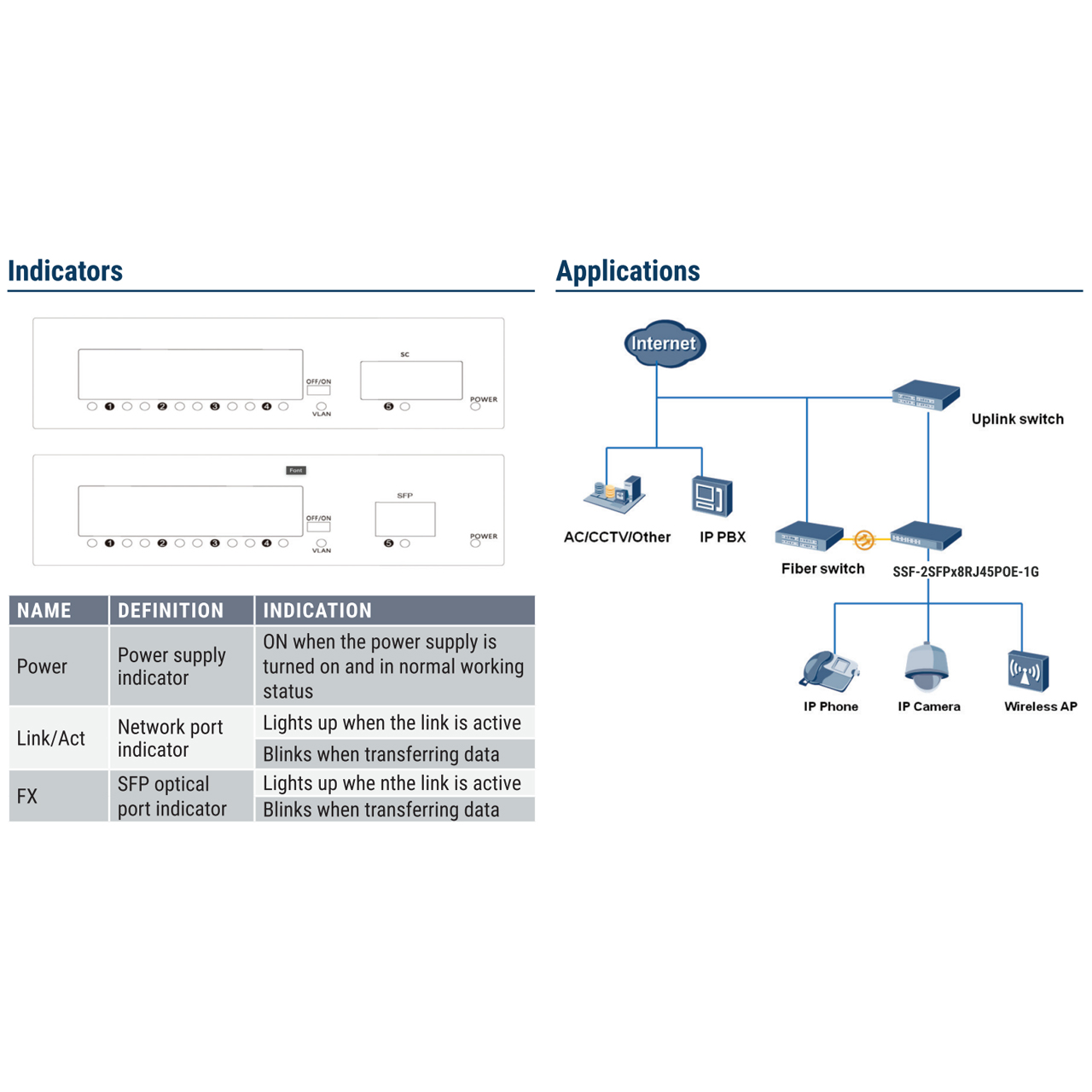

  • Application: Wireless Access Point IP Camera IP Phone Computer Networks


• Specifications:

  • TP Ports (RJ45):
    - 8x 10/100/1000mbps
    - 120W, 30W/4 PoE+ or 15W/8 PoE
  • SFP Slots: 2x 100/1000mbps
  • Network Protocols:
    - IEEE 802.3i 10Base-T
    - IEEE 802.3u 100Base-Tx
    - IEEE 802.3x Flow Control
    - IEEE 802.3af Power over Ethernet
  • Bandwidth: 20Gpbs Full duplex
  • MAC Address Table: 8K MAC address
  • Buffer Memory: 48Kb embedded memory
  • Packet Max. Size (bytes): 10K
  • PoE Power: 1/2, 3/6, 4/5+, 7/8-
  • Safety: Present
  • Power Input: AC 110V - 240V
  • Reverse Polarity Protection: Yes
  • Operating Temp: 14°F - 131°F (-10°C - 55°C)
  • Operating Humidity: 90% maximum relative humidity, non-condensing
  • Storage Temp: -40°F - 158°F (-40°C - 70°C)
  • Dimensions (LxWxH): 7.95" x 5.51" x 1.77" (202mm x 140mm x 45mm)
  • Weight: 1.98lbs (0.447kg)


• Item Includes:

  • 1x Cleerline SSF-2SFPx8RJ45POE-1G PoE+ Uplink Gigabit Non-Managed Ethernet Switch
  • 1x Power supply
