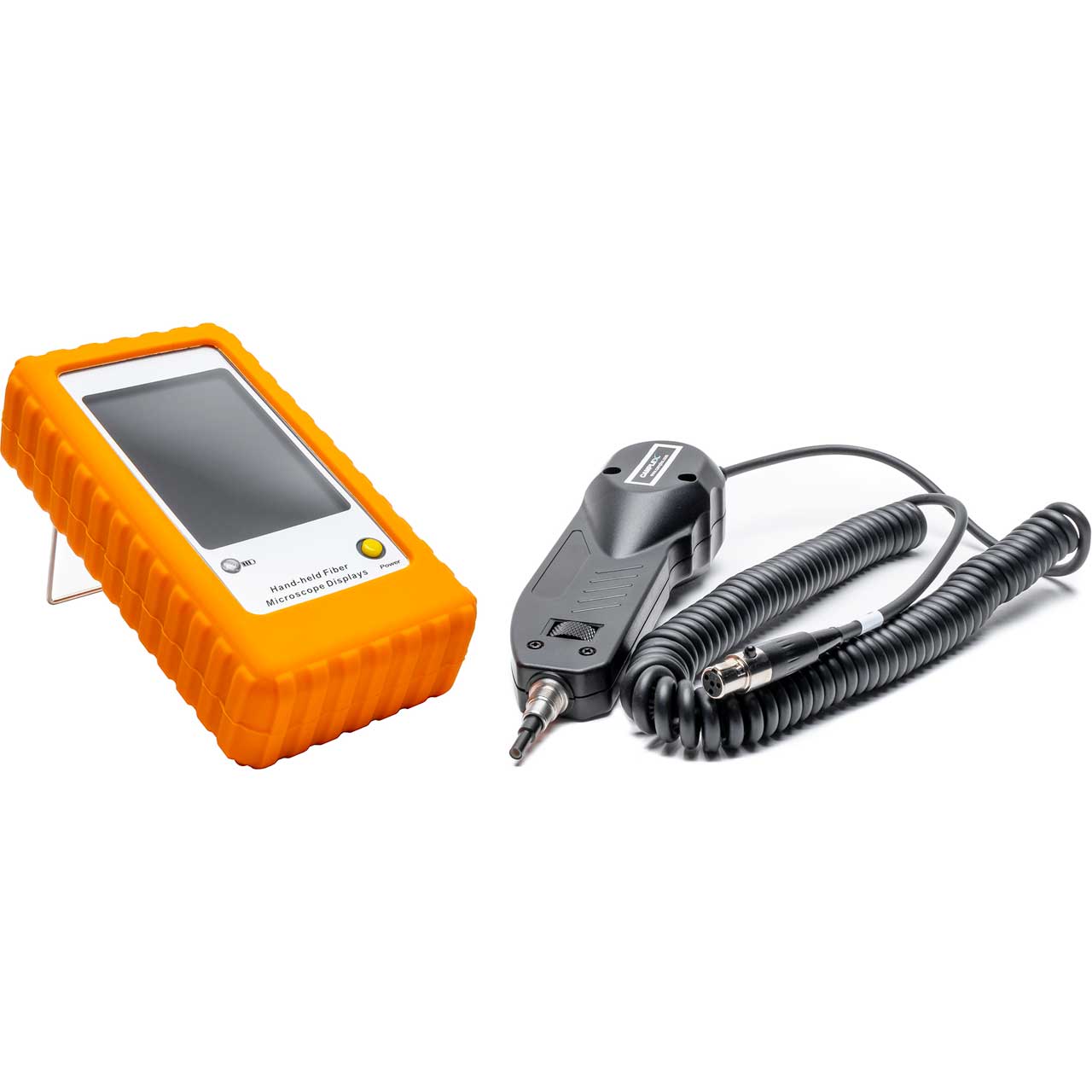

Camplex Fiber Video Inspection Scope with LCD Display and Rugged Carrying Case

ITEM #: CMX-TL-1604 MFG #: CMX-TL-1604

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,049.95

Our Price:

$999.95

Availability: In Stock
iAvailability Description Popup


    CMX-TL-1604 - Overview

    The Camplex name is synonymous with excellence, so when it comes to performance, Camplex vigorously tests all of their fiber products and backs them with a zero defect 100% inspection policy. Now you can have the same level of security with the Camplex CMX-TL-1604 Fiber Optic Inspection Scope.

    Dirt and debris are responsible for 85 percent of all network fiber link failures. Keeping a constant eye on your fiber runs is a must and it all begins with the CMX-TL-1604. With its 3.5 inch LCD readout screen and a default setting of 250x magnification, you can easily detect dirt on any connector in your network with a finely detailed image. Whether it be an ST, SC or LC connector, Duplex or Simplex, multimode or singlemode, UPC or APC, the CMX-TL-1604 will detect contaminants on most any fiber connection surface, even on the backside of patch panels or inside hardware devices.

    In addition to an AC power supply, a rechargeable Li-ion battery is provided to keep your probe functioning when you need it most. Keep your fiber clean..your critical video and audio signals depend on it!

    • Features:

      • Portable Fiber Inspection Scope
      • Convenient Focus Control Knob
      • Hand Held LCD Display with Brightness Control
      • Great for Hard-to-reach Connectors on the Backside of Patch Panels

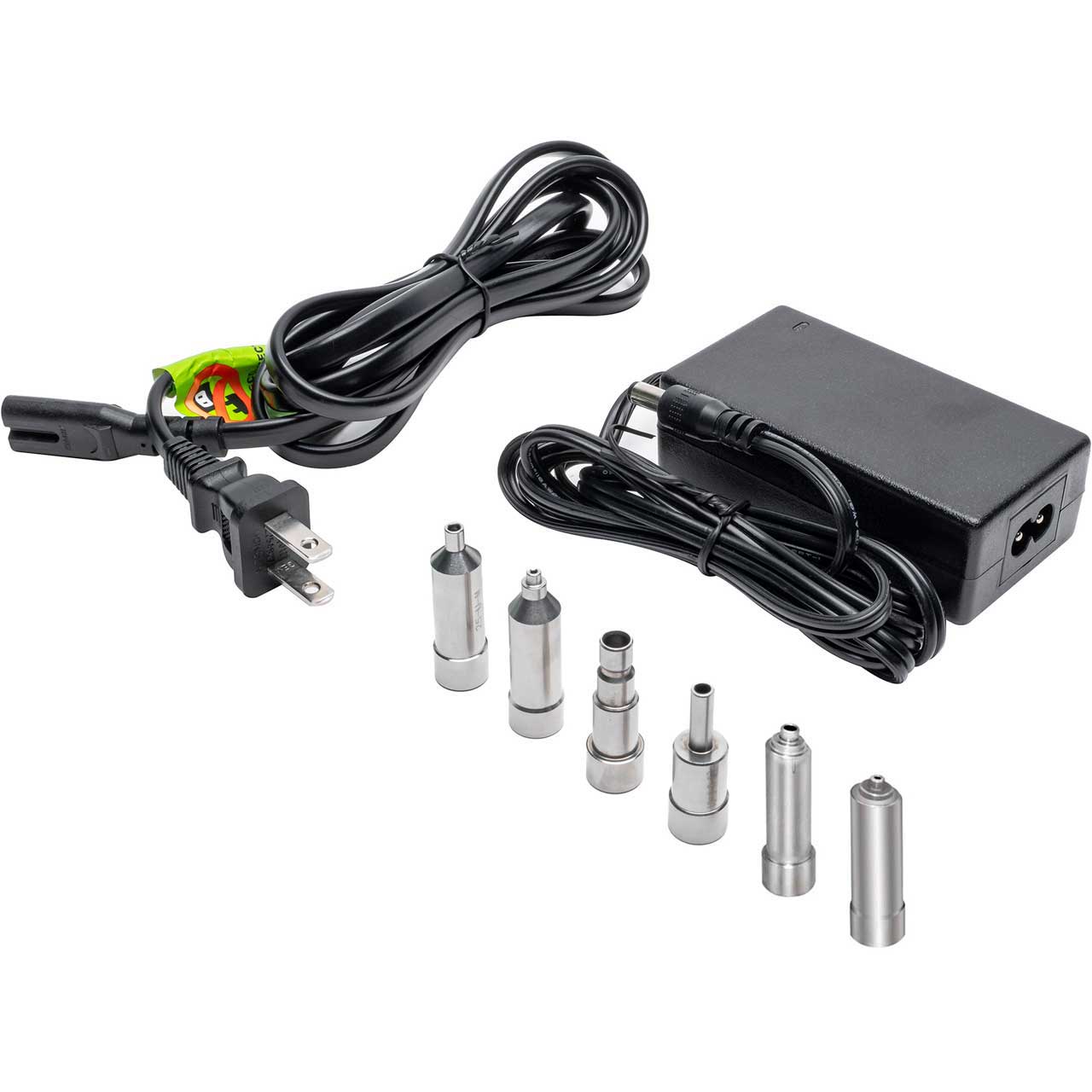

      • Includes 6 Fiber Adapter Tips

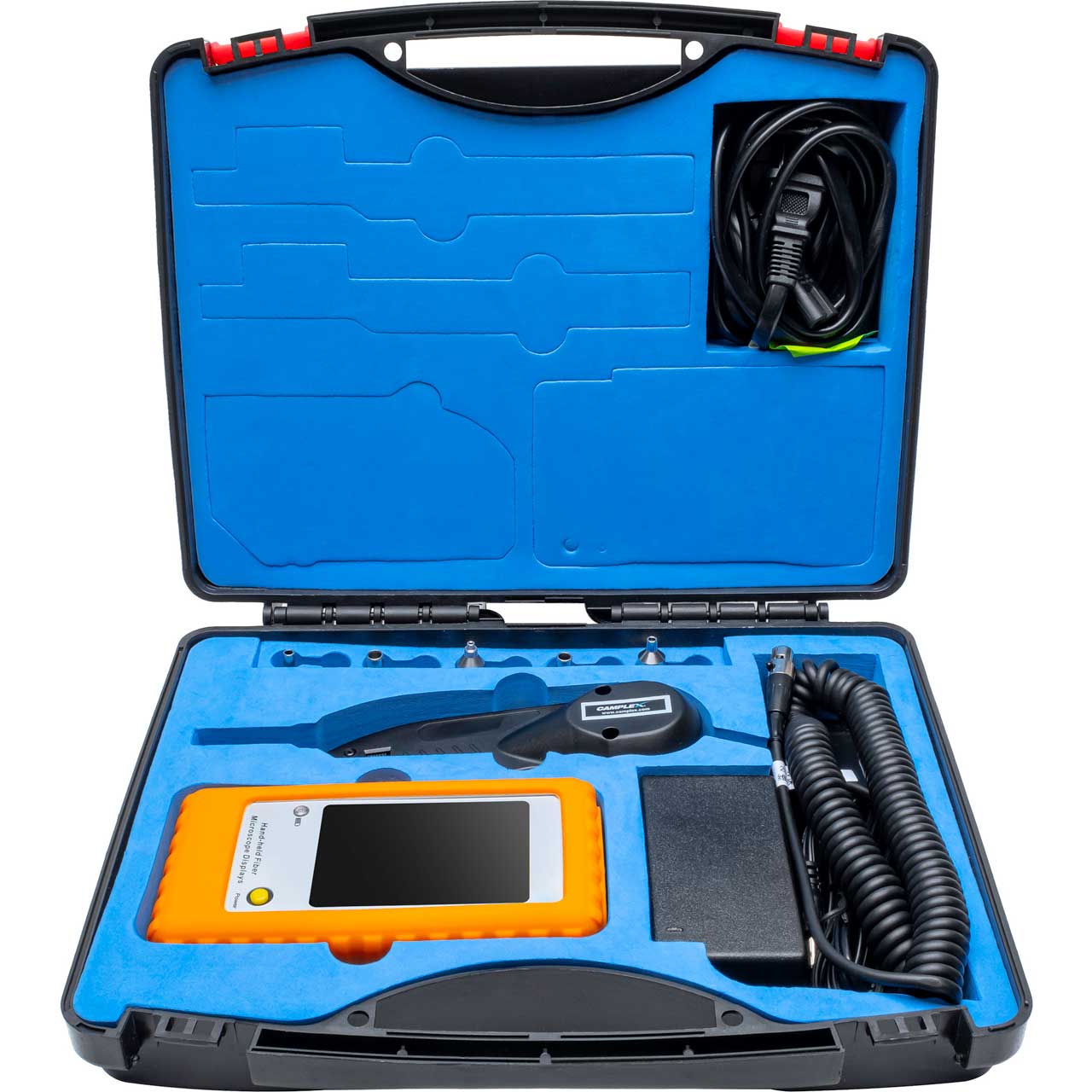

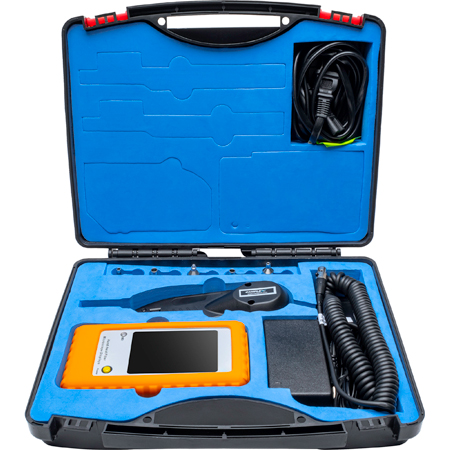

      • Rugged Carrying Case

    • Specifications:

      • Magnification: 250x (3.5" Monitor)
      • Resolution Ratio: 0.5µm
      • Display: 3.5" TFT-LCD, 960x240 pixels
      • Video Output: NTSC/PAL
      • Power Supply: 3.7V, 4500mA 5V1A Rechargeable Li Battery
      • Weight: 3.31lbs (1.5kg)
      • Operating Temperature: -4°F - 122°F (-20°C - 50°C)
      • Storage Temperature: -22°F - 140°F (-30°C - 60°C)


        Adapter Type & Description:
      • 25-U-M (2.5mm UPC Male) - FC/SC/ST/E2000 - Patch Cord UPC Termination
      • 125-U-M (1.25mm UPC Male) - LC/MU Patch Cord UPC Termination
      • 25-A-M (2.5mm APC Male) - FC/SC/ST/E2000 - Patch Cord APC Termination
      • 125-A-M (1.25mm APC Male) - LC/MU Patch Cord APC Termination
      • 25-U-F (2.5mm UPC) - FC/SC/ST/E2000 - UPC Bulkhead

    • Item Includes:

      • 1x CMX-TL-1604 Inspection Probe
      • 1x LCD 3.5" Monitor
      • 1x Rugged Carrying Case
      • 1x 3.7V, 4500mA 5V1A Rechargeable Li Battery
      • 1x Battery Charger
      • 1x TIP-U-1.25 - CMX-TL-1604-1
      • 1x TIP-U-2.5 - CMX-TL-1604-2
      • 1x TIP-A-1.25 - CMX-TL-1604-3
      • 1x TIP-A-2.5 - CMX-TL-1604-4
      • 1x TIP-C-1.25 - CMX-TL-1604-5
      • 1x TIP-C-2.5 - CMX-TL-1604-6

    • Warranty:

      • 1 Year
