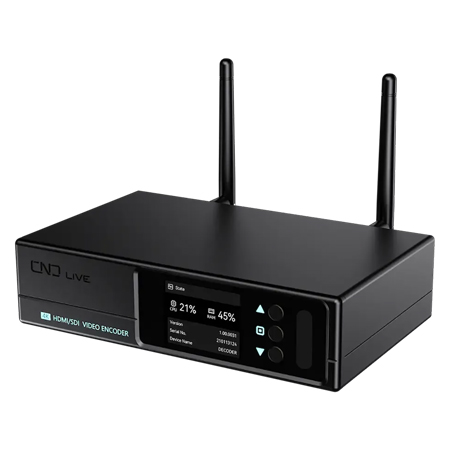

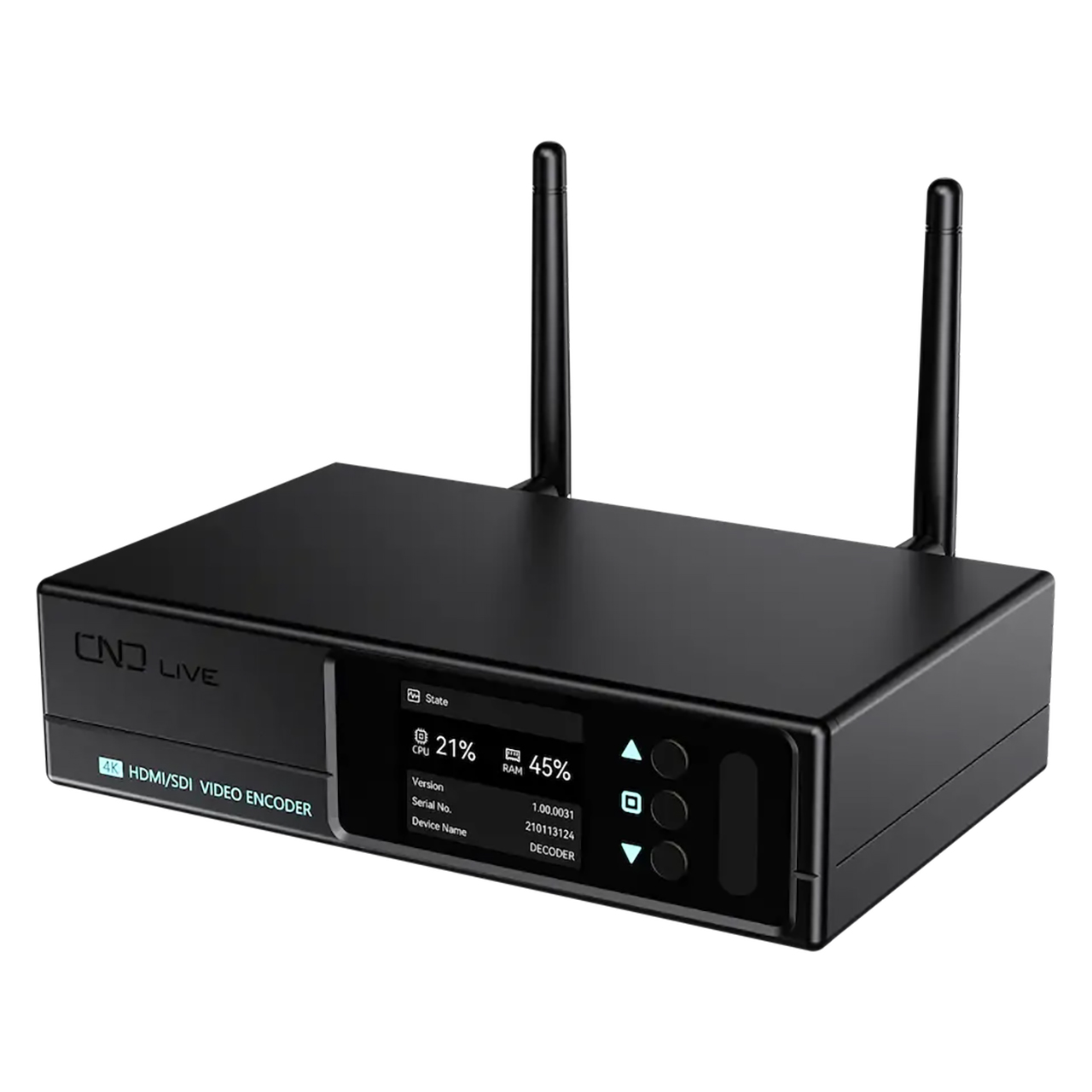

CNDLive C6 H265 Dual-Channel HDMI & SDI Wi-Fi Video Encoder and Recorder - 40 Mbps Bitrates

Name: CNDLive C6 H265 Dual-Channel HDMI & SDI Wi-Fi Video Encoder and Recorder - 40 Mbps Bitrates
Brand: CNDLive
SKU: CND-C6
Price: 389.00 USD
Availability: Backorder

ITEM #: CND-C6 MFG #: C6

CNDLive

Our Price:

$389.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

C6 - Overview

Enhanced H.265/H.264 Streaming and Recording

The CNDLive C6 Encoder is a professional 4K H.265 video encoding device featuring dual HDMI and SDI inputs with loop-through capabilities, designed to be compatible with a wide range of video capture equipment. Supports HDMI 2.0 standard, accommodating video input and encoding up to 3840x2160P @ 30Hz. Supports SMPTE 424M (3G-SDI), SMPTE 292M (HD-SDI), and SMPTE 259M (SD-SDI), accommodating video input and encoding up to 1920x1080p @ 60Hz.

The C6 offers advanced signal processing capabilities. When both HDMI and SDI signals are connected, users can select either source for encoding or combine both signals into a Picture-in-Picture (PiP) layout. Both Main and Sub streams support the overlay of up to 8 OSD layers (including text, images, and system time).

With support for H.264, H.265, and NDI|HX2 encoding formats, the C6 enables multi-protocol simultaneous streaming and recording with bitrates up to 40Mbps. It is an ideal solution for sports broadcasting, conference recording, education, medical imaging, and various live event scenarios.

Features:
- LCD Status Display: 2.0-inch screen for real-time monitoring of system status, IP addresses, and one-touch control for recording
- Advanced OSD: Supports text, image, and timestamp overlays
- Web Preview: Real-time preview of input video via the management interface
- Audio Flexibility: Supports embedded audio and Line-In audio, with options for separate or mixed encoding
- Remote Management: Supports registration to management platforms for centralized remote control
- Local Recording: Records via Micro SD/TF card or external USB. Supports TS, MKV, and MP4 formats with loop recording and "stop-when-full" modes

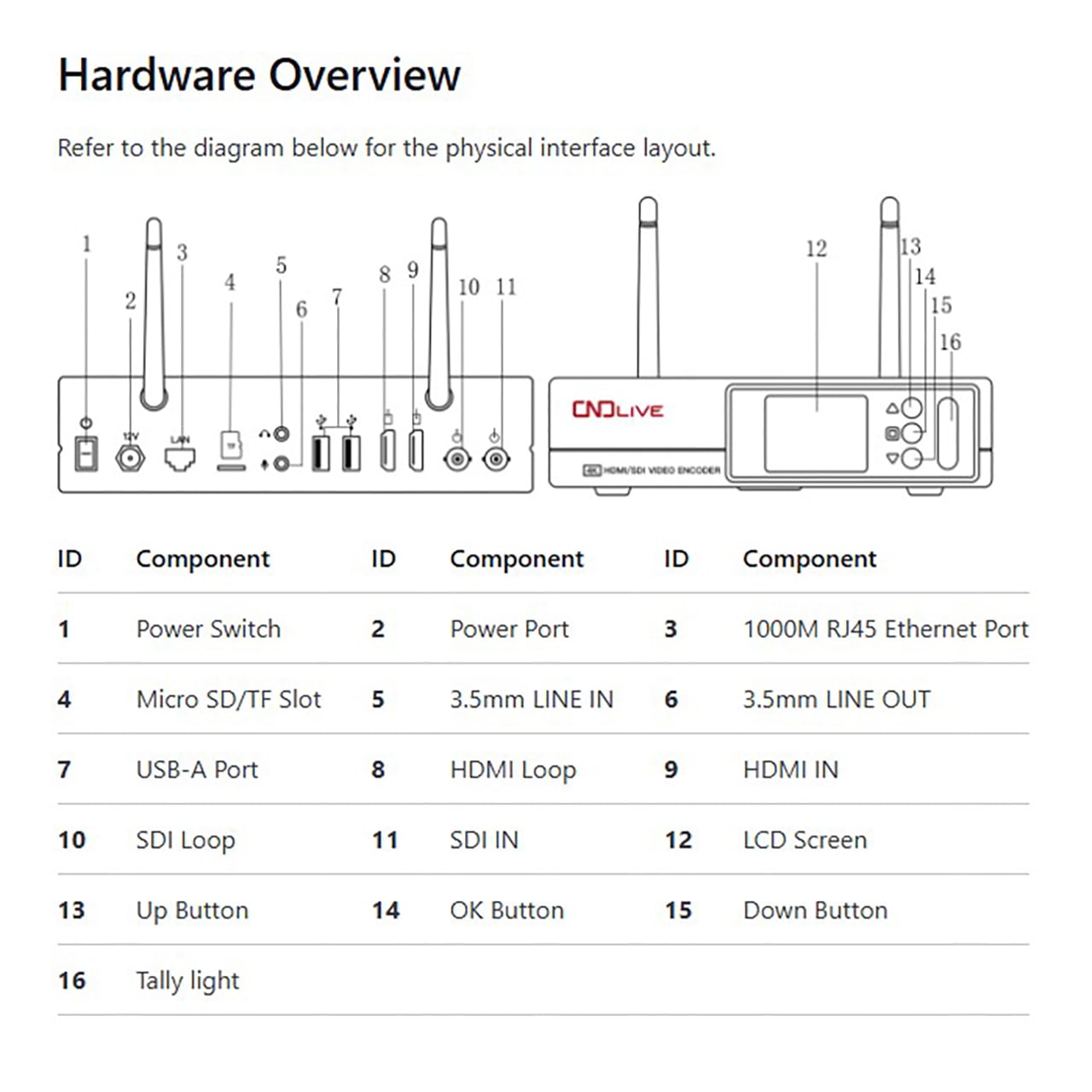

Specifications:
- SDI:
  - 1x SD/HD/3G BNC Input
  - 1x Loop-through
- HDMI:
  - 1x HDMI 2.0 Input
  - 1x Loop-through
- Audio:
  - 1x 3.5mm Line In
  - 1x 3.5mm Line Out
- Storage: 1x Micro SD/TF Card Slot
- USB: 2x USB Type-A
- Input Parameters:
- HDMI Input & Loop-through Support:
  - 3840x2160 30Hz (YUV 4:2:0)
  - 1920x1080 23.98/24/25/29.97/30/50/59.94/60Hz
  - 1280x720 25/29.97/30/50/59.94/60Hz
  - 720x576 25p/50i (PAL SD)
  - 720x480 29.97p/59.94i (NTSC SD)
- SDI Input & Loop-through Support:
  - 1920x1080 23.98/24/25/29.97/30/50/59.94/60Hz
  - 1280x720 25/29.97/30/50/59.94/60Hz
  - 720x576 25p/50i (PAL SD)
  - 720x480 29.97p/59.94i (NTSC SD)
- Audio Input: Supports external audio via Line In
- Encoding Capabilities
- Video Codecs: H.264, H.265 (HEVC), NDI|HX2.
- Stream Support: Dual-stream encoding (Main/Sub).
- Max Encoding Resolution:
  - HDMI: Up to 3840x2160P 30Hz.
  - SDI: Up to 1920x1080P 60Hz.
- Audio Codecs: AAC and G.711. Supports embedded audio and Line In mixing
- Video Processing: Supports cropping, rotation, and flipping
- Composite Encoding: Supports SDI + HDMI Picture-in-Picture (PiP) output (Max 1920x1080P 30Hz)
- Streaming Services:
- Compatibility: Supports major global live streaming platforms and private servers
- Protocols: RTSP, RTMP, RTMPS, HLS, UDP-TS, SRT, NDI|HX2
- Concurrency: Supports pushing up to 8 different protocol streams simultaneously Note: NDI|HX2 supports only one stream output.
- Stream Selection: Each stream can be independently sourced from the Main or Sub stream
- Network Connectivity
- Ethernet:
  - 10/100/1000M RJ45 Port
  - supports PoE (IEEE 802.3af/at)
- Wi-Fi: 802.11 a/b/g/n/ac/ax (Wi-Fi 6 Support)
- Physical & Power
- Power Supply: DC 12V, Max Current 1A
- Power Consumption: Max 9W
- Dimensions(L x W x H): 7.08" x 4.29" x 1.88" (180mm x 109mm x 47.8mm)
- Operating Temp: 14°F - (-10°C - 45°C)
- Display: 2.0-inch LCD 320x240 resolution
Item Includes:
- 1x C6 Video Encoder
- 1x Power Adapter
- 1x Warranty Card
- 1x Quick Start Guide
- 1x Certificate
GTIN:
0774882279532
