Pliant Technologies 00001693 Tempest 900MHz Omni-Directional Whip Antenna w/RP-TNC con.

ITEM #: COA-00001693 MFG #: 00001693

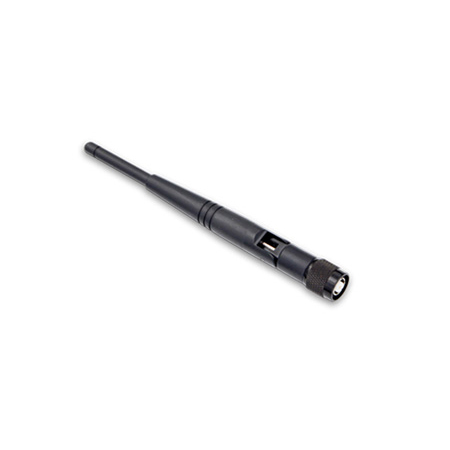

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the COA-00001693

00001693 - Overview

Half wave 900MHz Omni-directional whip antenna with RP-TNC connection.

  • Features:

    • Up to 2.3 dBi gain styles with semi-flexible radome and adjustable knuckle
    • Halfwave design requires no groundplane
    • Sleek molded profile with TNC connector


  • Specifications:

    • Frequency: 870 - 960MHz
    • Gain: 2.3 dBi max
    • VSWR: 2:1 over band
    • Impedance: 50 Ohm nominal
    • Maximum Power: 10 Watts
    • Connector: RP-TNC
    • Whip Length Straight: 9" (229 mm) when straight
    • Whip Length 90o : 7.9" (201mm) when right angle
    • Right Angle Standoff: 1.25" (32 mm) inside elbow, 1.75" (45 mm) outside elbow
    • Operating Temp: -40° to +85° C
    • Case Material: Polyurethane


  • Warranty:

    • 120 Days
