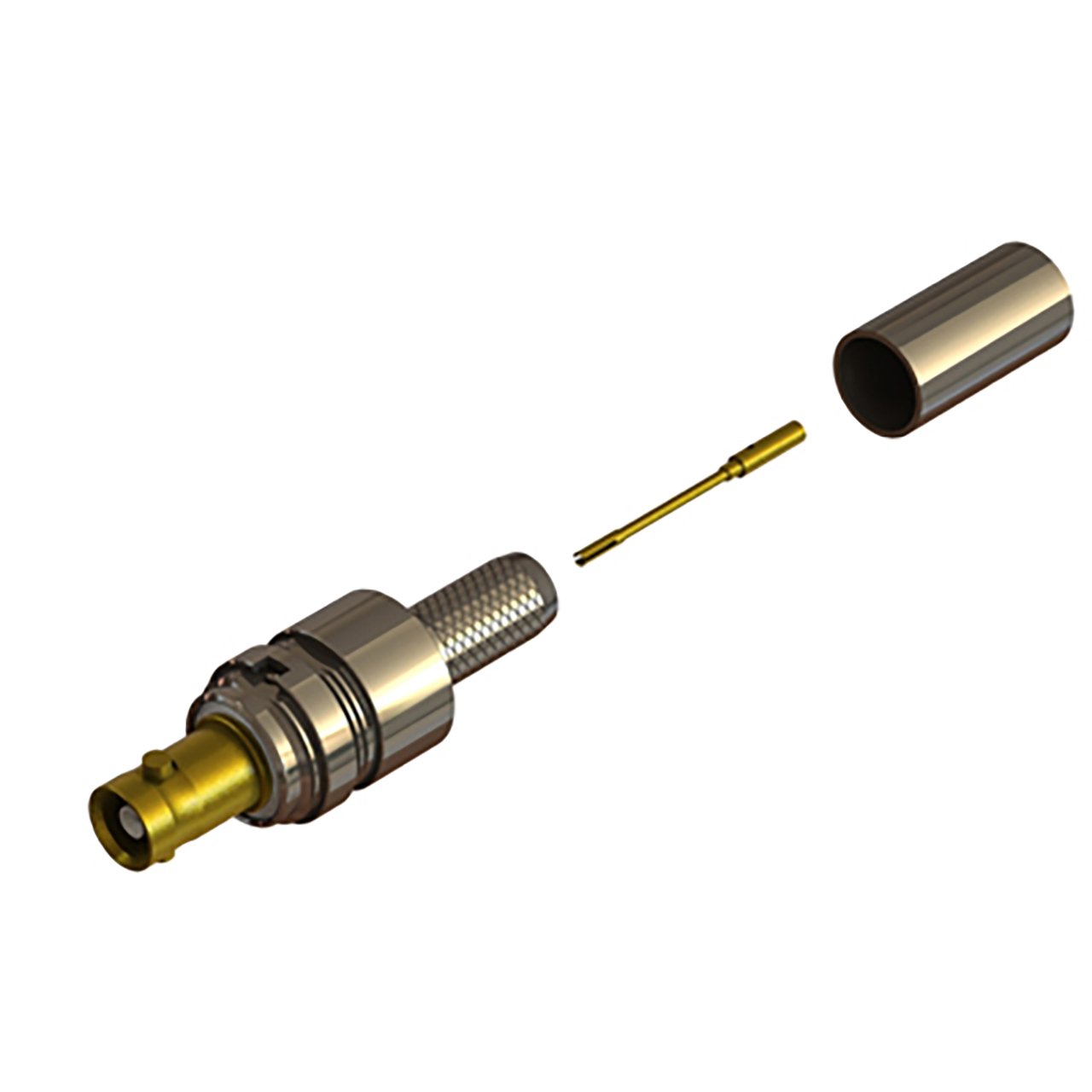

Coax Connectors 67-258-D126-AB HDBNC Insulated Cable End or Bulkhead Crimp Jack 75 ohm 12GHz - Fits Belden 179DT

67-258-D126-AB - Overview

Now Tested to 18GHz. For Bulkhead Use as well.

• Specifications:

  • Impedance: 75Ω
  • Frequency Range: Up to 12GHz
  • Dielectric Withstand Voltage: 1000 Veff
  • Insulation Resistance: 10000MΩ
  • Return Loss: -18 dB @ 12GHz
  • RoHS 3 Compliant: Yes
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention: 10N min
  • Cable Retention: 100N min
  • Weight: 0.01lbs (0.38g)
  • Mating Force: 10N Max
  • Un-Coupling Force: 10N Max
  • Operating Temperature: -67°F - 311°F (-55°C - 155°C)
  • IP Rating (Mated): IP64
  • Centre Contact: Beryllium Copper
  • Outer Contact: Brass
  • Insulators: PTFE
  • M8 Nut Plating: Nickel
  • M8 Bulkhead Plating: Nickel
  • Centre Contact Plating: Gold
  • Outer Contact Plating: Gold
  • Pack Size: 1
  • Centre Contact: .95mm Sq
  • Outer Contact: 3.25mm Hex
