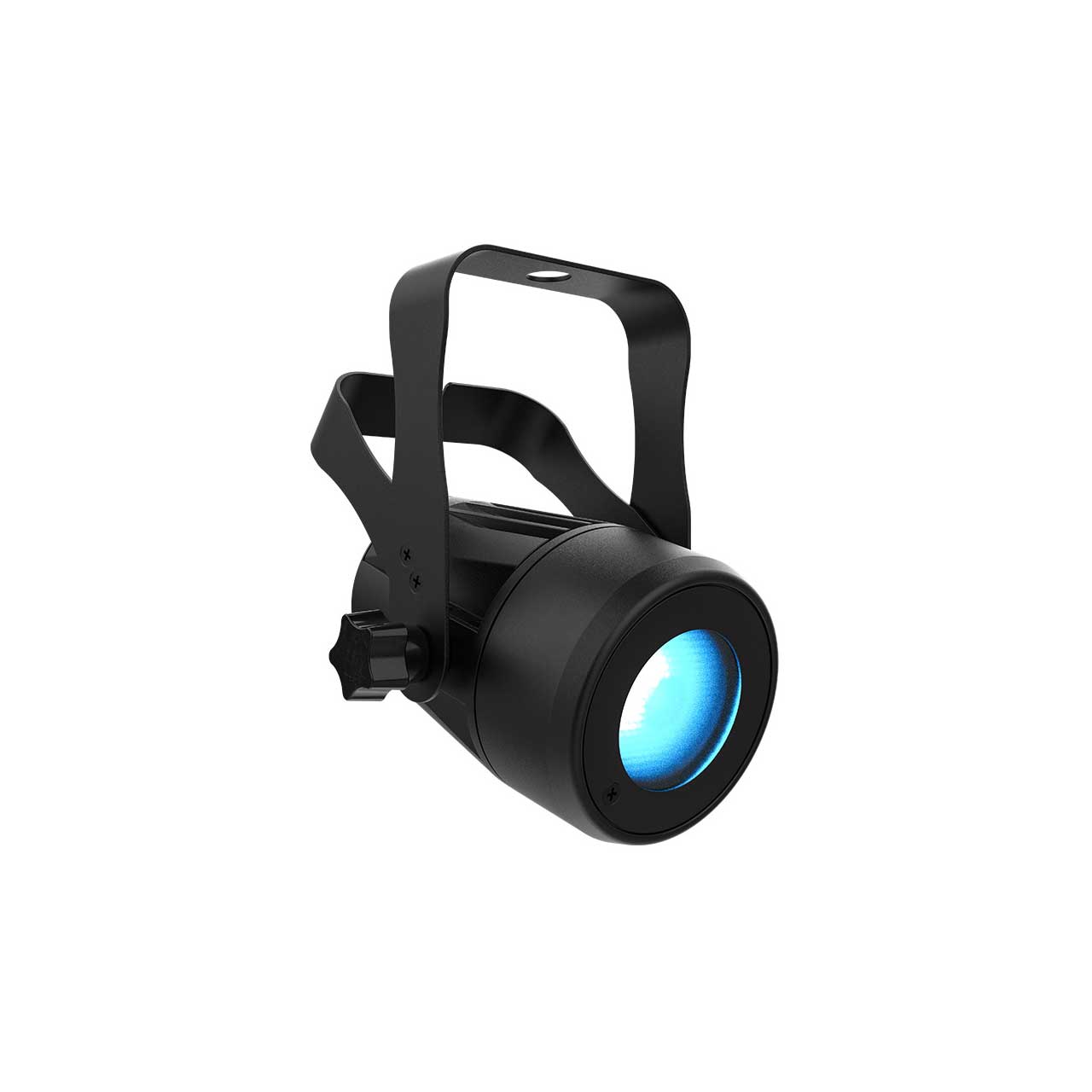

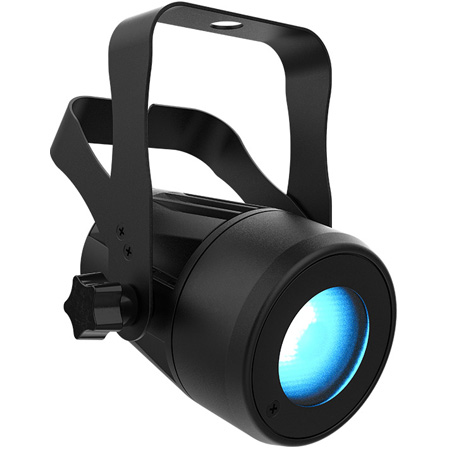

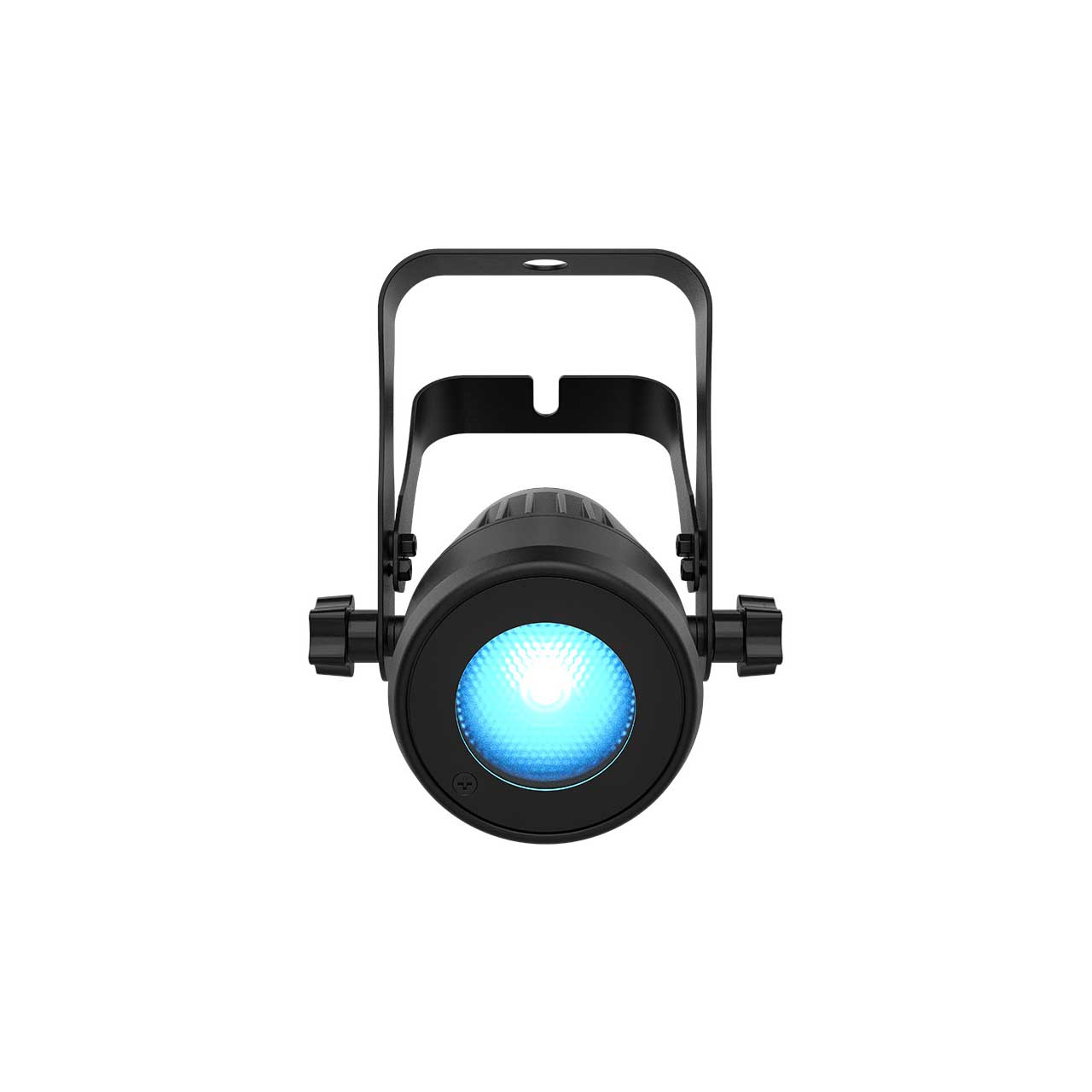

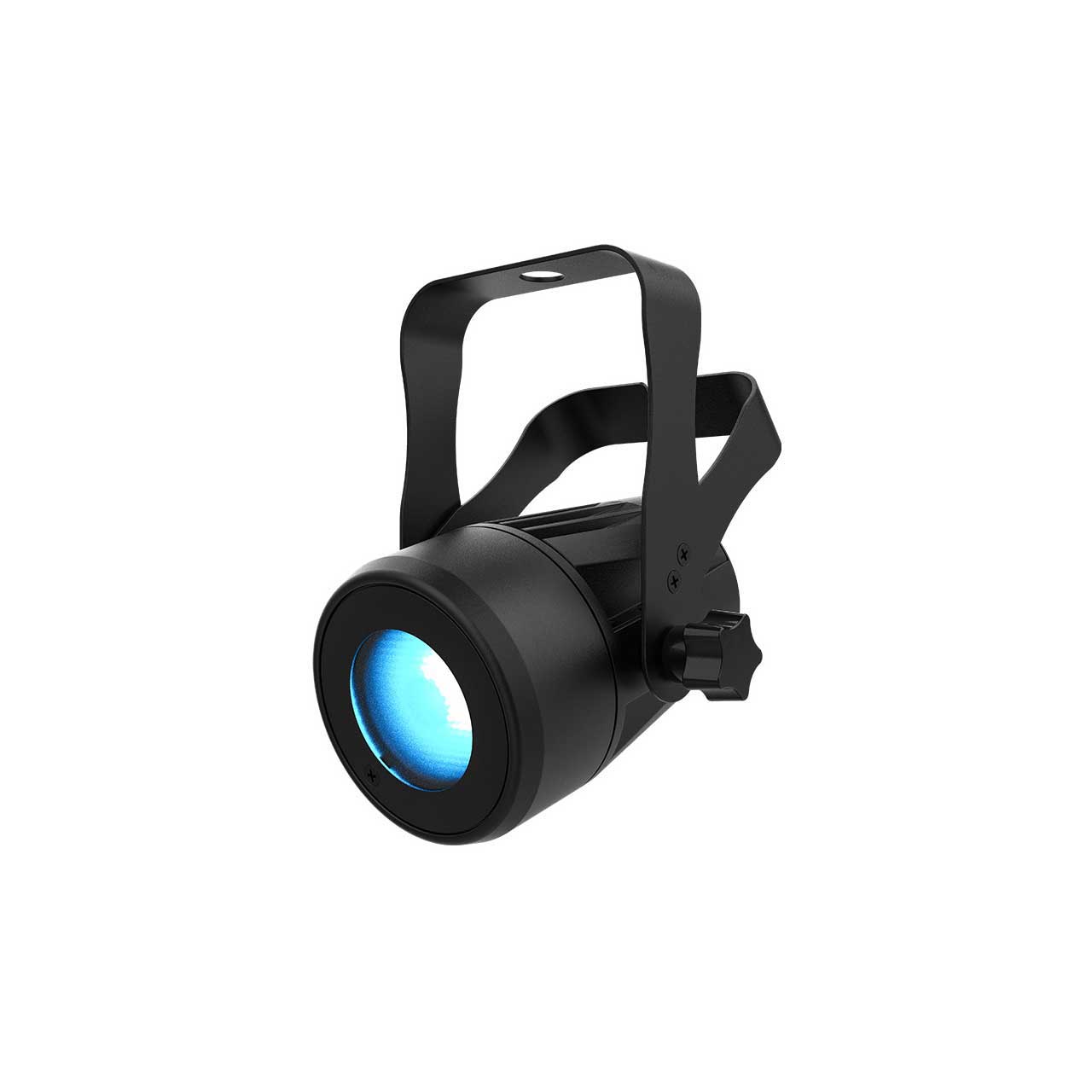

Chauvet COLORdash Accent 3 Quad-Color (RGBA) Compact LED Wash with Easy to use OLED Digital Display

COLORDASHACCENT3 - Overview

• Features:

  • Quad-color (RGBA) compact LED wash
  • Extremely compact with excellent output
  • Variable electronic dimmer (0–100%)
  • Simple and complex DMX channel profiles with RDM for programming versatility
  • Double-bracketed yoke doubles as floor stand

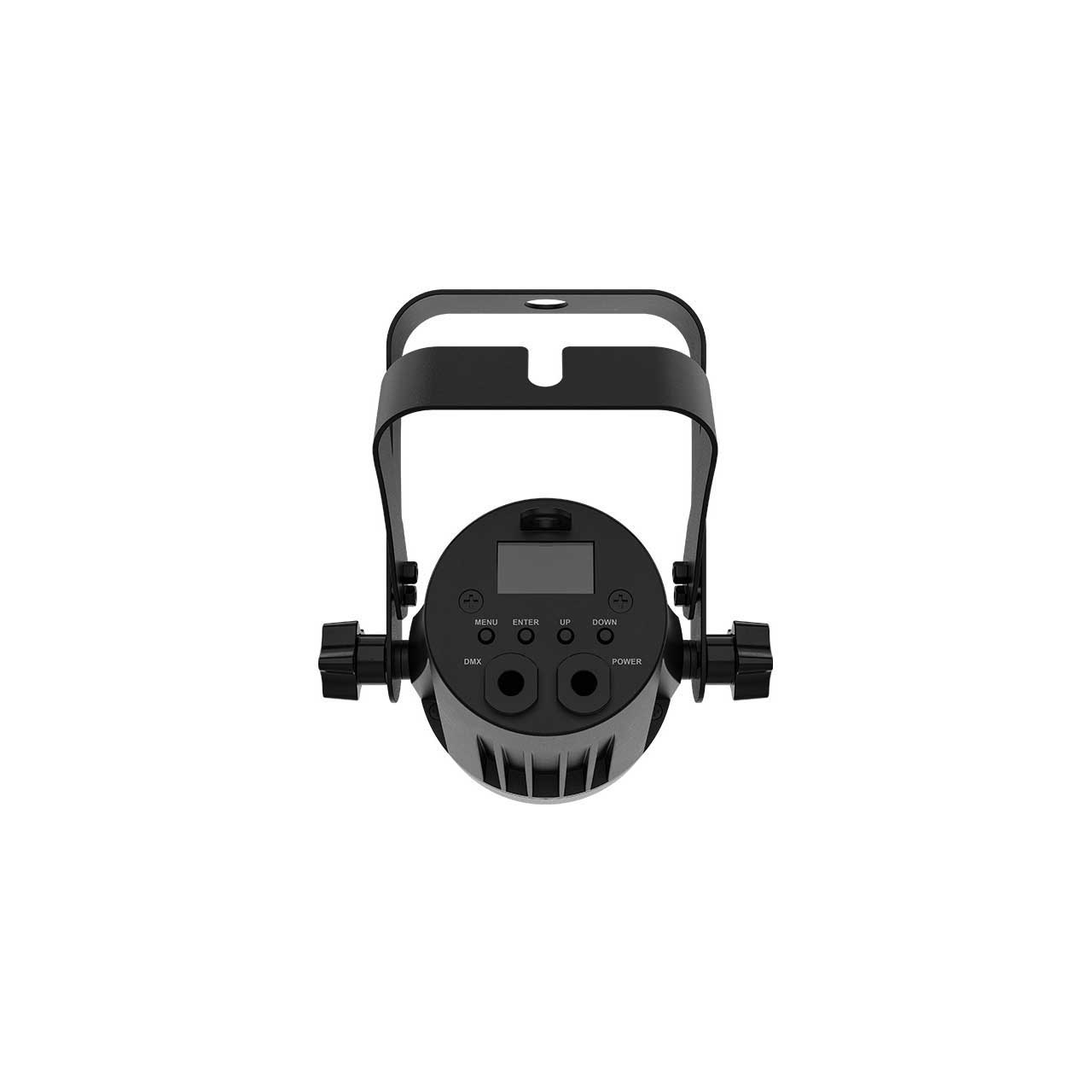

  • Easy to use OLED digital display
  • Replaceable filter for additional beam angles
  • Built-in auto programs recalled via DMX or Master/Slave


• Specifications:

  • Optical
  • Light Source: 1 LED (quad-color RGBA) 20 W, (950 mA), 50,000 hours life expectancy.
  • Installed Optics: 7°
  • Beam Angle w/ filter: 14°
  • Field Angle w/ filter: 27°
  • Beam Angle w/o filter: 9°
  • Field Angle w/o filter: 16°
  • Lumens: w/o filter: 377 lm
  • Lumens: w/ filter: 393 lm
  • Illuminance (total) w/ filter: 175 lux @ 5 m
  • Illuminance (total) w/o filter: 486 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 25 Hz
  • Standalone Color Mixing: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes

    Construction/Physical
  • Dimensions: 163 x 133 x 80 mm
  • Weight: 2.0 lb (0.9 kg)
  • Exterior Color: Black

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 4, 7 or 11
  • Modes/Personalities: 3 personalities (4, 7, 11)

    Connections
  • Power Connection: Edison plug to hard-wired
  • Power Input: Hard-wired
  • Data Connectors: 5-pin XLR DMX input and output cable whips
  • Cable Length (power): 5 ft (1.5 m)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 18 W, 0.141 A @ 120 V, 60 Hz
  • Power and Current: 21 W, 0.098 A @ 208 V, 60 Hz
  • Power and Current: 20 W, 0.087 A @ 230 V, 50 Hz


• Item Includes:

  • 1x COLORdash Accent 3


• GTIN:

  0781462219185
