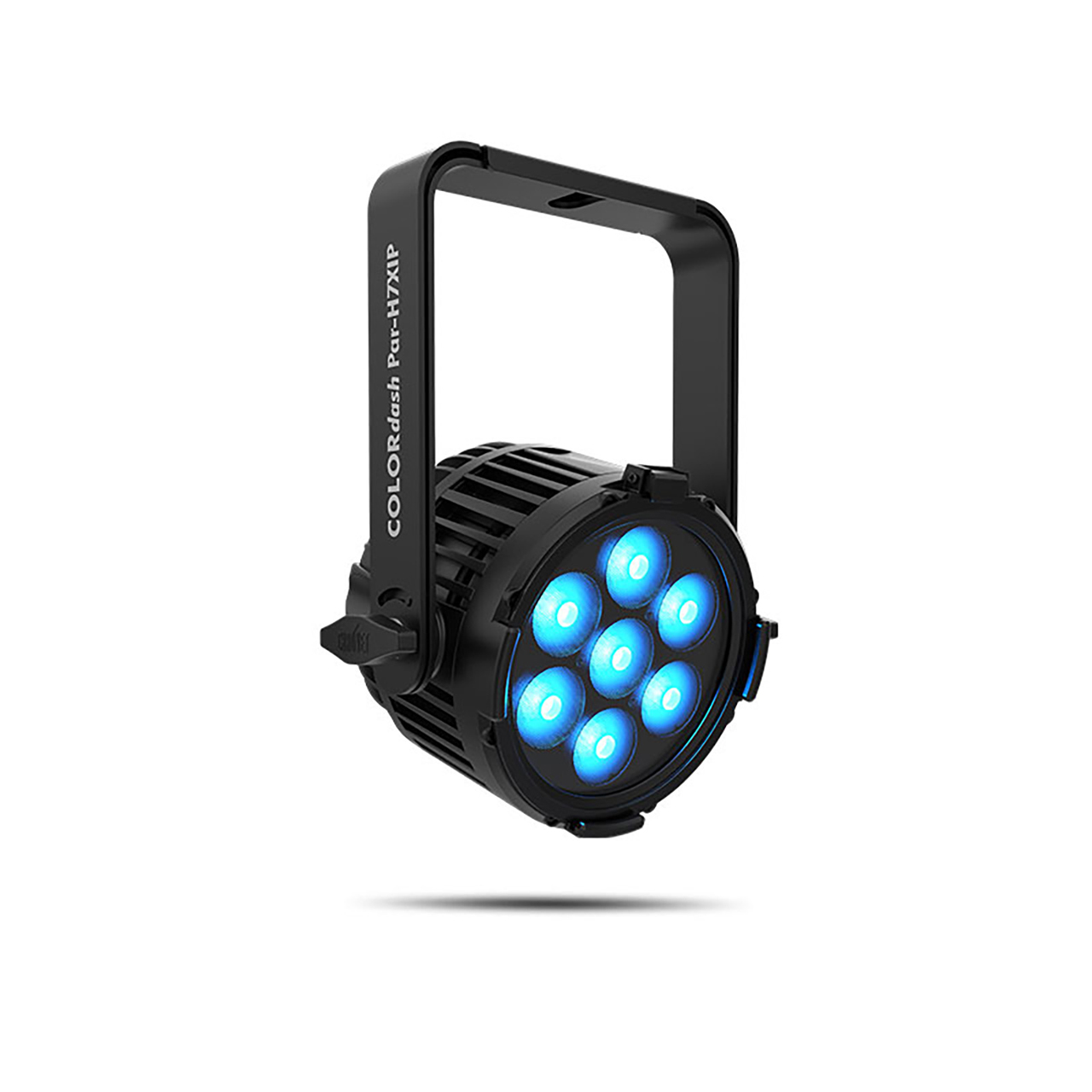

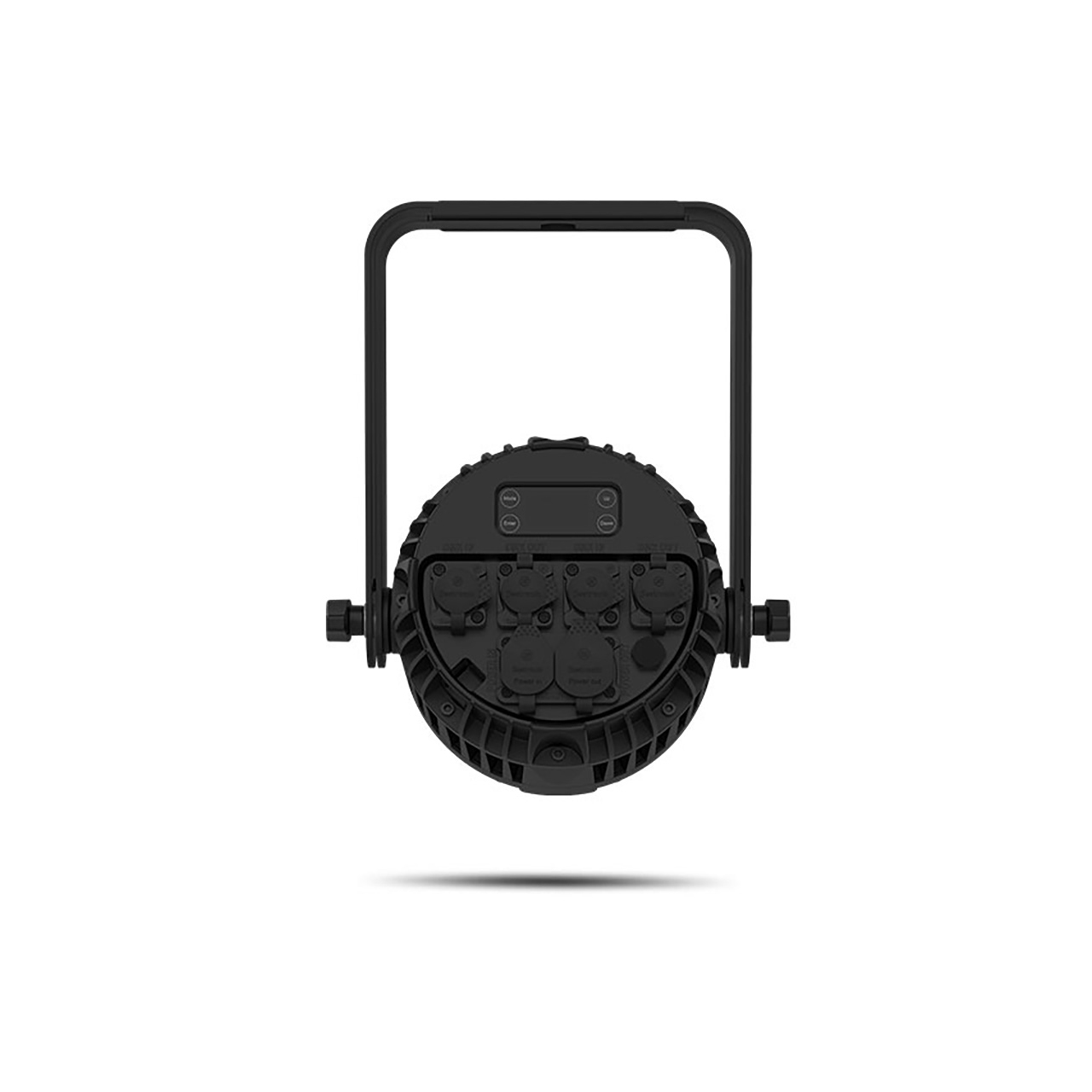

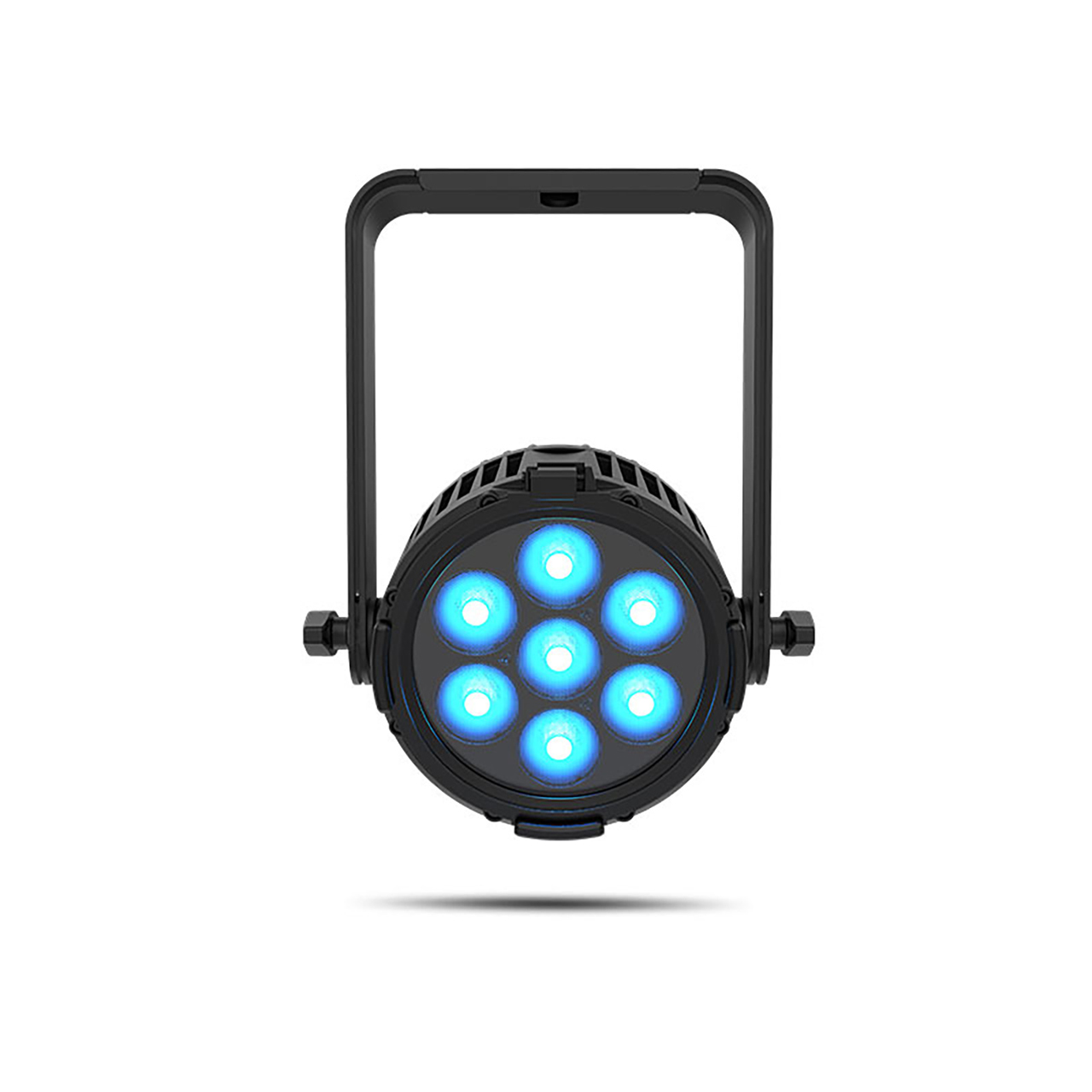

Chauvet COLORdash PAR H7X IP Portable RGBWA-UV LED Indoor/Outdoor DMX Wash Light with IP65 Powercon Cord and Gel Frame

COLORDASHPRH7XIP - Overview

• Features:

  • Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
  • At home in any weather conditions with IP rated power and DMX connections
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • RDM (Remote Device Management) for added flexibility
  • Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
  • Easy to read OLED display with password protection and touchscreen interface
  • Advanced optics provide exceptional color mixing and high efficiency
  • Double-bracketed yoke with omega bracket doubles as floor stand


• Specifications:

  • Optical
  • Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (513 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800K - 10,000K
  • Color Temperature (at full): 11,477K
  • Beam Angle: 23°
  • Field Angle: 37.9°
  • Lumens: 2664
  • Illuminance (total): 583 lux @ 5 m
  • Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0Hz - 20Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No

    Construction/Physical
  • Dimensions: 6.7" x 9.6" x 9.8" (170mm x 243.4mm x 248.1mm)
  • Weight: 7.4lbs (3.4kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast

    Connections
  • Power Connection: Edison (Local) plug to Seetronic Powercon IP65
  • Power Output: Seetronic Powercon IP65
  • Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR
  • Cable Length (power): 5ft (1.5m)

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
  • Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)

    Electrical
  • Input Voltage: 100V to 240V AC, 50/60Hz (auto-ranging)
  • Power Linking: 19 units @ 120V; 34 units @ 208V; 37 units @ 230V
  • Power and Current: 71W, 0.604A @ 120V, 60Hz
  • Power and Current: 69W, 0.352A @ 208V, 60Hz
  • Power and Current: 68W, 0.318A @ 230V, 50Hz

    Certifications/Qualifications
  • CE, MET, FCC, UKCA
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4°F - 113°F (-20°C - 45°C)


• Item Includes:

  • 1x Colordash Par H7XIP
  • 1x Seetronic powercon IP65 power cord
  • 1x Gel frame holder (6.5" /165mm)
  • 1x Gel frame
