Contemporary Research 232-ATSC 4K HDTV Tuner with PS12 1.5 Power Supply & Rack Mount Kit - B-Stock (Repaired)

ITEM #: CRC-232-ATSC4K-B MFG #: CRC-232-ATSC4K-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CRC-232-ATSC4K-B

CRC-232-ATSC4K-B - Overview

The Contemporary Research 232-ATSC 4K HDTV Tuner, our 5th-generation HDTV tuner, adds new capabilities to the industry-standard 232-ATSC series including an IPTV streaming output via the Ethernet port! More new features include tuning MPEG-4 programs, up to 4K 2160p output, and a more efficient operation. The tuner is fully compatible with the previous 232-ATSC 4 tuner for control, operation, and rack mounting.

The integrator-friendly HDTV tuner is controllable with 2-way RS-232 and IP Telnet, as well as wireless and wired IR commands. An onboard Web page enables remote Web control. A new menu-driven display simplifies setup and the compact enclosure allows mounting of two tuners in a single rack space.

A full-featured, commercial grade HDTV tuner, the 232-ATSC 4K can receive both analog and digital MPEG-2/H.264 channels, in ATSC, NTSC, and clear QAM formats. Using an optional RF-AB switch, the tuner can switch between antenna and cable feeds.

Pleaste Note: The unit is open and used but is in perfect working condition.

  • Features:

    • Tunes analog and digital channels in ATSC, NTSC, and clear QAM formats.
      Decodes MPEG2 and H.264 digital channels up to 1080p 60Hz
    • IPTV streaming output via Ethernet port.
      HDMI selectable video output resolutions: 480i, 480p, 720p, 1080i, 1080p, and 4K or Auto.
      Analog HD RGBHV and Component video output resolutions: 480i, 480p, 720p, 1080i, and 1080p, or Auto.
      Analog HD outputs can operate simultaneously with HDMI depending on colorspace setting.
      RGBHV or Component output selection from front-panel settings, Web page, or control commands.
      1080p and 2160p set to 60Hz for more universal applications, 1080i and 720p can be set to 60 or 59.94Hz.
      AC-3, PCM, or Variable PCM audio formats for digital audio ports and HDMI.
      Simultaneous HDMI, SPDIF, and Analog Stereo Audio output.
      Front-panel and on-screen menus for tuner setup.
      Web pages for remote setup and configuration.
      Decodes analog and digital closed captioning.
      Rack-mountable two across in 1RU.
      Full ASCII 2-way RS-232/Telnet commands.
      RS-232 can be daisy-chained to control up to 9 tuners from a single
    • RS-232 port.
      Meets RoHS and California energy-saving standards.
      B-Stock - The unit is open and used but in perfect working condition.


  • Specifications:

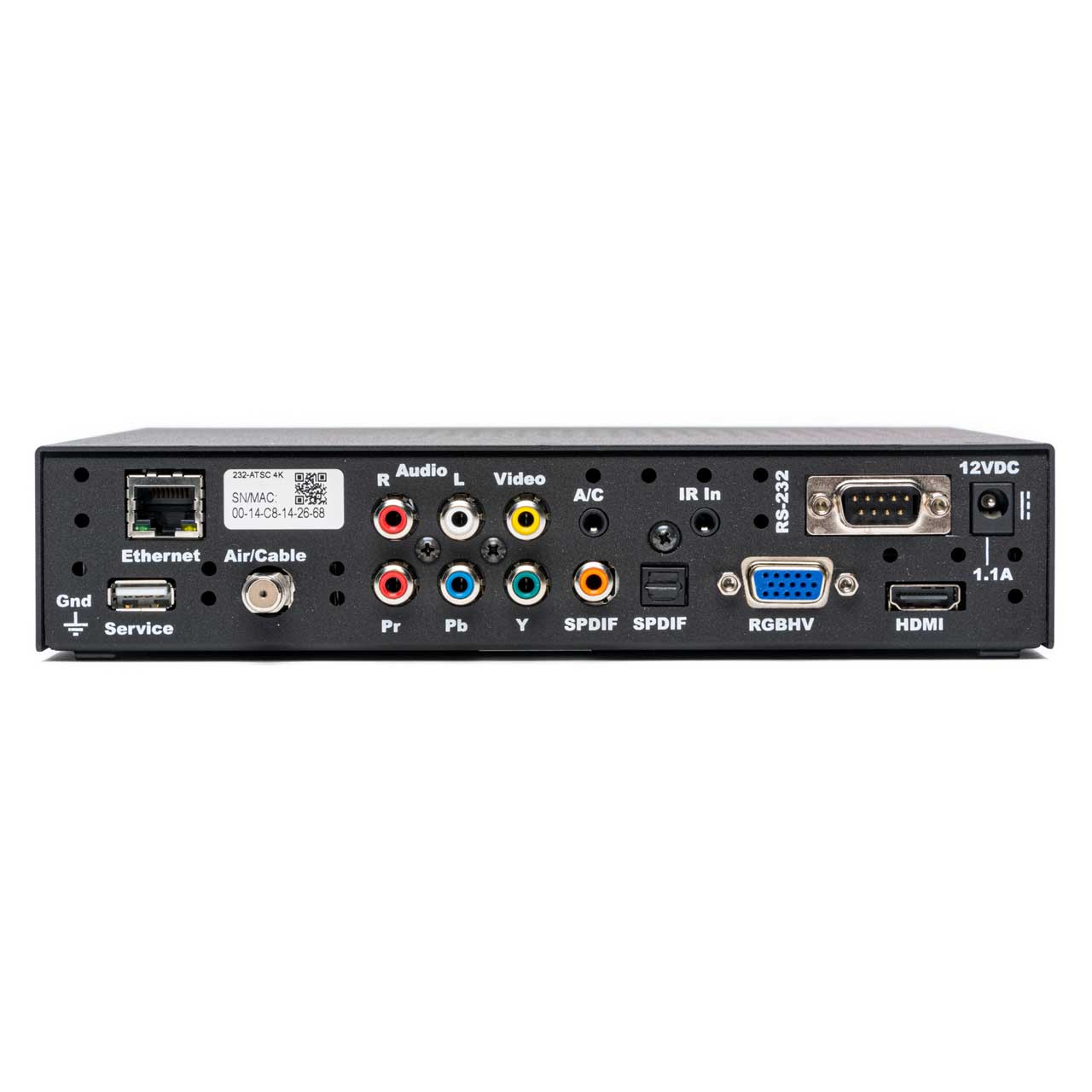

    • Air/Cable Input 'F', female, 75 ohm impedance, -10 to 25 dBmV typical
    • ATSC, NTSC, Cable, and Clear QAM (1080p/1080i/720p/480p/480i)
    • Off-Air 2-69 (NTSC and 8-VSB) and CATV 1-135 (Analog, 64QAM, 256QAM, 8-VSB) Standard, HRC, and IRC
    • Aspect Ratio 4:3, 16:9, and Zoom
    • Parental option for channels and/or rating
    • Pass-through multiple program transport stream from received channel
    • MPEG2, H.264 - 480i, 480p, 720p, 1080i, 1080p
    • Composite RCA video, 480i, carries closed caption data
    • Component YPbPr 3 RCA (1080p/1080i/720p/480p/480i)
    • RGBHV HD15 female (1080p/1080i/720p/480p/480i)
    • HDMI receptacle, Type A, Version 1.3 (2160p/1080p/1080i/720p/480p/480i)
    • HDMI AC-3/PCM/PCM variable level
    • SPDIF Coax and optical output, AC-3/PCM/PCM variable level
    • Analog Stereo RCA variable level
    • RJ-45 10/100 Ethernet for Web page access, Telnet, and UDP control
    • DB9 male RS-232 1200 to 230K baud, 8 data bits, no parity, 1 stop bit
    • IR Input 3.5mm stereo jack for optional IR-RXC IR Receiver
    • A/C 3.5mm control output for optional RF-AB Air/Cable Selector Switch

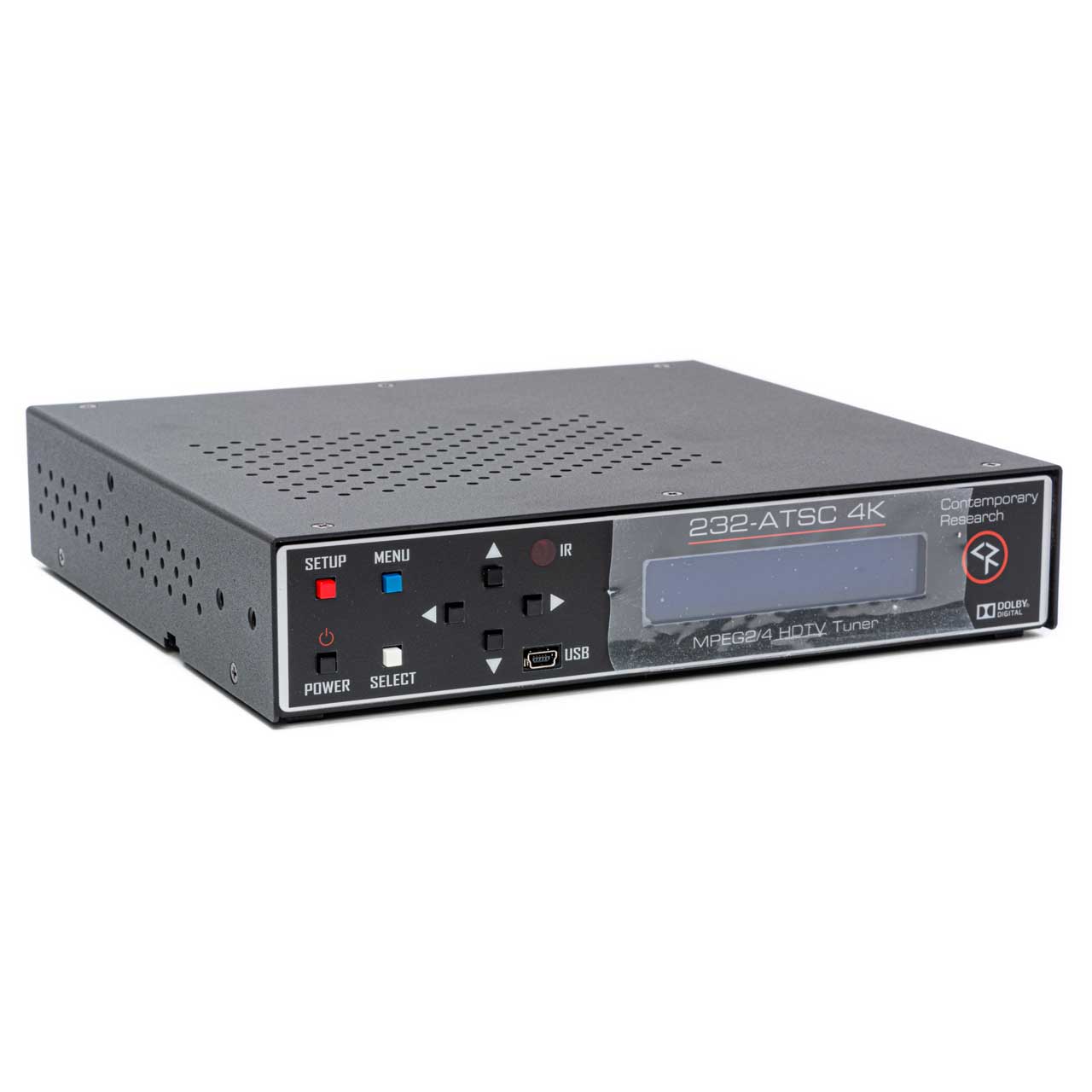

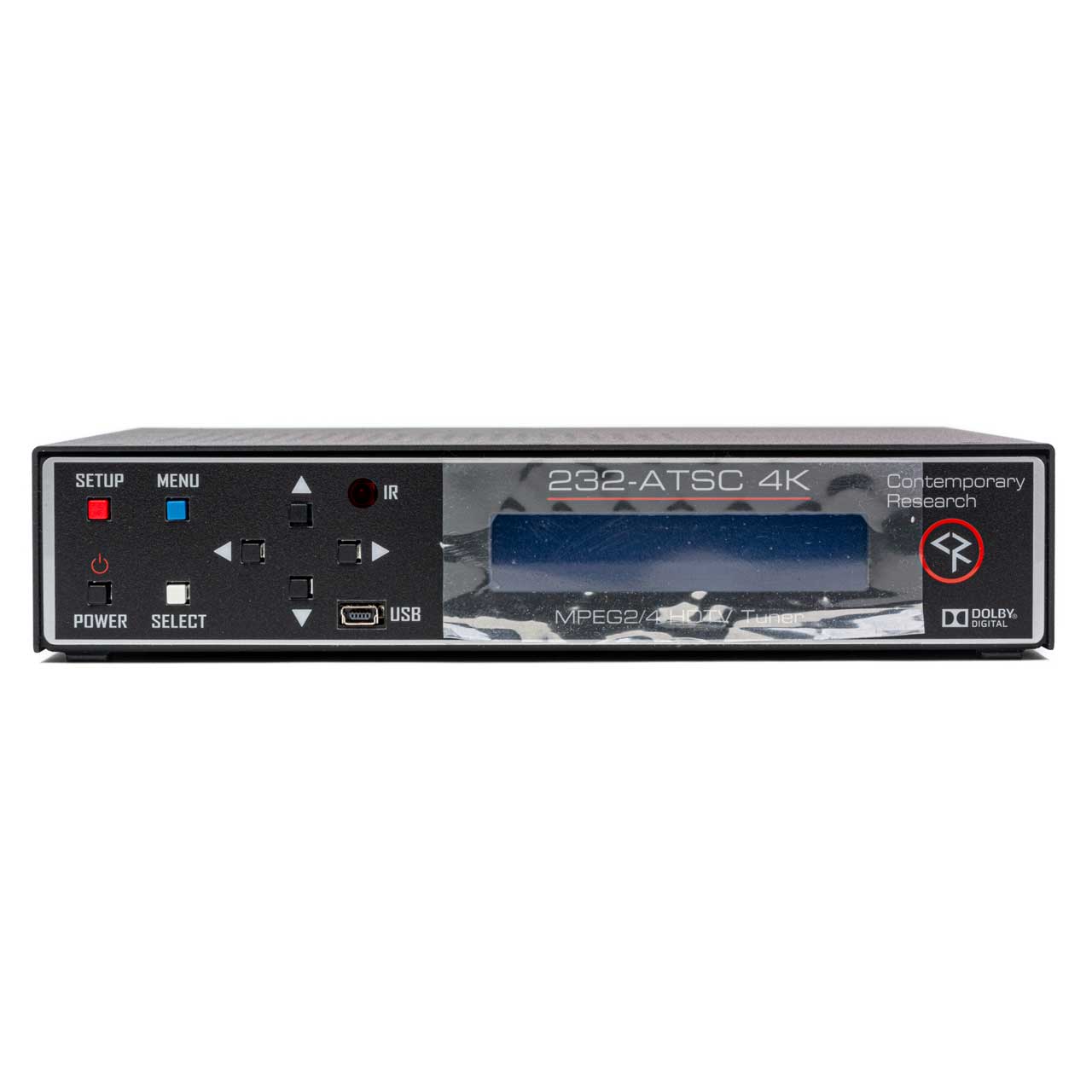

    • LCD Text display, white text on blue background
    • Power, Menu, Setup, and Select buttons
    • Up and Down (Channel Up and Down) buttons
    • Left and Right (Volume Up and Down) buttons
    • IR Sensor, Mini USB-B port for future use.
    • 2.1mm coaxial jack (inside center conductor positive), 1.1A maximum, 11 to 14 VDC, 12 VDC typical, 13.2W 45
    • BTU, 15.2 W 52 BTU including power supply, current draw 0.198A@114 VAC with power supply


  • Item Includes:

    • PS12-1.5 Power Supply 1.5A maximum, 12 VDC

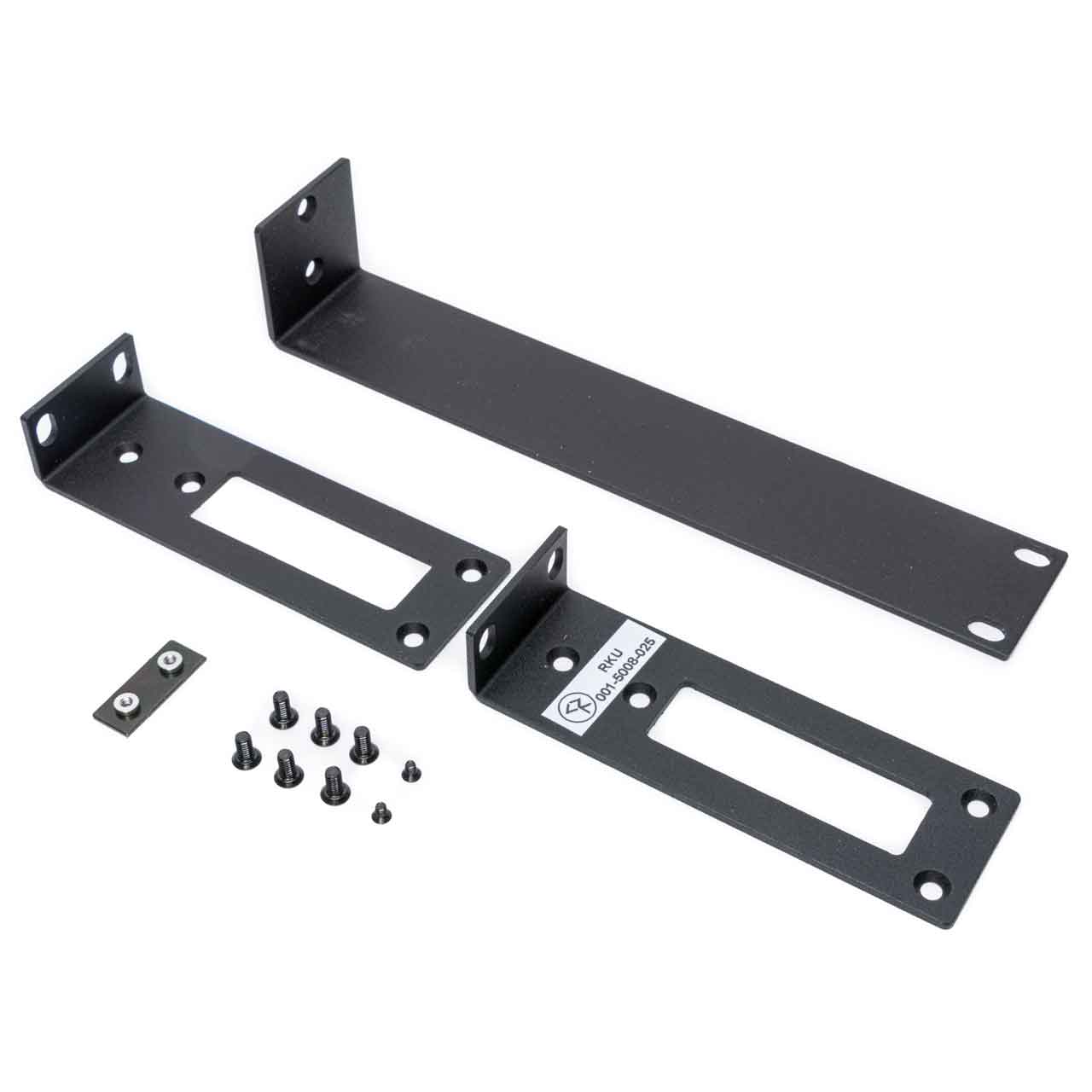

    • RKU Universal Rack Mount Kit
