Contemporary Research 5122-001 ATSC-Mini - HDTV Tuner with Mounting Wings

ITEM #: CRC-5122-001 MFG #: 5122-001

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    5122-001 - Overview

    The ATSC-mini (5122-001) is an HDTV Tuner designed for use with HD and UHD video displays and projectors in a distributed CATV system. Housed in a new, smaller low-profile enclosure, the unit with built in mounting wings can be attached flush to walls or displays.

    As a full function HDTV tuner, the ATSC-mini can receive ATSC and NTSC off-air channels and clear QAM and NTSC cable channels. Decoding of MPEG-2 and H.264 encoded digital channels is supported. The unit features an HDMI output along with SPDIF optical and variable-level analog stereo audio outputs.

    The integrator-friendly HDTV tuner is controllable with 2-way RS-232, IP Telnet and UDP, as well as wireless and wired IR commands. An onboard Web page enables remote configuration, control, and monitoring.

    • Features:

      • Tunes ATSC air and clear QAM cable channels
      • Tunes NTSC air and cable channels
      • Decodes MPEG-2 and H.264 digital channels up to 1080p 60Hz
      • HDMI selectable video output resolutions: 480i, 480p, 720p, 1080i, 1080p, and 4K or Auto
      • Consumer Electronics Control (CEC) available on HDMI port for display power control
      • AC-3, PCM, or Variable PCM audio formats for S/PDIF and HDMI outputs
      • Simultaneous HDMI, S/PDIF, and Analog Stereo Audio output
      • On-screen menus for tuner setup and configuration
      • Web pages for remote setup, configuration, and control
      • Decodes analog and digital closed captioning
      • Full ASCII 2-way RS-232/Telnet commands
      • Powered via external 12 VDC 1 A power supply or PoE
      • Meets RoHS and California energy-saving standards
    • Specifications:

      • Physical
      • Dimensions (WxHxD): 8 x 8.6 x 1.15" (203 x 218 x 29mm)
      • Weight: .877Lbs (398g)
      • Enclosure: Aluminum with black powder coat paint
      • Mounting: Hook-and-loop fasteners or screw attachment
      • Certification: ROHS compliant, meets California codes

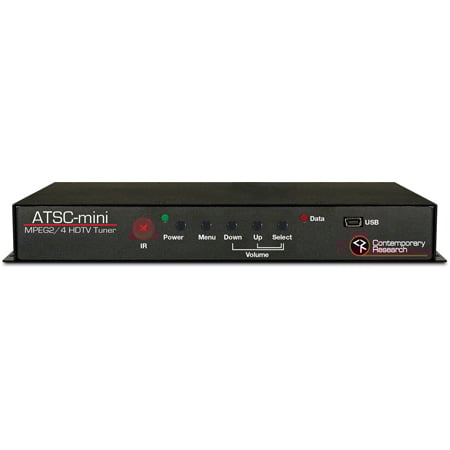

        Front Panel
      • Control: Power, Menu, and Select buttons, Up and Down buttons for channel, volume, and navigation
      • LEDs: Power and Data
      • USB: For future use

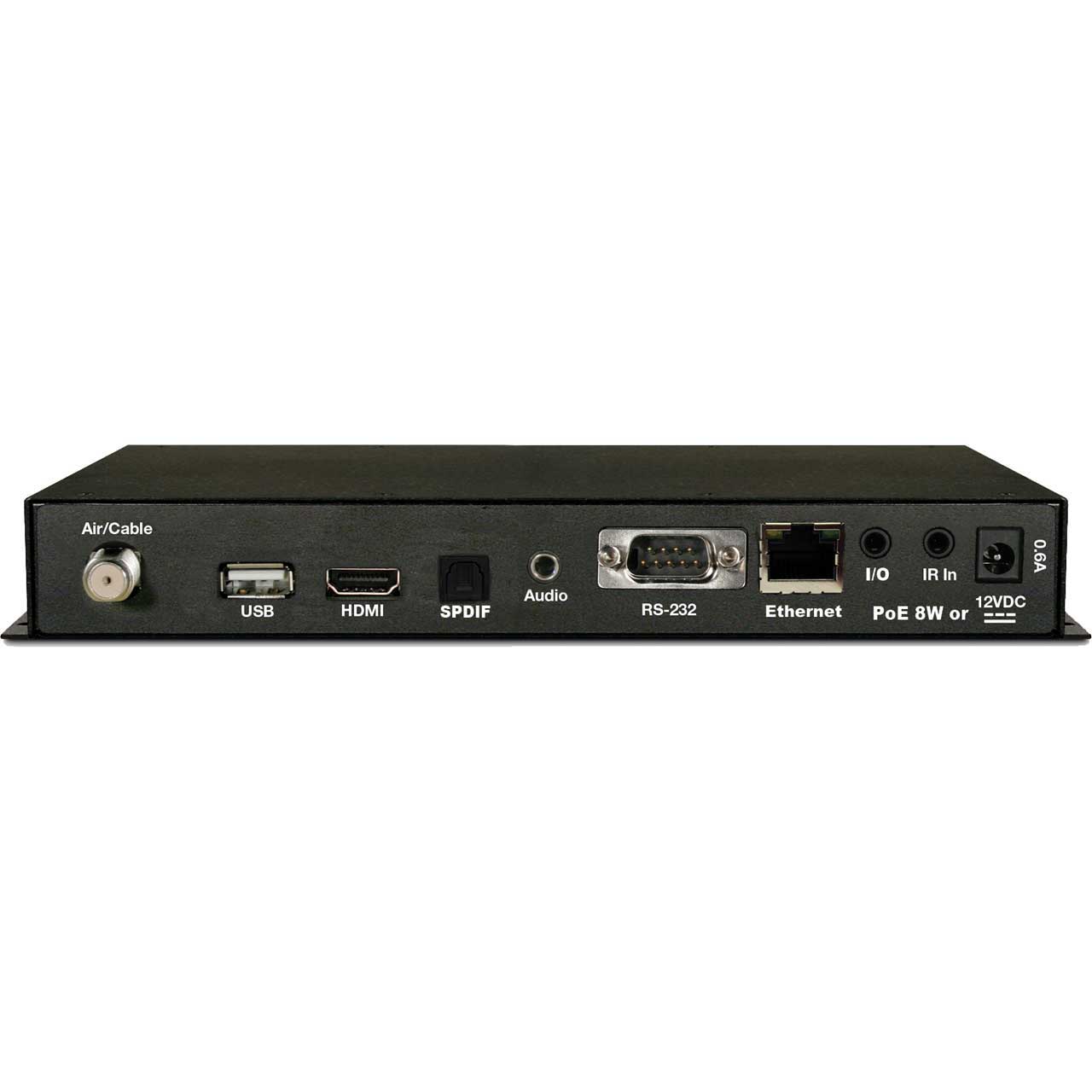

        Rear Panel
      • USB: Service port for firmware updates
      • Air/Cable: 1 'F', female, 75 ohm impedance, Tuner RF input, -10 to +25 dBmV typical
      • Audio: 3.5 mm TRS jack, analog stereo, variable level
      • HDMI: HDMI receptacle, Type A, video and digital audio, version 1.4a (2160p/1080p/1080i/720p/480p/480i)
      • SPDIF: Optical digital audio output
      • RS-232: DB-9 male, RS-232 data link to control system, 1200 to 230K baud
      • Ethernet: RJ-45 10/100 for Web page access, Telnet and UDP control, firmware updates, PoE
      • I/O: For future use
      • IR In: 3.5 mm TRS input for external IR sensor or wired IR (no carrier, discrete codes available)
      • Power In: 2.1 mm coaxial jack (inside center conductor positive) 0.6 A maximum, 11.5 to 15 VDC, 12 VDC typical

      • Frequency Range: 51.0027 to 864 MHz
      • TV System: ATSC 1.0, clear QAM, NTSC
      • Channels: Air 2-69 (8-VSB and NTSC) and CATV 2-135 (64QAM, 256QAM, 8-VSB, and NTSC), Standard, IRC, and HRC
      • V-Chip: Supports parental channel block based on US and Canadian ratings

      • Video: MPEG-2 (1080i/720p/480p/480i), H.264 (1080p/1080i/720p/480p/480i) Audio: AC-3, MPEG-1 Layer 2, AAC
      • Captioning
      • On-Screen: Displays on-screen analog and digital captioning on HDMI port
    • Item Includes:

      • 1x PS12-1 Switching power supply, 12 VDC 1 A
