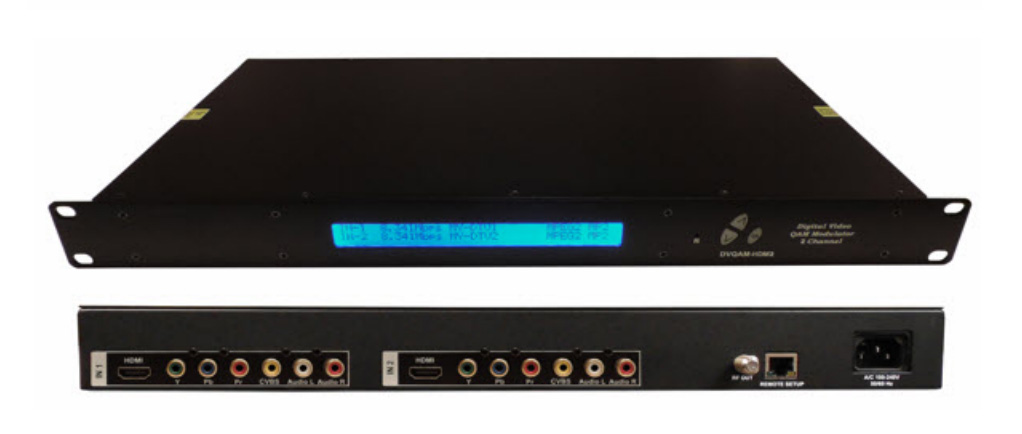

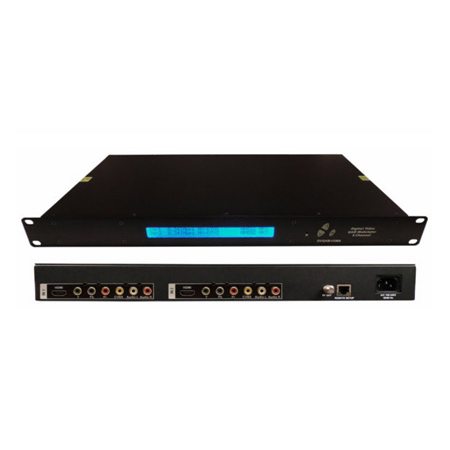

Cabletronix DVQAM-HDM2 Digital QAM Modulators with Component & HDMI Inputs


    Cabletronix DVQAM-HDM2 Digital QAM Modulators with Component & HDMI Inputs

    Manufacturer: Cabletronix

    Item #: CT-DVQAM-HDM2   •   MFG #: DVQAM-HDM2



    This item is no longer available.
    Ask a Markertek Expert if you need assistance finding an appropriate substitute.

    800-522-2025Email





    Item unavailable. Please select another option.

    Items similar to the CT-DVQAM-HDM2

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The DVQAM-HDM1 and DVQAM-HDM2 modulator series have been designed to convert high definition video and audio signals to
    QAM DVB-C (Digital Video Broadcasting over Cable). The Dual Mode DVQAM-HDM1 and DVQAM-HDM2 modulators provide single and dual channel inputs, respectively with input format options for HDMI audio and video, component video, composite video and composite audio. Both units feature programmable channel and network names. Adjustable output, virtual channel mapping and adjustable attenuation are embedded as standard features. Their front panel LCD display and controls allow for easy configuration and adjustment. The DVQAM-HDM1 and DVQAM-HDMM2 modulators are perfect for multi-video distribution solutions in the commercial market (sports bars, restaurants, casinos, business and digital signage, etc.) as well as home entertainment systems.


    • Features

      • Single-channel or Two-channel models available
      • HDMI, Component & Composite Inputs
      • Auto detects inputs
      • 3D Compatible
      • Dual Mode H.264 / MPEG4 AVC
      • Video resolution: up to 1080i for both MPEG2 and MPEG4 (AVC), 1080p for MPEG4 (AVC)
      • Perfect, clean, and clear picture on high motion video, sports, text crawls/rolls, etc.
      • Front Panel GUI for simple setup
      • Rack Mountable for easy installation
      • Browser accessible

    • Specifications

      • INPUT
      • Input Connectors
      • HDMI input (Video +Audio)
      • Composite input (Video)
      • L / R_ channel Audio input (Audio)
      • Video Input: Level 0.7 - 1.4V (peak-to peak)

      • Video Mode: 480i,480p,576i,576p,720p50,720p60,1080i50,1080i60
      • (1080p50,1080p60 Optional for AVC Encoding Only)

      • Audio input: Stereo / Digital
      • Audio Input Level: 0.4 - 0.8V (peak-to peak)
      • Input Impedance: 75 ohm

      • OUTPUT
      • Frequency Range: 54-864MHz (CH2-CH135)
      • Output Level: 40 dBmV
      • Output Impedance: 75 ohm
      • Channel Bandwidth: 6 MHz
      • Channel Level Adjustment: 1~10dB with +/-0.2dB accuracy,11~20 dB is for reference
      • MER: 36dB minimum, 37dB typical

      • MODULATION
      • Video Resolution: 1080i/720p/576p/576i/480p/480i for all
      • 1080p for AVC
      • Video Compression: MPEG2, [email protected] / AVC, [email protected]
      • Audio Compression: MPEG1 Layer II / AAC, AC3 Pass through
      • Constellations: 256 QAM

      • GENERAL
      • Power Supply: 12 VDC 3 Amp.
      • Consumption: 1700 mA
      • Languages: English
      • Dimensions: 19" x 9.45" x 1.75"
      • Weight: 7.05 lbs

    • Warranty

      • 2 Years
