Delvcam DELV-HD7-HSC 1920x1200 7-Inch HD LCD Monitor with HDMI/SDI Cross Conversion & Waveform

ITEM #: DELV-HD7-HSC MFG #: DELV-HD7-HSC

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DELV-HD7-HSC

DELV-HD7-HSC - Overview

Add Conversion, Waveform & Vector to Your On Camera Monitor Tool Box!

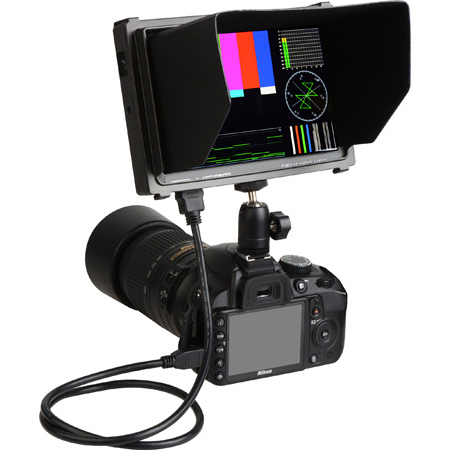

Don't wait till you get back to the studio to find out your critical shot went wrong! Fine tune your focus with the Delvcam DELV-HD7-HSC - a full 1920x1200 HD, 7" LCD Monitor with HDMI/SDI Cross Conversion. Designed with Camera Operators, Directors and Cinematographers in mind, the DELV-HD7-HSC is packed with incredible integrated features that will save you time and aggravation from camera setup to post production.

The Delvcam DELV-HD7-HSC has HDMI and 3G-SDI inputs with hassle free SDI and HDMI cross conversion all packed into a slim, light, road tough metal housing. Evaluate and adjust on the spot as you choose from numerous on screen displays. Select from Waveform, Vectorscope, Audio Metering,Histogram and several others that will allow you to quickly fine tune Color, luminance, brightness and more. This Broadcast quality monitor boasts Full HD 1920x1200 resolution, bright 1000:1 high contrast, 16:10 aspect ratio and a super wide 170° viewing angle to assure you get the shot you want the first time. Enable your creative process with the Delvcam DELV-HD7-HSC Full 1920x1200 HD 7 inch LCD Monitor with HDMI/SDI Cross Conversion.

  • Features:

    • High Resolution: 1920 x 1200
    • High Contrast: 1000:1
    • 170° Wide Viewing Angles
    • SDI and HDMI Cross Conversion

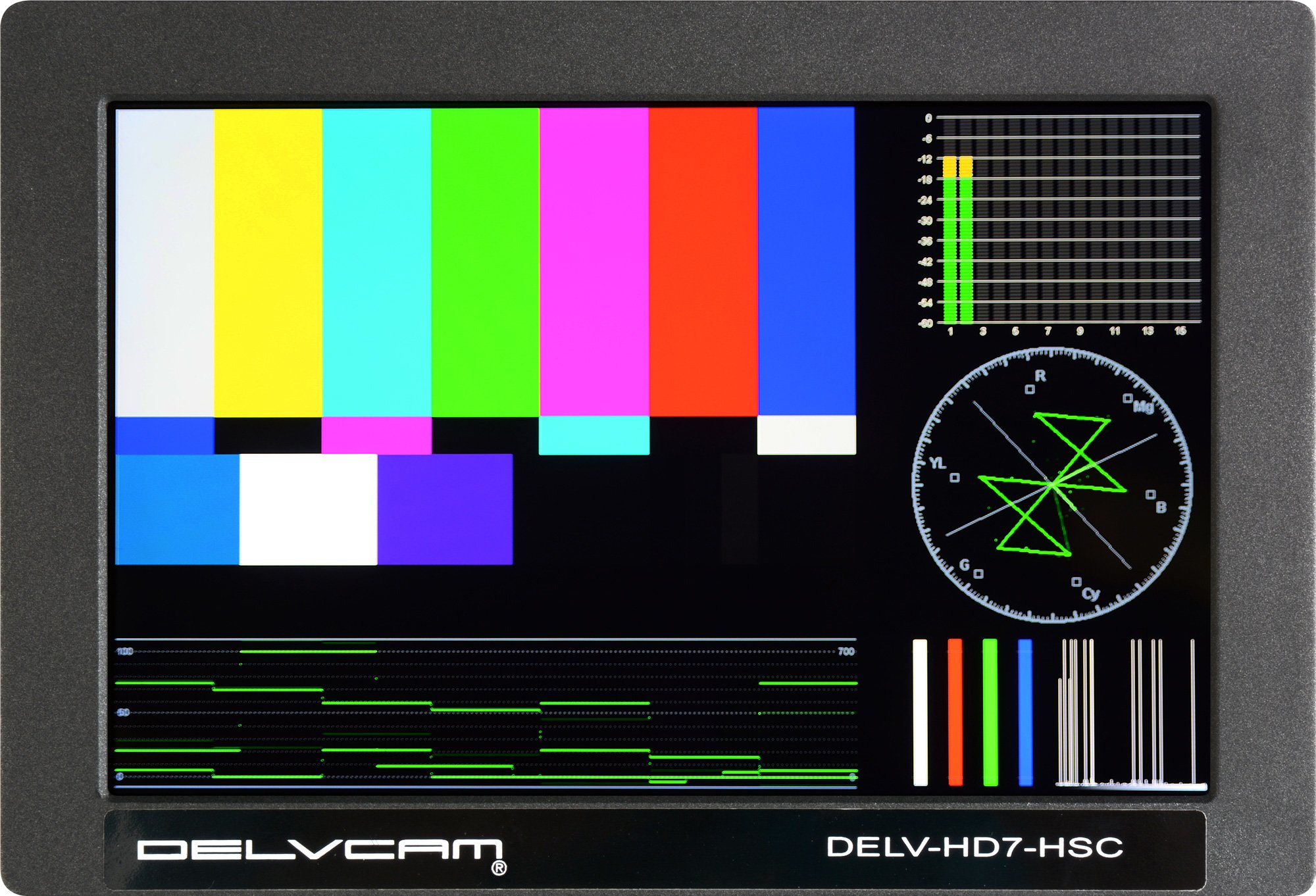

    • Integrated Waveform & Vectorscope Displays
    • Audio Level Meter
    • Rugged Metal Housing

  • Specifications:

    • Display Screen: 7 inch
    • Aspect Ratio: 16:10
    • Brightness: 500 cd/m2

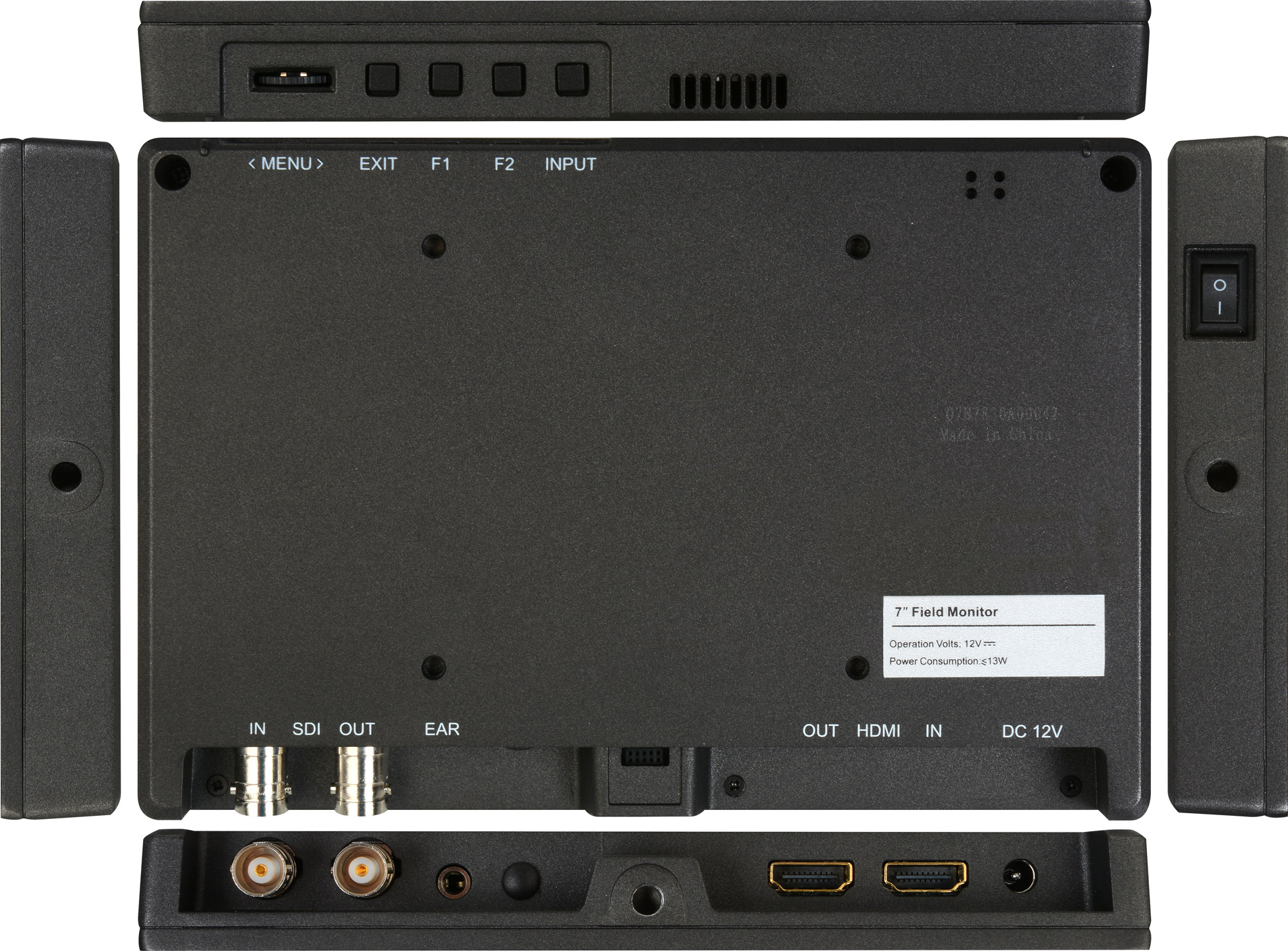

    • Input: 1- 3G-SDI, 1-HDMI
    • Output: 1- 3G-SDI, 1-HDMI
    • Compatibility: SDI A, SDI B limited to1080i60
    • Response Time (ms): HDMI 1.371, SDI 1.345
    • Current: 1A
    • Power Consumption: 13W
    • Input Voltage: 7-24VDC
    • Audio: 1 Speaker, 1 Earphone Jack
    • Battery Plate Compatibility: LPE6, F970, DU21, QM91D
    • Weight: 0.9lb / 405g
    • Dimensions: 7.17x4.88x0.87in / 182x124x22mm

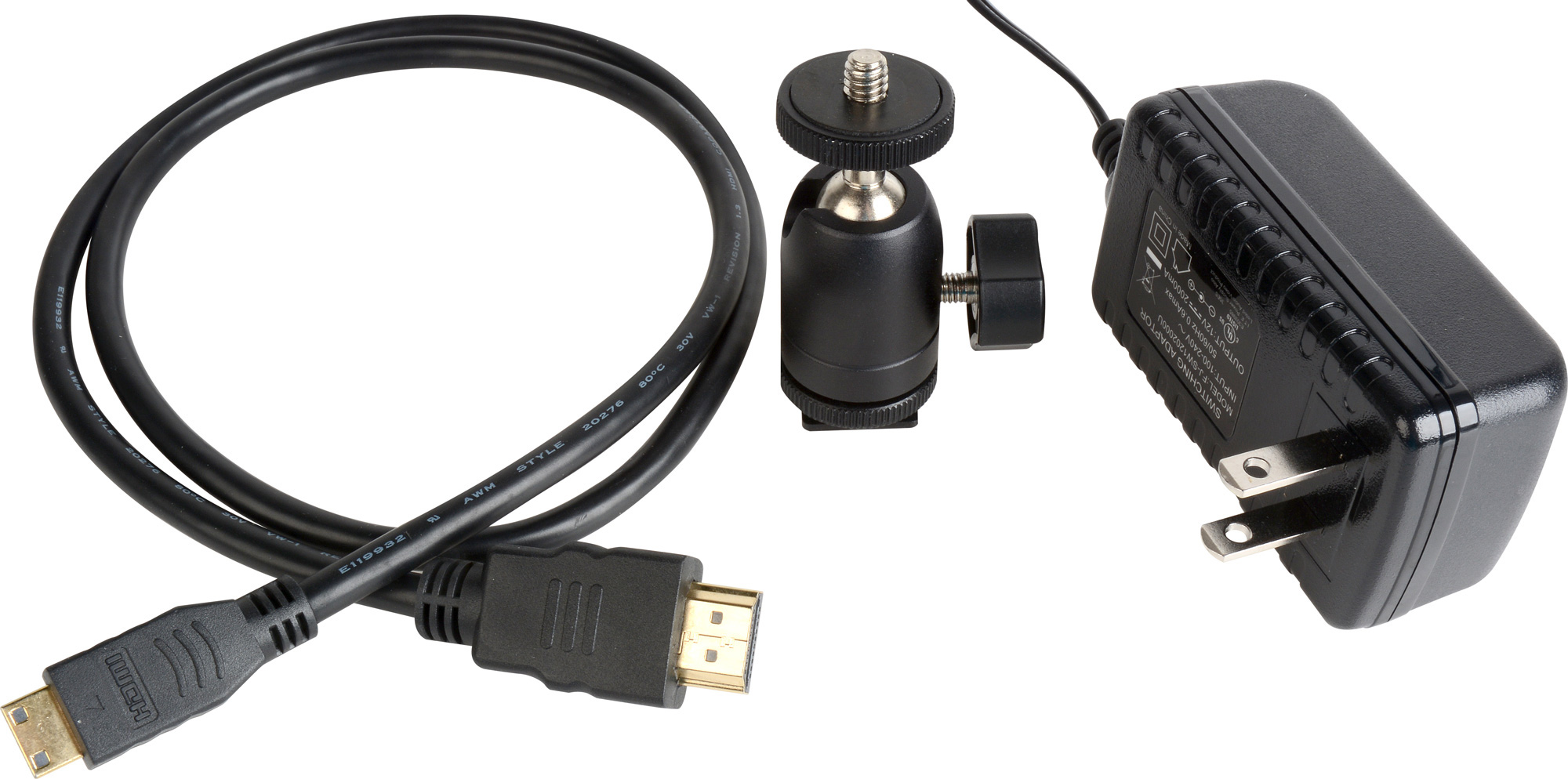

  • Item Includes:

    • Sunshade
    • HDMI AC Cable
    • 12VDC Power Cable
    • Shoe Mount
    • Battery Plates - F-970, LP-E6
    • Mount Plate Bracket
    • VESA Battery Bracket

  • Warranty:

    • 1 Year

  • GTIN:

    0854554007257
