Lilliput 662-S 7 Inch 3G-SDI Camera-top Monitor with HDMI and SDI Cross conversion

ITEM #: LIL-662-S MFG #: 662/S

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$499.00

Our Price:

$449.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    662/S - Overview

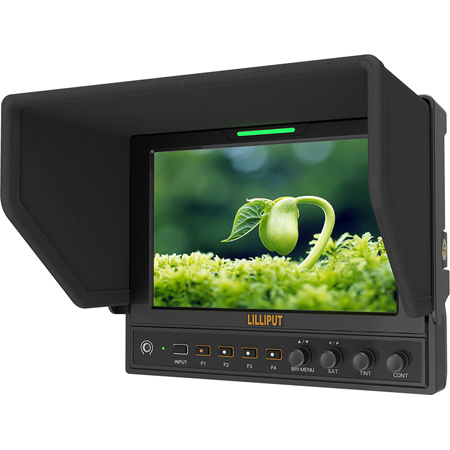

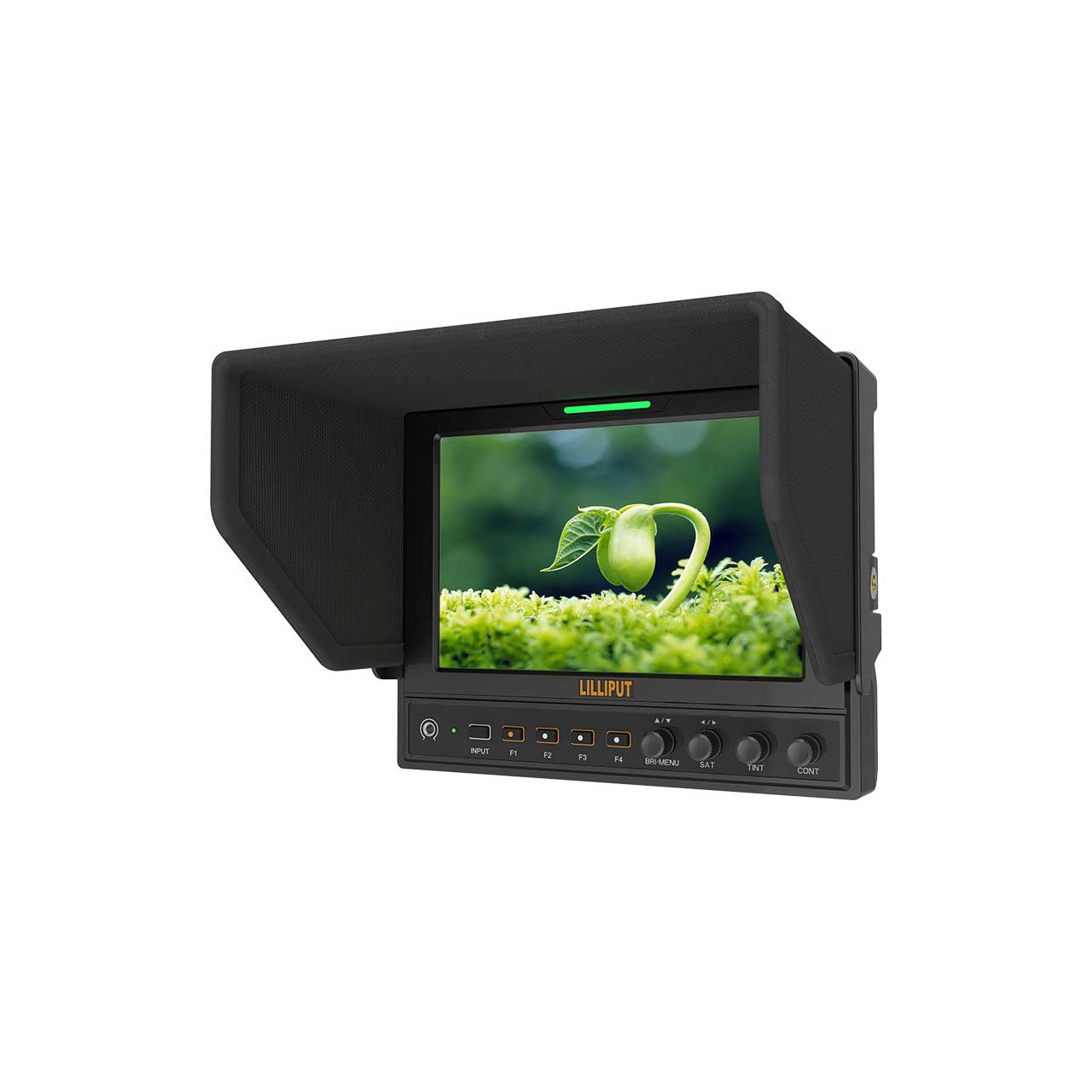

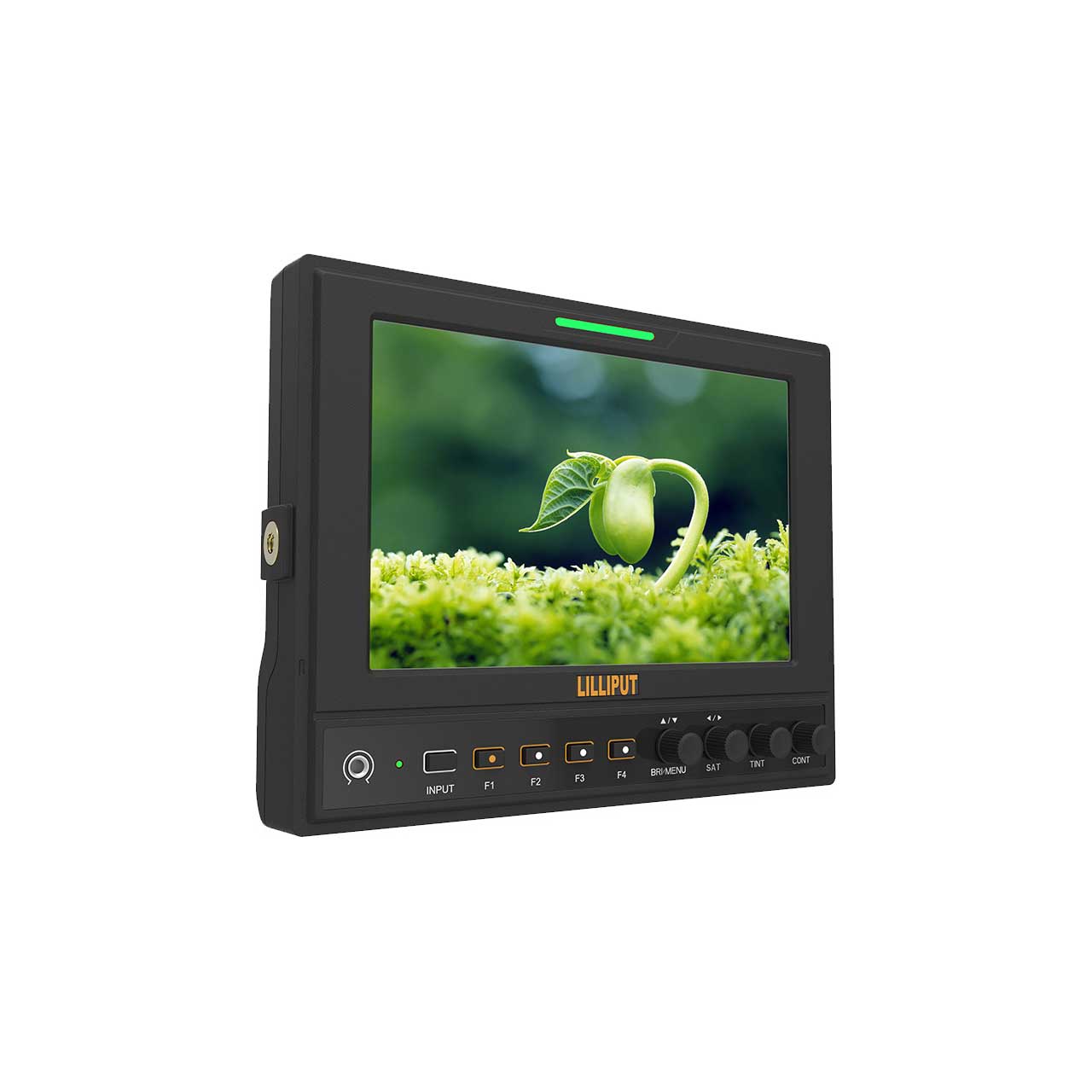

    The Lilliput 662/S is a 7 inch 16:9 metal framed LED field monitor with SDI & HDMI cross conversion.

    The ultimate field monitor the 662/s has great standard features like 4 programmable shortcut buttons allowing the user to customize functions to suit their style. Sized to fit easily in your camera bag it's optimized for full HD camcorders with a wide 178 degree viewing angle and an IPS 800:1 High Contrast LED backlit display with 1280x 800 resolution. Innovatively designed you also get on board Color, RGB Histogram, waveform, vector scope, peaking and Audio Level Metering combined with a clever screen protector that folds out into a sunshade! No need for adapters the SDI and HDMI cross conversion combined with 3G-SDI, HDMI, component and composite inputs mean you're ready for whatever the road throws your way!

    • Features:

      • High resolution: 800x480,
      • High brightness: 450cd/m/2
      • High contrast: 500:1,
      • DV battery plates for power,
      • Multi mounts methods & angles,
      • Wide voltage: 6-24V,
      • 3G-SDI input.

    • Specifications:

      • DISPLAY
      • Panel 7 inch IPS
      • Physical Resolution 1280x800, support up to 1920x1080
      • Aspect Ratio 16:9
      • Brightness 400cd/m2
      • Contrast 800:1
      • Viewing Angle 178°/178°(H/V)

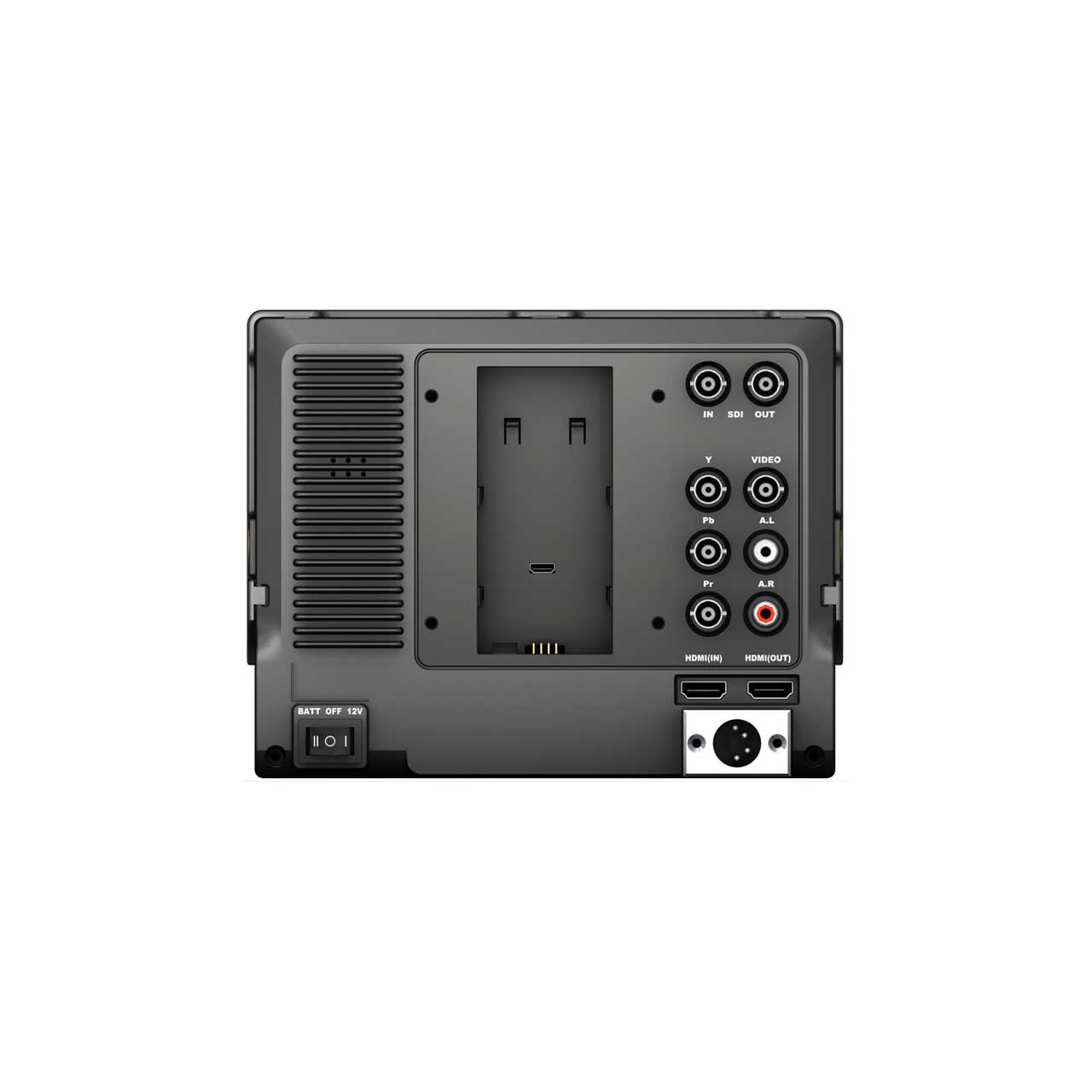

      • INPUT
      • 3G-SDI 1
      • HDMI 1
      • YPbPr 3(BNC)
      • VIDEO 1
      • AUDIO 2(L/R)
      • OUTPUT
      • 3G-SDI 1
      • HDMI 1
      • AUDIO
      • Speaker 1
      • Ear Phone out 1
      • POWER
      • Current 900mA
      • Input Voltage DC 7-24V(XLR)
      • Battery Plate V-mount / Anton Bauer mount /
      • F970 / QM91D / DU21 / LP-E6
      • Power Consumption 11W
      • AUDIO 1
      • 3G-SDI 1
      • Speaker 1
      • Audio Output 1W
      • Power
      • Current 650mA
      • Input Voltage DC 6-24V(XLR)
      • Battery Plate F970 / QM91D / DU21 / LP-E6
      • Power Consumption 8W

    • Item Includes:

      • Monitor x1
      • Power adapter x1
      • Sun shade x1
      • Gimbal bracket x1
      • Battery Plate LP-E6, F970
      • HDMI A/C cable x1
      • Power and TALLY cable x1
      • Hardcase x1
      • Shoe Mount x1
      • Adaptor Panel x1
      • Manual x1
      • 1 year parts and labor in Depot of City of Industry, CA

    • GTIN:

      6950821601167
