Digital Forecast UHD M-OTR 2TX/2RX 12G 2-Channel Fiber Optic Tx & Rx Set w/ SFP - LC Duplex Singlemode Fiber -10km

UHD M-OTR 2TX/2RX - Overview

• Features:

  • Micro-Compact Size
  • 2x 12G-SDI Input
  • 2x 12G-SDI Output
  • LC Single Mode
  • Dual Core (Two LC fiber strands)
  • 12G SFP module INCLUDED
  • 12G Max. 6.2 miles (10km)


• Specifications:

  Digital Video Specs
  • SMPTE-296M: 720P (60/59.94/50)
  • SMPTE-274M/SMPTE-292M: 1080i (60/59.94/50)
  • SMPTE-424M: 1080p (60/59.94/50) 3G
  • SMPTE-ST2081: 2160p (30/29.97/25) 6G
  • SMPTE-ST2082: 2160p (60/59.94/50) 12G


  • Power Level: 7V - 16VDC
  • Power Consumption: 3.1 Watts (Max 4 Watts)
  • Operating Temperature: 0°F - 131°F (0°C - 55°C)
  • Humidity: 0% - 95% RH, Non-condensing
  • Signal Level: 800mVp-p ±80mV
  • Dimension: 3.15" x 2.34" x 0.89" (80.0mm x 59.4mm x 22.5mm)
  • Weight: 0.23lbs (105g)


• Item Includes:

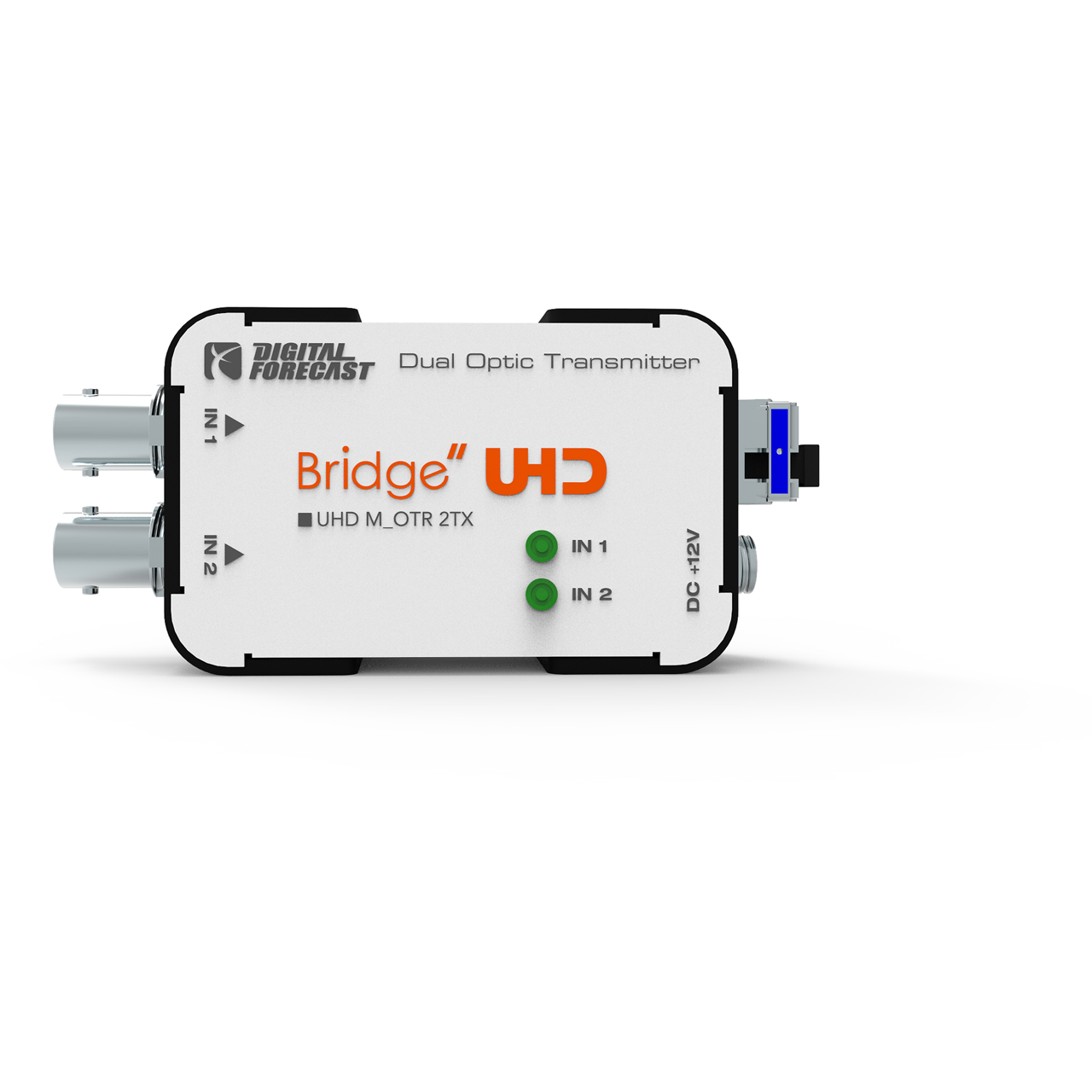

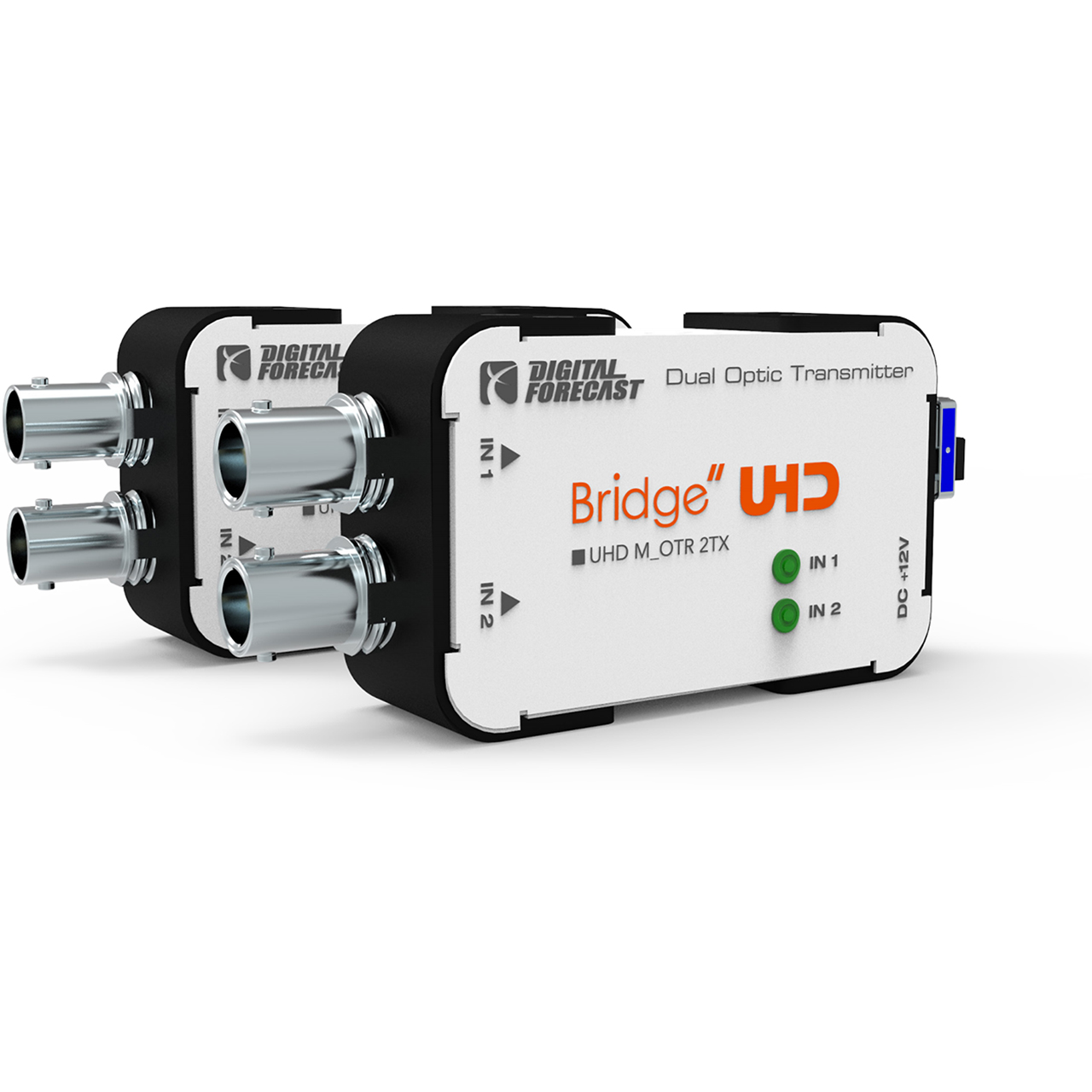

  • 1x Digital Forecast UHD M-OTR 2TX

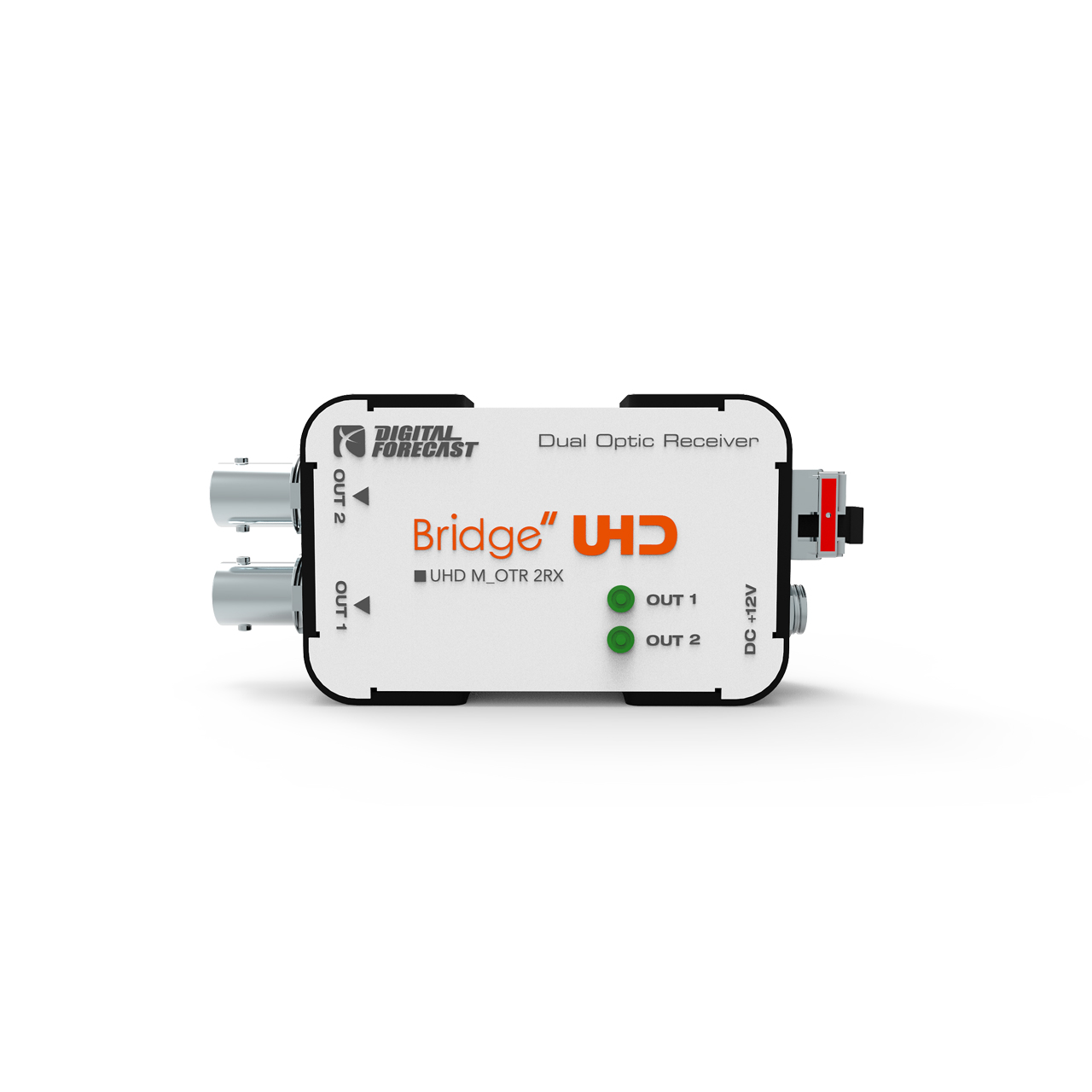

  • 1x Digital Forecast UHD M-OTR 2RX
  • 2x Power Adapter


• Warranty:

  • 2-Year Limited Warranty


• GTIN:

  0704006296152
