Digital Forecast Bridge X-TS Multi Platform A/V Signal Converter - SDI/HDMI/VGA/RGB/AES Analyzer - Bstock (Used/Demo)
  • Digital Forecast Bridge X-TS Multi Platform A/V Signal Converter - SDI/HDMI/VGA/RGB/AES Analyzer - Bstock (Used/Demo)
  • Digital Forecast Bridge X-TS Multi Platform A/V Signal Converter - SDI/HDMI/VGA/RGB/AES Analyzer - Bstock (Used/Demo)
  • Digital Forecast Bridge X-TS Multi Platform A/V Signal Converter - SDI/HDMI/VGA/RGB/AES Analyzer - Bstock (Used/Demo)
  • Digital Forecast Bridge X-TS Multi Platform A/V Signal Converter - SDI/HDMI/VGA/RGB/AES Analyzer - Bstock (Used/Demo)
  • Digital Forecast Bridge X-TS Multi Platform A/V Signal Converter - SDI/HDMI/VGA/RGB/AES Analyzer - Bstock (Used/Demo)


Digital Forecast Bridge X-TS Multi Platform A/V Signal Converter - SDI/HDMI/VGA/RGB/AES Analyzer - Bstock (Used/Demo)

Manufacturer: Digital Forecast

Item #: DF-X-TS-BS   •   MFG #: X-TS



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the DF-X-TS-BS

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

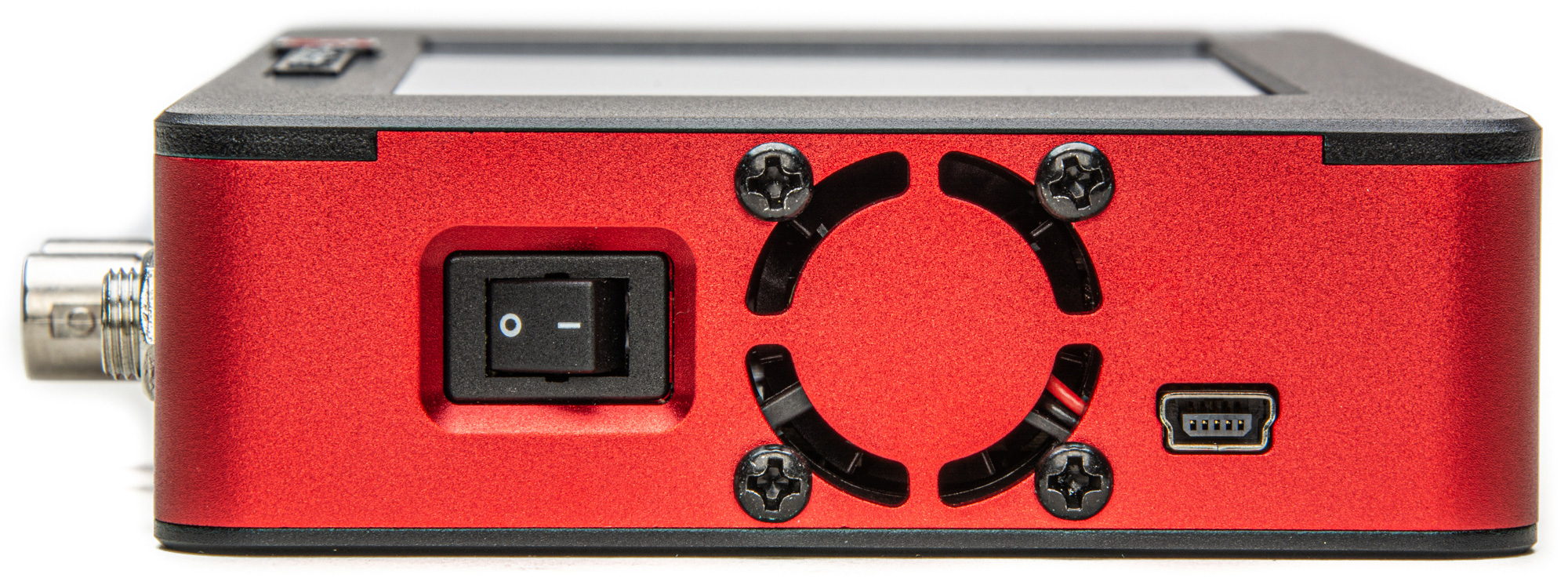

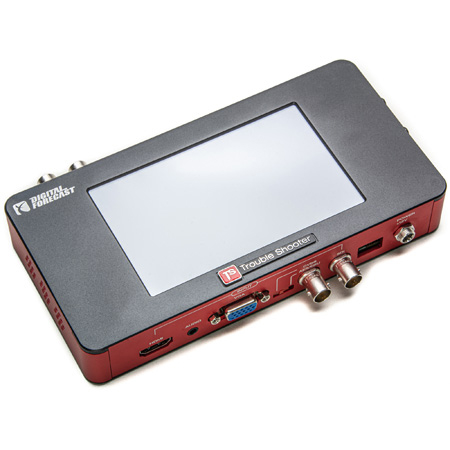

Digital Forecast has reached higher ground with the release of their Bridge X-TS Trouble Shooter. The Bridge X-TS is a multi-platform signal converter/analyzer/test-pattern generator and a whole lot more! With it's touch screen function and wide variety of I/Os, this device is a must have for installers, broadcast engineers, videographers, cinematographers or anywhere signal conversion, cable testing AND HD monitoring is an absolute must. The X-TS also has the ability to measure SDI cable length, check for Jitter and with a built in fan you have extra security under those hot lights on set or on location. The X-TS also sports an additional HDMI output for mirroring or monitoring. All inputs have a corresponding output connector so you can instantly convert your input signal to any output signal simply by the touch of a screen.

Inputs/Outputs:
HDMI
SDI
VGA
Component (15 pin)
Composite (BNC)
AES/EBU Audio (BNC)
3.5mm Analog Audio

Please Note: This is a Bstock item. This unit is used but is fully functional.


  • Features

    • Up/Down/Cross/Scan converter
    • Multiple standard Video / Audio signal
    • (CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog audio, HDMI)
    • Analog audio MUX / DEMUX
    • User selectable output format
    • Test Pattern Generator (Stop screen and Moving Box screen)
    • Menu OSD function
    • Audio level check (Most 8 channels are monitored)
    • Touch Screen LCD Built in For Input signal monitoring (5 Inch 800x480)
    • External Battery (Option)

      Please Note: This is a Bstock item. This unit is used but is fully functional.

  • Specifications

    • Inputs:
    • 1 x Coaxial power
    • 1 x BNC, SD/HD/3G-SDI
    • 1 x BNC, composite video, AES/EBU
    • 1 x VGA
    • 1 x 3.5 mm stereo analog audio
    • 1 x HDMI Type A

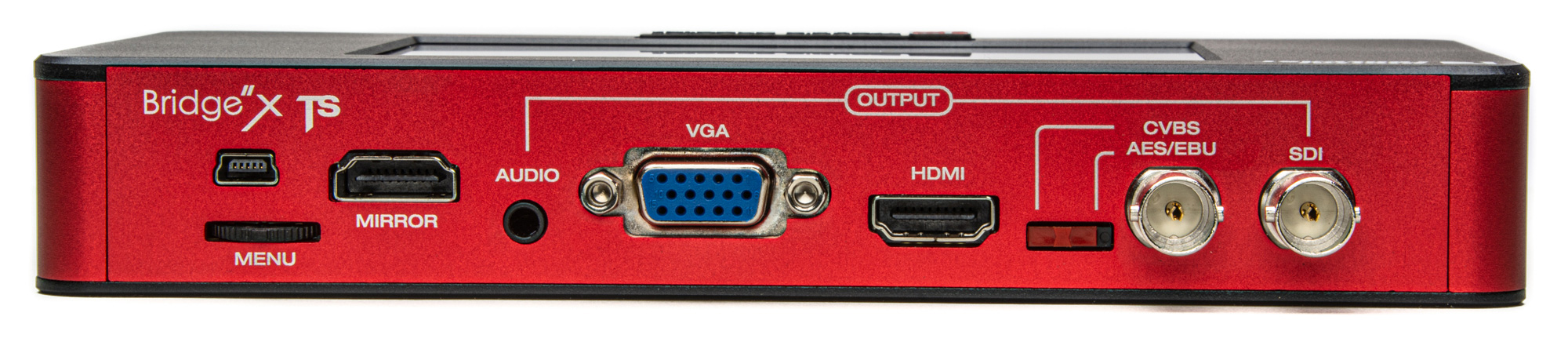

      Outputs:
    • 1 x BNC, SD/HD/3G-SDI
    • 1 x BNC, composite video, AES/EBU
    • 2 x HDMI Type A (1 mirror output)
    • 1 x VGA
    • 1 x 3.5 mm stereo analog audio

      Supports HDMI v1.3
    • Supports VGA, Comp, CVBS format
    • Supports multi-rate SDI formats
    • SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
    • SMPTE 296M: 720p (60/59.94/50)
    • SMPTE-274M: 1080i (60/59.94/50)
    • SMPTE-292M: 1080p (30/29.97/25/24/23.98)
    • SMPTE-424M: 1080p (60/59.94/50) 3G

  • Item Includes

    • X-TS Main Unit
    • Power Adapter
    • VGA to Component Cable
    • 3.5mm to RCA (L/R) Audiop Cable
