Doug Fleenor Design PRE10-P DMX512 Portable Playback Device For Up To 10 Snapshots

ITEM #: DFD-PRE10-P MFG #: PRE10-P

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$825.00

Our Price:

$669.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    PRE10-P - Overview

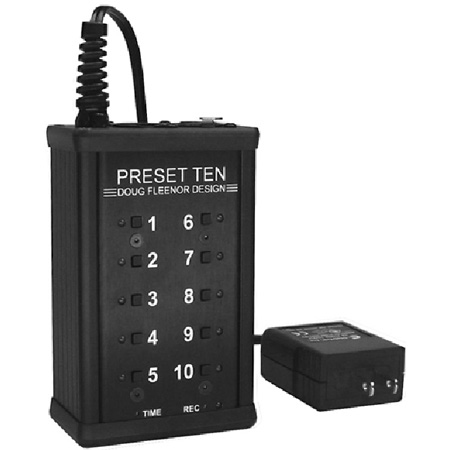

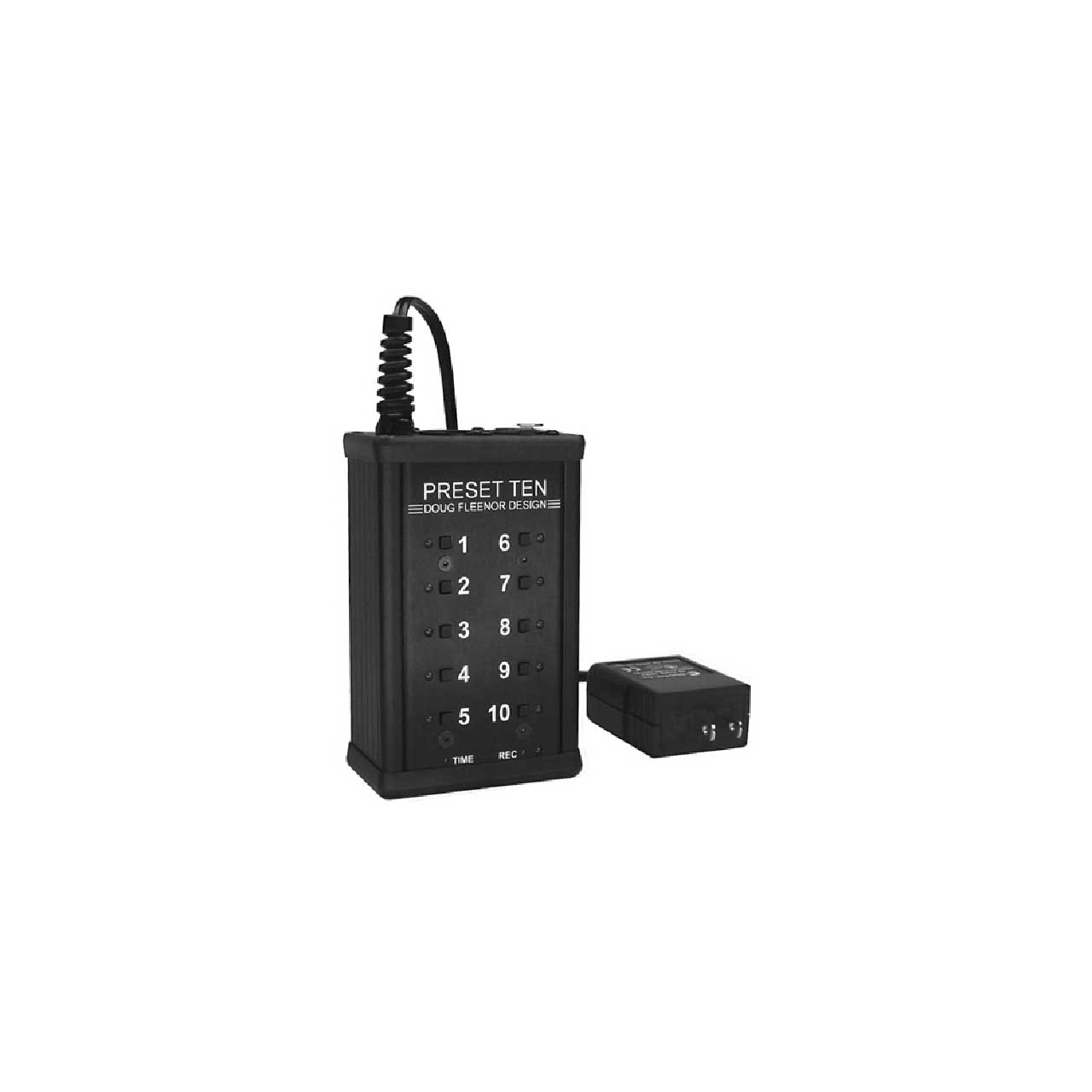

    The Doug Fleenor Design Preset 10 Portable PRE10P can act as a backup for any DMX512 lighting console or as a stand-alone DMX512 preset console. The PRE10P is a DMX512 playback device that can take up to ten snapshots from a DMX console and play them back at the press of a button. Fade times can be set from 0 to 999 seconds (default is 2 seconds).

    Each PRE10P can work in conjunction with a lighting console, automatically switching between preset and console control. When the console generates DMX, the PRE10P goes off-line, and the console operates normally. Upon loss of DMX from the console, the PRE10P either returns to its previous preset or holds the last look (jumper selectable).

    • Specifications:

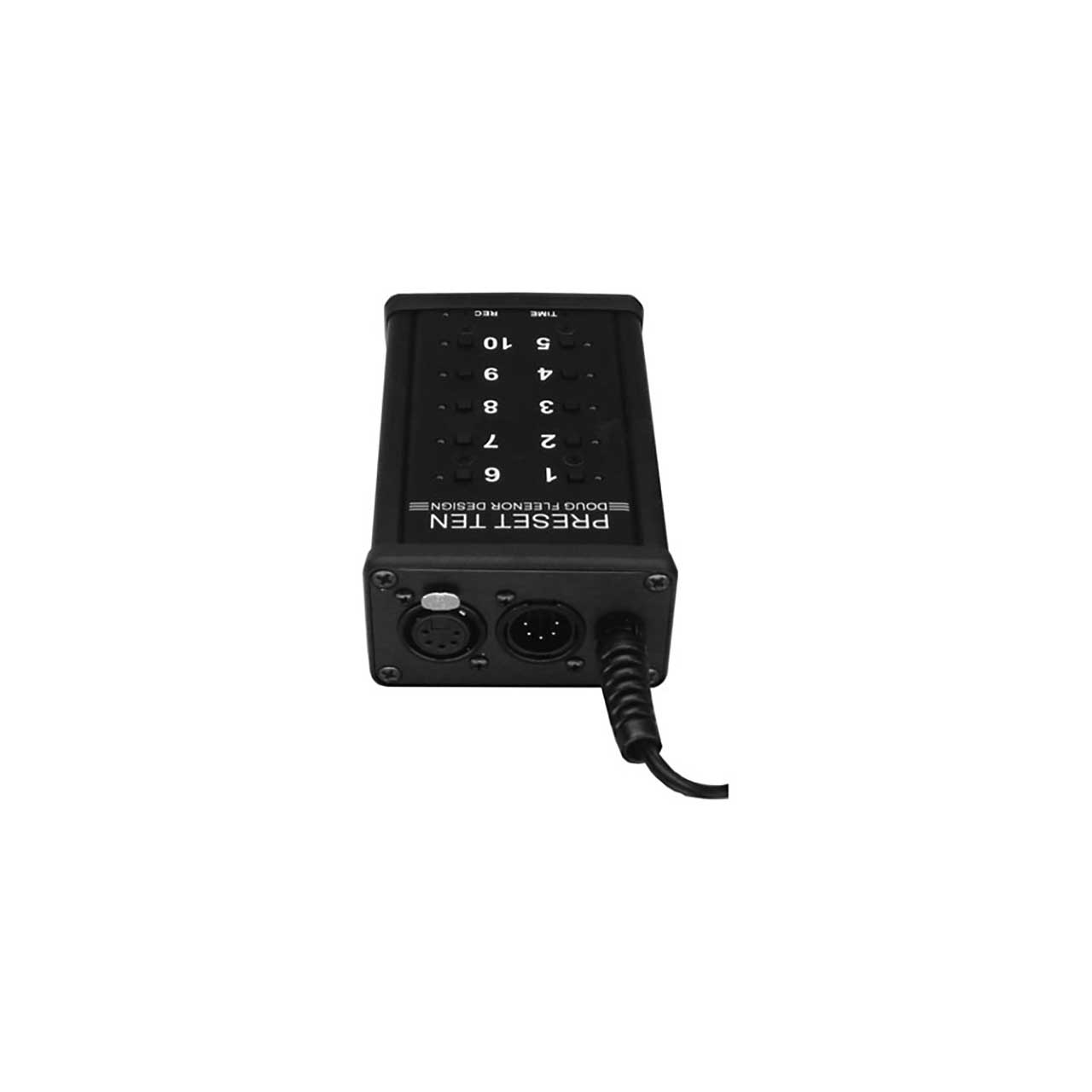

      • Connectors: Input: 5 pin male, gold plated contacts (3 pin connectors optional); Output: 5 pin female, gold plated contacts (3 pin connectors optional)
      • Connecter pin out: 1 - DMX512 common; 2 - DMX512 data -; 3 - DMX512 data +; 4 - Passed Through; 5 - Passed Through
      • Input/Output circuit: ESD protected EIA-485 transceiver (LT1785)
      • Indicators: Ten green preset indicator LEDs; One red Signal / Record LED
      • User controls: Ten preset push buttons; One recessed record push button; One recessed fade time push button
      • Power input: Universal power supply 100 - 240VAC, 50/60 hertz, 5 watts
      • Color: Black anodized with white nomenclature
      • Size and weight(L x W x H): Chassis 5.3 in x 3.2 in x 1.8 in / 12 ounces (0.75 lbs)
      • Power supply(L x W x H): 2.2 in x 1.9 in x 1.0 in / 5 ounces (0.3 lbs)

    • Warranty:

      • 5 year
