Doug Fleenor Design 125EE-5 4 Output Enhanced Isolated DMX Splitter with 5-Pin XLR Connectors
  • Doug Fleenor Design 125EE-5 4 Output Enhanced Isolated DMX Splitter with 5-Pin XLR Connectors
  • Doug Fleenor Design 125EE-5 4 Output Enhanced Isolated DMX Splitter with 5-Pin XLR Connectors

Questions? Ask a Markertek Expert:
800-522-2025 Email

Doug Fleenor Design 125EE-5 4 Output Enhanced Isolated DMX Splitter with 5-Pin XLR Connectors

Item #: DFD-125EE-5   •   MFG #: 125EE-5



List Price:$1,178.00
Our Price:$1,042.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

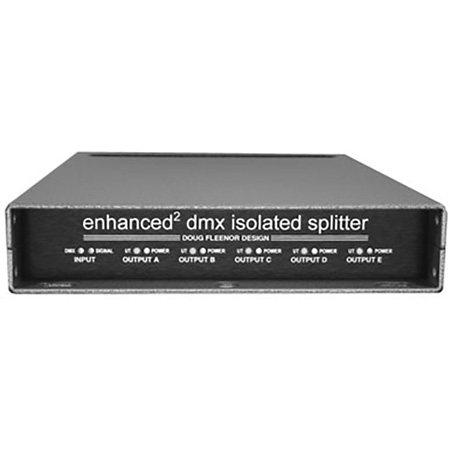

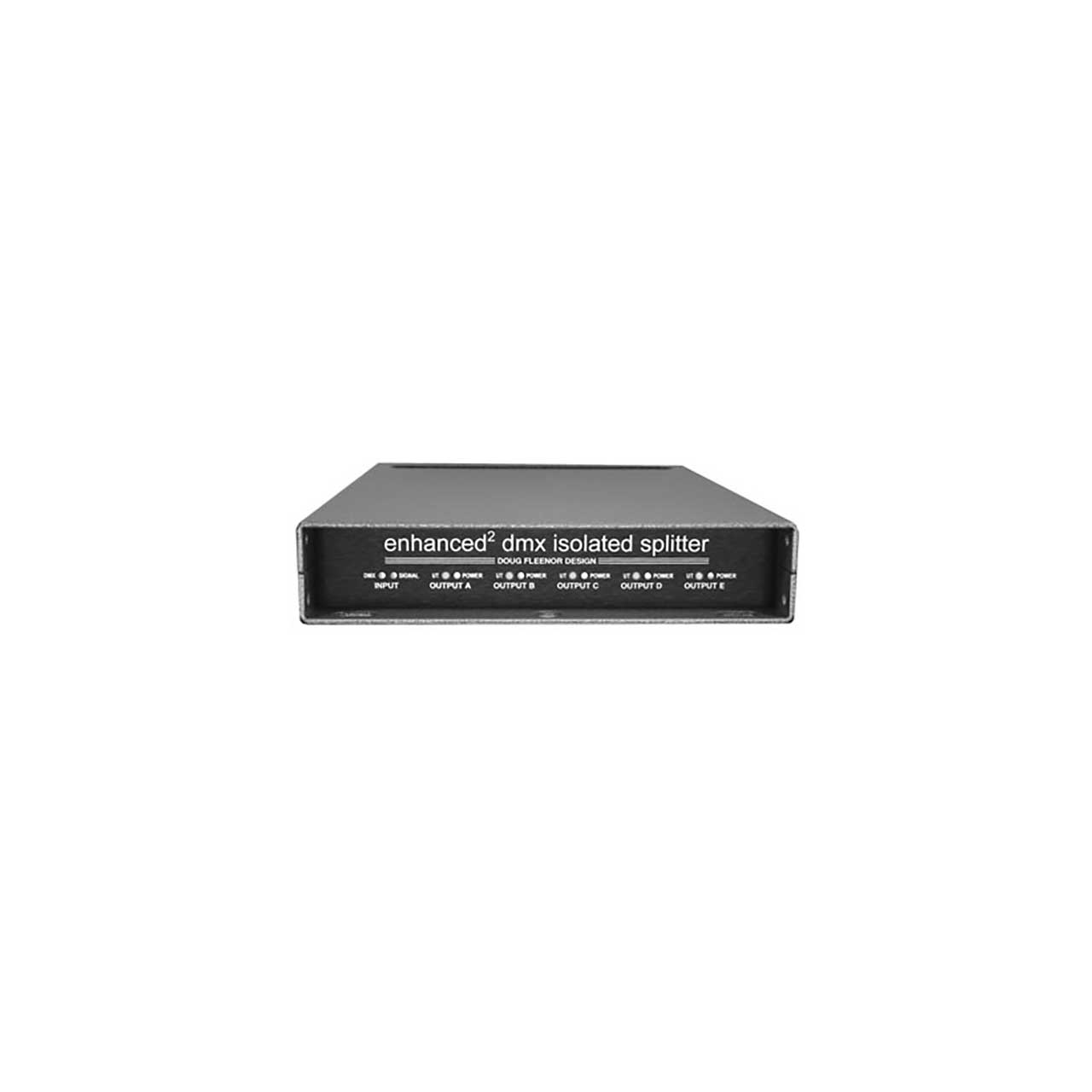

    The Doug Fleenor Design Enhanced Isolated Splitter 125EE-5 includes all the features of our standard models with added protection to meet the needs of harsh operating conditions. As with our standard splitters, all outputs are isolated from the input and from the other outputs by optical couplers. Every output has its own power supply and line driver. For protection against electrical storms, the 125EE adds four transient absorbers on the input, two on each output, and one on the power line. To protect against miswiring, it also has self resetting fuses on the DMX512 input and outputs that protect the splitter against damaging voltages up to 120 volts. Indicators on each output display power and termination status. Indicators on the input display signal present and valid DMX signal. The 125EE is designed to work on any voltage between 90 and 240 volts.

    NOTE: This product uses slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections caused by improperly terminated cables.


    • Features

      • Input is electrically isolated from output
      • Outputs are isolated from each other
      • Input and output DMX lines are protected by transorb diodes
      • Input and outputs are fused
      • No user adjustments
      • DMX pinouts are printed on the splitter
      • Chassis is 1/10" powder coated aluminum
      • Two 1/2" holes are provided for clamps, four 3/8" slots are provided for safety cables
      • Carry handle allows access to connector release tabs
      • IEC-320 (International) power connector
      • Gold plated Neutrik 5 pin connectors
      • All integrated circuits are socketed
      • Uses 2500 volt optical couplers
      • 5000 volt line transformers
      • "Air gap" circuit board under isolator
      • 60 mA drive current. Slew rate and current limited
      • Output indicators identify unterminated outputs
      • Input indicators display signal present and "valid" DMX

    • Specifications

      • Baud rate: 0 to 250 Kilobaud
      • Input circuit: EIA-485 receiver protected by two 100ohm PTC; 120 ohm 2 watt input termination; Four transorb diodes: two on +Data, two on -Data
      • Input signal: 0.5 volts minimum, 12 volts maximum
      • Input can withstand up to 120 volts without damage, transients up to 5KV
      • Output circuit: "Slew rate limited" EIA-485 driver protected by Polyswitch fuses
      • One transorb diode on +Data, one on -Data
      • (Slew rate limited outputs reduce the errors caused by unterminated lines)
      • Output signal: EIA-485 driver yields an approximate 3 volt signal into 120 Ohms
      • Outputs can withstand up to 12 volts without damage, transients up to 5KV
      • Connectors: Gold plated 5 pin Neutrik D-1 Series (male input, female outputs)
      • Isolation: 2500 volt optical coupler,
      • 5000 volt split bobbin transformer
      • Power input: 90 - 240 volts, 50/60 hertz, 24 watts IEC-320 (international) input connector
      • Listings: UL Listed, CE Marked
      • Color: Silver hammertone with black front and back panels
      • Size and weight(D x H x W): 11.25 in x 1.74 in x 8.25 in / 4.9 pounds
      • Rack kit: Midel RK 8-1 mounts one unit, RK 8-2 mounts two units

    • Warranty

      • 5 year
