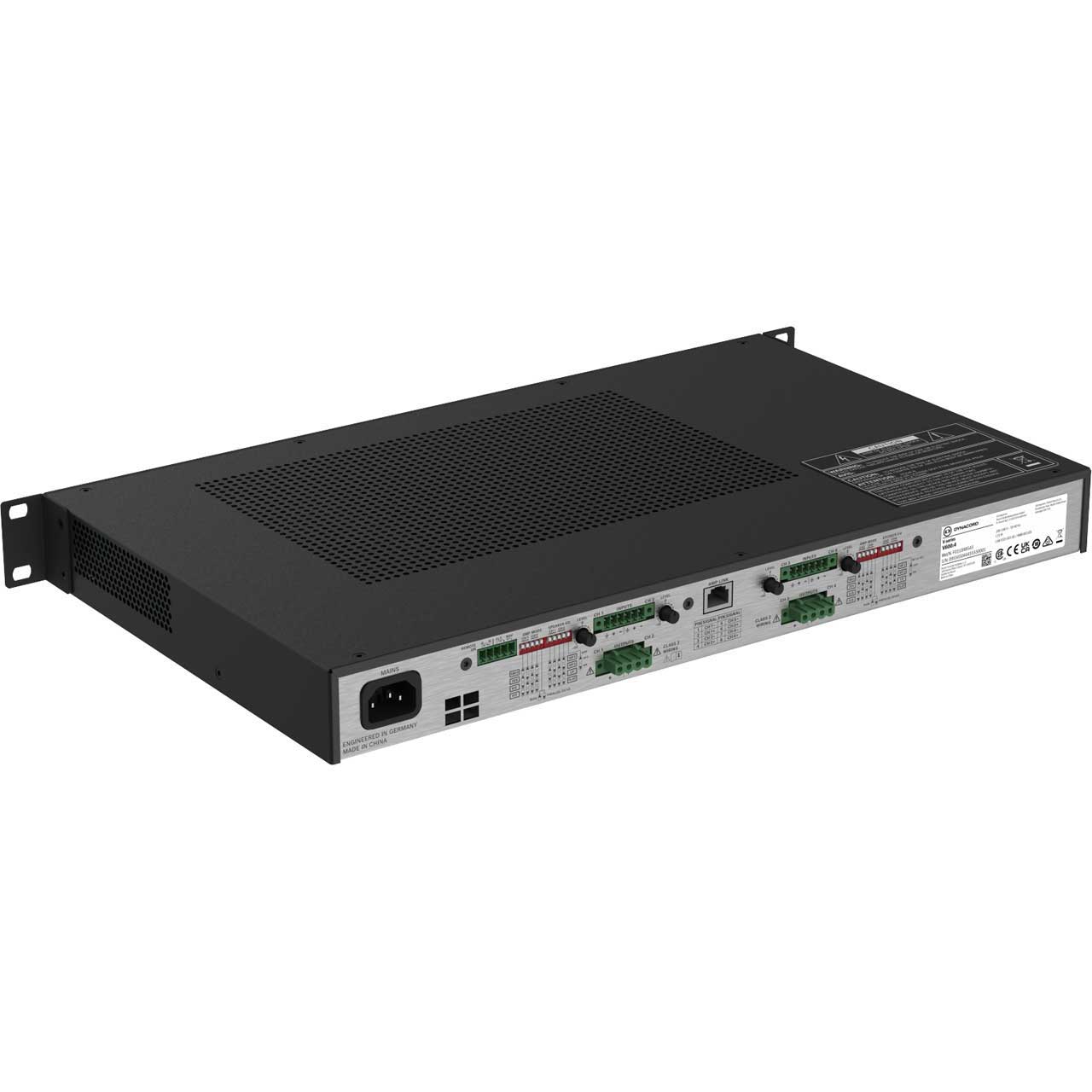

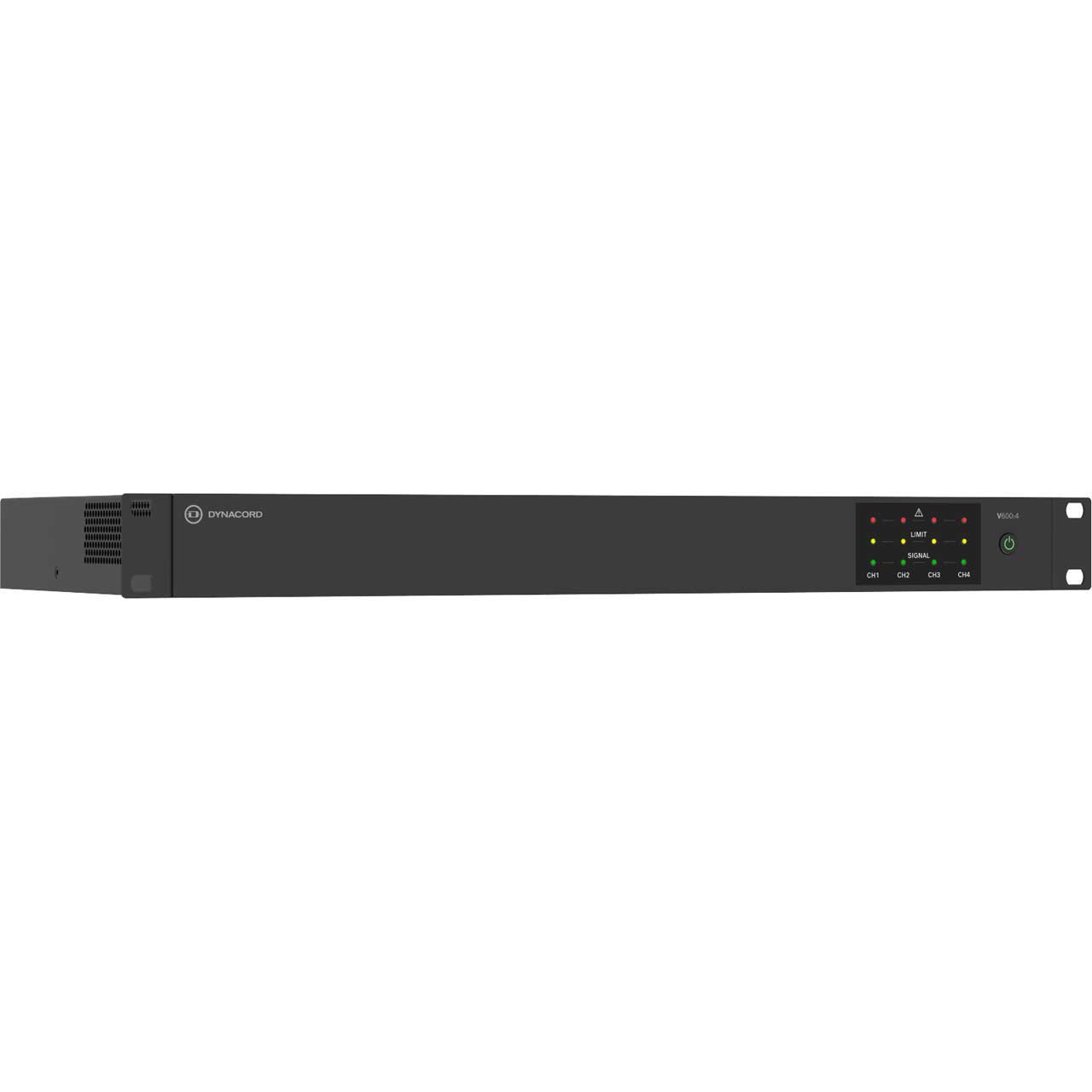

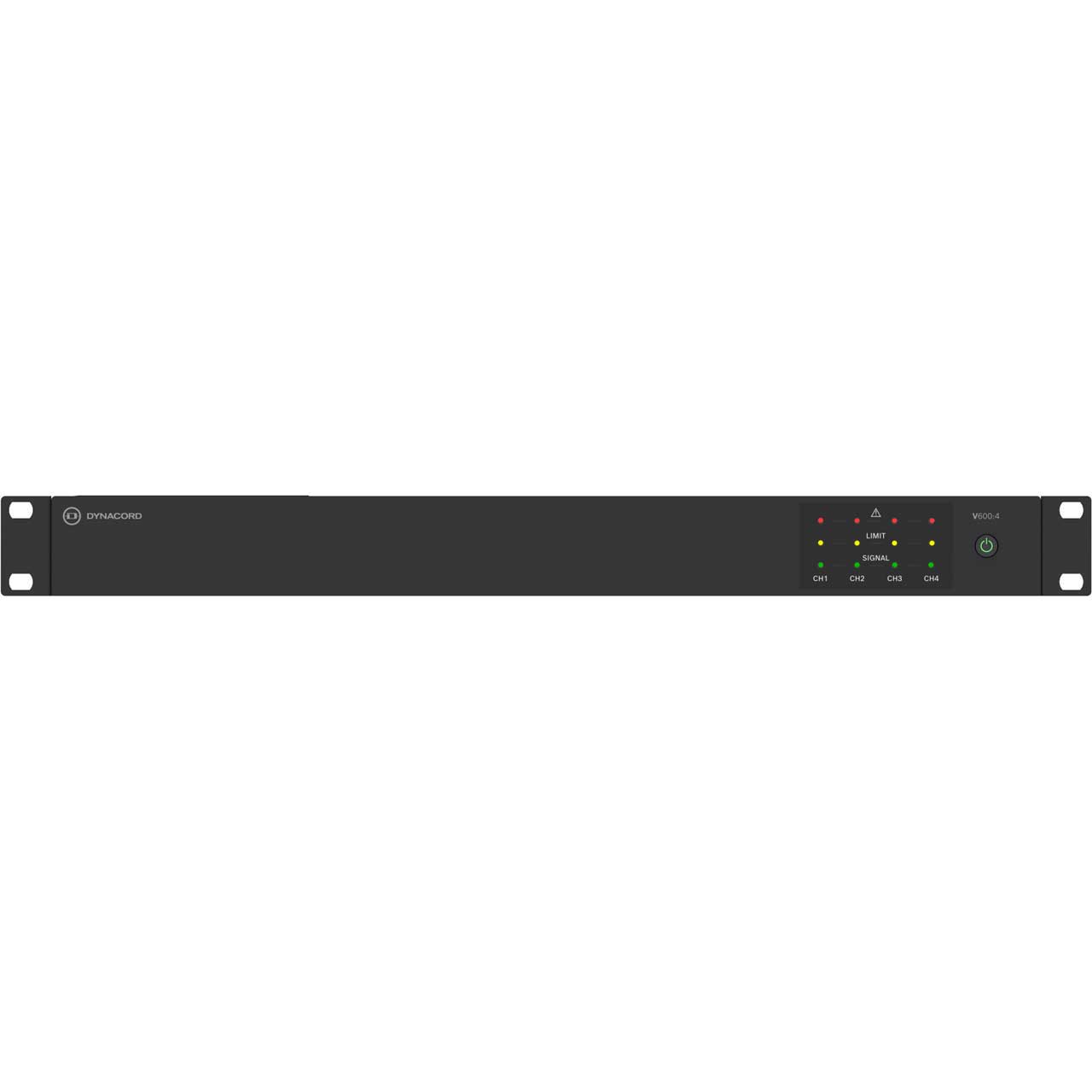

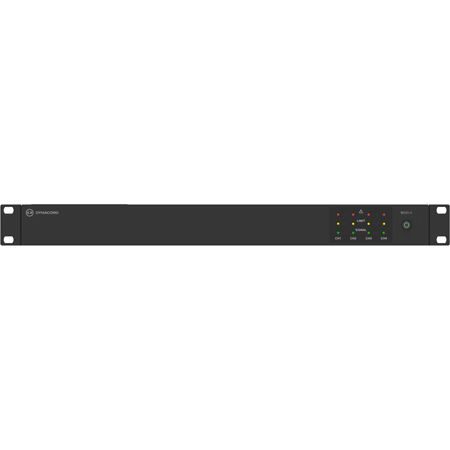

Dynacord V600:4 1RU 70/100V 4-Channel 600W powerTANK Power Amplifier with APD / dualCOOL / ecoRAIL / speakerEQ & VLD

ITEM #: DNY-V600-4 MFG #: V600:4

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,425.00

Our Price:

$1,139.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


V600:4 - Overview

4-Channel Power Amplifier for Commercial Installations

The Dynacord V600:4 offers the user high flexibility for many applications. This is enabled by multiple power drive options utilizing Dynacord's patented VLD (Variable Load Drive) technology. It allows the amplifier channels to be driven in 4 ohms, 8 ohms, 70 V or 100 V without compromising the available output power.

The newly developed Dynacord powerTANK technology adds even more installation flexibility, working like a power reservoir for the amplifier. With direct access to the total power of 600 watts, the V600:4 can deliver asymmetric power across all channels as needed. There is no waste of energy, which allows great flexibility - especially when driving multiple audio zones with different power requirements. A single V600:4 can simultaneously serve as system drive for the compact loudspeakers in a small zone such as a kitchen area as well as for larger loudspeakers with up to 300 watts such as in an auditorium. Contributing to the ease of installation, this feature does not require any special configuration skills - powerTANK engages automatically.

Low cost of ownership
More and more companies are required to reduce their carbon footprints and overall building energy costs to meet strict environmental regulations. Dynacord amplifiers have a proven track record when it comes to supporting energy savings without sacrificing any performance. Overall power consumption can be significantly reduced thanks to ecoRAIL. This technology delivers almost a standby level of power consumption, whilst simultaneously delivering high quality background music ensuring performance and power saving.

APD (Auto Power Down) contributes to further optimize efficiency, reducing energy consumption by automatically powering down the amplifier when no audio signal is present. As soon as a signal is detected, auto wake-up will immediately enable the amplifier to be fully operational.

Highest reliability
Dynacord power amplifiers enjoy an excellent reputation in the market for outstanding audio performance and extreme robustness. Like all Dynacord amplifiers, the V600:4 is built to last, offering high-quality components and professional performance characteristics. Bullet-proof protection circuitry with sophisticated limiters, originating from Dynacord's high-end amplifier lines, gives the user peace of mind by protecting the amplifier - as well as the connected loudspeakers - from damage.

The V600:4 incorporates Dynacord's new dualCOOL technology. Designed as a convection-cooled power amplifier, the device operates silently, making the V600:4 also suitable for installations in quiet environments. Thanks to dualCOOL, a built-in multi-stage fan is activated under extreme thermal conditions, preventing the device from limiting while maintaining full operation - even at temperatures of up to 45°C. Proven Power Factor Correction (PFC) for the power supply also contributes towards a flawless performance - under unstable power conditions with large voltage swings.

Applications:
Bars and restaurants
Retail outlets
Education
Houses of worship
Museums and galleries
Transport hubs
Conference centers

  • Features:

    • Versatile four-channel power amplifier at an attractive price point, recommended for BGM and announcements in small to mid-sized commercial installations
    • State-of-the-art amplifier technology for reduced cost of ownership, with low energy consumption and flexible power usage
    • Easy handling and trouble-free amplifier operation - even under demanding power conditions - in a compact 1RU form factor

  • Specifications:

    • Electrical
    • Rated output power: 4x 150 W
    • Maximum output power per channel (power sharing) 1 at minimum impedance: 4Ω 500 W: 8Ω 600 W: 70 V 500 W: 100 V 600 W
    • Total rated output power: 600 W
    • Number of channels: 4
    • Output voltage rated output power: 4Ω 24.5 V RMS: 8Ω 34.6 V RMS: 70 V 70.7 V RMS: 100 V 100 V RMS
    • Maximum output voltage: 4Ω 40.0 V RMS: 8Ω 56.0 V RMS: 70 V 70.7 V RMS: 100 V 100 V RMS
    • Rated impedance per channe: 4Ω: 8Ω: 33.3Ω: 66.7Ω
    • Minimum impedance per channe: 2.6Ω: 4Ω: 10Ω: 16.7Ω

      Amplifier
    • Nominal Gain (+6 dBu input sensitivity, LEVEL 0 dB): 4Ω 24.0 dB: 8Ω 27.0 dB: 70 V 33.2 dB: 100 V 36.2 dB
    • Maximum Gain (0 dBu input sensitivity, LEVEL +6 dB): 4Ω 30.0 dB: 8Ω 33.0 dB: 70 V 39.2 dB: 100 V 42.2 dB
    • THD+N (1/8 rated output power, 1 kHz): < 0.1 %
    • Crosstalk (ref. 1 kHz, 12 dB below maximum): 4Ω < -80 dB: 8Ω < -85 dB: 70 V < -90 dB: 100 V < -95 dB
    • Frequency Response2 (ref. 1 kHz, analog in to speaker out, -3 dB): HP: 30/100/150 Hz to 20 kHz, LP: 30 Hz to 150 Hz: HP: 50/100/150 Hz to 20 kHz, LP: 50 Hz to 150 Hz
    • Damping Factor (30/50 Hz to 1 kHz, ref. to rated impedance): 4Ω > 80: 8Ω > 160: 70 V > 500: > 100 V 1000
    • Output Stage Topology: Class D, fixed frequency
    • Signal to Noise Ratio (A-weighted, ref. to rated output power, LEVEL 0 dB): 4Ω > 98 dB: 8Ω > 100 dB: > 70 V 101 dB> > 100 103 dB
    • Output Noise (A-weighted, LEVEL 0 dB): 4Ω < -68 dBu: 8Ω < -67 dBu: 70 V < -62 dBu: > 100 < -61 dBu

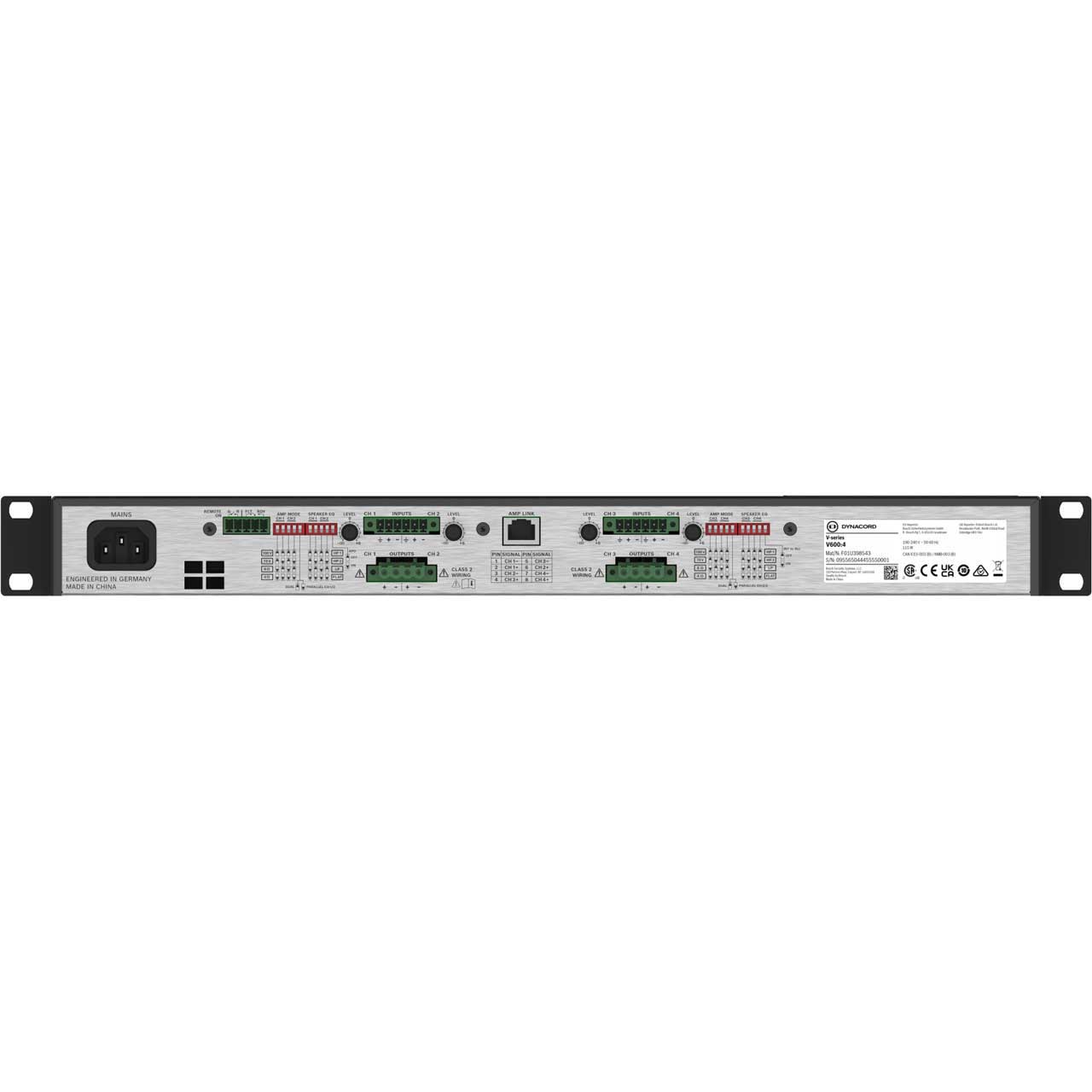

      Connectivity
    • Analog Audio Input - Type: 2x 6-pin Euroblock, 3.81mm, male, parallel 1x RJ45 AMP-LINK, Maximum input level (LEVEL 0 dB): +18 dBu, Input impedance, active balanced: 20 kΩ, Mains Input: IEC C14
    • Loudspeaker output: 2x 4-pin Euroblock, 5.08mm, female
    • Control Port - Type: 1x 5-pin Euroblock, 3.81mm, male, REMOTE ON: Remote On/Standby contact (overrides power button on front panel), READY/FAULT: Galvanic isolated relay

      General
    • Signal processing: Input Routing, HPF 24 dB/ Oct., LPF 24 dB/Oct., Flat, Peak Limiter
    • Power requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
    • Consumption at 1/8 rated output power: 115 W
    • Idle mode (ecoRAIL with no input signal): < 20 W
    • Standby mode (APD active): < 1 W
    • Power supply topology: Switching power supply with power factor correction
    • Protections: Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection

      Environmental
    • Climatic conditions: Cooling concept - Convection cooling in tabletop application and rack application with spacing between units. Forced cooling (side to rear) in rack application without spacing between units and in extreme thermal conditions.
    • Ambient temperature limits: +23 °F to +113 °F
    • Altitude (operating): -1614 ft to 16404 ft

      Mechanical
    • IEC Protection Class: Class I (grounded)
    • Dimensions (HxWxD) With 19" mounting brackets: 1.74 x 19.2 x 10.6 in
    • Weight: 7.9 lb

  • Item Includes:

    • 1x Power amplifier
    • 1x Mains cord
    • 1x Euroblock remote connector 5-pole
    • 2x Euroblock input connector 6-pole
    • 2x Euroblock output connector 4-pole
    • 4x Rubber feet
    • 2x 19"-rack mounting brackets (pre-mounted)
    • 1x Quick Installation Guide
    • 1x Safety information
