Stewart Audio FLX-E-80-4-CV-D Digital Matrix Processor with Ethernet Control and Dante I/O 80W x 4 @ 70V/100V

ITEM #: STW-FLX-E-804CVD MFG #: FLX-E-80-4-CV-D

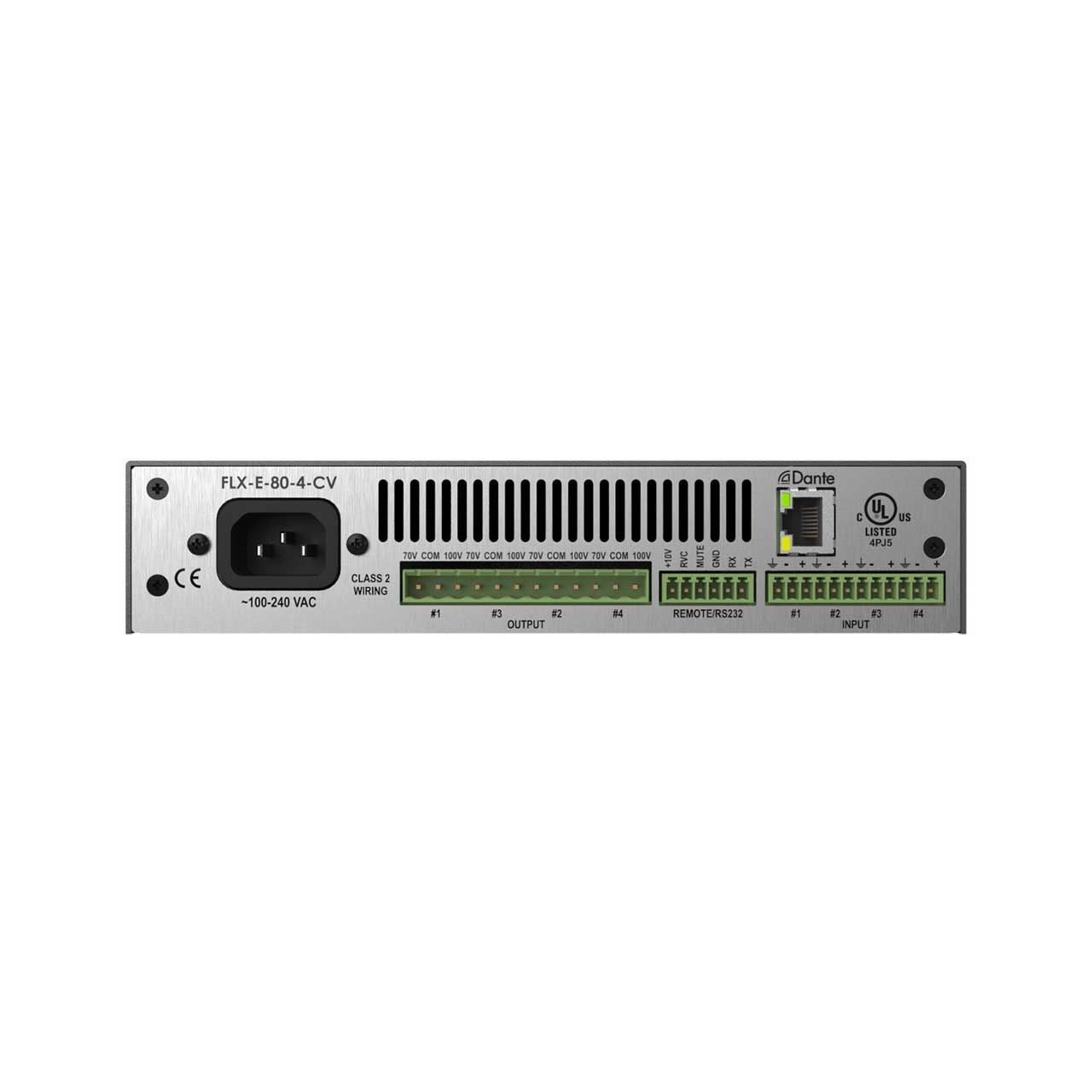

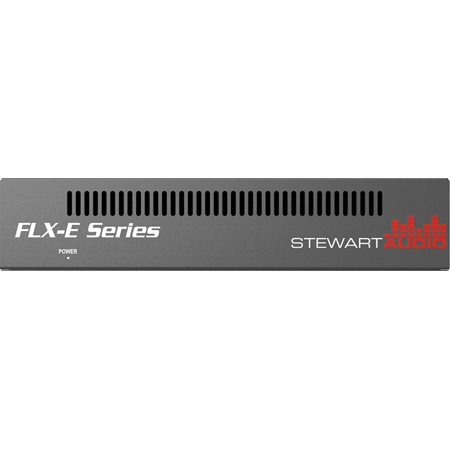

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,791.00

Our Price:

$1,522.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    FLX-E-80-4-CV-D - Overview

    The Stewart Audio FLX-E-80-4-CV-D is a 4 channel, 70V/100V, 1/2 rack amplifier delivering 80W per channel with built in DSP, ethernet control & reporting, secondary RS-232 control and remote volume control. The FLX-E-80-4-CV-D amplifier supports Dante™ audio.

    The FLX-E series of amplifiers is the most versatile 1/2 rack amplifier Stewart has ever produced. The FLX-E-80-4-CV-D provides 80 watts from each of the four 70/100V output channels. At the heart of the amplifier is a robust, internal, full-function DSP designed to solve a multitude of your audio problems in just one enclosure. The DSP includes a full cross-point mixer, EQ, filters, limiters and much more. An ethernet port makes programming simple, fast and repeatable for large installations. The ethernet, RVC and RS-232 allow volume control from a wide range of devices. In addition, the Dante™ network capability provides four network input audio channels and four network output audio channels. You won't find a more flexible combination of power output and processing in a comparable package on the market today.

    Applications:
    Dante™/AES67 Network Audio
    Hospitality Installations
    Education
    Conference Rooms
    Houses of Worship
    Room combining

    • Features:

      • Onboard DSP for signal routing, filtering, ducking, compressor, limiter, etc.
      • Ethernet configuration, control & reporting
      • 1/2 Rack Package
      • 4 Analog Inputs (4 line/mic; 2 w/ phantom power)
      • 4x4 Break in/Break out Dante™ channels

    • Specifications:

      • Output Power: 80W x 4 @ 70.7V/100V
      • Frequency Response (+0, -3dB):100 Hz-20 kHz (70.7/100V)
      • THD+N: <0.05% @ 6dB below clipping
      • Signal-To-Noise Ratio: >95dB
      • Input Sensitivity: 1V (0 dBV)
      • Input Impedance (Balanced/Unbalanced/Phantom): 7.2k Ohms/3.6k Ohms/2.4k Ohms
      • Power Consumption - Idle, 1/8 Power: 12W, 60W
      • Amplifier Class: D
      • Channel To Channel Isolation: >60dB FLX-E-80-4
      • Dante Audio Sampling Rates: 44.1, 48, 88.2, 96, 176.4, 192ksps
      • Remote Volume: 0 - 10V
      • Input Connectors: 3.5mm Euroblock; 24V Phantom Power on 2 channels
      • Dante/AES67 Network Audio (optional) and Control Port: RJ-45
      • Output Connectors: 5mm Euroblock
      • LED Indicators: Power
      • Controls: Ethernet, RS-232 & RVC
      • Power Supply Input: 100 - 240 VAC 50/60Hz (PFC Universal Input)
      • Construction: Aluminum Chassis
      • Mounting: Rack-mountable, single & dual
      • Cooling: Convection-Cooling (No Fans)
      • Dimensions (HxWxD): 1.7" x 8.3" x 10.7" (44mm x 213mm x 272mm)
      • Weight: 5.9lbs (2.7kg)
      • Certifications: UL 60065/CE

    • Warranty:

      • 3 year
