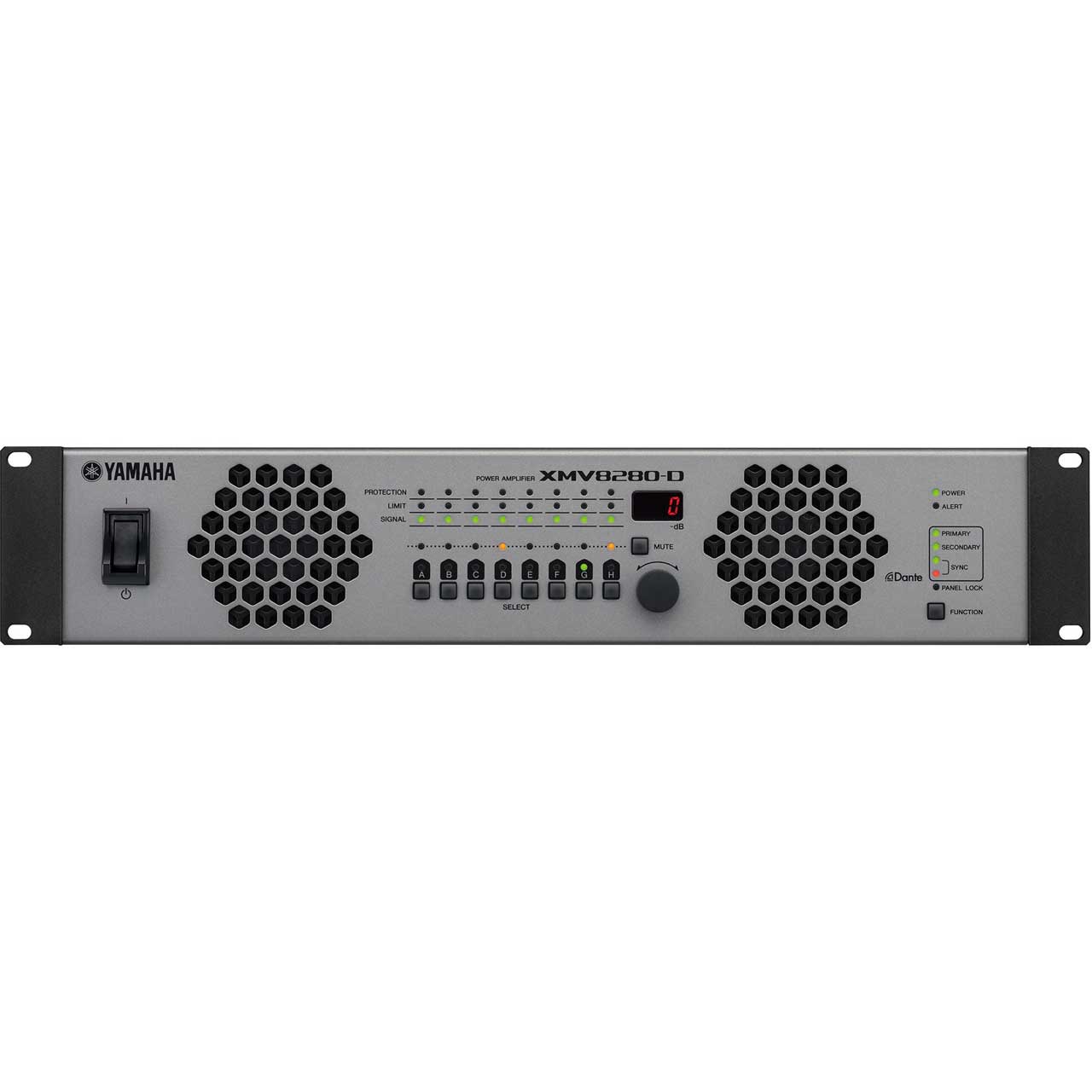

Yamaha XMV8280-D 8-Channel 280W Dante Power Amplifier

XMV8280-D - Overview

• Features:

  • Operate in high-impedance or low-impedance modes simultaneously
  • New "Double Power Mode" - Effectively double the output power of selected channels while reducing usable channels by half
  • Selectable input formats for a wider range of applications
  • Support for Dante Domain Manager, AES67 and Dante Device Lock
  • 2 Redundant Functions


• Specifications:

  • Output Power
  • 1kHz (THD+N=1%: 4ω): 280W x 8
  • 1kHz (THD+N=1%: 8ω): 280W x 8
  • 1kHz (THD+N=1%: 4ω / Double Power Mode): 560W x 4
  • 1kHz (THD+N=1%: 8ω / Double Power Mode): 560W x 4
  • High impedance: 100V line: 250W x 8 / 40 ω
  • High impedance: 70V line: 250W x 8 / 40 ω

    Voltage Gain
  • RL=8ω: 31.7dB
  • RL=8ω / Double Power Mode: 34.7dB
  • 100V: 38.2dB
  • 70V: 35.2dB

    Power consumption: 1/8 power (4 ω pink noise):450W, Idle (4 ω):73W, Standby:23W
  • Total harmonic distortion: ≤ 0.2% (1kHz, half power)
  • Frequency response: 0dB, ±1.0dB (RL=8ω, 100V/70V, Po=1W, 20Hz - 20kHz)
  • S/N ratio: ≥ 100dB(A-weighted)
  • Crosstalk: ≥ -60db
  • Input sensitivity: +4dBu
  • Input impedance 20kω (balanced), 10k ω (unbalanced)
  • Input Level: +24 dBu (Maximum)

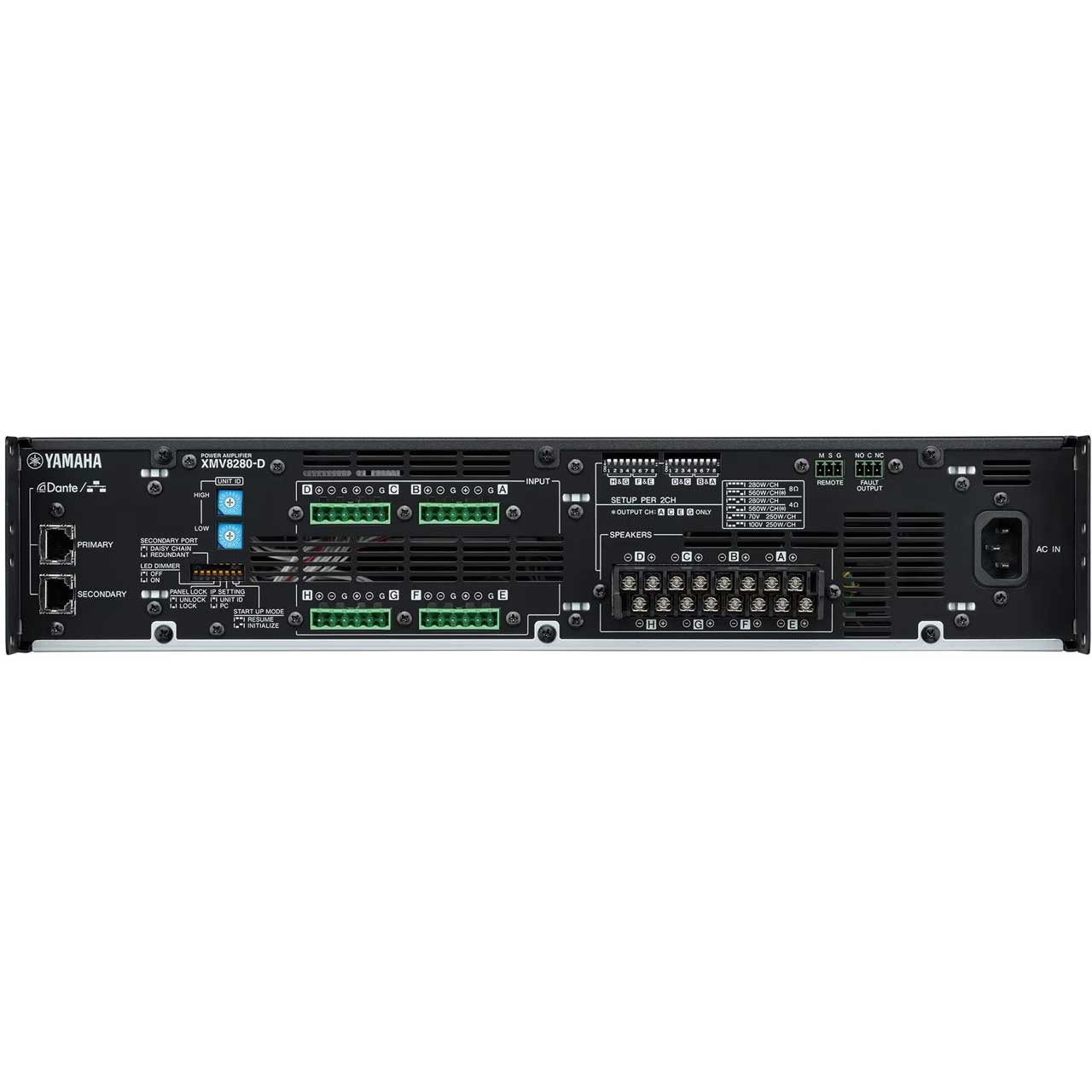

    I/O Connectors
  • Analog I/O: Input: Euroblock x 2 (6P, balanced)
  • Digital I/O: RJ45 x 2 (Dante PRIMARY / SECONDARY)
  • Speaker Output: Barrier strip x 8 pairs
  • Control ports: Remote, Fault Output : Euroblock (3P) x 1
  • Network: Shared with Dante ports
  • Others: AC Inlet x 1

    Protection Circuit
  • Load protection: POWER switch on/off: Output mute, DC-fault: Power supply shuts down, Clip limiting
  • Amplifier protection: Thermal: Output mute (heatsink temp ≥90°C/194°F) (Restored automatically), Overcurrent: Output mute (Restored automatically), Low load impedance: Output mute (Restored automatically)
  • Power supply protection: Thermal: Amplifier shuts down automatically (heatsink temp ≥100°C/212°F) , Integrated power: Gain reduction (Restored automatically)

    General
  • Cooling: 3-Speed Fan x 2, Front-to-back Airflow
  • Power Requirements: 100V, 120V, 230V-240V; 50Hz/60Hz
  • Dimensions(WxHxD): 18.9 x 3.5 x 16.6 Inches
  • Net Weight: 22.3 lbs


• Item Includes:

  • 1x Owner's Manual
  • 1x Power cord
  • 2x Euroblock plugs (3-pin, 3.50mm pitch) x 2
  • 8x Euroblock plugs with tabs (3-pin, 5.08mm pitch) x 8
  • 8x Cable ties x 8


• Warranty:

  • 1 Year Warranty
