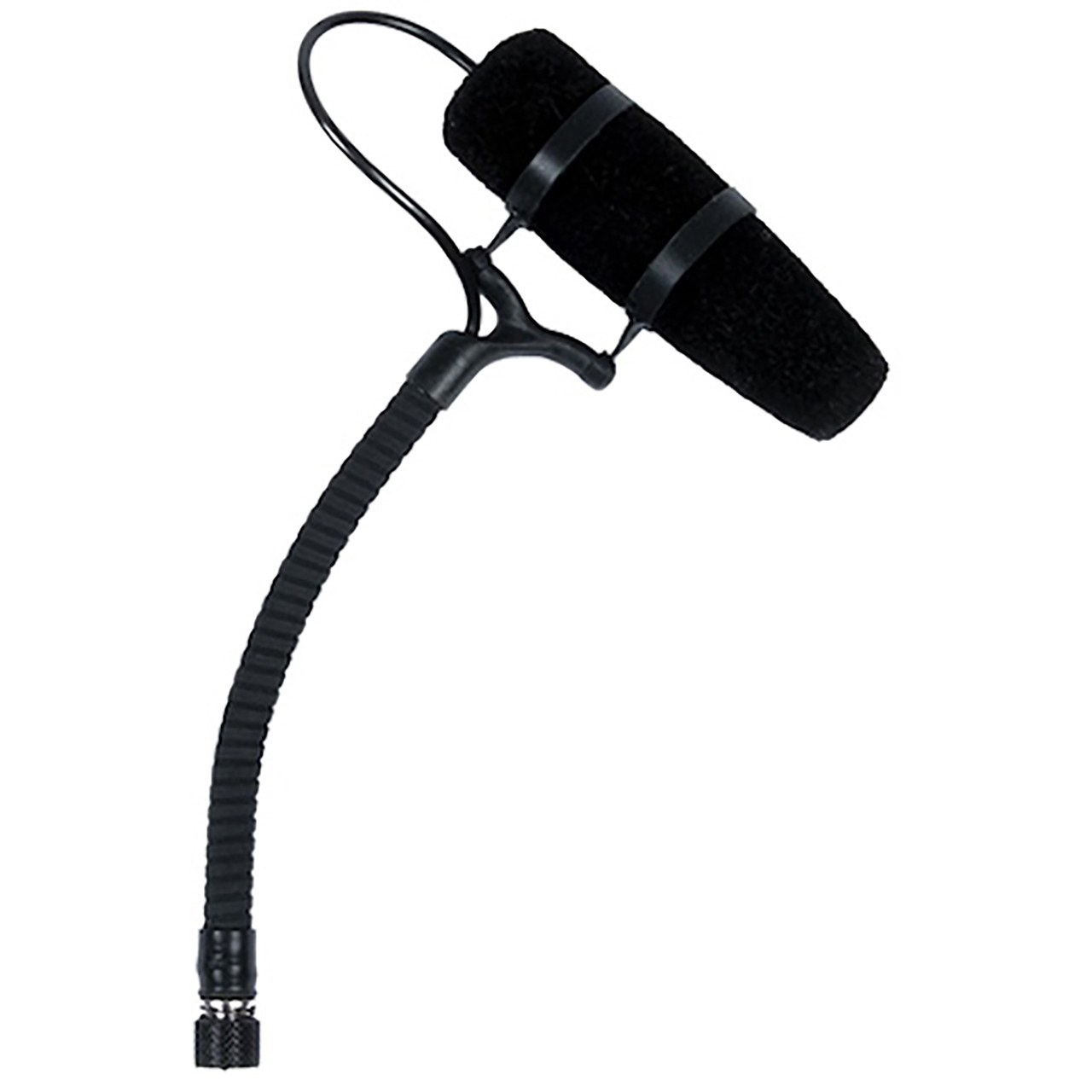

DPA 4097-DP-G-B90-010 CORE+ Micro Shotgun Mic - Black MicroLock with 4-Inch Full Gooseneck

ITEM #: DPA-4097DPGB9001 MFG #: 4097-DP-G-B90-010

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$660.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


4097-DP-G-B90-010 - Overview

Next-generation, high-performance choir microphone featuring CORE+ technology

With its super cardioid polar plot, the DPA 4097 CORE+ Micro Shotgun Mic offers a highly directional pick-up pattern as well as low self-noise and high sensitivity. The mic is capable of handling high SPLs, which allows it to deliver undistorted natural sound, even when users speak loudly or yell. With a linear response, low distortion, and an extremely large dynamic range, it sounds great no matter how challenging the environment. In addition, dialog and background noise off to the side (off-axis) of the microphone preserves the audio quality; it just drops in level.

A Flexible Broadcast Solution for Challenging Times
The 4097 CORE+ Micro Shotgun Mic is a lightweight, easy-to-use, multi-purpose problem solver for a range of broadcasting situations - including interviewing as well as voice-over work. This mic makes it easy to deliver great sound in challenging situations. It shines in outdoor locations, handling inclement weather and limiting intrusive background noises. It's a professional solution for professional broadcasters.

Due to the highly directional pick-up pattern, it is easy to focus on what the interviewee is saying. While the speaker's voice is captured clearly in front of the mic, background noises are captured at a lower level (off-axis), making the entire interview clear and pleasant to listen to. In addition, the mic has low self-noise, high sensitivity, and is capable of handling high SPLs. Even if the interviewee yells, the sound will still be natural and undistorted. With a linear response, low distortion, and a large dynamic range, this mic captures amazing sound no matter how challenging the environment. In fact, the 4097 CORE+ Micro Shotgun Mic is outfitted to be used in difficult broadcast locations. The built-in shock mount is handy for distance interviewing.

Rugged Enough for Film Sets
Wind machines, rain machines, tight costumes, quick changes -- these are normal situations on some film sets, and they require durable microphones. The 4097 Plant Mic was built to withstand harsh use as well as water, wind, dust, heat, cold, and many other tough conditions that can be commonly found both on location and on a film set.

The 4097 CORE+ Micro Shotgun Mic is outfitted specifically so that it can be used in difficult filming locations, such as a car. Its foam windscreen protects it from wind noise, even when windows are down (due to tight spaces and camera placement). The built-in shock mount is also particularly useful when filming in a moving car. It has a small, slim, unobtrusive footprint and a black matte, non-reflective surface, which diminishes reflections from lights, making it even easier on the film crew. Blurring the lines between what is and isn't acoustically possible. CORE+ is a technology that neutralizes distortion across the entire dynamic range of the microphone, making any residual distortion imperceptible to the naked ear and virtually unmeasurable. Removing these remnants of distortion allows sound engineers to capture a new level of audio clarity easily and efficiently, so they can shape an extraordinary listening experience for the audience.

  • Features:

    • Wireless podium mic capability
    • Highly directional - very isolated
    • High rejection of radio frequency interference
    • Sleek, modernized design
    • Sturdy shock mount and cable-born noise isolation
    • MicroLock® connector
    • Water-repellant nano-coating of the cover and housing
    • Hermetic sealing of the sensitive amplifier at the core of the mic
    • Dual gold plating of the diaphragm

  • Specifications:

    • Directional Pattern: Supercardioid
    • Principle of Operation: Pressure gradient
    • Cartridge Type: Pre-polarized condenser
    • Frequency Response: 20Hz - 20kHz
    • Sensitivity, Nominal ±3dB at 1kHz: 16mV/Pa; -36dB re. 1V/Pa
    • Equivalent Noise Level A-weighted: Typ. 23dB(A) re 20μPa (max 26dB(A))
    • Equivalent Noise Level ITU-R BS.468-4: Typ. 35dB (max. 38dB)
    • Distortion THD < 0.5%: 130dB SPL RMS, 133dB SPL peak
    • Dynamic Range: Typ. 111dB
    • Capsule IP Rating: IP58
    • Max. SPL THD 10%: 136dB SPL peak
    • Dimensions (LxWxH): 49.21" x 5.35" x 3.19"
    • Weight: 3.31lbs
    • Relative Humidity (RH): Up to 90%
    • Temperature Range: -40°F - 113°F (-40°C - 45°C)
    • Cable Drive Capability: Up to 984ft (300m) with DAD9099 XLR Adapter
    • Common Mode Rejection Ratio (CMRR): > 60dB from 50Hz - 15kHz with DAD9099 XLR Adapter
    • Effective Frequency Range ±2dB at 7.9" (20cm):
      - 80Hz - 15kHz with 2dB soft boost at 10kHz - 12kHz
      - Second order low-cut filter at 80Hz with DAD9099
    • Connector:
      - MicroLock
      - XLR via supplied DAD9099 adapter
    • Rated Output Impedance:
      - From MicroLock: 30Ω - 40Ω
      - From DAD9099 XLR Adapter: 100Ω
    • Power Supply (for full performance):
      - For wireless systems Min: 5V - max: 10V through DPA adapter
      - With DAD9099: P48 (Phantom Power) Will work from 12V
    • Current Consumption:
      - Typ. 1.5mA (microphone).
      - 3.5mA with DAD9099 XLR Adapter

  • Warranty:

    • 2 Year Limited Warranty
