Datavideo EBT-1640T Production w/ 2 x HDBaseT Technology / 2 x PTC140T PTZ AI Cameras

EPB-1640T - Overview

• Features:

  • 1x HD Green Screen
  • 1x Produce News Programs
  • 1x Virtual Backgrounds Included
  • 4x SDI inputs
  • 4x HDMI inputs


• Specifications:

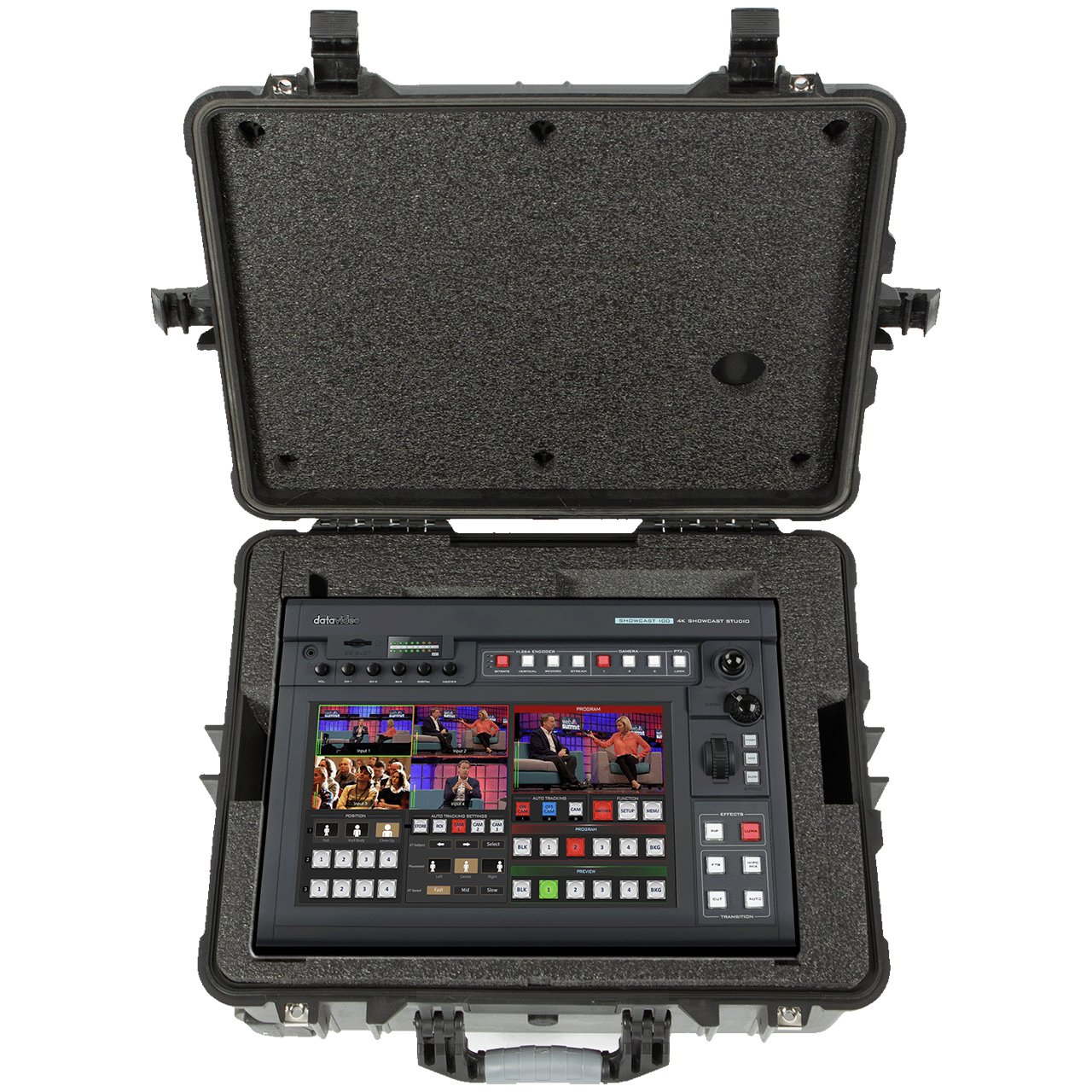

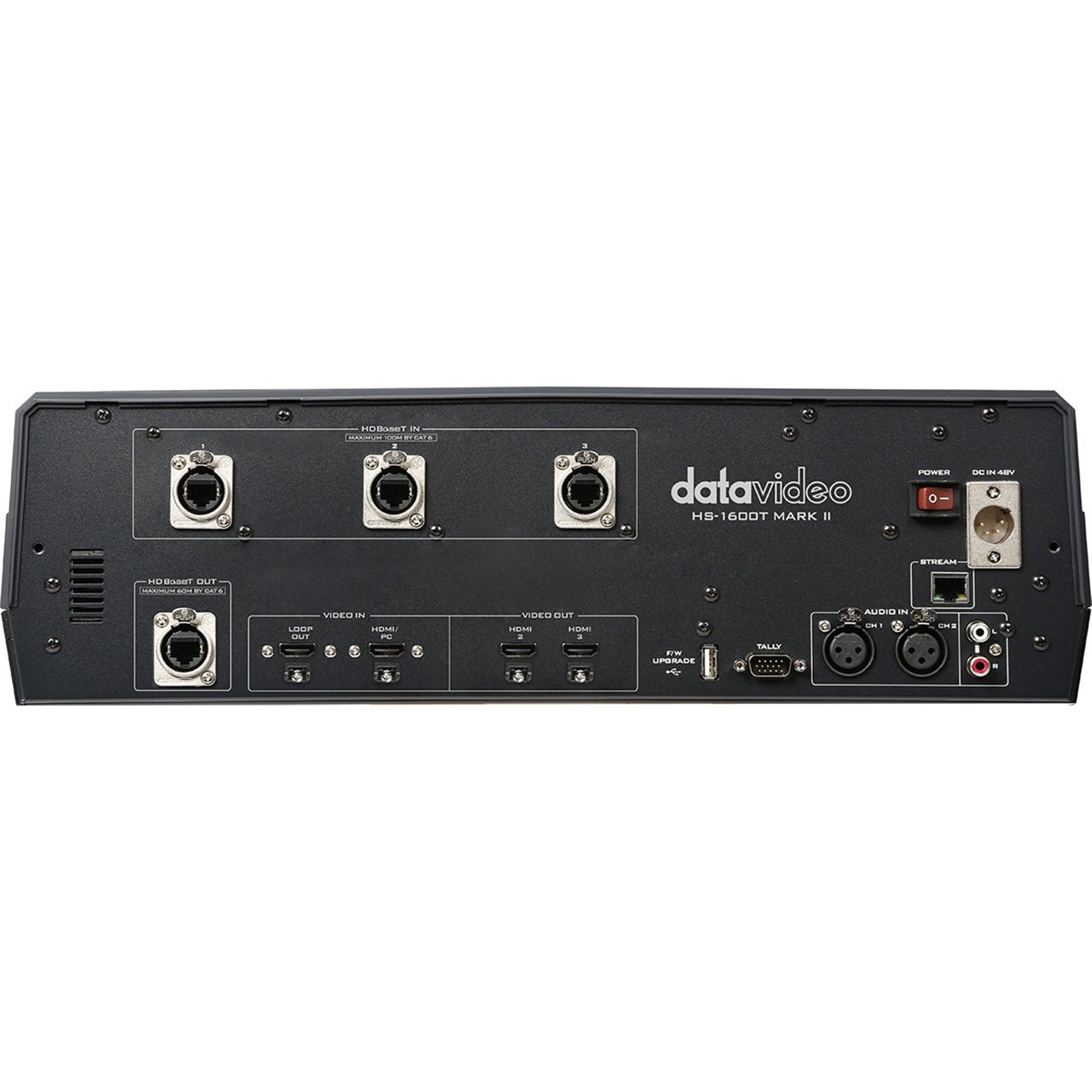

  HS-1600T MARK II
  • Video Standard: HD & SD
  • Video Format:
    - 1080p 50/59.94/60Hz
    - 1080i 50/59.94/60Hz
    - 720p 50/59.94/60Hz
    - 576i/p 50Hz
    - 480i/p 59.94Hz
  • Video Input:
    - 3x HDBaseT
    - 1x HDMI
  • Computer Graphic Interface: 1 via HDMI
  • Down-converted Output: Yes
  • Video Output:
    - 3x HDMI PGM
    - 1x HDBaseT PGM
    - 1x STREAM (RJ-45)
  • Cable Type: Cat6A shielded
  • Analog Audio Input:
    - 2x Balanced XLR
    - 1x Stereo RCA (L/R)
    - 1x De-embedded Digital Audio
  • Analog Audio Output: 1x Stereo headphone
  • Digital Embedded Audio Support: Input 2 channels, Output 2 channels
  • USK: +1x USK support Lumakey
  • Picture in Picture: 1
  • Built-In Audio Mixer: Yes, 4 channels
  • Built-In Monitor Display: 17.3" HD TFT LED backlit, 1920x1080 pix
  • Streaming: H.264/AVC, Main/High Profile - Configurable Bit-rate up to 10Mbps
  • Streaming Audio Encode: AAC-LC - Configurable bit rate range from 32Kbps to 384Kbps
  • Sample Rate: 48kHz, 16bit
  • Streaming Protocol:
    - TS over TCP/UDP (unicast & multicast)
    - RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    - RTMP/RTMPS (Publish)
    - HLS
    - SRT
  • Streaming Control: Web browser UI for configuration and control Socket commands
  • Recording File System: FAT, exFAT, NTFS
  • Recording File Format: MP4
  • Streaming & Recording Setting Control: Web UI for system configuration and control
  • Special Features: 1x Built-in camera controller
  • Dimension (LxWxH): 17.9" x 13.9" x 5.27" (455mm x 355mm x 134mm)
  • Weight: 17.2lbs (7.8kg), Reinforce Plastic Case
  • Power: DC 48V, 4.16A
  • Operating Temp Range: 32°F - 104°F (0°C - 40°C)

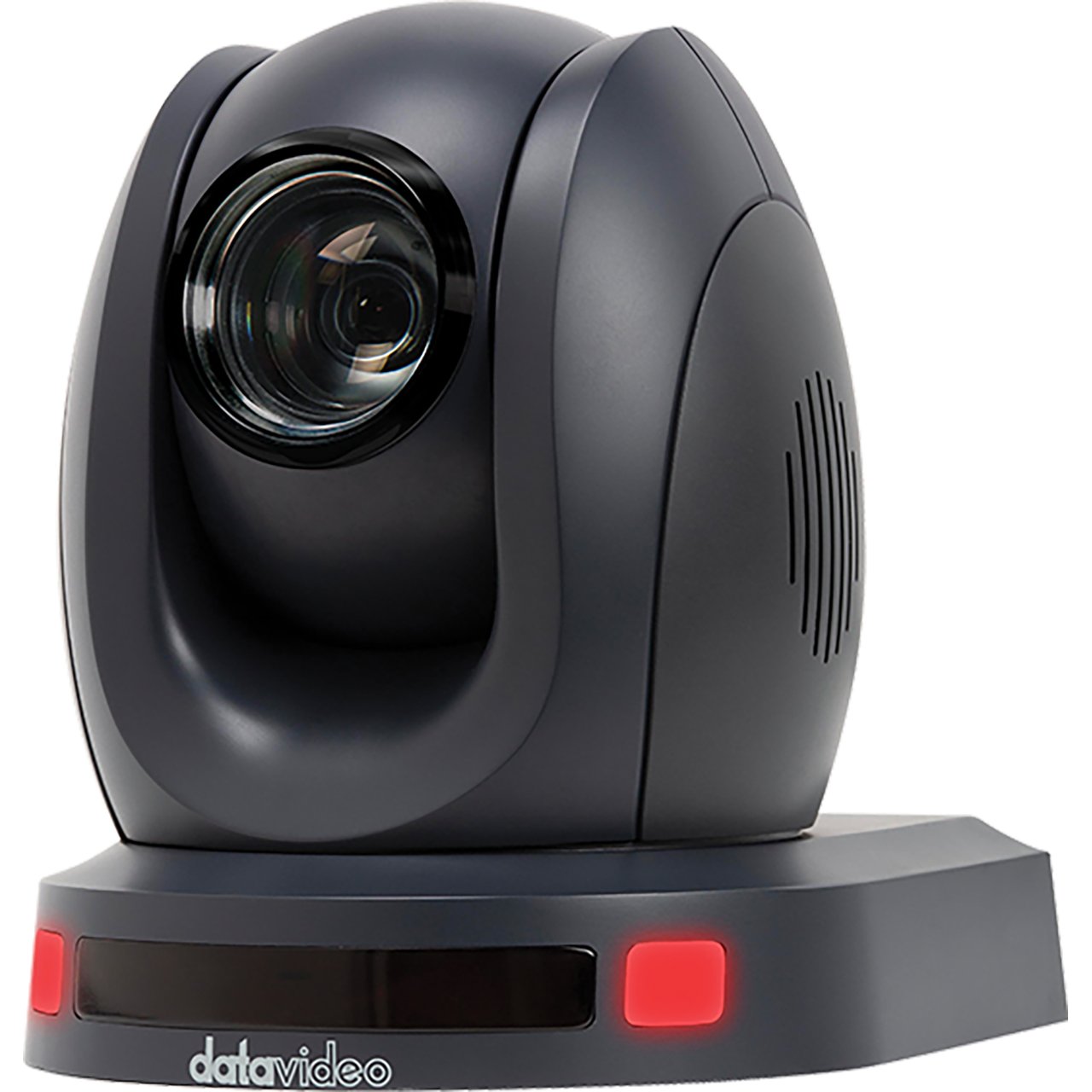

  PTC-140T
  • Video Format/Resolution:
    -1080p 60/59.94/50/30/29.97/25
    -1080i 60/59.94/50
    -720p 60/59.94/50
  • Image Sensor: Sony 1/2.8" CMOS
  • Effective Pixels (approx.): 2.07 Mega pixels
  • S/N Ratio: >55dB
  • Min. Illumination: 0.5Lux (F1.8, AGC ON)
  • Electronic Shutter: Auto/Manual
  • Zoom Ratio:
    - 20x Optical Zoom
    - 10x Digital Zoom
  • Effective Zoom Ratio: 18.85x
  • Gamma Control: Off/Normal
  • Iris Control: Auto/Manual
  • Digital Noise: Reductions Yes
  • On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
  • White Balance: Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
  • AGC/Gain Control: Auto/Manual
  • Mirror/Flip Image: Yes
  • Focus Mode: Auto/Manual
  • Panning/Tilting Range:
    - Pan: 340°
    - Tilt: +90° - -30°
  • Panning/Tilting Speed:
    - Pan: 0.1~60°/sec
    - Tilt: 0.1~30°/sec
  • Preset: 255 Position
  • Focal Length: f=5.2 (wide) to 98mm (tele) F1.6 to F3.5
  • Field of View: (Horizontal,Wide) Approx. 54.7° (WIDE END)/3.3° (TELE END)
  • Image Compensation: Backlight Compensation
  • Video Output:
    - 1x HDBaseT (PoE)
    - 1x RJ-45
  • Cable Type: Cat6A Shielded
  • Audio Input: 3.5mm Line in
  • Tally LED: Dual color (Red, Green)
  • Lens Filter: M52.0 x 0.75 Thread with UV Protection
  • Control Protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF
  • Remote Control Interface:
    - IR
    - Web GUI
    - RS-422/DVIP
    -HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
  • Video Compression Format: H.264/H.265
  • Audio Compression Format: AAC, G711
  • Audio Bitrate: 96Kbps, 128Kbps, 256Kbps
  • HD IP Interface 100M IP port(100BASE-TX); Support DVIP
  • Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT
  • F/W: Update Via Web GUI
  • IR Control: Yes
  • Camera Control Unit: HS-1650T/HS-1600T Mark II/RMC-2P/RMC-180 series/RMC-300
  • series/PTZ View Assist APP
  • Tripod Mount: ¼"-20 UNC
  • Optional Accessories: WM-1/WM-10/WM-11
  • Color: Black/White
  • Dimension (LxWxH): 6.14" x 7.24" x 7.32" (156mm x 184mm x 186mm)
  • Weight: 3.5Ibs (1.6kg)
  • Operating Temp Range: 32°F - 104°F (0°C - 40°C)
  • Power: DC 12V 12W


• Item Includes:

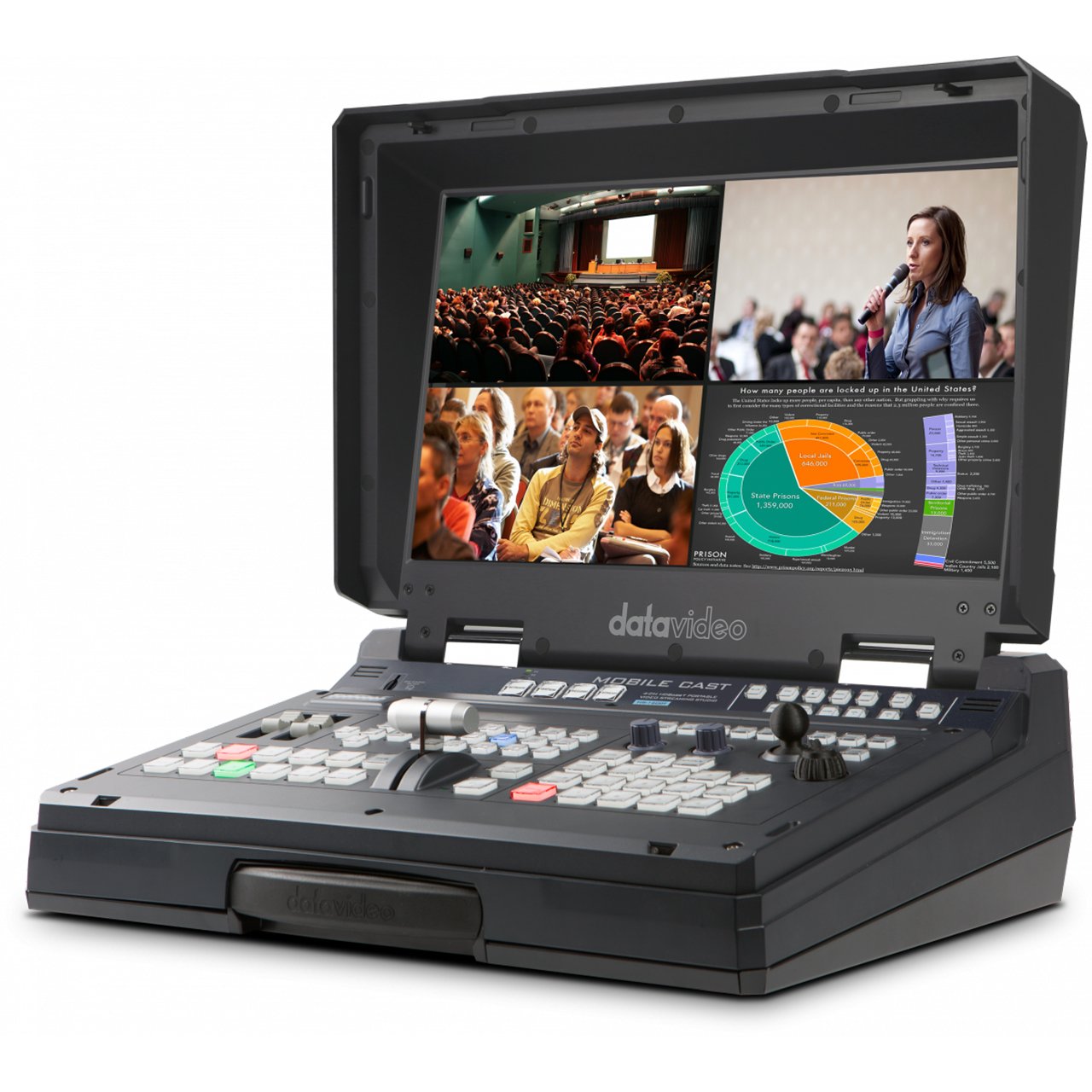

  • 1x HS-2600 HD 8-Channel Portable Video Streaming Studio
  • 2x PTC-145 PTZ HD Camera 20x Optical Zoom
  • 1x RMC-300A PTZ Camera Controller

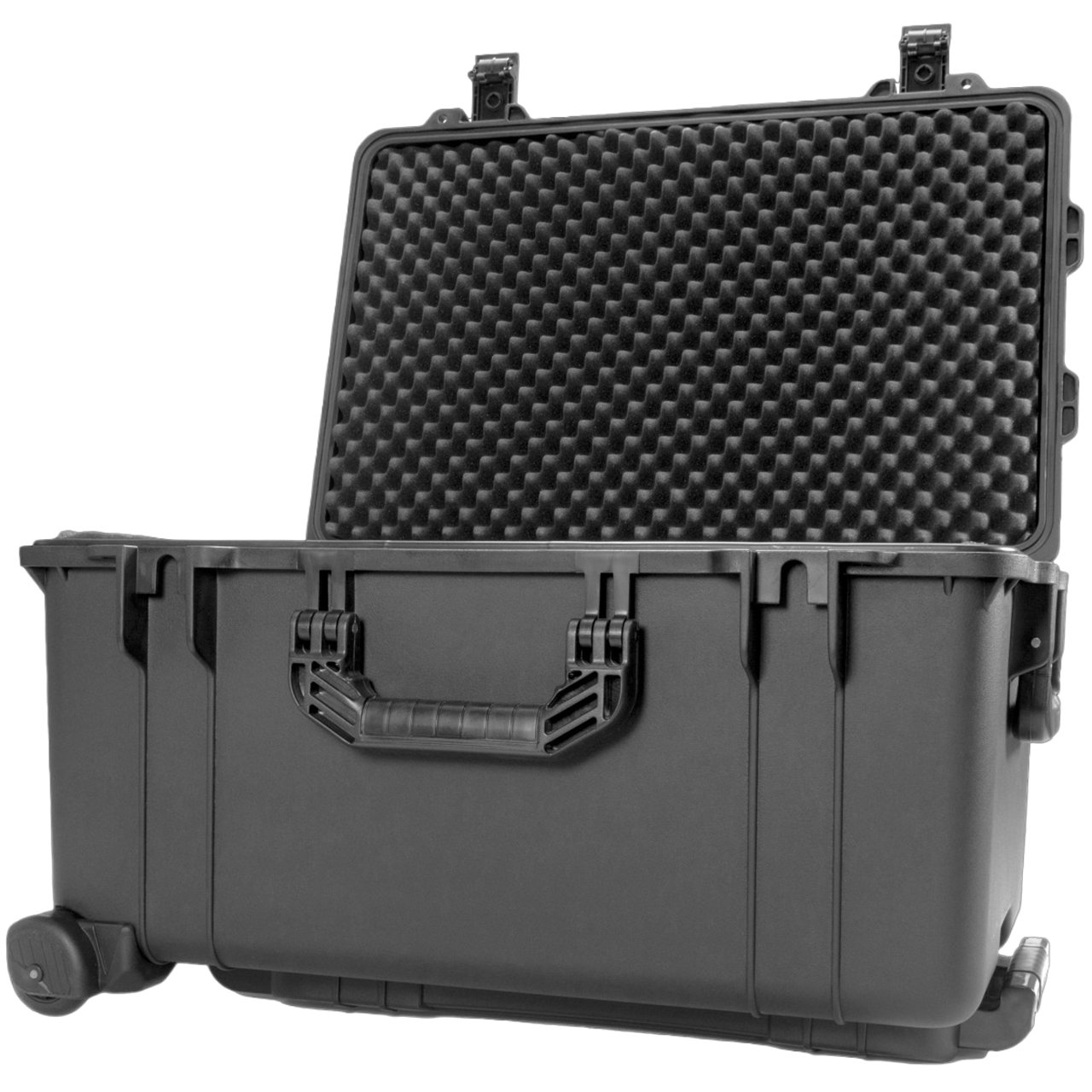

  • 1x HC-800FS / HC-GO-300 / HC-850 Hardcases for equipment
  • 1x Video Production Teacher's Guide
  • 1x Comprehensive guide for teaching vide
