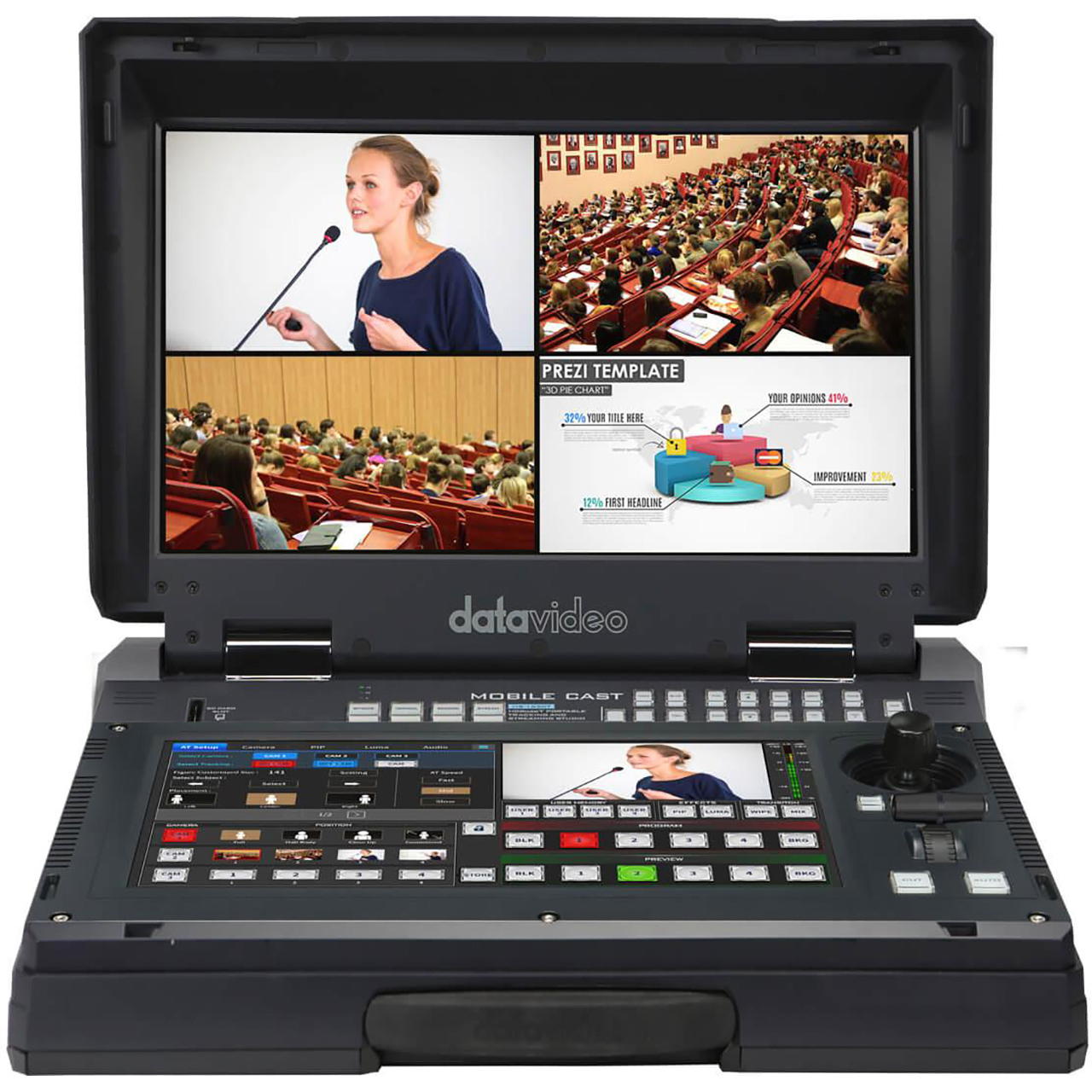

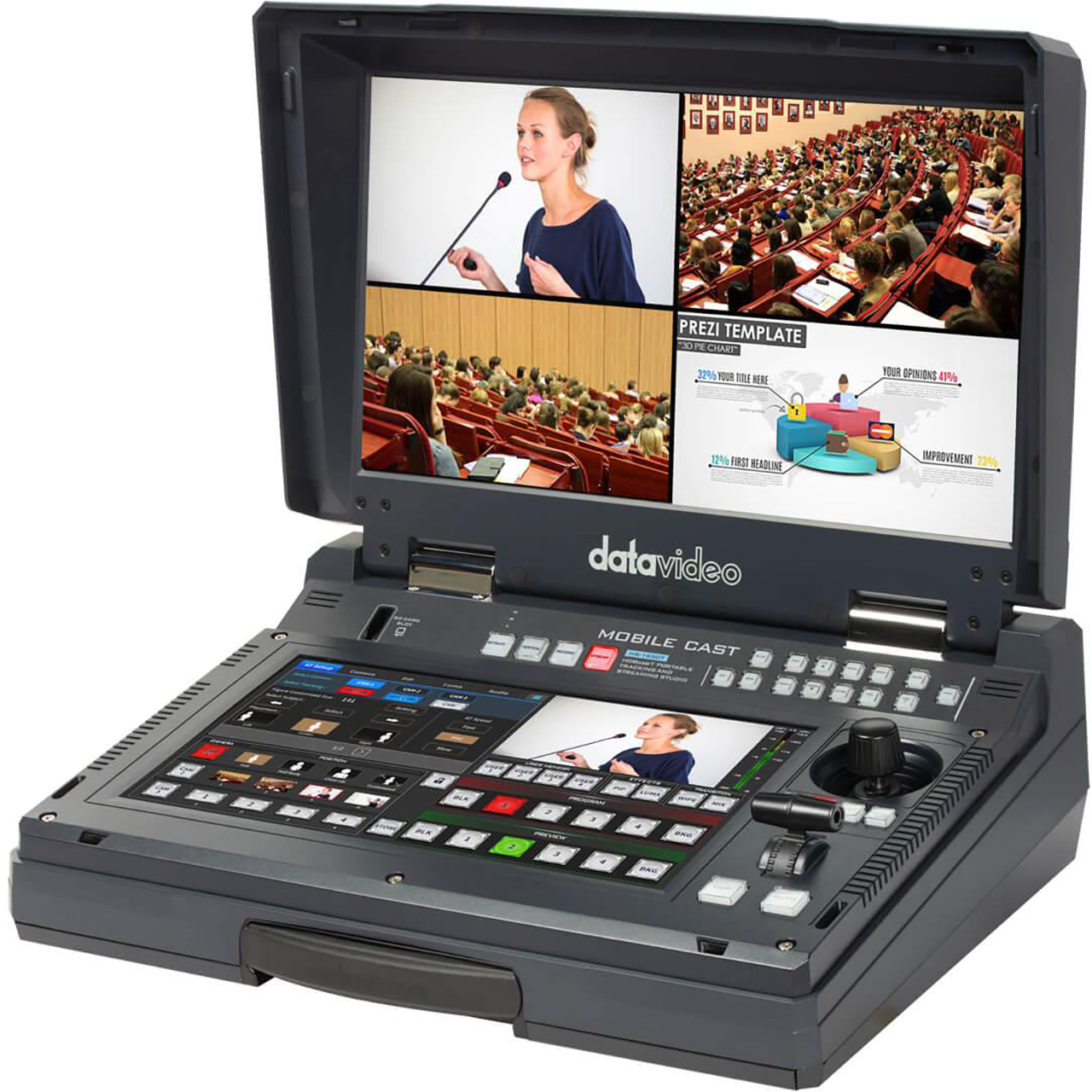

Datavideo HS-1650T is a compact 4-channel HDBaseT production studio designed for live events, education, and conferences. It combines video switching, streaming, recording, camera control, and audio mixing in one portable unit.

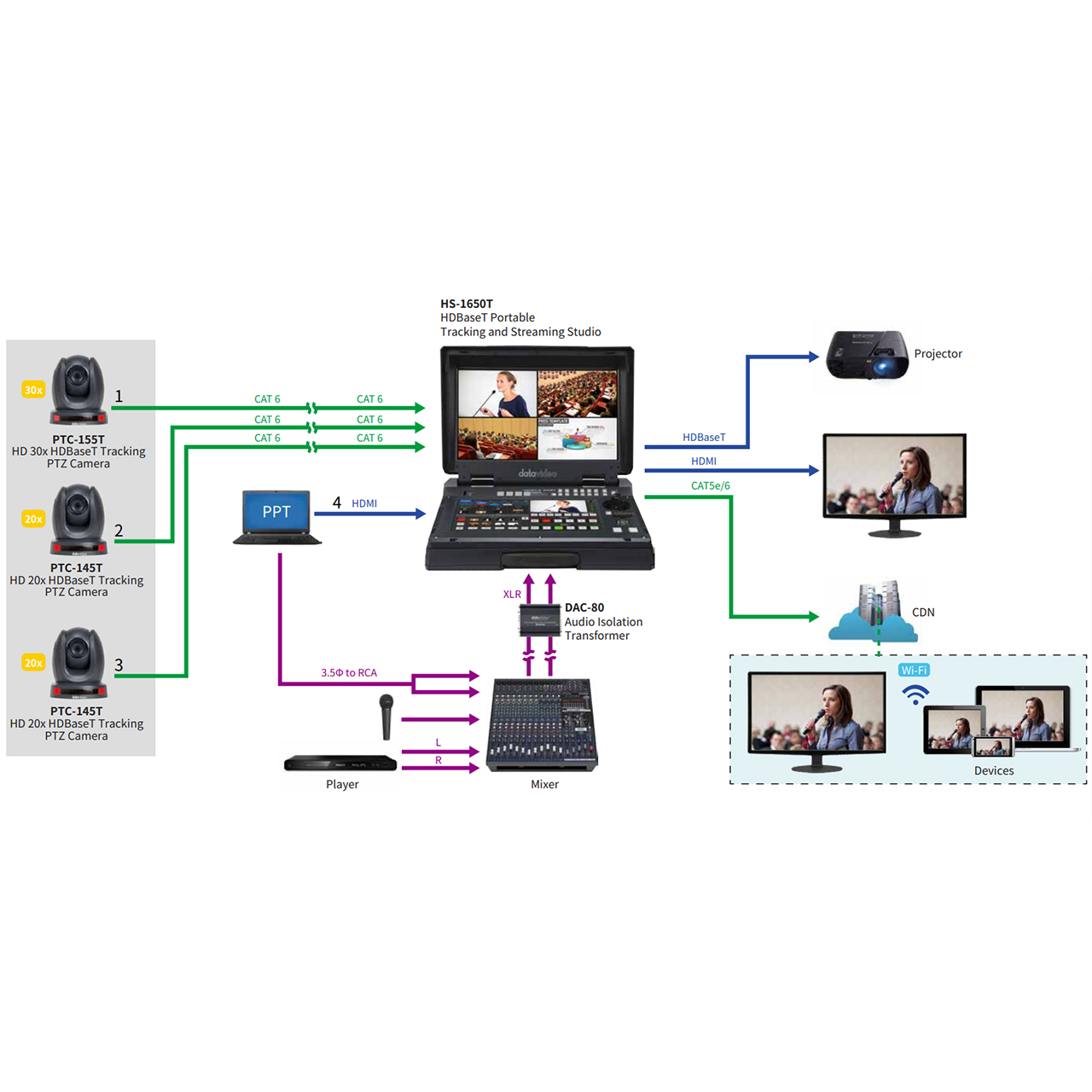

The intuitive 14-inch touchscreen enables real-time PTZ and auto-tracking control. With HDBaseT technology, a single Cat-6A cable delivers video, power, control, and tally up to 100 meters.
Additional features include XLR/RCA audio inputs, 3 HDMI outputs, Picture-in-Picture effects, and a 17.3" multi-view monitor. Firmware upgrades allow future feature expansion without hardware changes.
The HS-1650T features a built-in, web-ready recorder. Simply insert an SD card, and you'll have video files that can be immediately uploaded to your preferred video platform or website.
Datavideo is known for its innovative and user-friendly design, and the HS-1650T is the latest embodiment of this philosophy. By merging a -large 17.3" monitor for multiview monitoring with a dedicated, 14" fast responsive touchscreen interface, Datavideo has eliminated the steep learning curve and complexity of traditional live production. The intuitive touch dashboard allows operators to manage everything from camera iris and white balance to sophisticated AI tracking parameters with simple gestures, making professional-grade broadcasting truly accessible to users of all technical skill levels.
All You Need in One Case
The HS-1650T brings together six powerful production features - switching, streaming, recording, audio mixing, monitoring, and camera control - all in a rugged, portable case. Whether you're live broadcasting from a conference room, auditorium, or remote site, this all-in-one system gives you full production control at your fingertips. No more complex setups. Just plug in, power on, and go live.

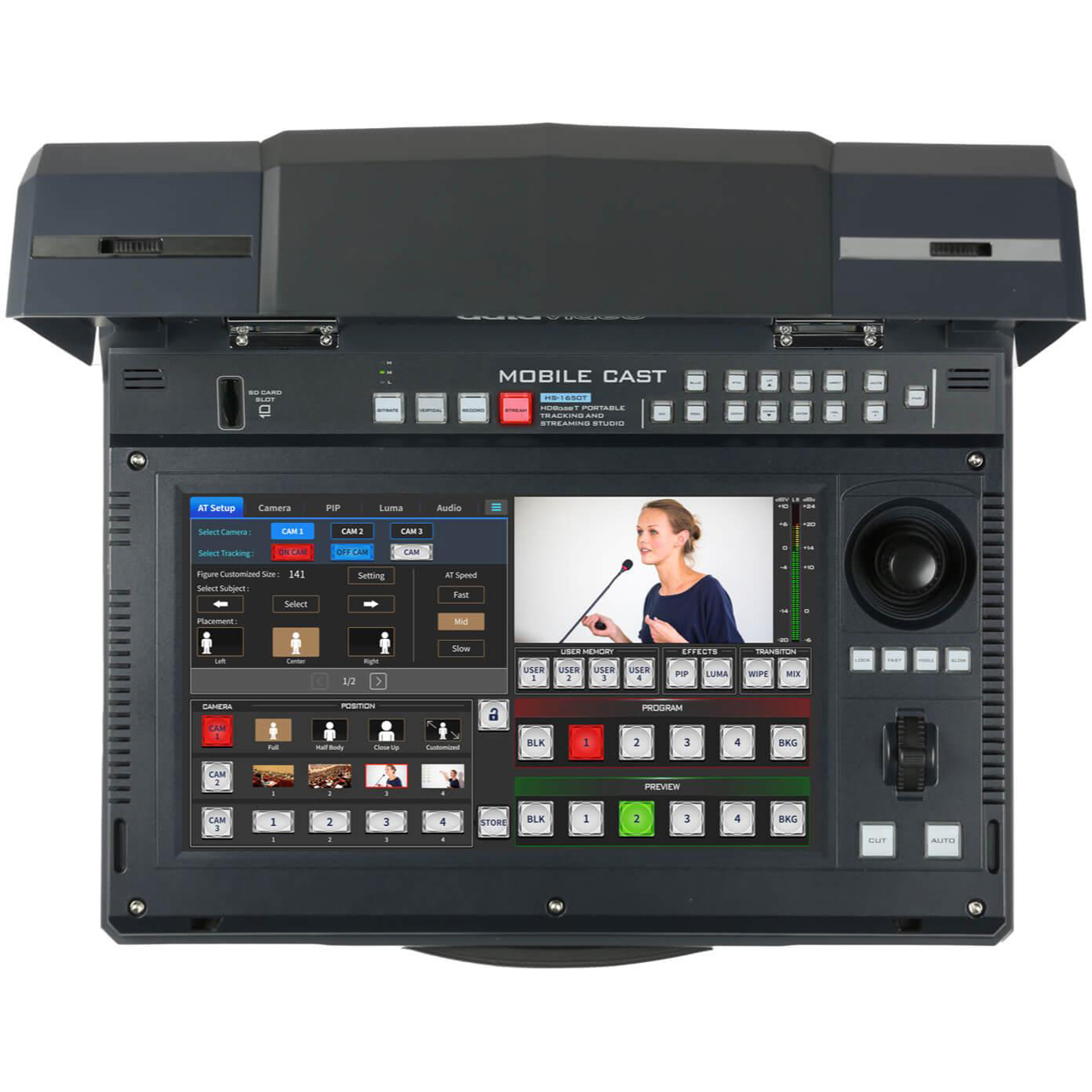

Innovative User Experience: 14" Touchscreen
With its 14" touchscreen, the HS-1650T redefines control. Effortlessly switch scenes, adjust PTZ cameras, and frame your subject with AI tracking - no buttons, no limits.
Efficient 4-In/4-Out Video Integration

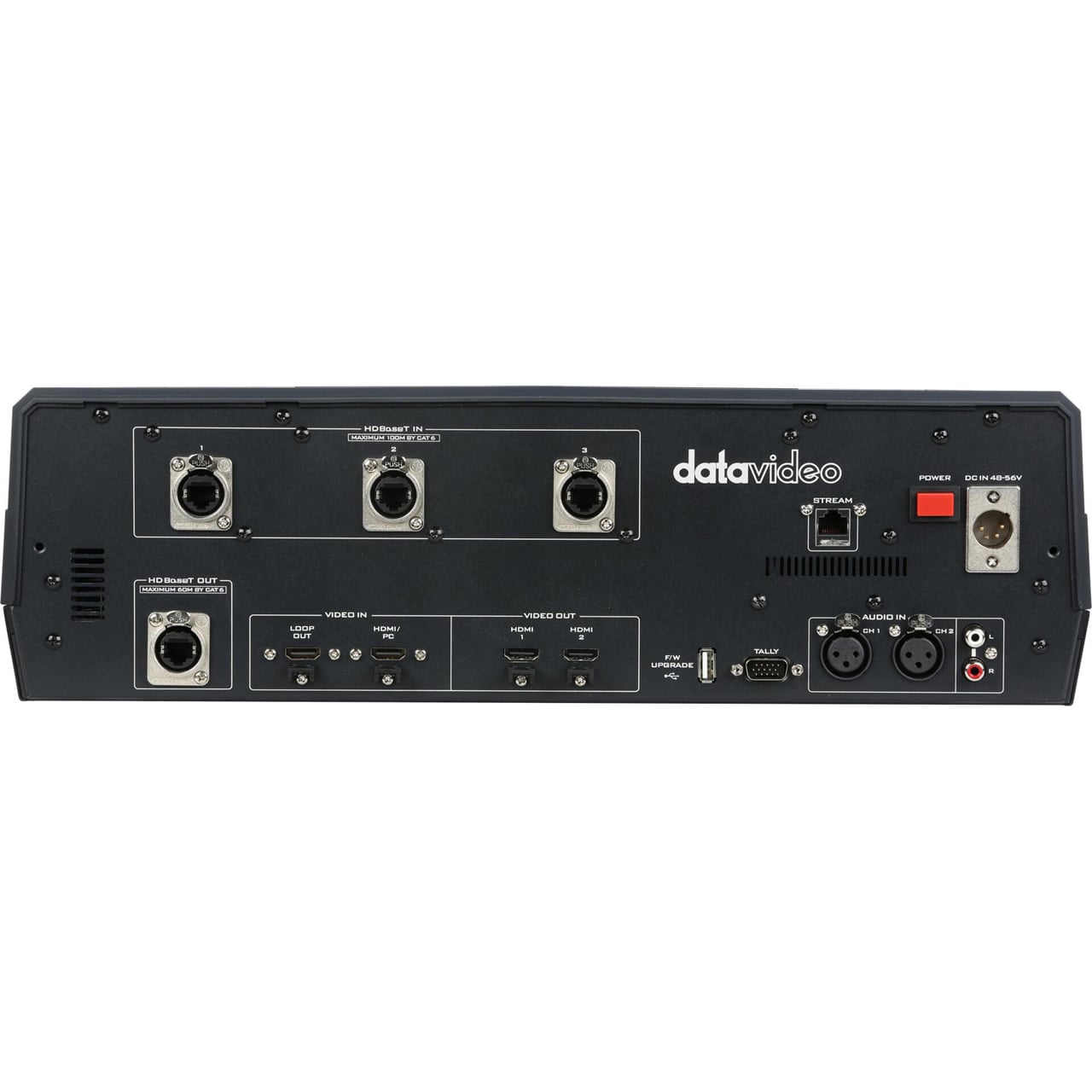

HS-1650T offers four video inputs (three HDBaseT and one HDMI) and four video outputs (two HDMI, one HDBaseT, and 1x HDMI Loop Out), making it ideal for building a clean and efficient video setup in small to medium-sized venues. This streamlined configuration helps you deliver professional, high-quality live productions with ease.
Picture-in-Picture (PIP) Function
HS-1650T supports flexible PIP display, allowing users to assign any source as a sub-window. The size, position, and border of the sub-window can be freely adjusted, enhancing your video layout with layered visual storytelling.
