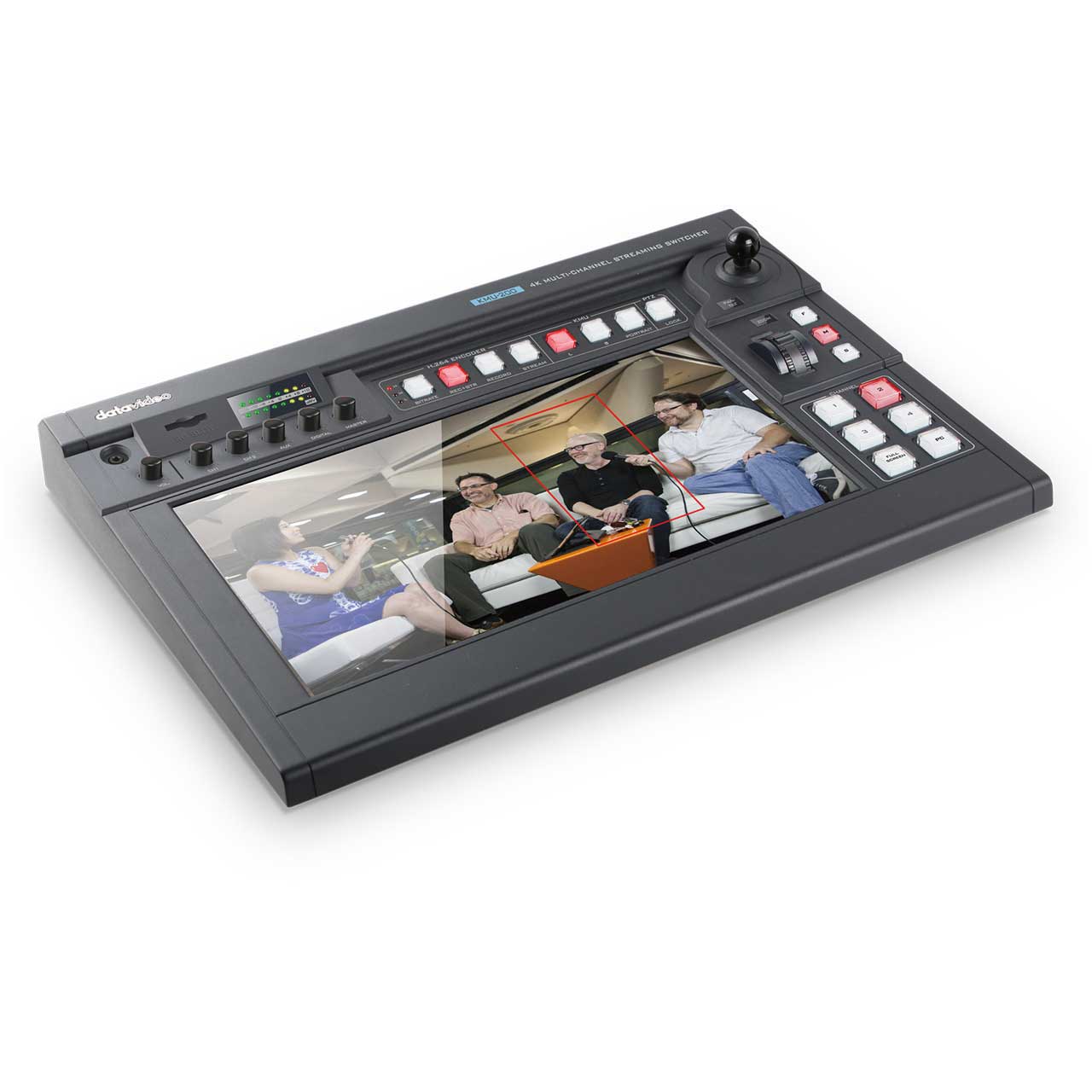

Datavideo KMU-300 4K Multi-Camera Processing Switcher with Built-In PTZ Camera Control/Streaming & Recording

ITEM #: DV-KMU-300 MFG #: KMU-300

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,599.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    KMU-300 - Overview

    Producing full HD virtual multi-camera video using a single 4K camera!

    Datavideo KMU-300 is an all-in-one solution for producing full HD virtual multi-camera video using a single 4K camera. Replacing the KMU-200 the 300 gives you a large touch screen for operation, the same gestures used on any tablet or phone. By pinching and swiping, you control up to 4 cutouts of a 4K image and as if the footages comes from 4 different cameras. Use hardware control to precisely position the cutouts like a regular PTZ camera. KMU-300 features a dual streaming encoder making it possible to go live on all the well known streaming platforms directly from the device. Easily record on SD cards and you can directly bring the recording to your favorite editing suite. KMU-300 allows you to produce virtual multi-camera videos easily without any help

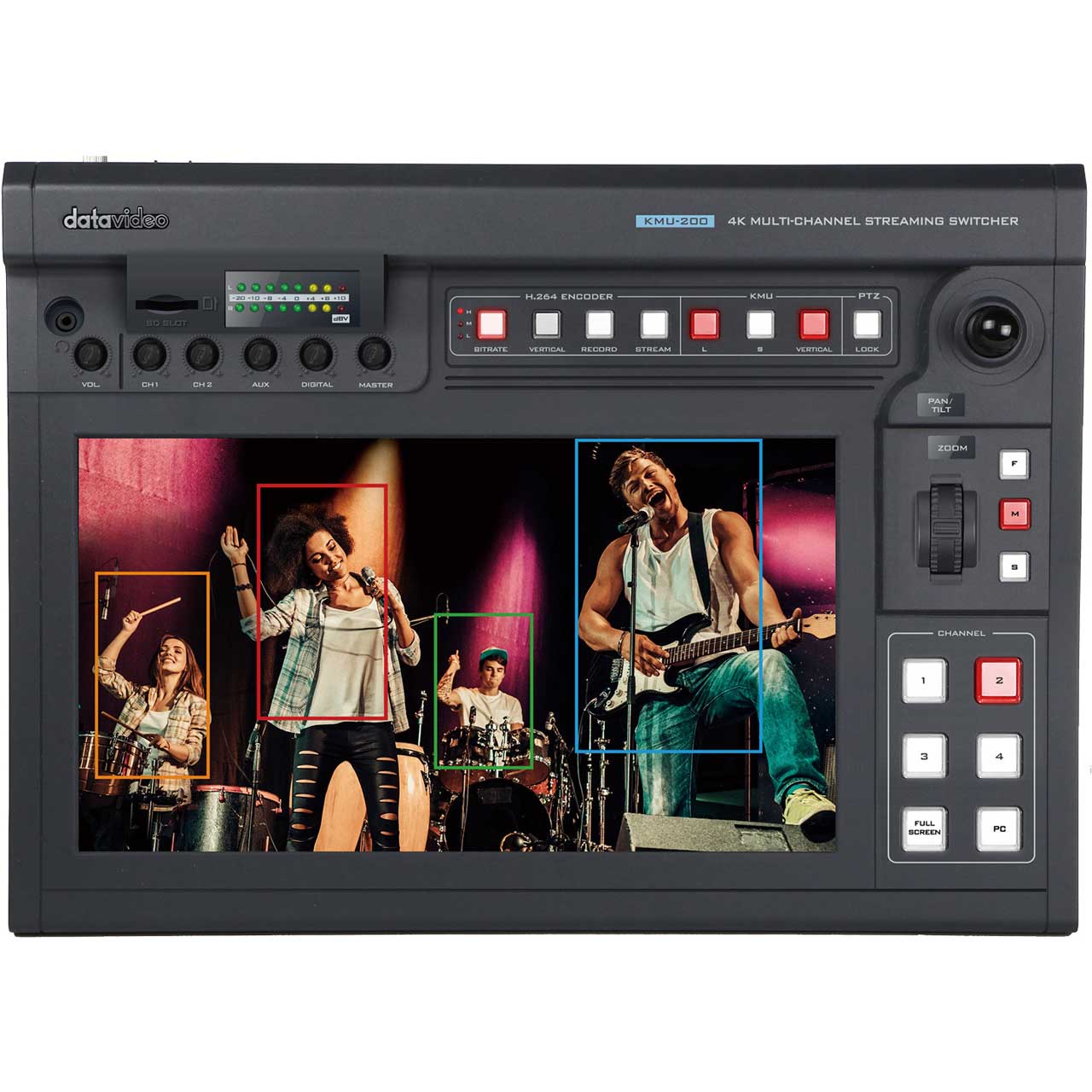

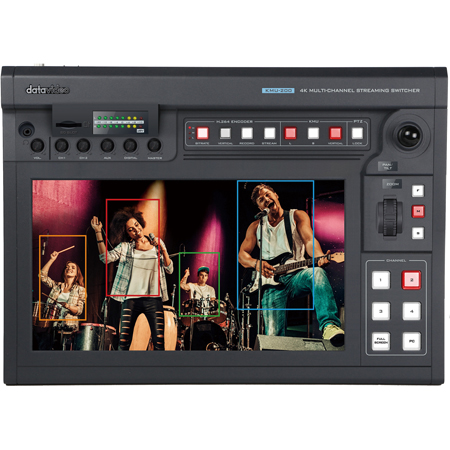

    4K cameras are widely available and content online doesn't require the full 4K resolution for streamed content. A single 4K camera can be utilized to obtain 4 cut outs or regions of interest. The KMU-300 is perfect for interview application with small panels or smaller houses of worship. With Social distancing becoming commonplace, the KMU-300 reduces the amount of cameras needed to get your production streamed live.Users can easily control the video cutout sources by using the touch screen and well known gestures such as pinching and swiping. The joystick, zoom knob and hardware buttons can also be used alternatively. While your show is live, KMU- 300 helps you to stream and live recording at the same time. Provide you the full turn-key solution.

    • Specifications:

      • Video Standard: UHD & HD
      • Video Format Input: 3840x2160p 23.98/24/25/29.97/30/50/59.94/60, 1080p 50/59.94/60, Output: 1080p 50/59.94/60, 720p 50/59.94/60
      • Video Processing: 4:4:4 / 4:2:2 / 4:2:0

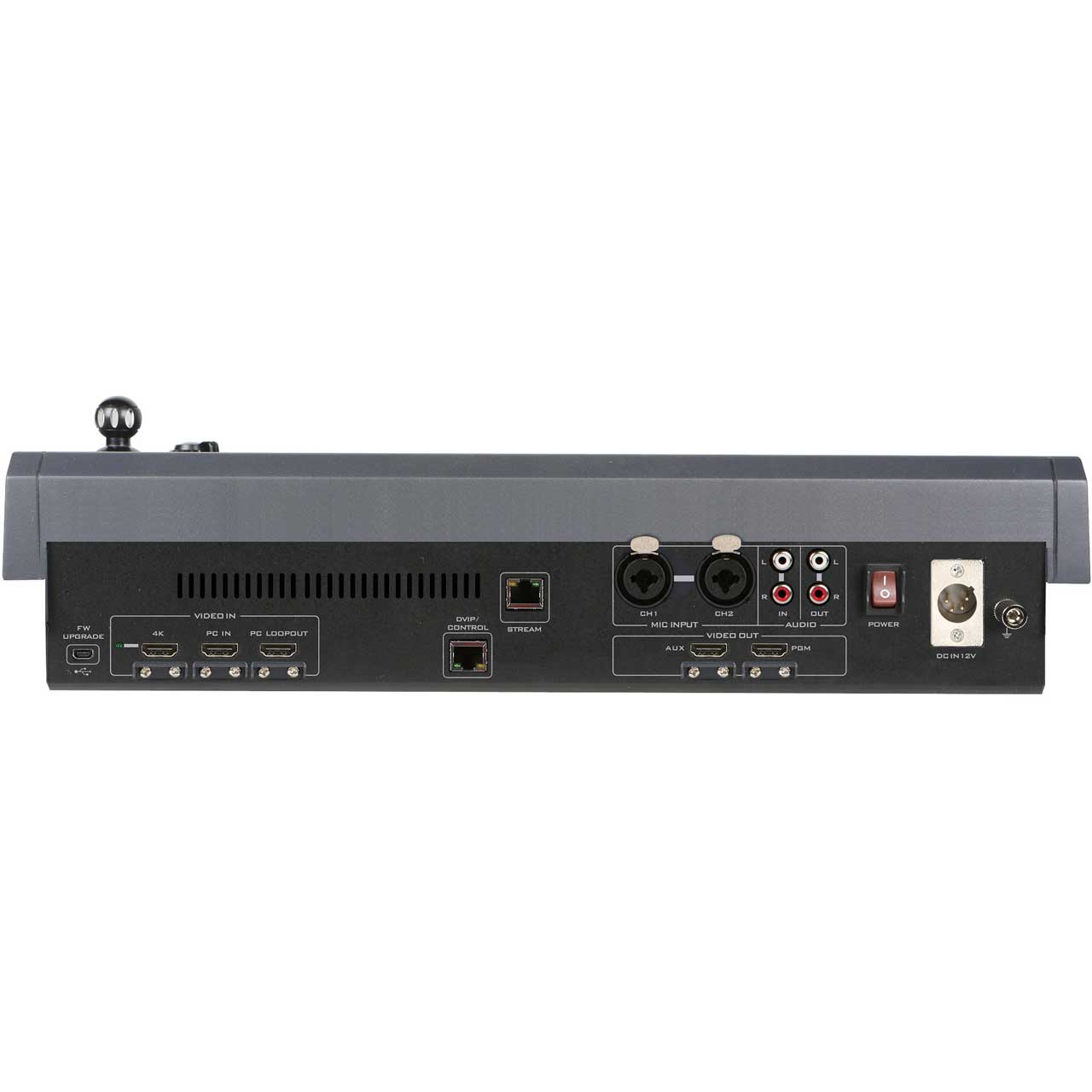

      • Video Input: 1x HDMI 2.0, 1x HDMI 1.4 with Loop through
      • Video Output: 2x HDMI 1.4
      • Support Video Output Resolution: 1920 x 1080p 50/59.94/60, 1280 x 720p 50/59.94/60
      • Streaming Encode: H.264/AVC, Main/High Profile
      • Streaming Video Bitrate: Record Only: Up to 16Mbps (1080p50/60), Stream Only: Up to 10Mbps (1080p50/60), dual stream, Record+Stream: 36Mbps (1080p50/60)
      • Streaming Video Rate Mode: Stereo/Mono
      • Streaming Audio Bitrate: Stereo: 64~384Kbps, Mono: 32~192Kbps
      • Streaming Protocols: TS over TCP/UDP (unicast & multicast), RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming), RTMP/RTMPS (Publish), HLS, SRT
      • Network Interface: 1x RJ45 (10/100Mbps Ethernet)
      • Recording Storage Medium: SD Card (Class 10 above)
      • Recording Storage File System: NTFS, FAT, exFAT
      • Recorded File Format: MP4
      • Built-in Audio Mixer: Yes, 4 channels
      • Audio Input: 2x XLR(Mic), 2x RCA
      • Audio Output: 2x Unbalanced RCA
      • Preview Display: 14" Capacitive Touch LCD
      • Dimension (LxWxH): 438 x 331 x 114 mm
      • Weight: 4.3 kg
      • Power Supply: DC 12V, 52W
      • Operating Temp. Range: 0 - 40 °

    • Item Includes:

      • 1 x KMU-300 Main Unit
      • 1 x AD Switch DC 12V with AC Cord
