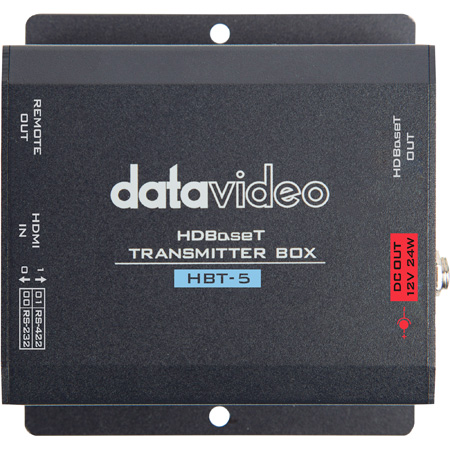

Datavideo HBT-5 Short Range HDBaseT Transmitter - Transmit up to 30m for 4K and 60m for 1080p Signals

ITEM #: DV-HBT-5 MFG #: HBT-5

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$259.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    HBT-5 - Overview

    The Datavideo HBT-5 is a Short Range HDBaseT Transmitter with HDMI Deep Color supports better color depths to give your display device a great image.

    Transmits HDMI signals up to 60m at 1080p and 35m at [email protected] using Cat 6 cable
    The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.

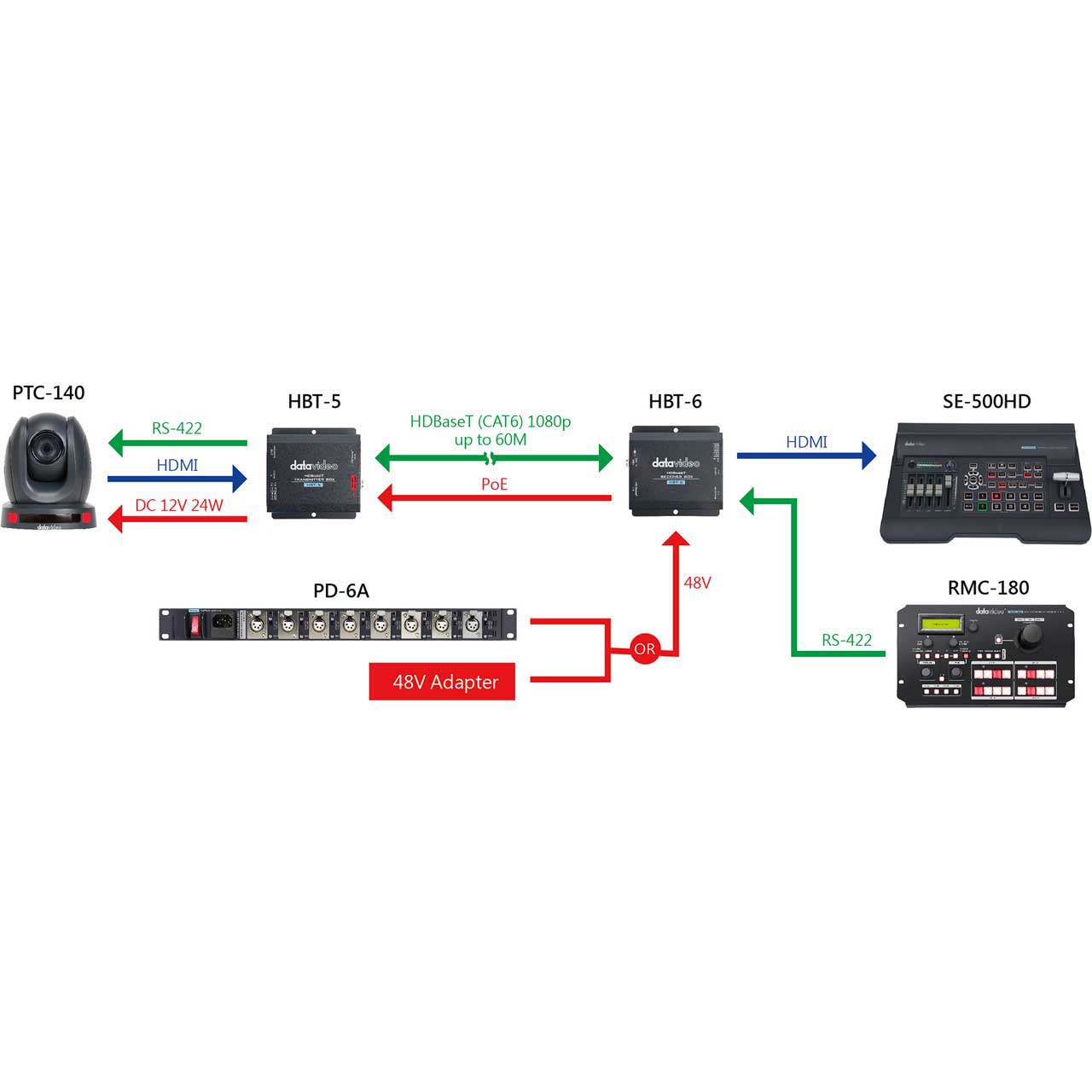

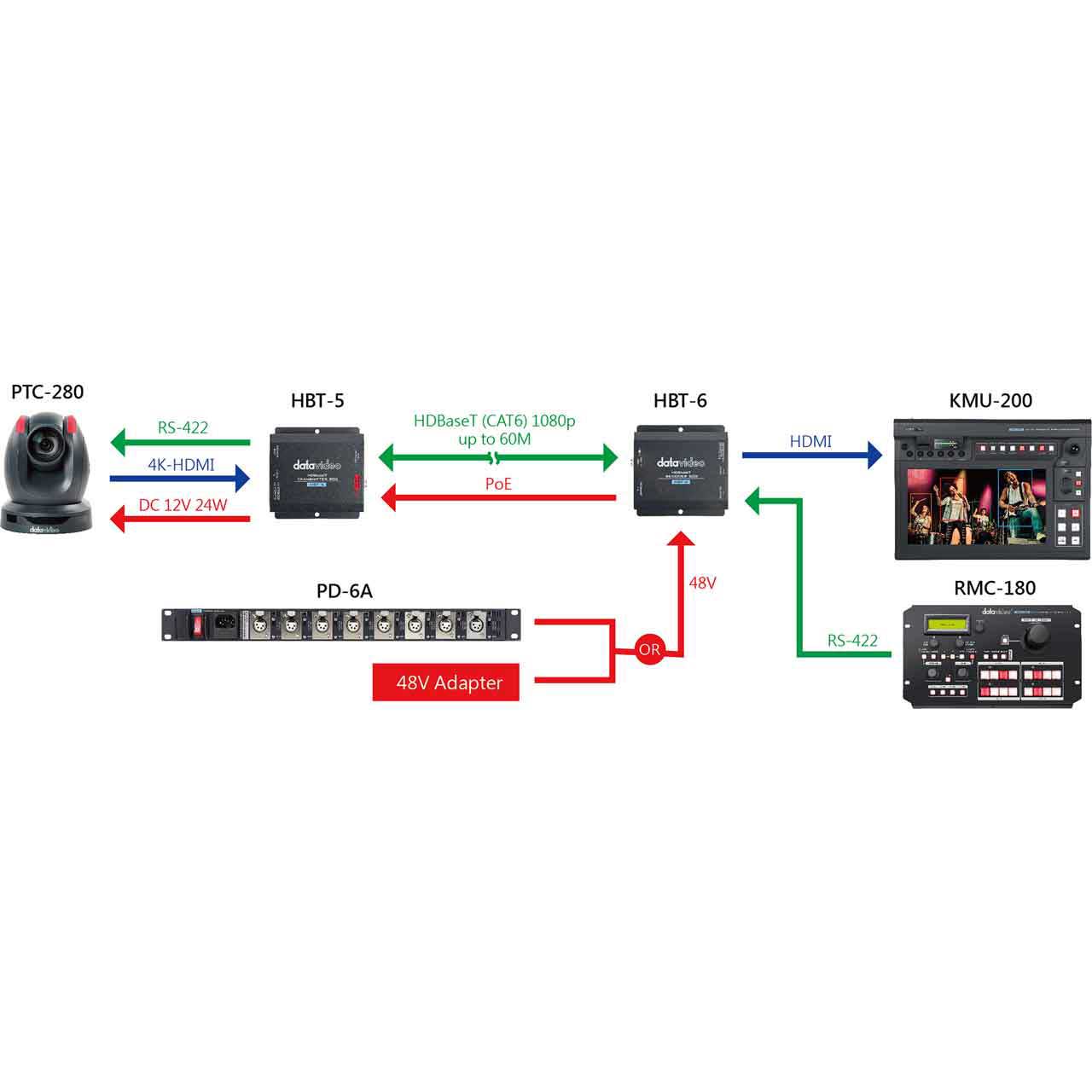

    Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter
    HBT-6 receiver can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.

    HDCP compliant
    Can perfectly display the video source with HDCP in high clarity with zero interruption.

    Supports control over RS-232/ RS-422
    HBT-6 offers RS-232/RS-422 control signals, which allow to control the source device from the display location.

    Supports default EDID and EDID learning from the display
    EDID pass-through passes signal between the source and display

    • Features:

      • Supports HDMI Deep Color & full 3D & [email protected] (HDBaseT technology)
      • Transmits HDMI signals up to 60m at 1080p and 35m at [email protected] using Cat 6 cable
      • Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter
      • HDCP compliant
      • Supports control over RS-232/ RS-422
      • Supports default EDID and EDID learning from the display
      • Dolby TrueHD & DTS Master audio support

    • Specifications:

      • Video/Audio Input: HDBaseT RJ-45 x1
      • Video/Audio Output: HDMI x1
      • Supported Video Format
        3840x2160p: 30/29.97/25/24/23.98
        1080p: 60/59.94/50/30/29.97/25/24/23.98
        1080i: 60/59.94/50, 720p: 60/59.94/50
        525i59.94 NTSC, 625i50 PAL
      • Video Process: 4K2K30 4:4:4 8bit, 4K2K60 4:2:0 8bit
      • Video bandwidth: Single-link 340MHz [10.2Gbps]
      • RS-422/ RS-232: YES
      • Power: DC 48V
      • HDBaseT Distance: [email protected] 60m (198ft) by CAT6 cable, [email protected] 35m (114ft) by CAT6 cable
      • HDMI compliance: HDMI Deep Color, full 3D & [email protected]
      • HDCP compliance: HDCP 2.2/1.4
      • Audio support: Surround sound [up to 7.1ch) or stereo digital audio
      • Dimension (LxWxH): 88 x 76 x 30 mm
      • Weight: 151 g
      • Operating Temp. Range: 0~40 °C


    HBT-5 - Recommended Accessories
