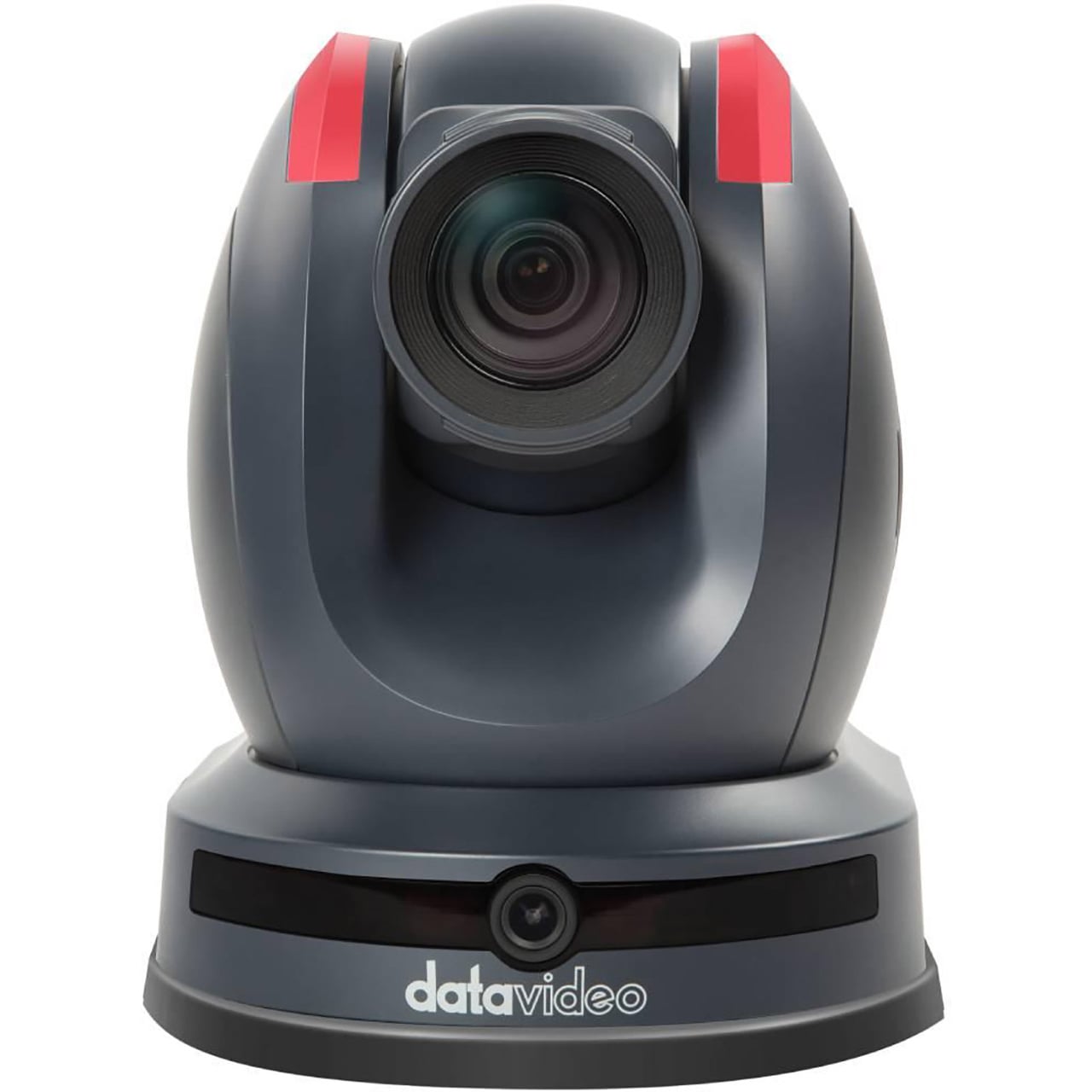

Datavideo PTC-155 AI Powered PTZ Camera with 1/2.8-Inch CMOS Sensor/30x Optical Zoom/Dual Lens System

ITEM #: DV-PTC-155 MFG #: PTC-155

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$2,049.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTC-155 - Overview

Stunning Full HD Resolution with Auto Tracking
The Datavideo PTC-155 is designed with a 1/2.8" CMOS sensor, 30x optical zoom, and an intelligent dual-lens system, the PTC-155 delivers smooth, natural tracking and premium Full HD 1080/60P image quality. Whether it's a grand performance hall, a classroom lecture, a corporate conference, or a place of worship, the PTC-155 excels in capturing every moment with unmatched clarity and stability.

Adopts High-Quality and Reliable Sony CMOS Sensor
Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower power consumption, which leads to reduced heat generation and a longer camera lifespan.

30x Optical Zoom, 16x Digital Zoom
The PTC-155's 30x optical zoom and 16x digital zoom allows you to mount it near or far and still get great, sharp shots.

Broadcast Quality 1/2.8" CMOS Sensor
The PTC-155 is an AI auto-tracking PTZ camera featuring a 1/2.8" CMOS sensor and supports Full HD resolution at 1920x1080 60fps.

  • Features:

    • AI Subject-Autotracking PTZ Camera
    • 1/2.8" CMOS Sensor, 2.14MP
    • Up to 1080p60 Video Resolution
    • 30x Optical, 16x Digital Zoom
    • Supports NDI HX3 & RTSP, RTMP Streaming
    • 255 Presets, High SNR, SD Card Recording
    • H.264/H.265/MJPEG Video Compression
    • DVIP, RS-422, VISCA/Pelco D/P & ONVIF
    • AAC & G711 Audio Compression
    • ¼"-20 Thread, Ceiling Mount

  • Specifications:

    • Video Format/Resolution: 1080p60/59.94/50/30/29.97/25-720p60/59.94/50
    • Image Sensor: Sony 1/2.8" CMOS
    • Effective Pixels (approx.): 2.14 Mega pixels
    • S/N Ratio: =50dB
    • Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
    • Electronic Shutter:1/25s ~ 1/10000s
    • Zoom Ratio: 30x Optical Zoom, 16x Digital Zoom
    • Effective Zoom Ratio: 27.35x
    • Iris Control: Auto/Manual
    • Digital Noise Reductions: 2D/3D
    • On-Screen Display: English/Simplified Chinese/Traditional Chinese
    • White Balance: Auto, OnePush, Manual
    • AGC/Gain Control: Yes HDR/WDR WDR
    • Mirror/Flip Image: Yes
    • Focus Mode: Auto/Manual
    • Panning/Tilting Range:
      - Pan: 300°
      - Tilt: +130° - -15°
    • Panning/Tilting Speed
      - Pan: 0.1~ 60°/sec
      - Tilt: 0.1° - 30°/sec
    • Preset: 255 Positions
    • Focal Length: f = 5.5mm (wide) to 150.43mm (tele), F1.66(Wide) ~ F4.99 (Tele)
    • Field of View: (Horizontal,Wide)
    • Main: 54°
    • Panorama: 86°
    • Image Compensation: Backlight Compensation

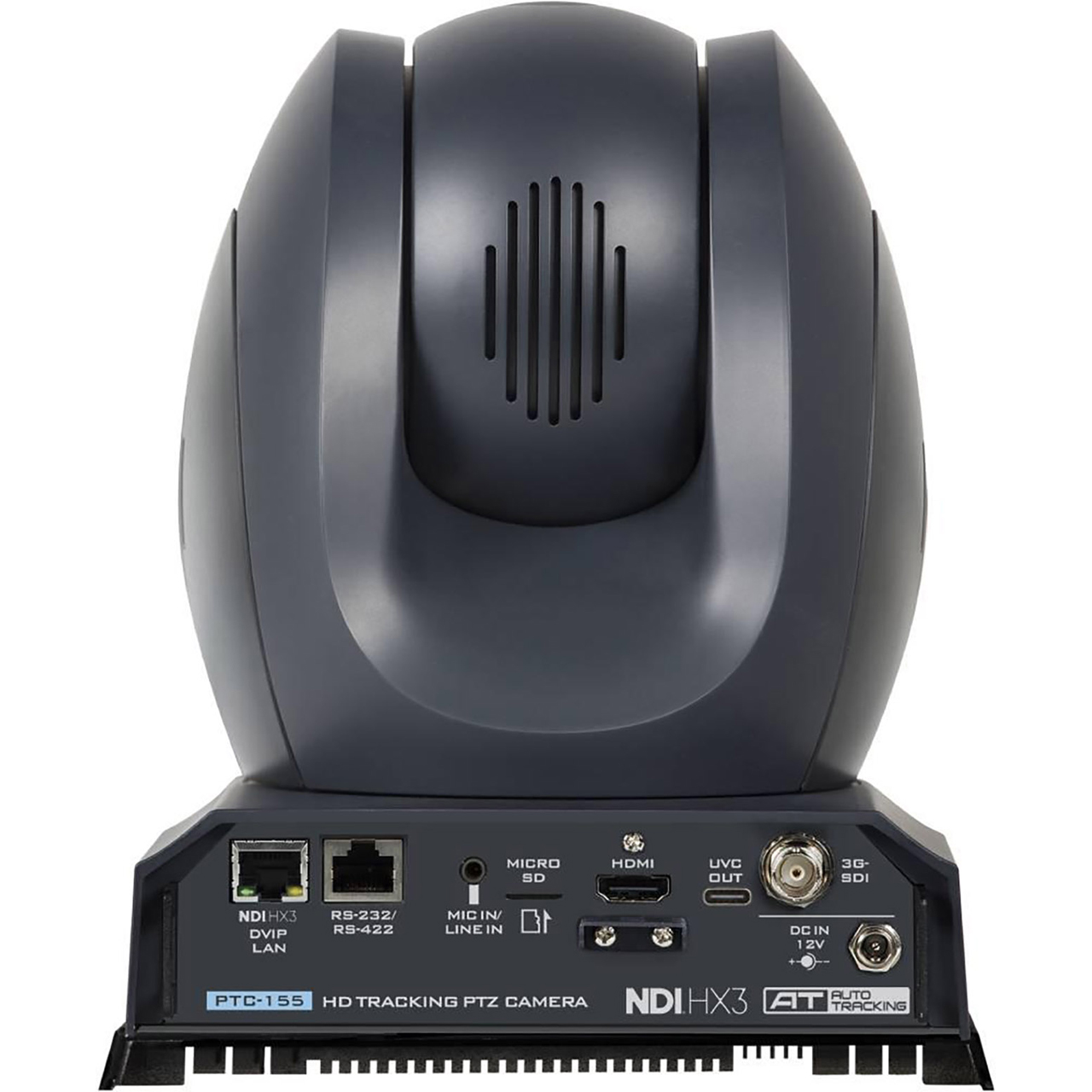

    • Video Output:
      - 1x HDMI 1.3
      - 1x 3G-SDI
      - 1x UVC output
      - 1x 10/100M RJ45 (PoE)
    • Audio Input: 1x 3.5mm (LINE in/Mic in)
    • Tally LED: Yes
    • Control Protocol: Pelco-D, Pelco-P, - VISCA, VISCA over IP, - NDI, DVIP, ONVIF
    • Remote Control Interface: IR - Web UI - RS-422/RS-232 (RJ-45)- DVIP - NDI
    • Video Compression Format: H.264/H.265/MJPEG
    • Audio Compression Format: AAC, G711
    • Audio Bitrate: 96Kbps, 128Kbps
    • Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3
    • First Stream Supported Resolution:
      - 1920x1080
      - 1280x720
      - 1024x576
      - 960x540
      - 640x480
      - 640x360
    • Second Stream Supported Resolution:
      - 720x480
      - 640x360
      - 640x480
      - 320x240
    • Video Bitrate:
      - First Stream: 32Kbps - 20Mbps
      - Second Stream: 32Kbps - 5Mbps
    • Video Bitrate Mode: VBR, CBR
    • Encoding Frame Rate:
      - 50Hz: 1fps - 50fps
      - 60Hz: 1fps - 60fps
    • POE IEEE: 802.3at
    • F/W Update: Via Web UI
    • IR Control: Yes
    • Camera Control Unit:
      - RMC-2P
      - RMC-180 series
      - RMC-300 series
      - PTZ View Assist APP
    • Tripod Mount: ¼"-20 UNC
    • Optional Accessories: WM-1/WM-10/WM-11
    • Color: Dark Blue/White
    • Dimensions (LxWxH): 7.24" x 8.99" x 7.63" (184mm x 228.5mm x 194mm)
    • Weight: 5.95Ibs (2.7kg)
    • Operating Temp Range: 32°F - 104°F (0°C - 40°C)
    • Power: DC 12V 19W

  • Item Includes:

    • 1x PTC-155 product
    • 1x IR remote controller
    • 1x Ceiling mount bracket -B
    • 6x Ceiling mount bracket screw M3*4mm
    • 1x DC 12V Power Adaptor
    • 1x Safety cable
