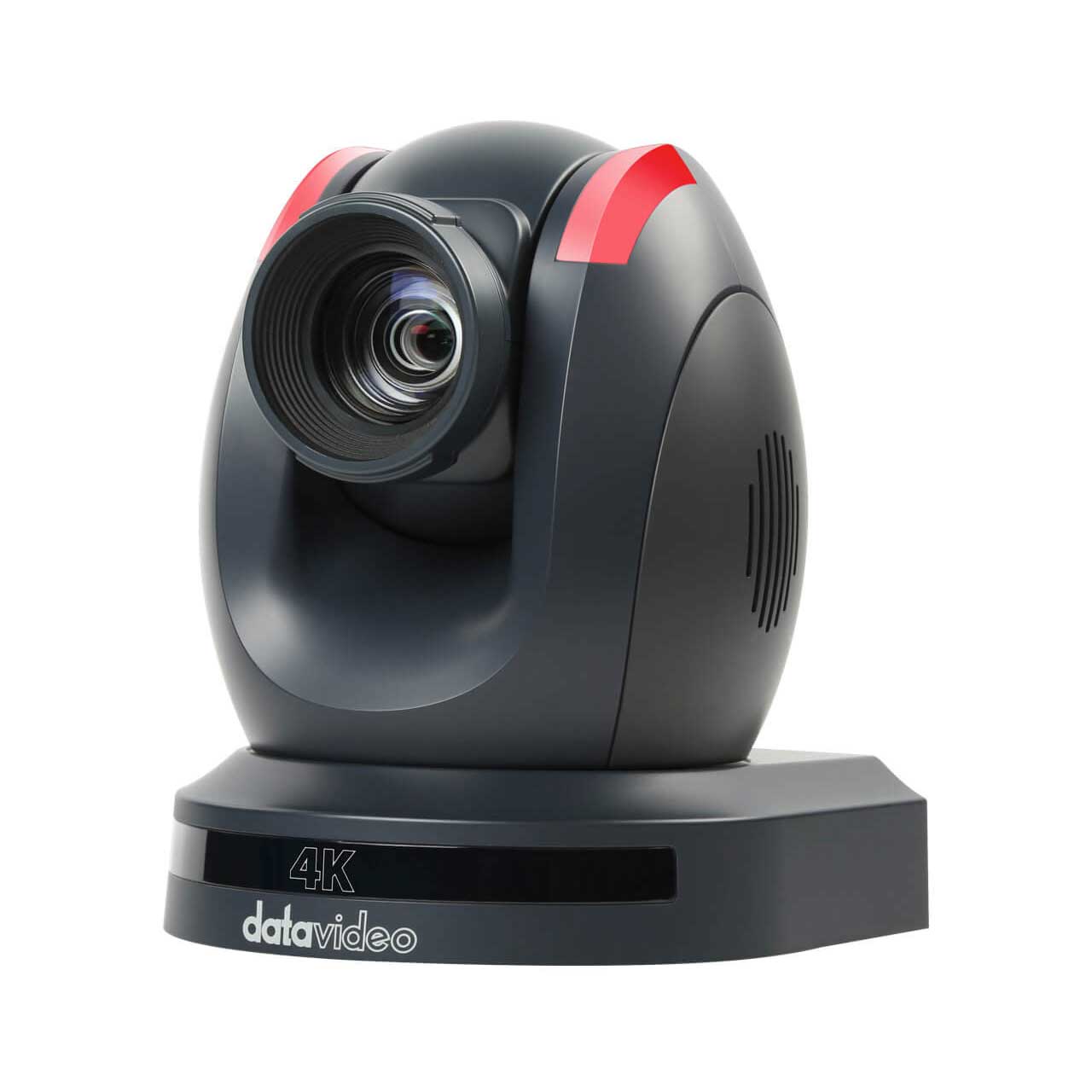

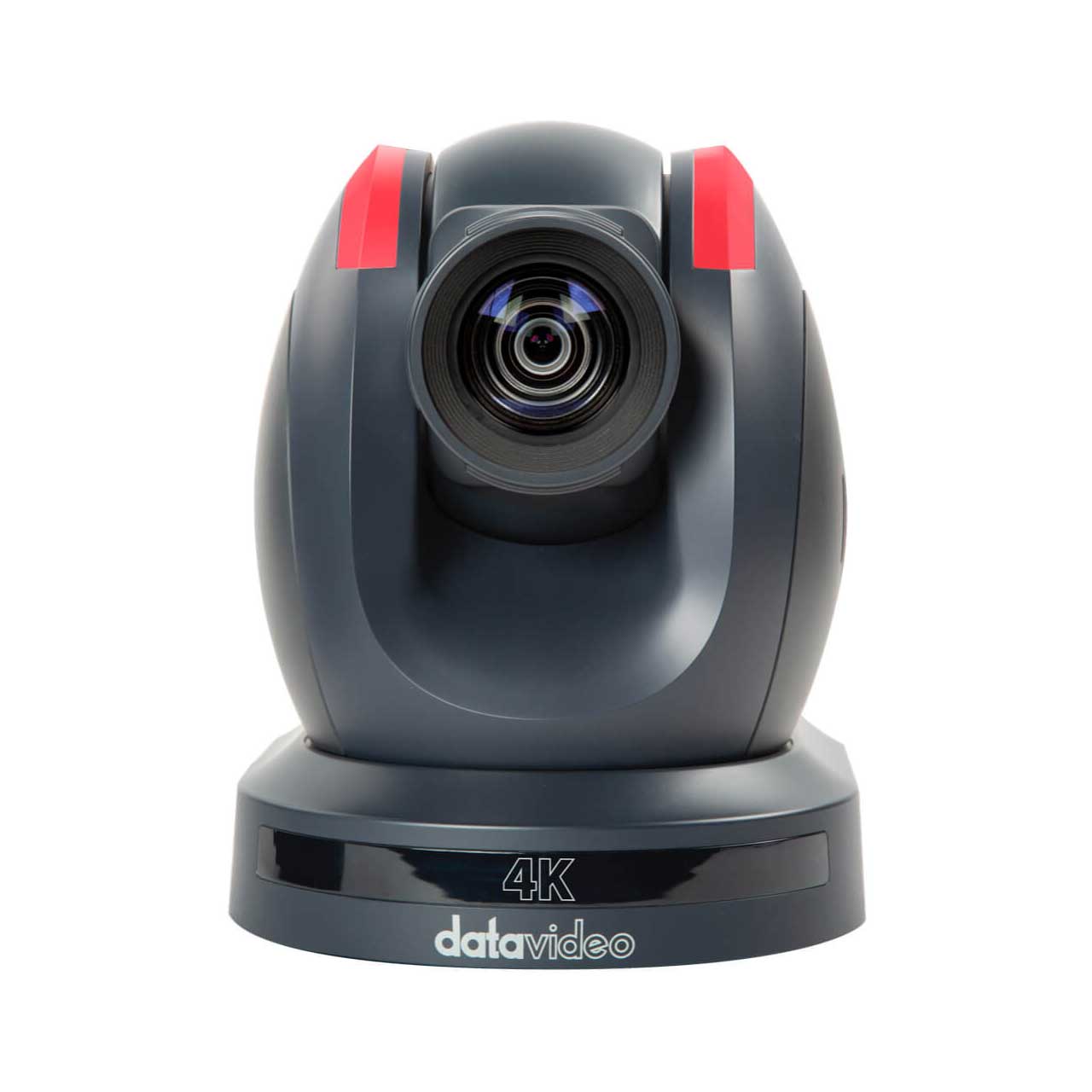

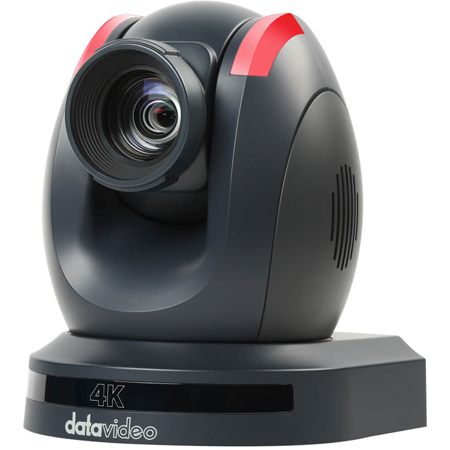

Datavideo PTC-305T 20x 4K PTZ Camera with Auto Tracking/HDBaseT - Supports Dual Streaming Output and PoE - Black

ITEM #: DV-PTC-305T MFG #: PTC-305T

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$2,699.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    PTC-305T - Overview

    Live productions depend on high performance cameras and camera controllers.
    Datavideo is introducing the 4K50/60p auto tracking PTZ camera, the PTC-305T, which can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.

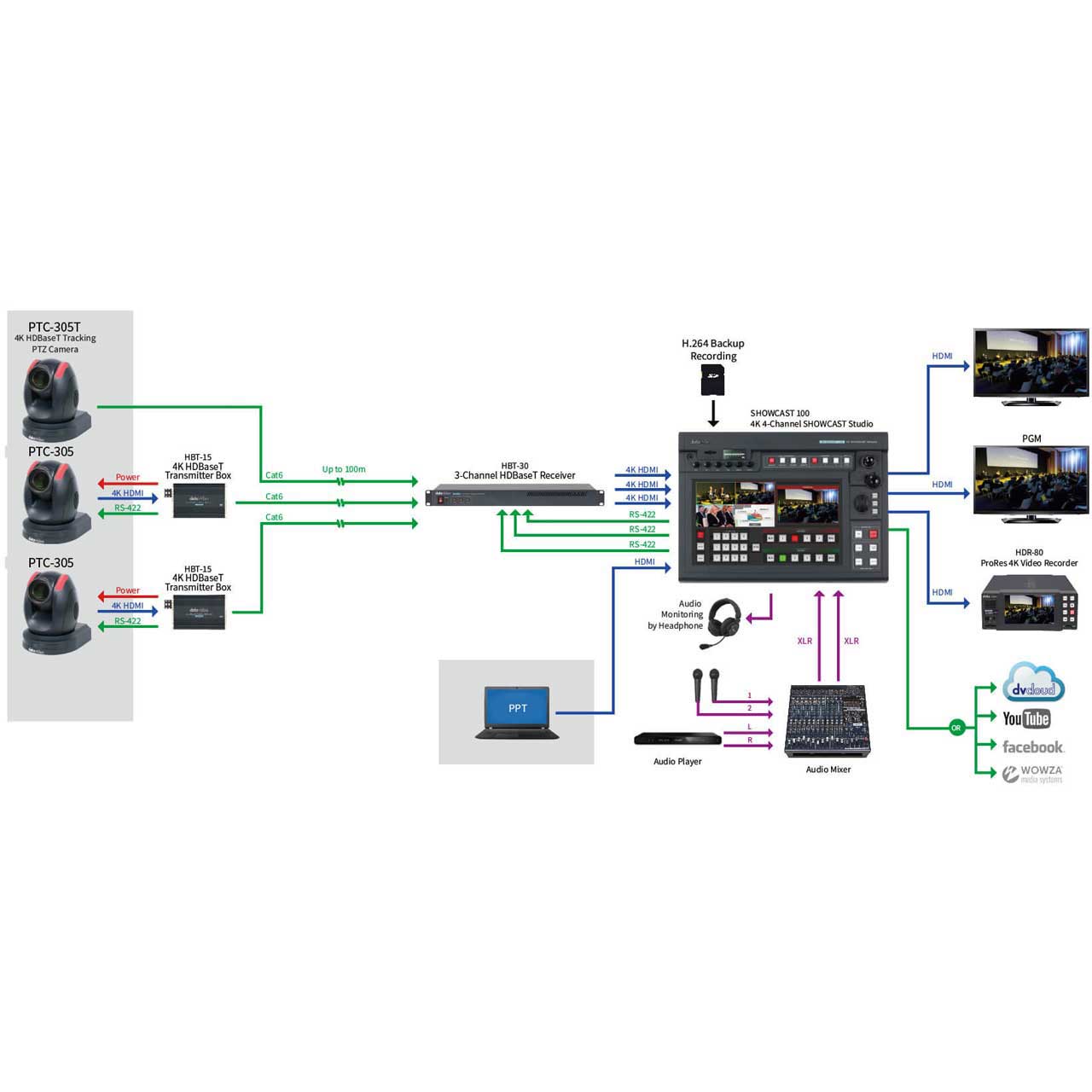

    This HDBaseT version allows single CAT-6 cable to transfer video, control, power, and tally.

    The included RMC-1AT PTZ Controller allows you to manually zoom and focus, along with activating the tracking function with a single button, and storing current pan/tilt/zoom settings to a preset. Up to 4 presets can be saved, which allow for quick access to settings you have saved for specific camera shots.

    Custom Auto Object Tracking
    If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

    • Features:

      • 2160p50/59.94/60 PTZ camera
      • 20x Optical Zoom, 16x Digital Zoom
      • 4K Video interfaces: HDMI, IP (H.264 & H.265)
      • 2160p and 1080p (3G-SDI) Simultaneous video output
      • RS-422 Serial Port Control
      • External audio input: 3.5mm audio in/line in (switchable on the web UI)
      • Friendly web UI
      • White

    • Specifications:

      • Video format/Resolution
        - 2160p60/59.94/50/30/29.97/25
        - 1080p60/59.94/50/30/29.97/25
        - 1080i60/59.94/50
        - 720p60/59.94/50
        - 2160p60/59.94/50 YUV 4:2:2
      • Image Sensor: 1/1.8" CMOS
      • Effective Pixels (approx.): 8.51Mega Pixels
      • S/N Ratio: ≥55dB
      • Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
      • Electronic Shutter: 1/30s ~ 1/10000s
      • Zoom Ratio: 20x Optical, 16x Digital Zoom
      • Iris Control: Auto / Manual
      • Digital Noise Reductions: 3D
      • On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
      • White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
      • AGC / Gain Control: Yes
      • Mirror / Flip Image: Yes
      • Focus Mode: Auto/Manual
      • Panning / Tilting Range:
        - Pan: 300°
        - Tilt: +130° to -15°
      • Panning / Tilting Speed:
        - Pan: 0.876°/s~43°/s
        - Tilt: 0.693°/s ~21.32°/s
      • Preset: 255
      • Focal Length: 20x, f = 6.7mm ~125mm, F1.58 ~ F3.95
      • Field of View (Horizontal, Wide): 60°
      • Image Compensation: Back light compensation

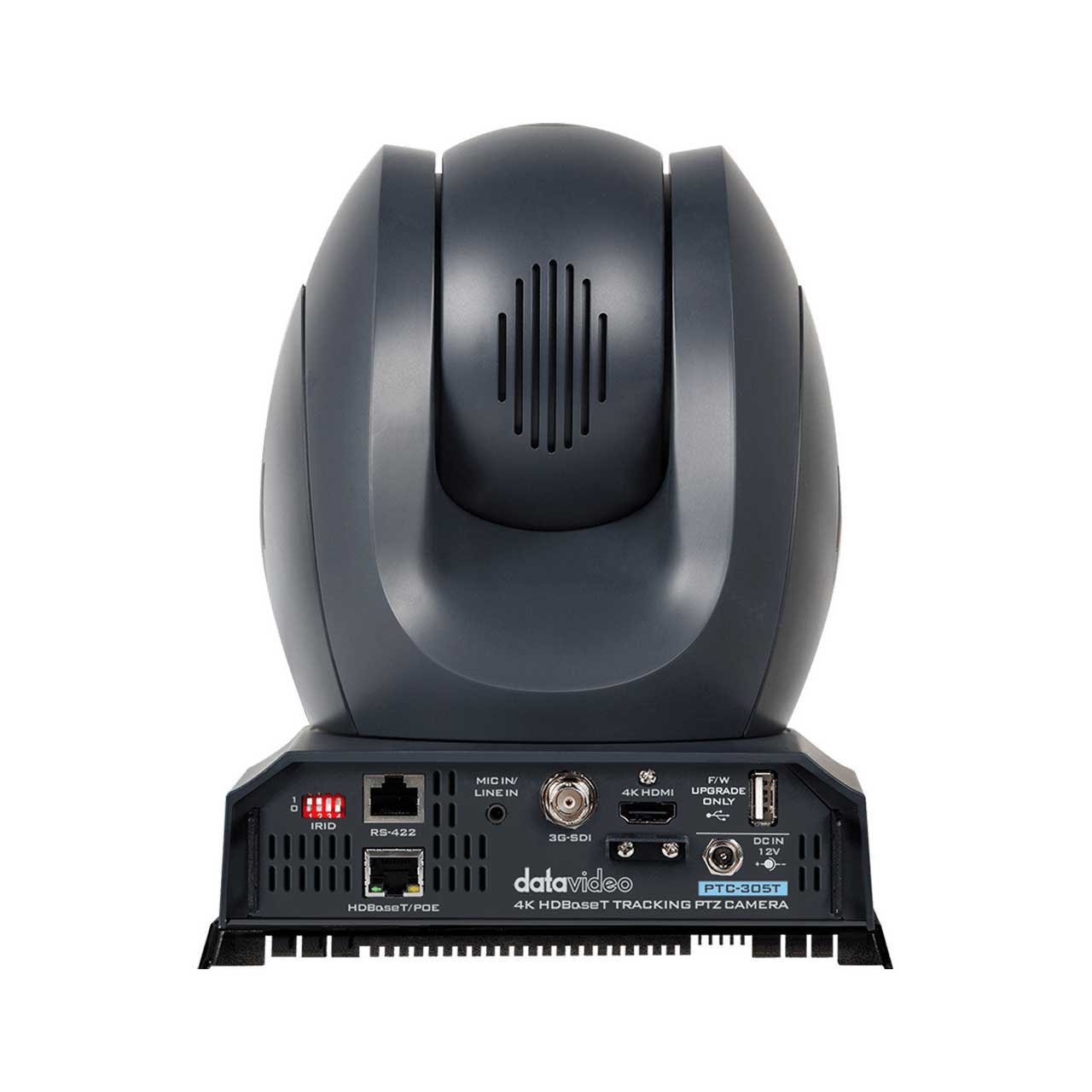

      • Video Output
        - HDMI 2.0 x1
        - 3G-SDI x1
        - HDBasetT x 1
        - 10/100/1000M RJ45 (PoE) x1
      • Audio Input: 3.5 mm x1 (mic in/line in) switch from Web UI
      • Tally LED: Yes
      • Control Protocol:
        - Pelco-D, Pelco-P,
        - VISCA, VISCA over IP,
        - DVIP
      • Remote Control Interface:
        - IR
        - Web UI
        - RS-422
        - DVIP
      • Video Compression Format: H.264/H.265/MJPEG
      • Audio Compression Format: AAC
      • Audio Bitrate: 96Kbps, 128Kbps
      • Streaming Protocols: TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
      • First Stream Supported Resolution:
        - 3840x2160
        - 1920x1080
        - 1280x720
        - 1024x576
        - 960x540
        - 640x480
        - 640x360
      • Second Stream Supported Resolution:
        - 720x480
        - 640x360
        - 480x270
        - 320x240
      • Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
      • Video Bitrate Mode: VBR, CBR
      • Encoding Frame Rate:
        - 50Hz: 1-50fps
        - 60Hz: 1-60fps
      • POE: IEEE 802.3at
      • F/W Update: Via Web UI or USB 2.0
      • IR Control: Yes
      • Camera Control Unit: RMC-180 series/RMC-300 series/PTZ View Assist APP
      • Tripod Mount: 1/4-20 UNC
      • Color: Dark Blue
      • Dimension (LxWxH): 6.8 x 8.6 x 7.4 Inches
      • Weight: 5.7 lbs
      • Operating Temp. Range: 32~104 °F
      • Power: DC 12V 21W

    • Item Includes:

      • 1x PTC-305T PTZ Camera
      • 1x RMC-1AT IR remote controller
      • 1x Ceiling mount bracket -B
      • 6x Ceiling mount bracket screw M3*4mm
      • 1x DC 12V Power Adapter
      • 1x Safety Cable

    • Warranty:

      • 1 Year Warranty
