Roland VR-120HD SDI and HDMI Direct Streaming AV Mixer with LAN / USB-C Streaming

ITEM #: ROL-VR-120HD MFG #: VR-120HD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$6,499.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    VR-120HD - Overview

    One Operator, Multiple Audiences
    With the Roland VR-120HD Direct Streaming AV Mixer, a single operator can confidently manage hybrid live and online productions without the need for external gear and the staff to run it. Offering extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse gives you the tools you need to take on any mid-level production. Advanced Roland AV features make difficult tasks simple with customizable workflows, deep automation functions, remote PTZ camera control, one-touch macro sequencing, streaming over LAN and USB, and much more.

    Create Custom Experiences for Live and Online Audiences
    The VR-120HD's flexible video capabilities let you handle the diverse presentation needs of events as they happen. Assign sources to eight cross-points on the fly, including live video inputs, still images, and video clips. Prioritize cameras and/or computer sources with scene recall.

    HDMI and SDI Inputs
    The VR-120HD supports both HDMI for common A/V devices and SDI for long cable runs and high-end cameras. Seamlessly combine six HDMI sources and six SDI sources in Full HD with a range of broadcast and cinematic frame rates and color spaces. All HDMI inputs feature built-in scalers with EDID and HDCP support, eliminating connection hassles with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

    Integrated Playback of Stills and Video Clips
    Enhance events with onboard support for graphics and video playback. Call up still images during transitions between presenters, display graphics for breaks, and use PNGs to create dynamic lower thirds. The integrated video player lets you trigger video clips directly from the SDXC card, with no need to connect an external playback device.

    • Features:

      • Portable hybrid event audio/video mixer with direct streaming encoders
      • Powerful live production automation with sequencing, macros, and scene memories
      • Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
      • Record streams directly to an SDXC card for archiving, editing, and distribution
      • Six 3G SDI inputs with frame rate converters
      • Six 1080p HDMI inputs with frame rate converters and real-time scalers
      • Support for cinema and broadcast frame rates
      • Eight-layer video effects engine
      • Eight total outputs: three SDI, three HDMI, USB-C streaming, and a dedicated direct streaming output
      • Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
      • 42-channel digital audio mixer with advanced effects and processing

    • Specifications:

      • Video
      • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
      • Number of Video Channels: 12 ch
      • Video Input Formats: HDMI IN 1-6, 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p, 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p, 1080/23.98p, 1080/24p, VGA, SVGA, XGA, WXGA, SXGA, FWXGA, SXGA+, UXGA, WUXGA
      • SDI IN 1-6: 720/59.94p, 720/50p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p, 1080/50i, 1080/50p, 1080/25p, 1080/23.98p, 1080/24p

        Video Output Formats
      • HDMI Out 1-3, SDI Out 1-3: 720/59.94p, 720/60p, 720/50p, 1080/59.94i, 1080/60i, 1080/50i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p, 1080/50p, 1080/25p, 1080/23.98p, 1080/24p
      • USB Stream: 1080/59.94p, 720/59.94p, 640x480/59.94p, 1080/60p, 720/60p, 640x480/60p, 1080/29.97p, 720/29.97p, 640x480/29.97p, 1080/30p, 720/30p, 640x480/30p, 1080/50p, 720/50p, 640x480/50p, 1080/25p, 720/25p?640x480/25p, 1080/23.98p, 720/23.98p, 640x480/23.98p, 1080/24p, 720/24p, 640x480/24p

        Stream & Record Formats
      • 720/59.94p, 720/60p, 720/29.97p, 720/30p, 720/50p, 720/25p, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p, 1080/50p, 1080/25p, 1080/23.98p, 1080/24p
      • File Format: MP4
      • Codec: H.264, target bitrate up to 20,000 kbps
      • AAC LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
      • File Format: WAV
      • Codec: Linear PCM, 16 bits, 48 kHz, stereo

        Video Player
      • File Format: MP4 (H.264, AAC), Average bit rate of 20,000 kbps or less, Max. 1080/60p

        Still Image
      • Bitmap File (.bmp) Max. 1920x1080 pixels, 24-bit color, uncompressed
      • PNG File (.png) Max. 1920x1080 pixels, 24-bit color
      • JPEG File (.jpg, .jpeg) Max. 1920x1080 pixels, 24-bit color

        Video Effects
      • Transition: Cut, Mix (Dissolve/Fam/Nam), WIPE, SPLIT
      • Composition: PinP x4, Keyer x4, DSK x2
      • Others: Multi-View, Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade, Test pattern output, Stream Delay

        Audio
      • Audio Processing: Sample rate: 24 bits, 48 kHz
      • Number of Audio Channels: 42 ch
      • Audio Formats: USB Stream (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch, Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch, HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch, HDMI Out: Linear PCM, 24 bits, 48 kHz, 8 ch, SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch, SDI Out: Linear PCM, 24 bits, 48 kHz, 8 ch

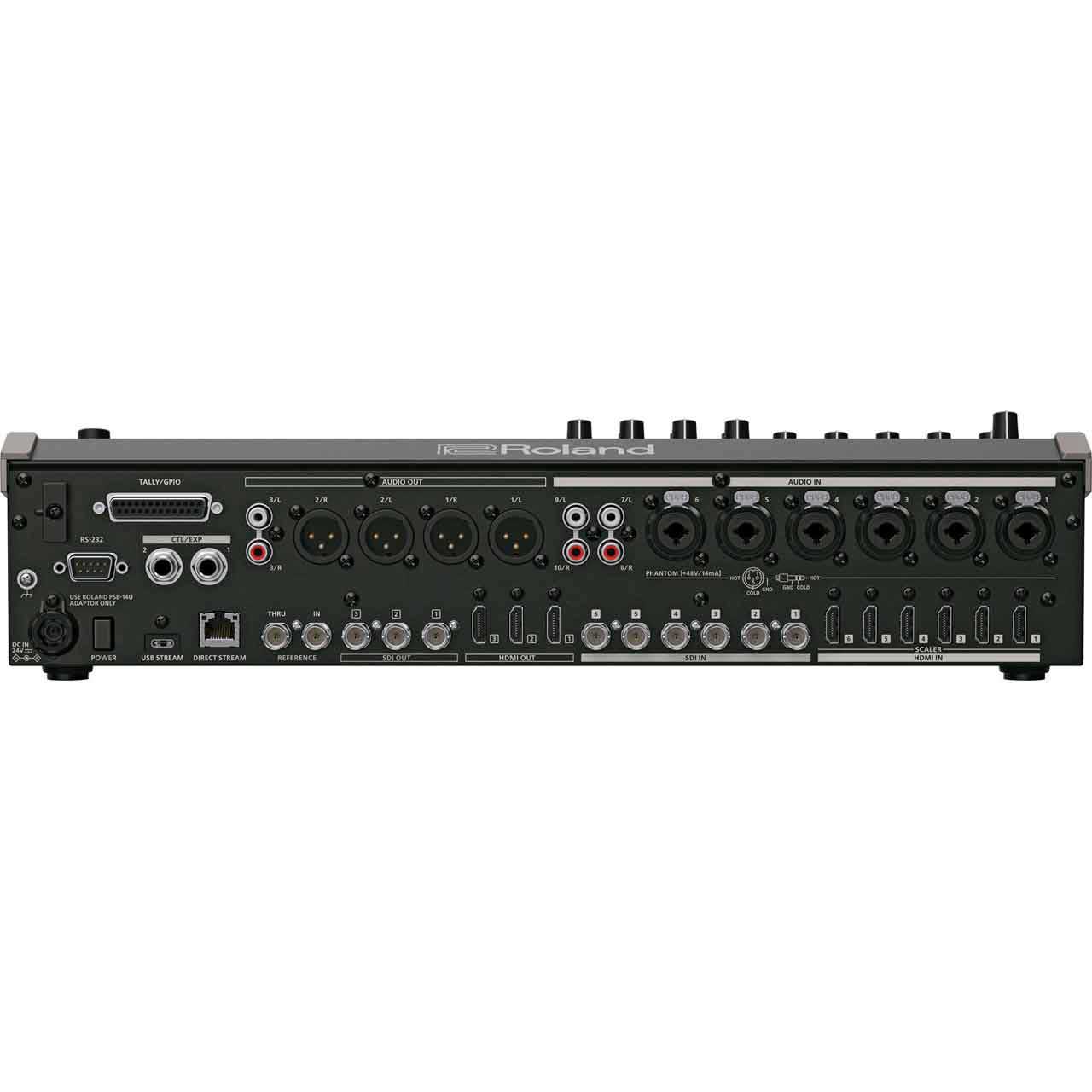

        Connectors
      • Video Input Connectors: HDMI IN 1-6: HDMI type A x6
      • SDI IN 1-6: BNC type x6. Conforms to SMPTE 424M, 292M
      • Video Output Connectors: HDMI Out 1-3: HDMI type A x3, SDI Out 1-3: BNC type x3, USB Stream: USB Type-C
      • Audio Input Connectors
      • Analog: Audio IN 1-6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V, 14 mA, Audio IN 7/L, 8/R: RCA phono type
      • Digital: USB Stream: USB Type-C
      • Bluetooth: HDMI IN 1-6: HDMI type A x6, SDI IN 1-6: BNC type x6
      • Analog Output: Audio 1-4: XLR type, Audio Out 5-6: RCA phono type, PHONES: Stereo 1/4-inch phone type, Stereo miniature phone type
      • Digital Audio Output: USB Stream: USB Type-C, HDMI Out 1-3: HDMI type A x3, SDI Out 1-3: BNC type x3
      • Other Connectors: USB HOST: USB A type, USB Stream: USB Type-C, Bluetooth: for remote control from iPad, CTL/EXP 1, 2:1/4-inch TRS phone type, TALLY/GPIO: DB-25 type, Tally/GPO: 16, GPI: 8, RS-232: DB-9 type, DIRECT Stream: RJ45, 1000BASE-TX, Reference IN/THRU: BNC type

        Others
      • Bluetooth: Ver 4.2. Profile Support: A2DP, GATT. Codec: SBC
      • Display: Graphic Type, 7", Wide VGA, backlite LCD
      • Power Supply: AC Adaptor
      • Current Draw: 3.0 A
      • Power Consumption: 69 W
      • Operation Temp: +32 to +104° F
      • Dimensions: 17-1/4 (W) x 12 (D) x 4-5/16 (H) / 19 (W) x 10 (D) x 4-1/16 (H) inches *When rack mount angles are fitted

    • Item Includes:

      • 1x Startup Guide
      • 1x Leaflet
      • 1x AC adaptor
      • 1x Power cord
      • 2x Rack-mount angle
      • 6x Rack-mount angle mounting screw

    • GTIN:

      0761294519288
