OCC DX006TSLA9YP Distribution Series 6 Fiber Singlemode Bend Tolerant Ultra-Fox Plenum Cable - Yellow Jacket - 1000 Foot

ITEM #: DX006TSLA9YP1000 MFG #: DX006TSLA9YP 1000'

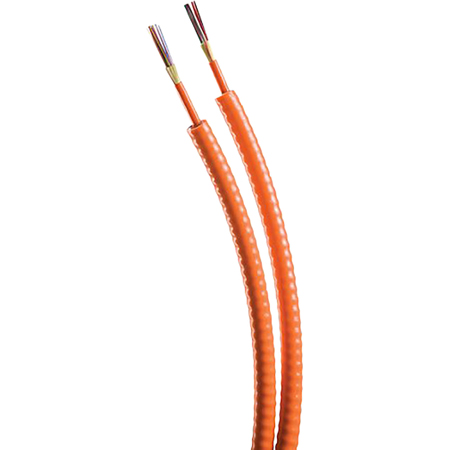

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$680.00

Our Price:

$495.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DX006TSLA9YP 1000' - Overview

The OCC DX006TSLA9YP DX-Series is a 6 fiber, Single-Mode, Yellow Jacketed, Plenum Indoor/Outdoor Aluminum Interlocking Armored Rated Fiber Cable.Used in trunking, LAN and distribution applications where small size, lightweight, and versatile installation capability are required for ducts, plenums, and air handling spaces. Ideal configuration for a single termination point requiring multiple fibers. Aluminum interlocking armor with Low-Smoke PVC overjacket. Interlocking armor can be easily removed leaving an intact inner cable. Greater flexibility than corrugated steel armored (CST) cables. Ideal for locations that require conduit for cable protection. Indoor/Outdoor plenum cables eliminate the need for costly cable transitions in different installation environments.

  • Features:

    • UL Listed in accordance with NEC section 770.179(a) for use in ducts, plenums and air-handling spaces Low-smoke PVC inner and outer jackets 2 to 24 fibers Cable materials are Indoor/Outdoor UL-Listed OFCP and also UV, water and fungus resistant High performance tight-buffered coating on each fiber for environmental and mechanical protection 900 æm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber. Helically stranded core for flexibility, survival in difficult installations, and mechanical protection for the fibers Can be installed outside and in plenum or riser pathways inside, eliminating the need to transition cable types between environments

  • Specifications:

    • Fiber Count: 6
    • Core/Cladding Diameter: 9/125µm
    • Wavelength: 1310/1550
    • Gigabit Ethernet Distance: 5 km
    • 10-Gigabit Ethernet Distance: 10 km
    • Max. Cabled Attenuation: 0.5dB/0.5km
    • Diameter: 0.50"
    • Weight (1000ft reel): 99lbs
    • Tensile Load Installation: 300lbs
    • Tensile Load Operational: 90lbs
    • Minimum Bend Radius Installation: 9.9"
    • Minimum Bend Radius Long-Term: 7.4"
    • Operating Temp: -40°F - 158°F (-40°C - +70°C)
    • Storage Temp: -40°F - 158°F (-40°C - +70°C)


DX006TSLA9YP 1000' - Required Accessories
