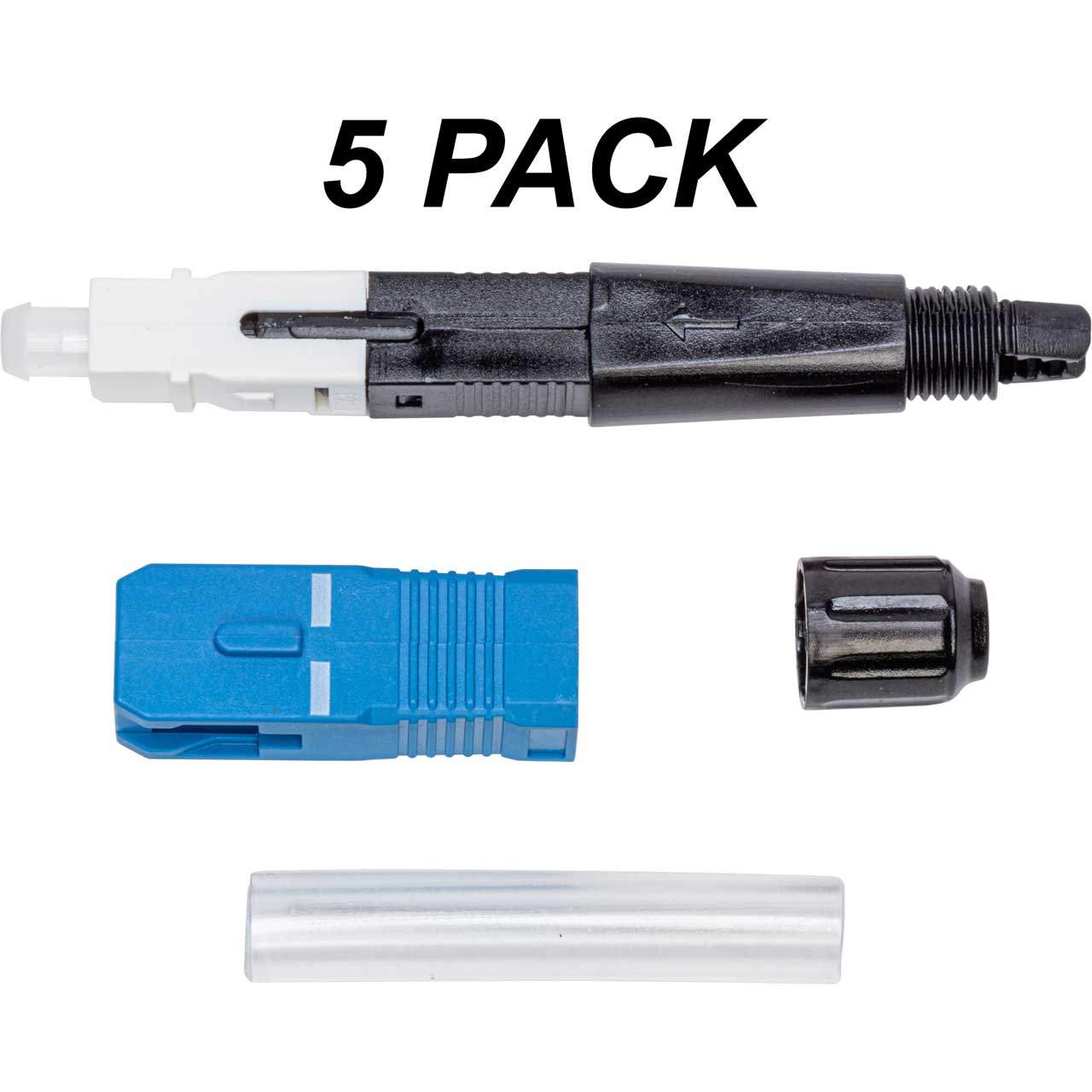

Easy Splicer SC/UPC Single Mode Splice On Connector - 5 Pack

ITEM #: EASY-SCU101002-5 MFG #: SCU101002-5

Primary Image
EasySplicer
Free Shipping with $49 Minimum Order

List Price:

$28.00

Our Price:

$23.35

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    SCU101002-5 - Overview

    True APC Performance
    Easy Splicer SC/UPC Single Mode Splice On Connector is field installable with no adhesives, crimping or polishing.

    Applications:
    RF-overlay FTTP networks
    Cable TV backbone networks
    Outside plant
    FTTD
    MDU FTTP Cabling
    Central office connector replacement
    Data center installation

    • Features:

      • Field installable
      • No adhesives, crimping or polishing
      • True APC performance
      • MM compliant to TIA/EIA568C.3


    • Specifications:

      • Connector Type: SC
      • Fiber Diameter: 900um
      • Polish Type: UPC
      • Insertion Loss: SM: 0.15 dB (average), 0.3 dB (max), MM: 0.10 dB (average), 0.3 dB (max)
      • Return Loss: SM: ≤ -65 dB, APC, ≤ -55 dB, UPC, MM: ≤ -30 dB
      • Operating Temperature: -40°C to +75°C


    • Item Includes:

      • 1x Easy Splicer SC/UPC Single Mode Splice On Connector - 5 Pack
