Belden FT4BLB900FS01 FX Fusion Splice-On Connector 6-pack OS2/AB2


free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    FTBLB900FS-6 - Overview

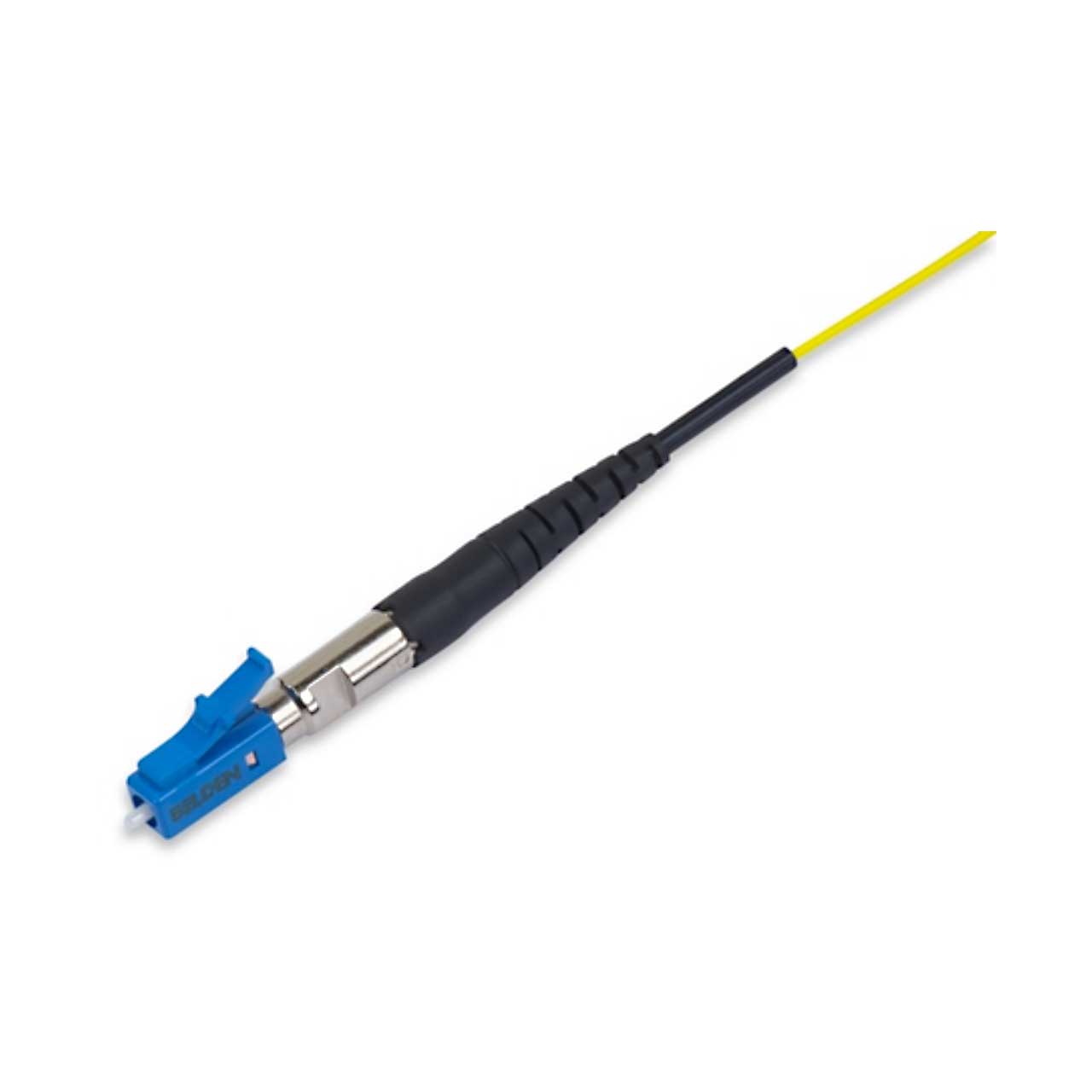

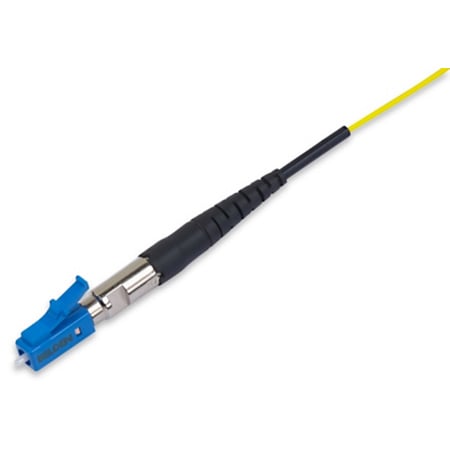

    The FTBLB900FS01
    is an FX fusion OS2 A-B2 LC-APCSX900 Fusion splice-on connector 6 pack in green. This unit can be used for Field-termination of fiber optic cables within Patch Panels, Distribution Frames, Workstation Outlets for FTTD (Fiber to the Desk), drops for FTTH (Fiber to the home) and MDU (Multiple Dwelling Units).

    • Features:

      • FX Fusion Splice-On Connector
      • A2/B2
      • LC/APC Simplex
      • 900µm
      • Tight Buffer
      • Green Housing
    • Specifications:

      • Maximum Insertion Loss: 0.3 dB
      • Minimum Reflectance: -65 dB
      • Minimum Reflectance @ 1550nm: -65 dB
      • Termination Style: Splice-On
      • Interconnection Compatibility: FOCIS compliant with latest revision of TIA-604-10 (LC)
      • [email protected]: 500 Insertions
      • Cable Retention, Straight Pull: 5.1 kg
      • Cable retention, 90 degree pull: 0.2 kg
