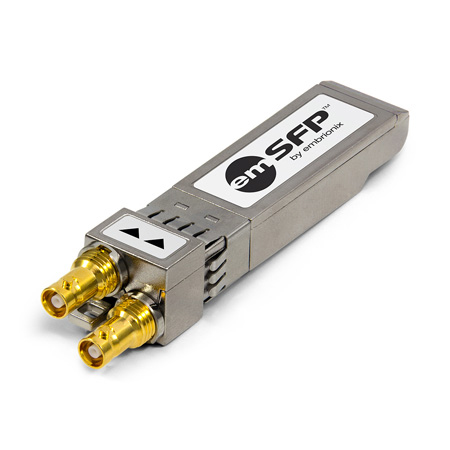

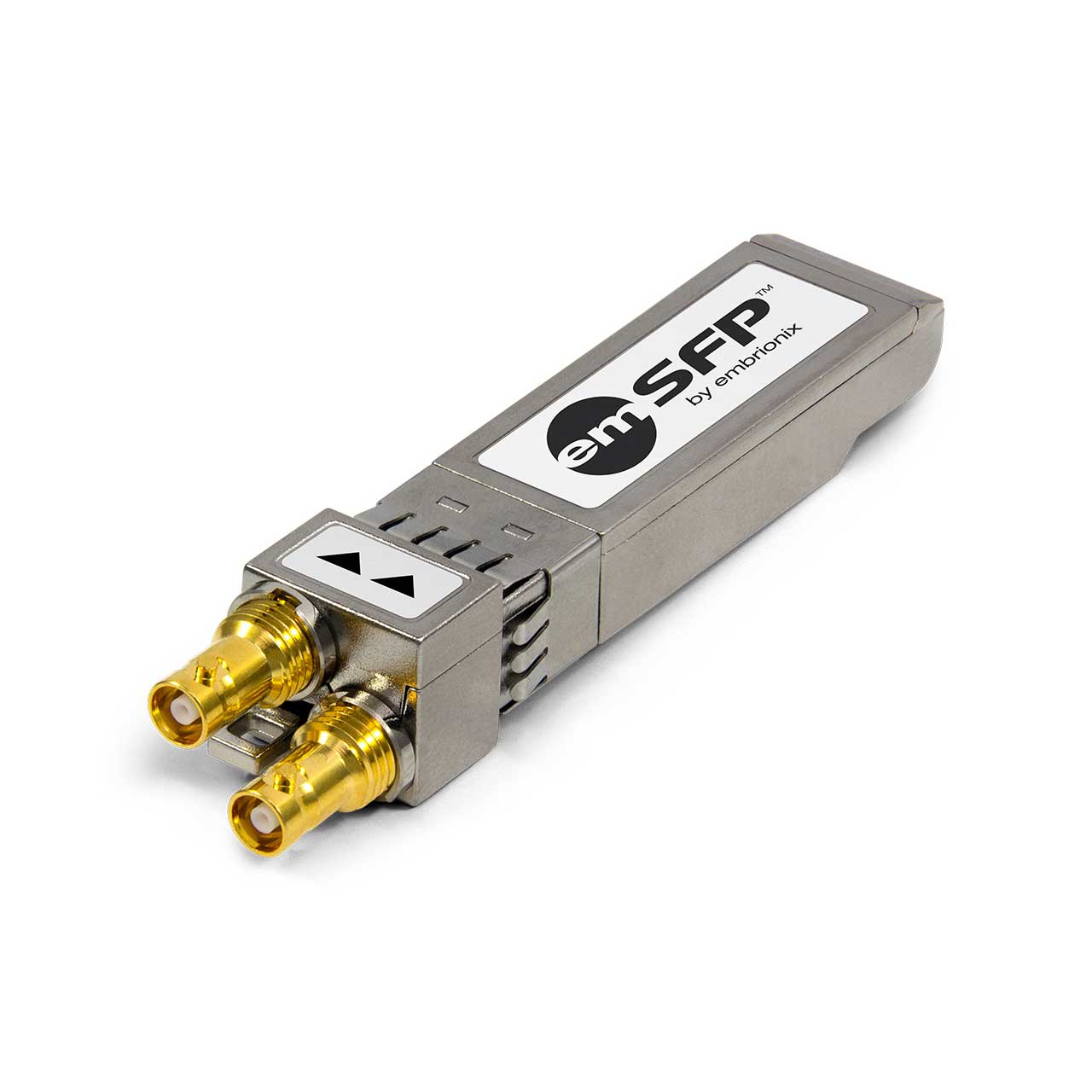

Riedel MN-Z-SFP-2R-SDI-12G HD-BNC Dual Receiver - 12G/6G/3G/HD/SD-SDI UHD Video SFP Medium Reach - Reclocked - Non-MSA

ITEM #: EB12HD2R-MNR MFG #: EB12HD2R-MNR

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    EB12HD2R-MNR - Overview

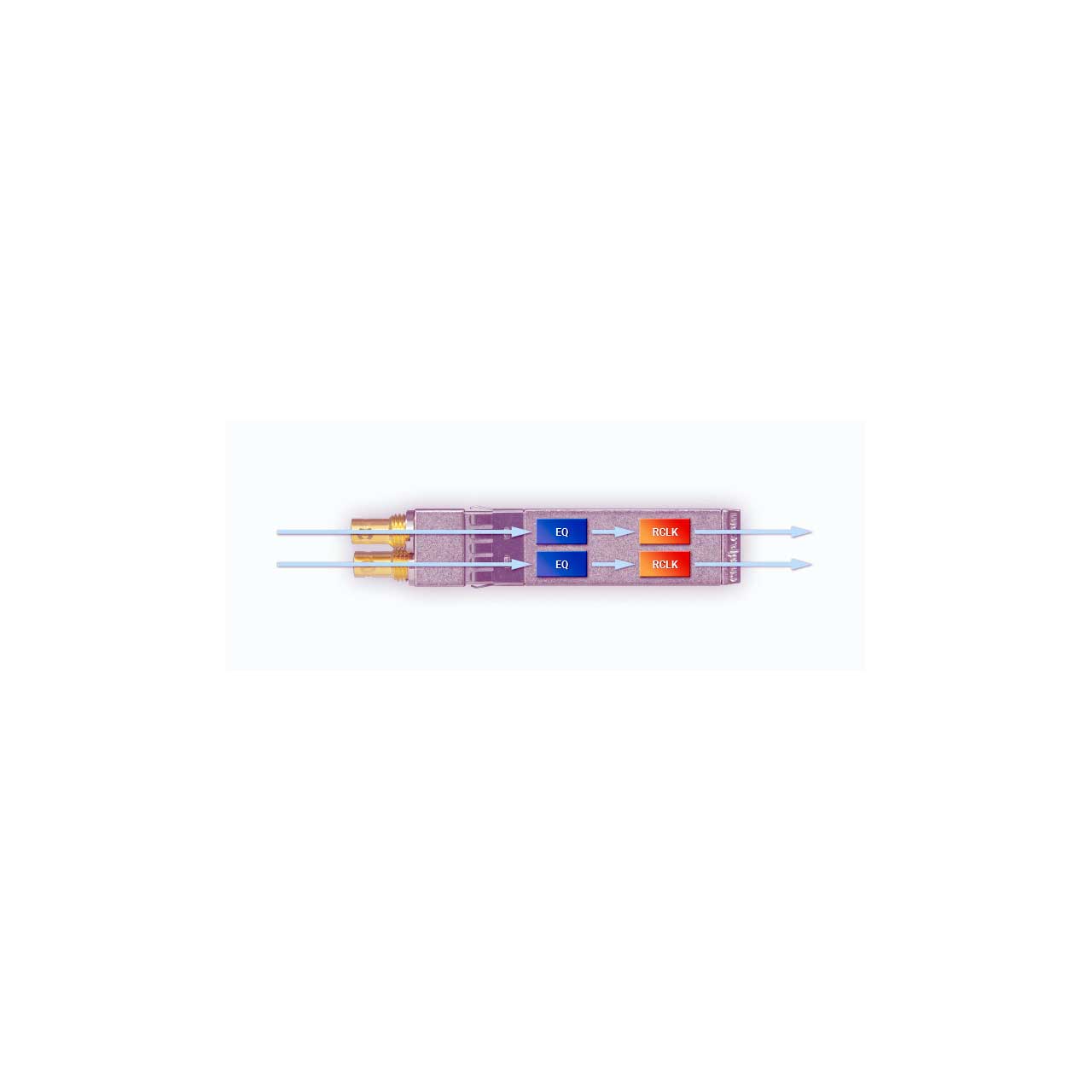

    The Embrionix The video SFP (emSFP) EB12HD2R-MNR is a medium reach coaxial video SFP (emSFP) with built-in reclocker. This SFP (emSFP) is specifically designed to support pathological test patterns and receive two SDI signals (12G/6G/3G/HD/SD-SDI) over 75ohms coaxial cables via HD-BNC connectors. The equalizer inside isSMPTE compliant video SFP (emSFP) features the DC restoration to compensate for the DC content of the SMPTE pathological test patterns. Inside the SFP, one reclocker per channel suppress the accumulated jitter coming from the source. Each reclocker procures optimal jitter performance.

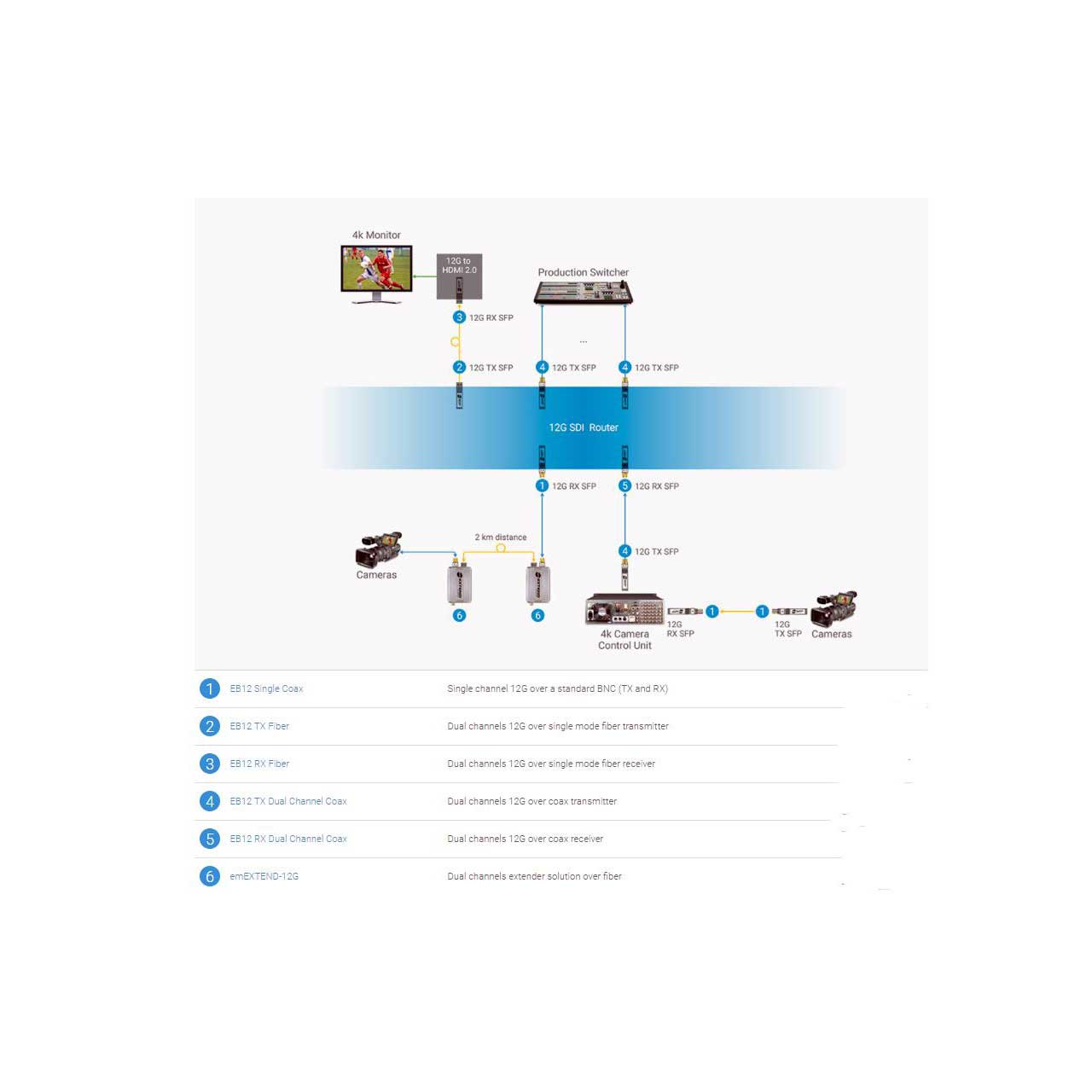

    The most feature-rich HD-BNC coaxial video SFP EB30HD and EB12HD family leverages a wide variety of Embrionix's coaxial video SFP (emSFP) modules with HD-BNC connectors. The solution is designed around an inputs/outputs interchangeable SFP form factor. Installed inside an SFP cage hosted by other equipment manufacturers, the modules can be interchanged to provide a different mix of input and output connectivity. The supported format are : 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (ST2082, ST2081, ST424, ST292, ST259,ST297)

    • Features:

      • High-density and future-proof architecture
      • Pathological signal support
      • Superior jitter management and signal regeneration
      • Monitoring and diagnostics at the edge of your product via serial communication
      • Superior link budget performance compares to the ST-297 specification
      • Highest optical performance (fiber stub) and lowest defect rate in the market
      • Multiple I/O configurations for loopback, distribution amplifier built-in
      • Patented latch prevents undesired disconnects
      • Embrionix Video SFP are SMPTE compliant (ST424, ST292, ST259, ST296)

    • Specifications:

      • ST-2082/ST-2081/ST-424/ST-292/ST-259 compliant
      • Supports video pathological patterns at all specified rates
      • HD-BNC connector type
      • Reclocker built-in
      • Control via serial interface includes:
      • Voltage & temperature monitoring
      • Module information
      • Hot pluggable and Hot removable with cable/fiber plug in
      • Operating temperatures range from 0C to 70C, contact us for Industrial range
      • Single supply +3.3V
      • 58.5mm x 13.4mm x 8.6mm SFP/SFP+ package
