Pure Resonance Audio EDSS-SD5RMA120BT Classroom System with SD5 & 120Watt Mixer Amplifier with Bluetooth


free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    EDSS-SD5RMA120BT - Overview

    Classroom Speaker System With Bluetooth

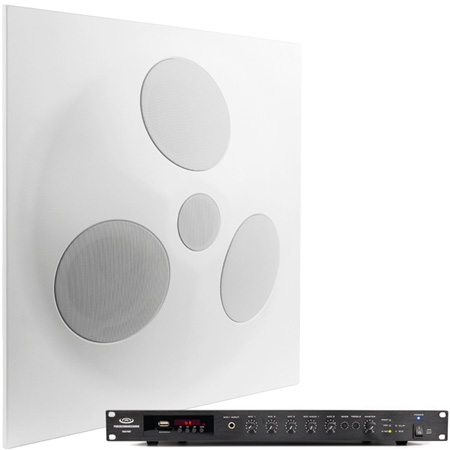

    Pure Resonance Audio EDSS-SD5RMA120BT classroom sound system combines 360° of crystal-clear audio coverage from the SD5 in-ceiling speaker with the power and versatility of the RMA120BT 120W Bluetooth mixer amplifier in a lightweight, space-saving design. Create a better learning experience by pairing this audio system with your existing audio visual equipment like the audio output from your projector, a wired or wireless microphone, or your Bluetooth device. You can also connect additional audio sources like an MP3 player or play audio from your USB thumb drive or SD card.

    This classroom speaker system includes one of our 2'x2' SD5 SuperDispersion® ceiling speaker arrays with 360° of crystal-clear audio coverage featuring three 5.25" drivers and a 3" tweeter in a thin and lightweight design that is simple to install. Also included is our RMA120BT 120 watt Bluetooth rackmount mixer amplifier featuring a 4-16Ω/70V distributed audio speaker output, 2 AUX inputs, 4 MIC inputs, USB input, SD card slot, and emergency channel input. The RMA mixer amplifier also comes with an IR remote to control the unit from a distance.

    This classroom sound system package is ideal for all educational spaces including classrooms, study halls, labs, music rooms and other applications where high-performance audio quality and the integration of multiple media or AV media formats are needed.

    Are your students having a hard time hearing you? No problem! Just add a teacher's wired or wireless microphone to provide crystal clear speech intelligibility while saving your voice. This classroom speaker system is ideal for K-12 learning environments including classrooms, study halls, science labs, music rooms, or any room where high-quality audio is desired.

    • Features:

      • Pure Resonance Audio SD5 SuperDispersion® 70V Omnidirectional Drop Tile Ceiling Speaker Arrays
      • Omnidirectional coverage pattern provides 360° x 180° of consistent frequency response
      • Powerful proprietary tweeter design with a lower crossover point improves vocal performance
      • Wave guided housing directs sound where it needs to go
      • Ported enclosure is acoustically optimized and tuned with bass-reflex for turbulence reduction
      • Low profile metal back-box comes with built-in safety suspension points
      • Thumbwheel selectable 8-ohm nominal and 70-volt inputs are compatible with any commercial or stereo amplifier
      • Takes just minutes to install, simply remove one ceiling tile and drop the SD5 into any standard drop-ceiling grid
      • Safety carabiner kit includes braided steel cables and infinitely adjustable SpeedClamp™ fasteners for secure and fast easy-install

        Pure Resonance Audio RMA120BT 5-Channel 120W Commercial Rack Mount Mixer Amplifier with Bluetooth 4 Ohm/70V:
      • 1 RU chassis, high-efficiency, and lightweight design
      • MP3 media player supports USB, SD, Bluetooth and FM tuner
      • Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
      • Bass and treble tone controls
      • Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
      • Advanced high-performance power amplifier circuit
      • 4-16Ω/70V speaker output
      • 120W rated output power
      • Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
      • Remote control
    • Specifications:

      • SD5 Ceiling Speaker
      • Power Handling: 63 Watts RMS
      • Frequency Response: 46Hz - 20kHz
      • Sensitivity: 90dB @ 2.83V/1M
      • Impedance: 8 ohms with Built-in 70V transformer
      • Drivers: 3 5.25" drivers; 3 3" tweeter
      • 70V Transformer Taps: 7.5W, 15W, 30W, 60W @ 70V; 8 ohm Bypass
      • Dispersion: 360° by 180°

        RMA120BT Mixer Amplifier
      • Rated Power Output: 120W
      • Speaker Outputs: 4-16Ω/70V
      • Frequency Response: 80Hz~16KHz +/- 3db
      • Protection: Overheat/Short-circuit
    • Item Includes:

      • 1x Pure Resonance Audio SD5 SuperDispersion® Drop Tile Ceiling Speaker Array
      • 1x Safety Cable Kit
      • 1x Pure Resonance Audio RMA120BT 120W Commercial Bluetooth Mixer Amplifier
      • 1x IR Remote Control
      • 1x Power Cord
      • 1x 50ft Free 16/2 Gauge Speaker Wire
    • Warranty:

      • Speakers: 2 Years
      • Amplifiers & Electronics: 1 Year
      • Microphones: 1 Year
      • Accessories: 1 Year
