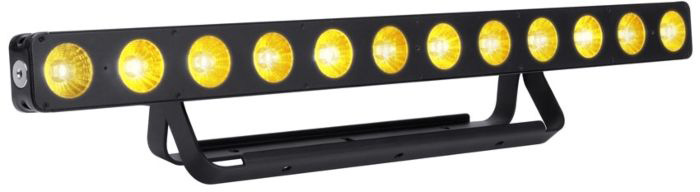

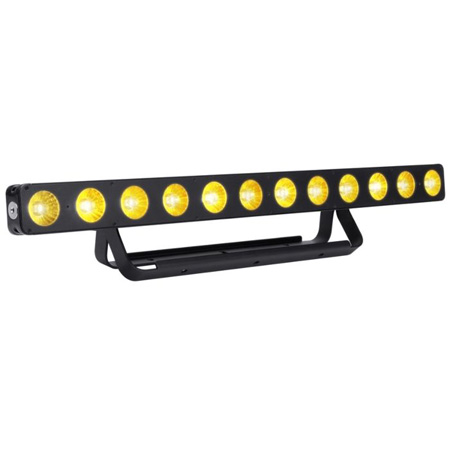

Elation Professional DTW392 DTW BAR 1000 12 x 10W Multi-Chip Cool White/Warm White/Amber LEDs

DTW392 - Overview

• Features:

  • 12 x 10W Multi-Chip Cool White/Warm White/Amber LEDs
  • 20° Beam 40° Field Angles
  • Selectable Dim-to-Warm Control
  • Cool White, Warm White, Amber Color Mixing
  • Full Pixel + Color Temperature Control (1,600K - 6,500K)
  • Variable 16-bit Dimming Curve Modes
  • Selectable Color and Program Macros
  • DMX, RDM, KlingNet, and Art-Net Support
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM


• Specifications:

  • Source
  • (12) 10W Multi-Chip CW / WW / Amber LEDs
  • 100,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

    Photometric Data
  • 2,900+ Total Output Lumens
  • 17,878 LUX 1,661 FC @3.3' (1m) (Full ON)
  • 9,467 LUX 879 FC @3.3' (1m) (Warm White)
  • 9,177 LUX 853 FC @3.3' (1m) (Cool White)

    Effects
  • Selectable Dim-to-Warm Control
  • Cool White, Warm White, Amber Color Mixing
  • Full Pixel + Color Temperature Control (1,600K - 6,500K)
  • Variable 16-bit Dimming Curve Modes
  • Selectable Color and Program Macros

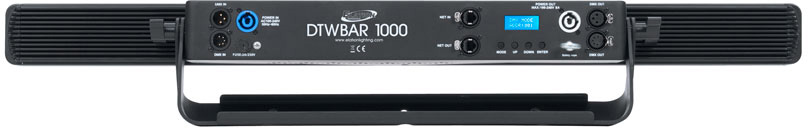

    Control / Connections
  • (14) DMX Channel Modes (72 total channels)
  • 4 Button Control Panel and LCD Menu Display
  • RDM (Remote Device Management)
  • ArtNet + KlingNET Protocol Support
  • (2) etherCON RJ45 In/Out
  • 3pin and 5pin DMX In/Out
  • powerCON Power In/Out

    Size / Weight
  • Length: 35.4" (900mm)

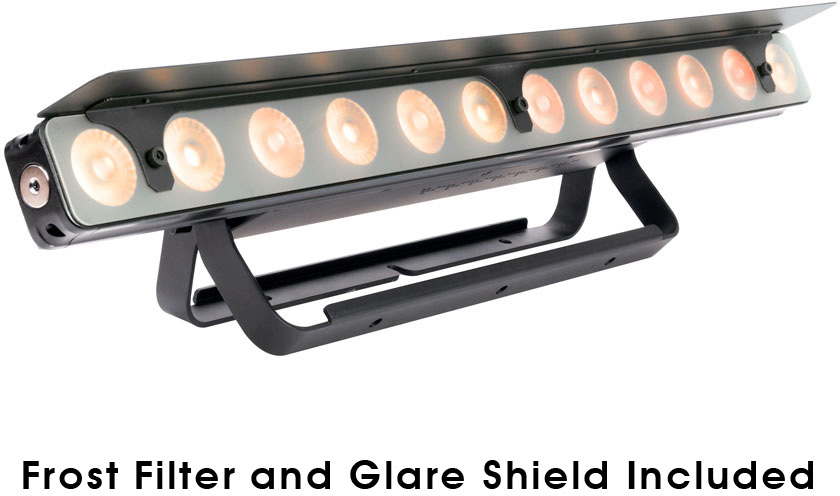

  • Width: 8.1" (206.4mm) *with included glare shield
  • Vertical Height: 6.1" (155mm)
  • Weight: 14.0 lbs. (6.4 kg)

    Electrical / Thermal
  • AC 110-240V - 50/60Hz
  • 120W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)

    Approvals / Ratings
  • CE | cETLus | IP20


• Item Includes:

  • 1x Elation Professional DTW BAR 1000
  • 1x Power Cable


• Warranty:

  • 2 year


• GTIN:

  0837874019650
