    NXT100 - Overview

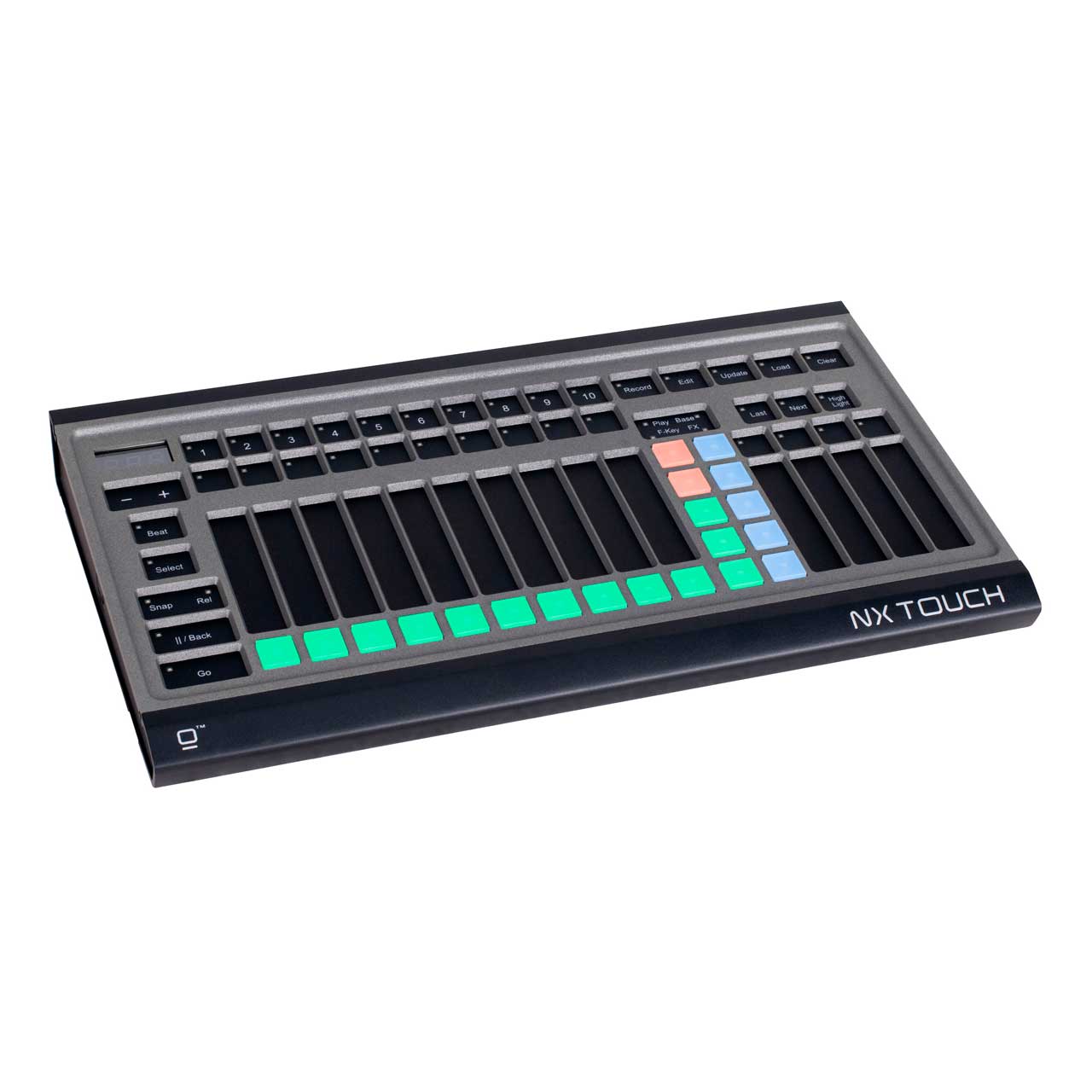

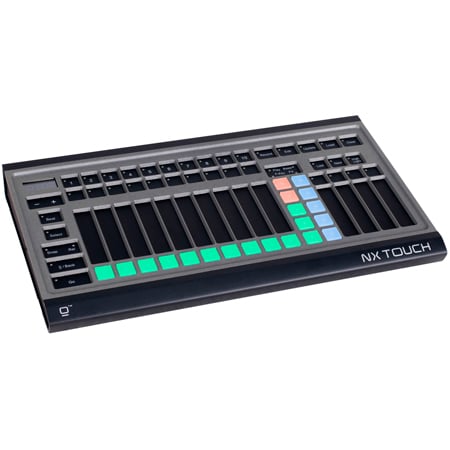

    The Obsidian NX Touch is a powerful yet simple control surface for the ONYX control platform, offering one of the most affordable professional lighting control solutions on the market. The Elation Professional NX Touch is a powerful yet simple control surface for the ONYX control platform, offering one of the most affordable professional lighting control solutions on the market. Fully compatible with all NX consoles and ONYX software, Obsidian NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console. Obsidian NX Touch has 14 touch faders which allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the NX Touch control panel. Obsidianl NX Touch includes one DMX port for direct control of any compatible DMX device.

    • Features:

      • Bank Navigation Up/Down with numerical display
      • Multifunction Mode Select button
      • 4 x Parameter Select buttons
      • 4 x Parameter Adjust touch faders
      • 10 x Function velocity pads

    • Specifications:

      • Physical Specs
      • Length: 394 mm (15.5 in.)
      • Width: 218.5 mm (8.6 in.)
      • Height: 46.5 mm (1.8 in.)
      • Weight: 1.5 kg (3.3 lbs.)

        Control/User Interface:
      • Main Go section: Snap, Release, Pause and Go buttons
      • Command Buttons: Record, Edit, Update, Load, Clear
      • Fixture Selection buttons: Last, Next, Highlight
      • Playback: 10 x Playback touch faders with 3 buttons
      • System integration: Unlocks 1 x DMX universe when connected to M-PC

        Construction
      • Housing: Aluminum, steel, plastic

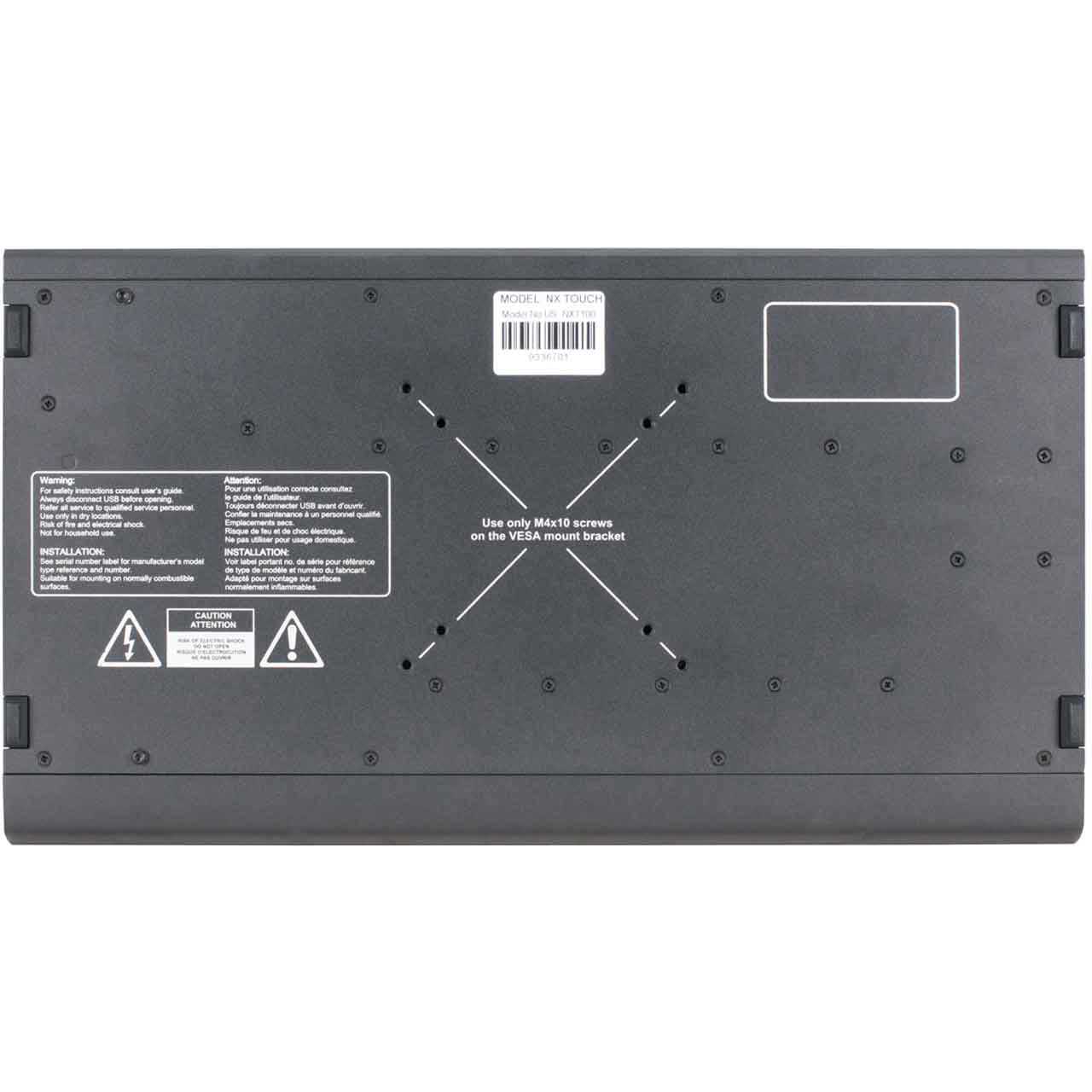

      • Mounting: VESA 75x75, 100x100
      • Security: K-Lock locking slot
      • IP Rating: IP20

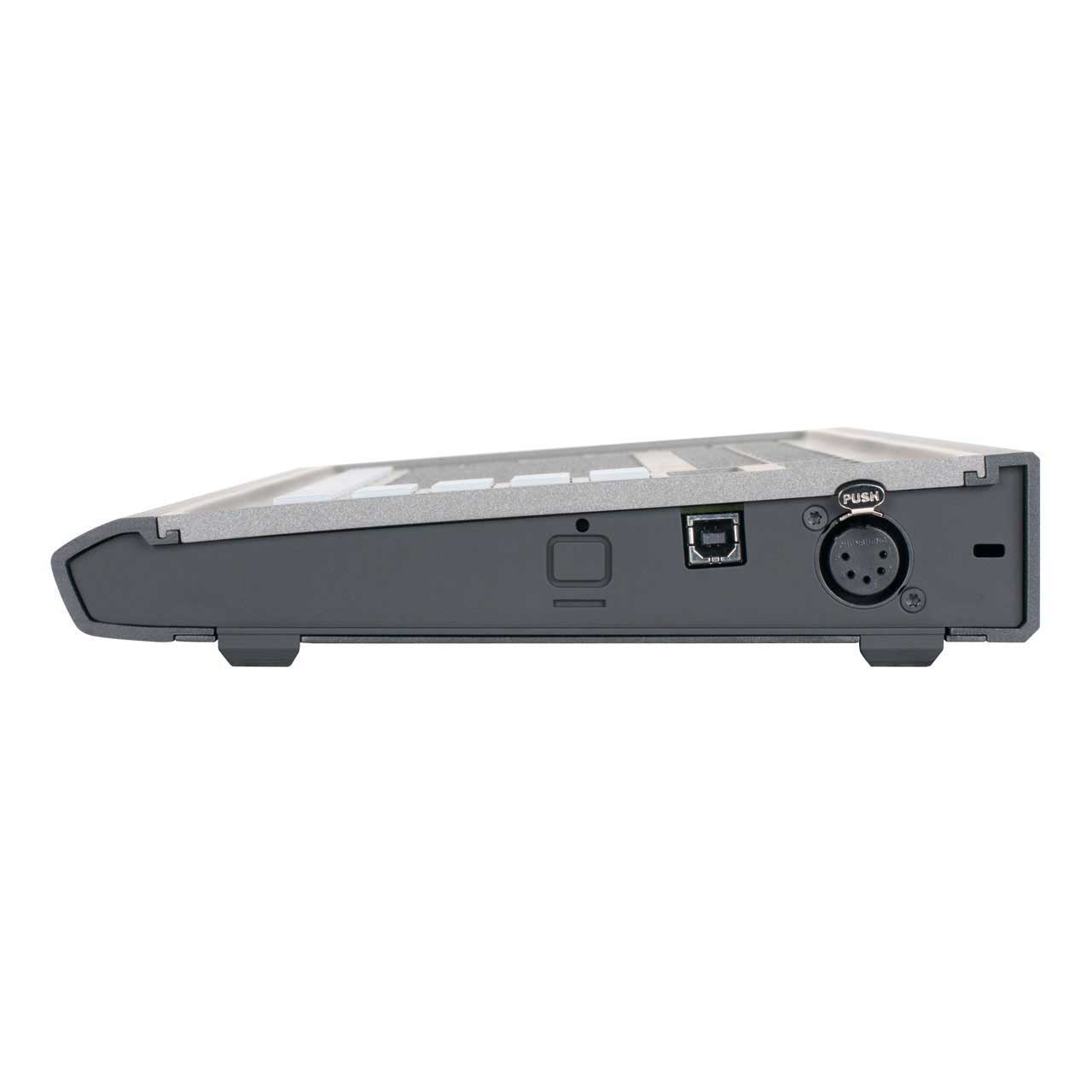

        Connections
      • DMX data link: 1 x 5-pin locking XLR
      • Windows PC: USB 2.0

        Electrical:
      • Power source: 5 VDC over USB
      • Maximum current: 500 mA

    • GTIN:

      0810008260418
