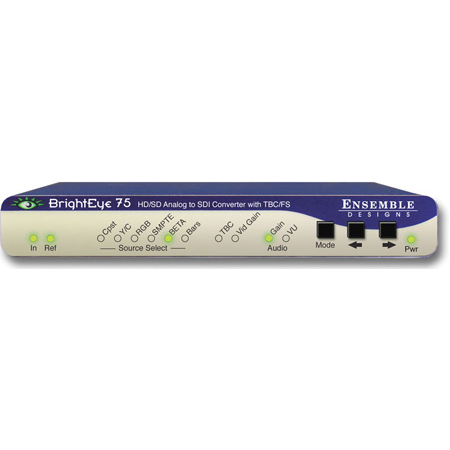

Ensemble Designs BrightEye 75 HD/SD A to D Converter & Analog Embedder
  • Ensemble Designs BrightEye 75 HD/SD A to D Converter & Analog Embedder
  • Ensemble Designs BrightEye 75 HD/SD A to D Converter & Analog Embedder
Questions? Ask a Markertek Expert:
800-522-2025 Email

Ensemble Designs BrightEye 75 HD/SD A to D Converter & Analog Embedder

Manufacturer: Ensemble Designs

Item #: ENDE-BE75   •   MFG #: BE75


List Price:$1,450.00
Our Price:$1,377.50

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.

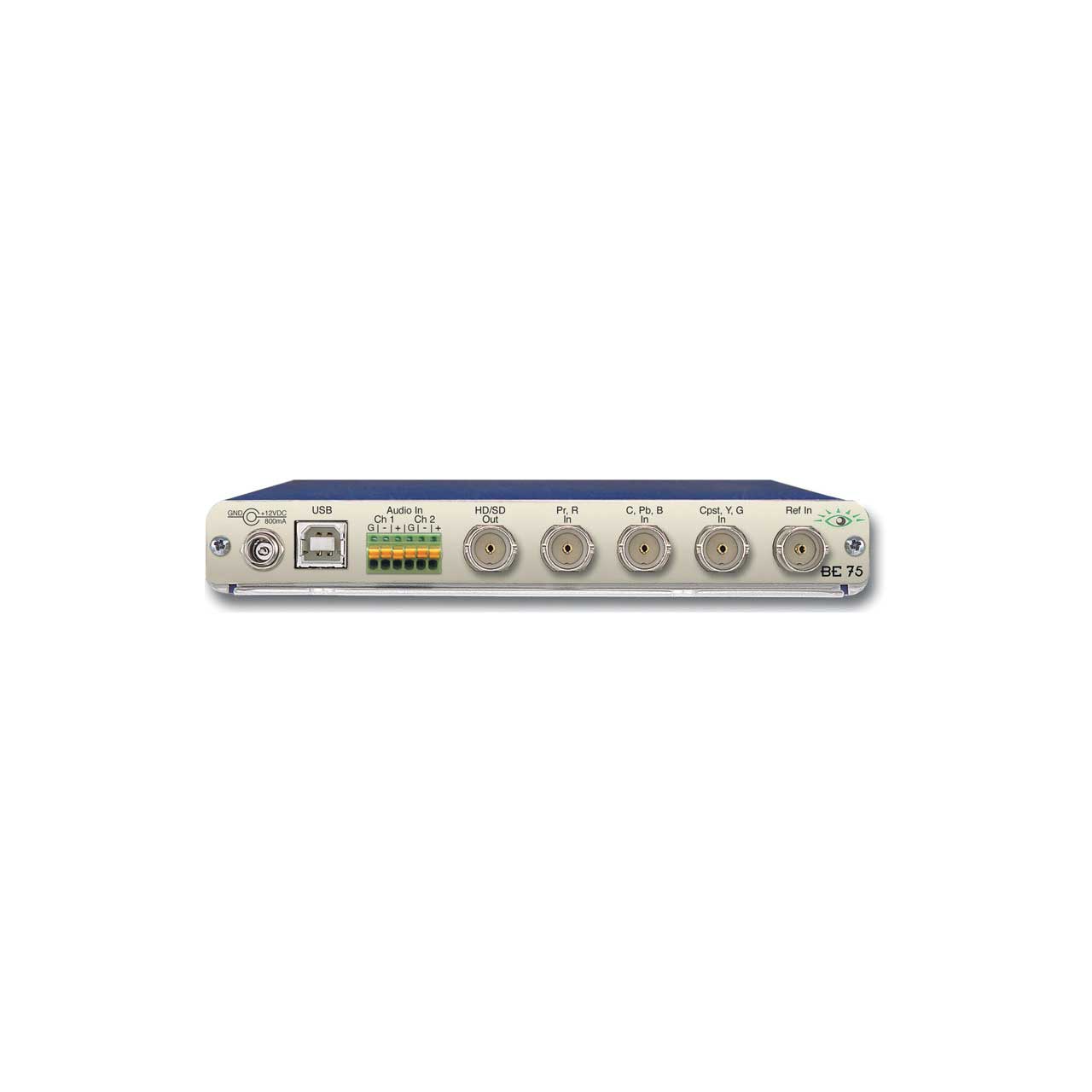

BrightEye 75 is an analog video to digital converter and audio embedder. Standard definition component or composite, or high definition analog component video is accepted on the input BNCs. Two channels of analog audio are input on a plugable Phoenix connector.

This unit is perfect for use with HD cameras or other devices with analog I/O. The digital output will carry the full, un-compressed input, synchronous to a genlock reference.You can turn a hand-held HD camera into a digital source. A three camera, live studio suddenly becomes affordable.

The built-in TBC / Frame Synchronizer allows you to feed asynchronous or noisy signals to the BrightEye 75. The input is digitized to 12 bits of resolution and time base corrected by a noise tolerant tracking circuit. An external reference input allows genlock to a house reference.

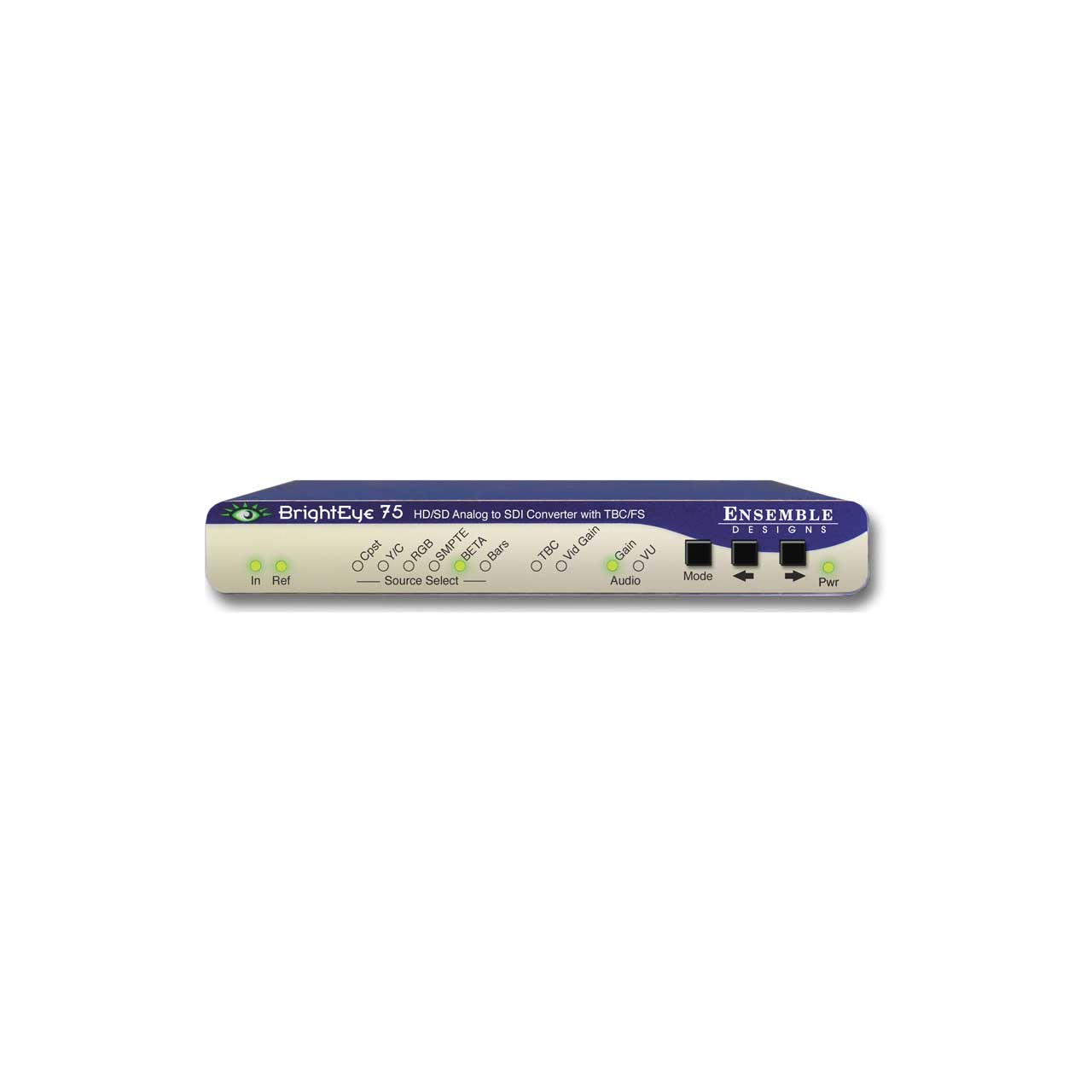

Input selection, gain control, and TBC enable is provided through the front panel interface. Video levels can be adjusted through BrightEye Mac or PC software.

The video and audio signals are embedded and presented on a BNC. The output follows the SD or HD input standard.

Power supply is included.

  • Features

    • Use with analog HD cameras and set top boxes
    • Turn analog camera into digital HD source
    • HD/SD analog inputs
    • Analog audio inputs
    • Serial digital HD or SD embedded output
    • TBC and frame syncHD
  • Specifications

    • Analog Video Input
    • Number One
    • Type HD or SD: Y, Pr, Pb (SMPTE or Beta levels)
    • HD or SD: Analog Component RGB
    • (sync on green)
    • Analog Composite PAL or NTSC
    • Analog S-Video PAL or NTSC
    • Resolution Digitized at 12 bits
    • Impedance 75 U
    • Return Loss >40 dB
    • Input DC +/-1 volt DC
    • Input Hum <100 mV

      Analog Audio Inputs
    • Number Two
    • Type Balanced
    • Impedance >15K U
    • Max Input Level 24 dBu
    • CMRR >60 dB, 20 Hz to 10 KHz
    • Quantization 24 bits, 128 x oversampled
    • Sample Rate 48 KHz
    • Reference Level -10 dBu or +4 dBu
    • Frequency Response ±0.1 dB, 20 Hz to 20 KHz
    • Crosstalk <106 dB
    • Dynamic Range >106 dB

      Serial Digital Output
    • Number One
    • Type Follows input standard
    • HD Serial Digital 1.485 Gb/s
    • SMPTE 274M, 292M or 296M or
    • SD Serial Digital 270 Mb/s SMPTE 259M
    • Impedance 75 U
    • Return Loss >15 dB
    • Max Cable Length 100 meters for HD
    • 300 meters for SD
    • (Belden 1694A)

      Analog Video to SDI Performance
    • Bit Resolution 14-bit input quantization
    • 4 x oversampling
    • Decoding Fully adaptive comb filter
    • K Factors > 1%
    • Signal to Noise > 64 dB weighted
    • Freq Response ± 0.1 dB, 0 to 5.5 MHz in SD
    • ± 0.1 dB, 0 to 12 MHz;
    • ± 0.5 dB, 12 to 30 MHz in HD

      HD Standards Supported
    • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz

      Embedded Output (In Serial Output)
    • Group Assign One of four groups
    • Channels Two
    • Bit Depth 24 Bit

      Reference Input
    • Number One
    • Type 1 V P-P Composite Video, PAL or NTSC or
    • Tri-Level Sync
    • Impedance 75 U
    • Return Loss >40 dB

      General Specifications
    • Size 5.63" W x 0.8" H x 5.98" D
    • (143 mm x 21 mm x 152 mm)
    • including connectors and flange
    • Weight 15 oz
    • Power 12 volts, 6 watts
    • (100-230 VAC modular power supply)
    • Temperature Range 0 to 40° C ambient (all specs met)
    • Relative Humidity 0 to 95%, non-condensing
    • Altitude 0 to 10,000 ft.
