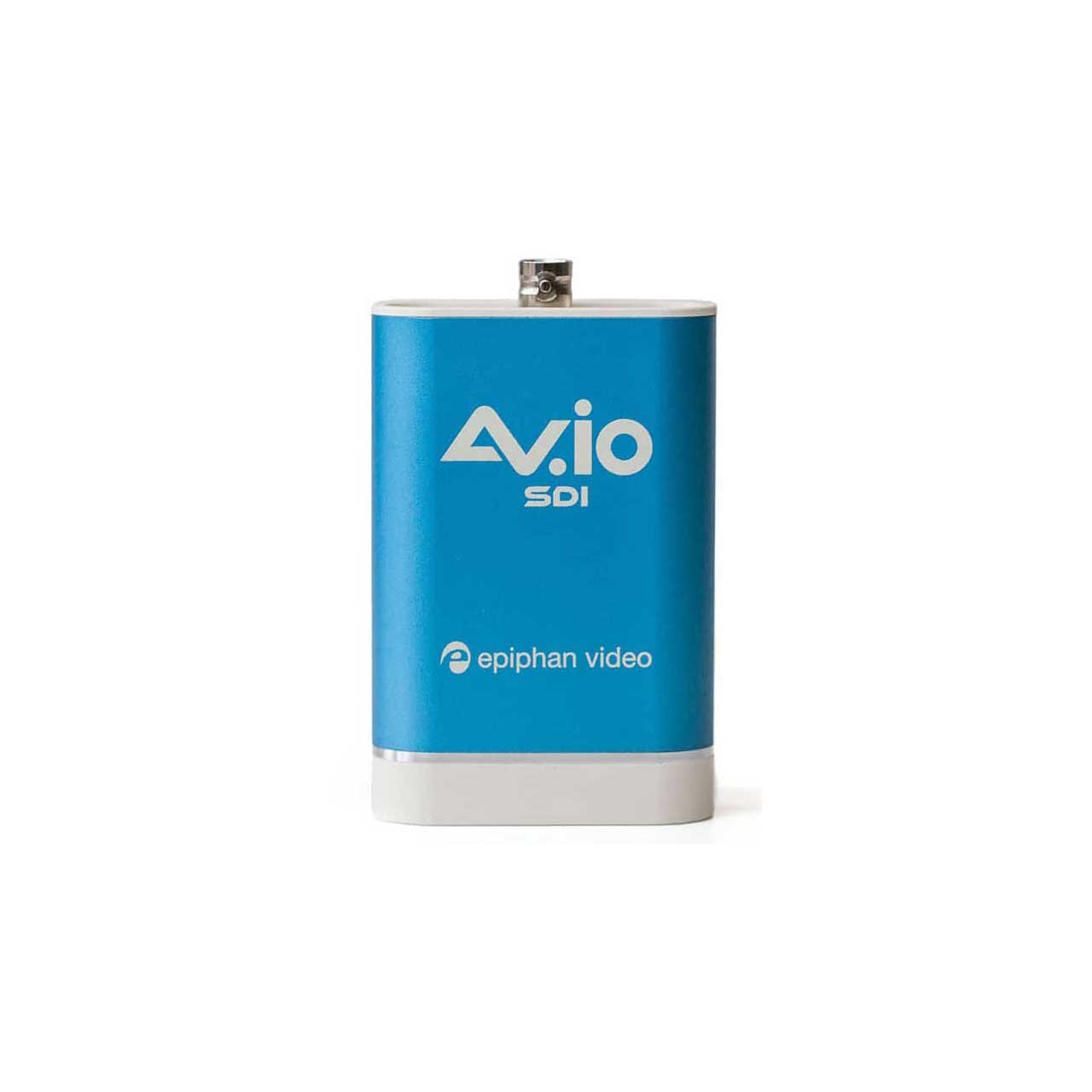

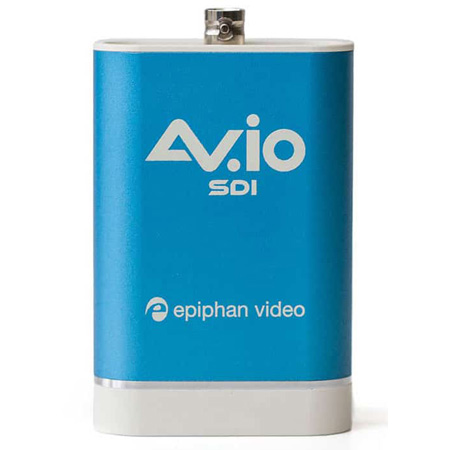

Epiphan AV.io SDI Portable SDI to USB 3.0 Video Grabber/Capture Device

ITEM #: EPIP-AVIOSDI MFG #: AV.IO SDI

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    AV.IO SDI - Overview

    The simplest way to share video!

    The Epiphan AV.io SDI is the easiest SDI capture card you'll ever use! It doesn't need any special drivers installed on your computer, just plug it in to your USB port and start using it right away. It's as simple as using a webcam! Windows, Mac and Linux operating systems automatically detect AV.io SDI, ensuring compatibility with your favorite software, including Skype, Wirecast and QuickTime.

    Easy video capture from SDI sources

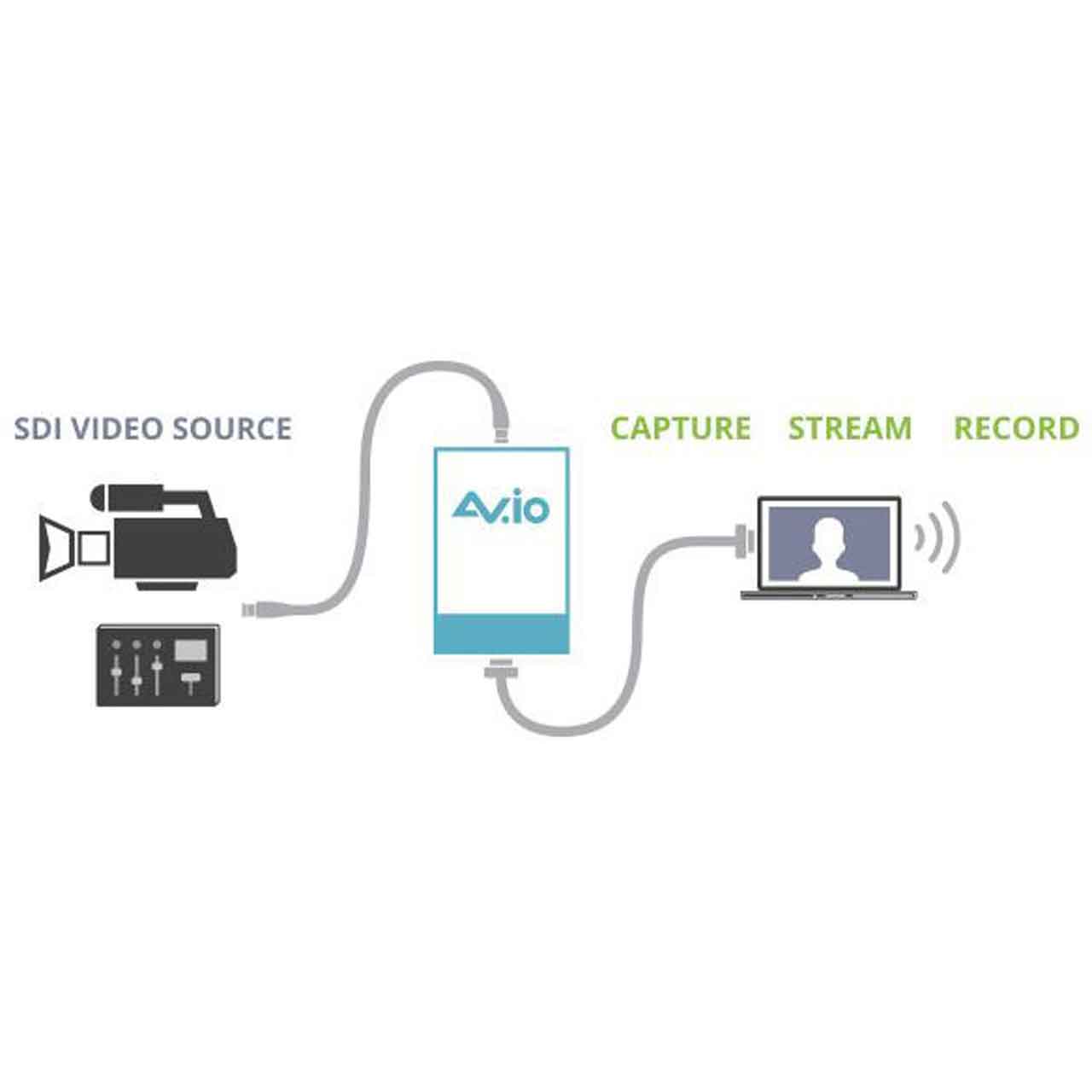

    The plug-and-play Epiphan AV.io SD™ capture card is as rugged as it is easy to use. Just connect your 3G-SDI, HD-SDI, or SD-SDI video source to your AV.io SDI, and your AV.io SDI to your computer via USB. Windows, Mac, and Linux operating systems will auto-detect the AV.io SDI capture card - no driver installation required.

    Full HD video capture at 60 fps
    AV.io SDI supports resolutions up to 1080p and transfers uncompressed video to your computer at 60 fps with near-zero latency, letting you capture even the tiniest details with perfect clarity.

    Crystal-clear audio
    AV.io SDI captures audio at high quality with automatic audio resampling. For surround sound or multi-lingual audio, you can select which audio pair to capture.

    No driver installation required
    AV.io SDI doesn't need any special drivers installed on your computer. Simply connect the device to your USB port and you're good to go. It's as simple as using a webcam, with auto-detection on Windows, Mac, and Linux systems.

    Broad application support
    AV.io SDI will work seamlessly with your favorite third-party applications like Zoom, Wirecast, OBS, VLC media player, and QuickTime.

    Built to last
    With its rugged metal exterior, the AV.io SDI capture card will stand up to repeated, long-term use. The same enclosure has even been used in Space aboard the ISS!

    • Features:

      • No software installation required
      • Simple to connect and share
      • Full HD video capture at 60 fps
      • Audio capture over SDI
      • Automatic scaling and audio resampling
      • Third-party application support

    • Specifications:

      • Connectors

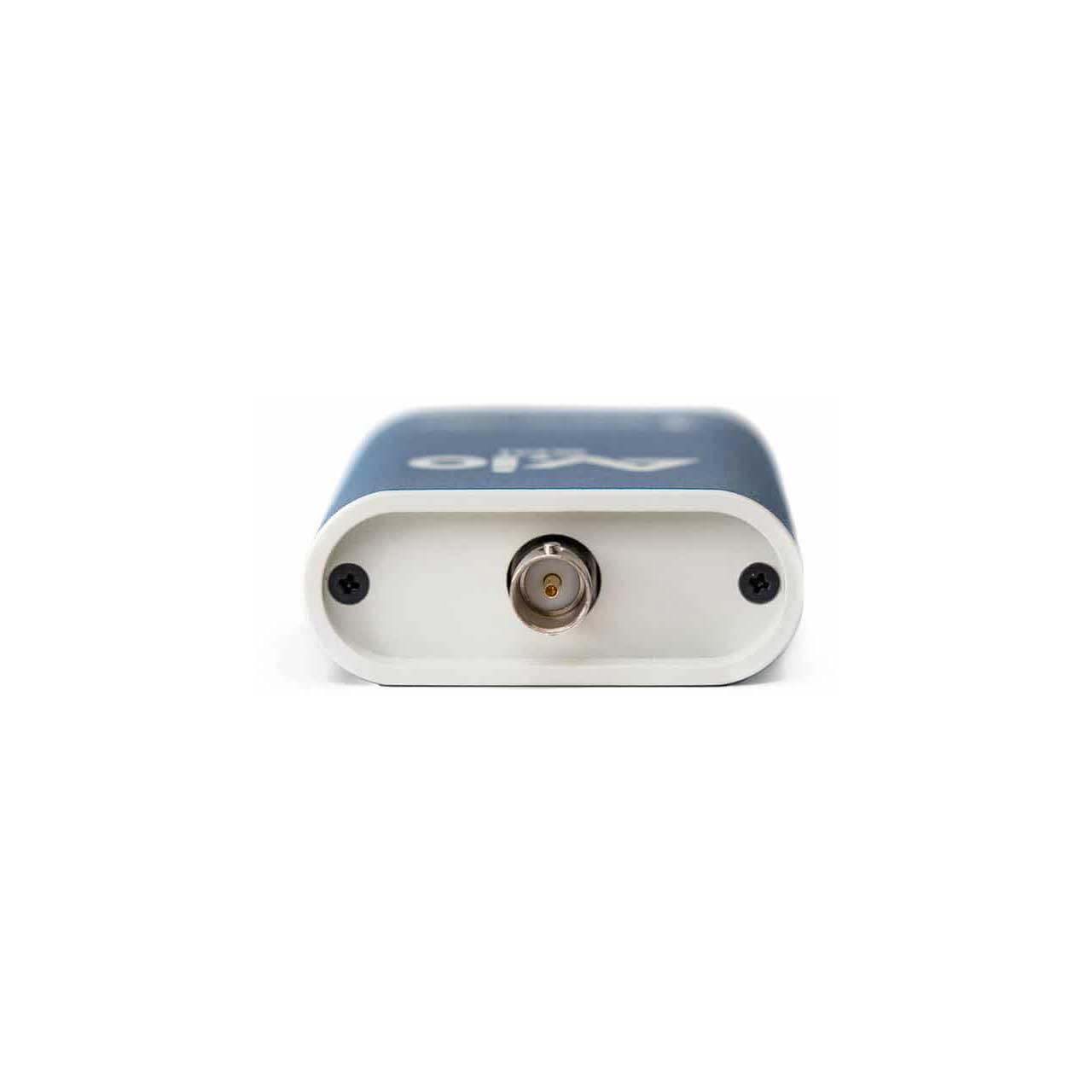

      • BNC style SDI connector

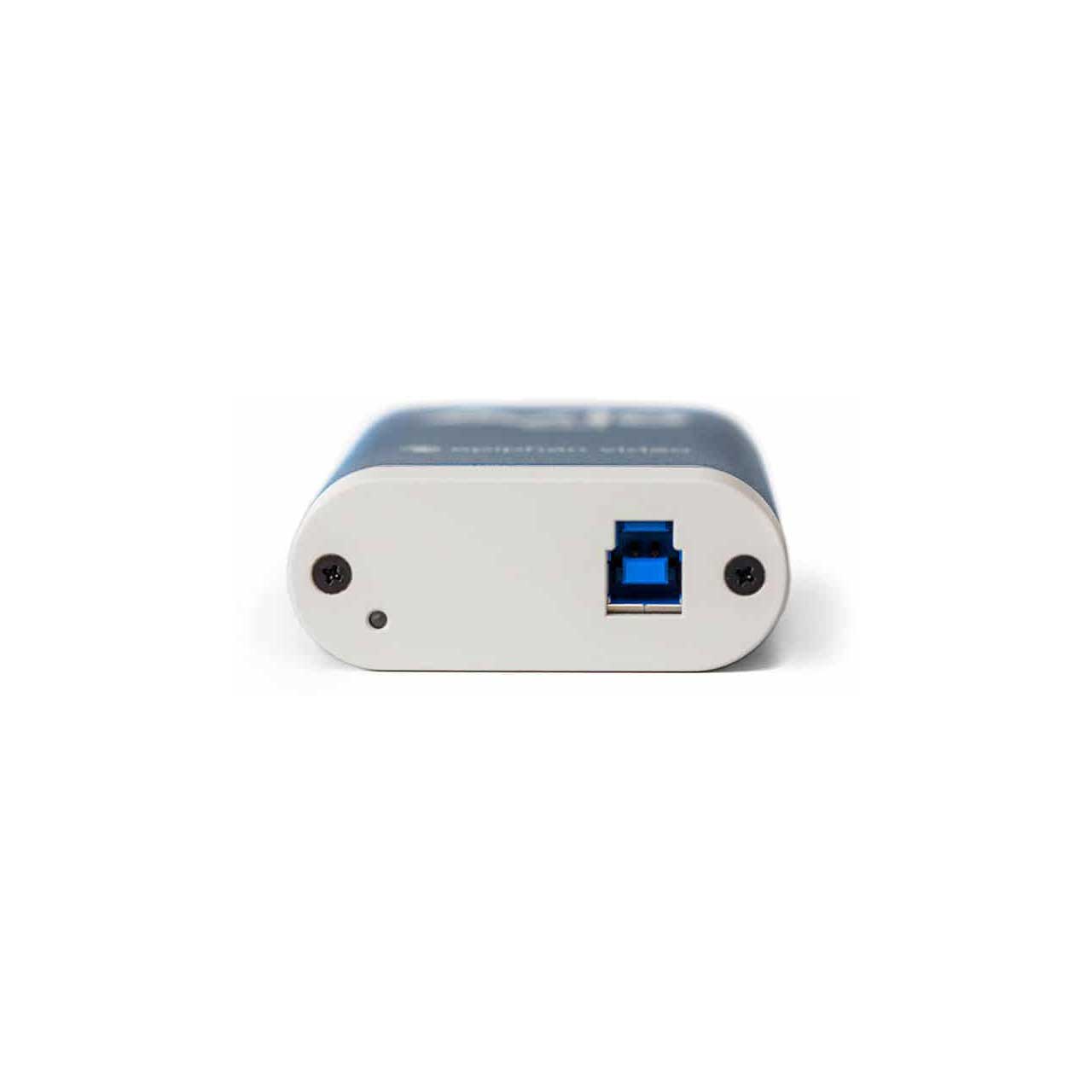

      • USB standard B type

        Input
      • SDI (3G-SDI, HD-SDI, SD-SDI) with BNC-style connector

        Audio (SDI) Input
      • 16-bit and 24-bit PCM encoded audio at 48 kHz

        Audio (UAC) output
      • 16-bit 48 kHz stereo audio

        Capture latency
      • Near-zero latency, although certain third-party applications may contribute delay

        HDCP Compliance
      • High-bandwidth digital content protection (HDCP) protected content cannot be captured

      • LED
      • LED indicates the status of AV.io SDI

        OS support (32-bit and 64- bit)
      • Windows 7, Windows 8.1, Windows 10
      • Mac OS X 10.10 and up
      • Linux distribution with kernel 3.5.0 or higher

        USB support
      • USB 3.0 and 2.0

        Input Resolution
      • Standard and non-standard resolution from 640x360 up to 1920x1080

        Supported output resolutions (at 15, 23.97, 24, 25, 29.97, 30, 50, 59.94 or 60 fps)
      • 640x360/640x480/960x540/1280x720/1920x1080

    • GTIN:

      0748252115690
