    AV.IO SDI+ - Overview

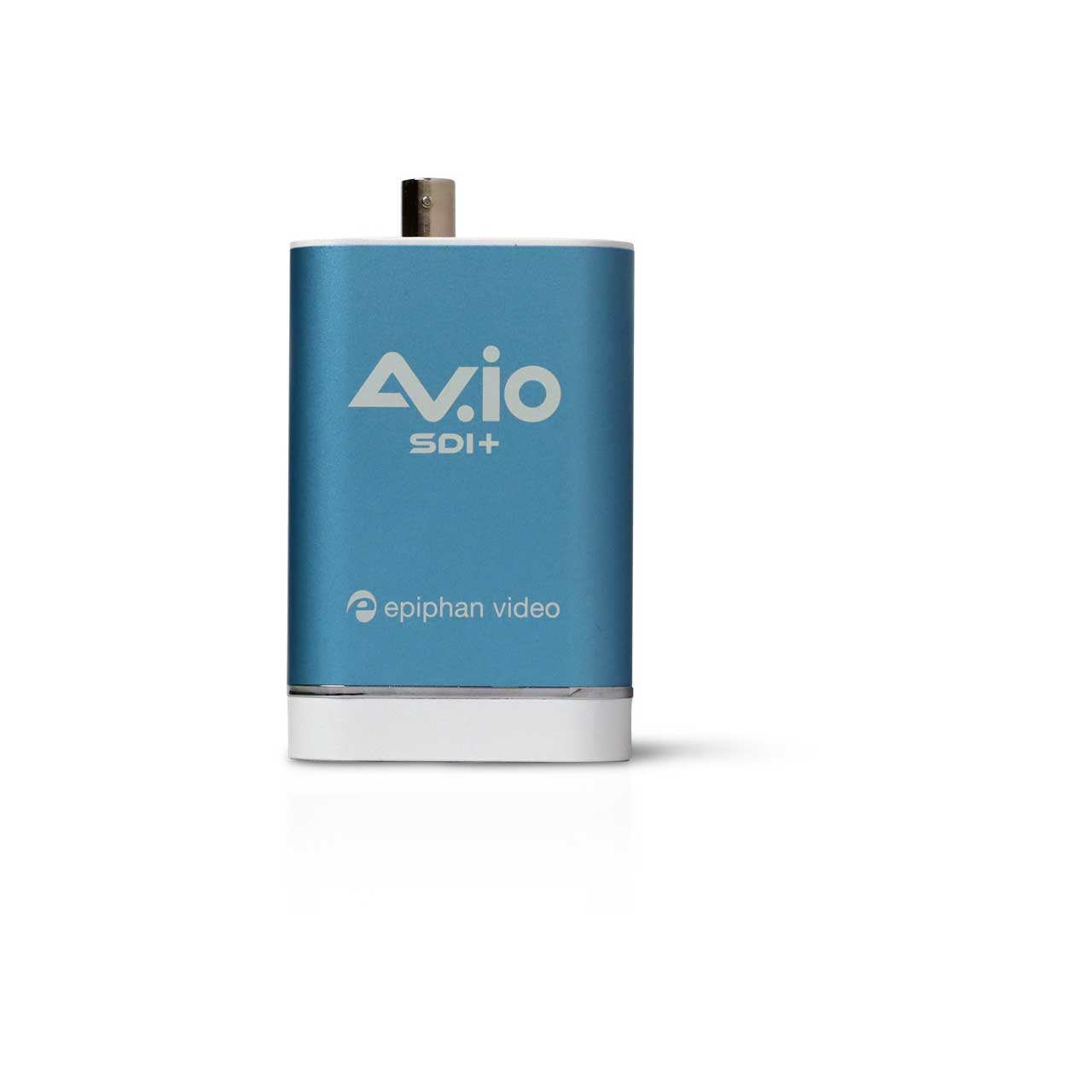

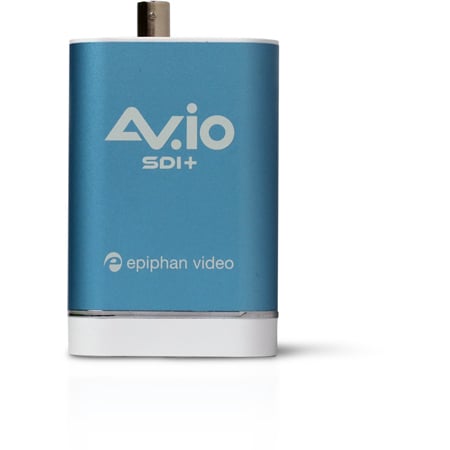

    Epiphan ESP1814 AV.io SDI+™ brings USB plug-and-play convenience to your SDI sources. You can easily capture 1080p video from any SDI camera or device with nearly zero latency, bringing in audio through HDMI, the 3.5 mm input, or both. This card is compact and based on tough-as-nails technology that's even been used in space, so you can confidently carry it wherever there's video to capture.

    • Features:

      • Bring In Your Audio: Capture audio directly from your 3G-SDI or HD-SDI source, or through the 3.5 mm input to capture from a mixer or other external sources. You can even bring in audio from both inputs simultaneously.
      • Minimize Noise: Whisper-quiet performance makes AV.io SDI+ a silent addition to your workflows, meaning it won't add noise or distract from the task at hand.
      • Make Video Capture Effortless: With AV.io HD+, capturing video from HDMI and DVI devices on Windows, Mac, or Linux is as easy as using a plug-and-play webcam. Just connect your device to one end of the capture card and your computer to the other, then select your device as a source in your software. That's all there is to it - no driver installation required.
      • Size And Scale Effortlessly: There's no need to think about video scaling or aspect ratios with this capture card. AV.io HD+ will automatically adjust your image based on the software you're using, delivering superior video quality even when swapping between sources.
      • Elevate Your Favorite Apps: You can use AV.io HD+ with any program that accepts USB as a video source. That includes video conferencing apps such as Zoom and Microsoft Teams as well as streaming software like Wirecast and OBS.
      • Take Your Capture Card With You: AV.io HD+ is light and compact. It's powered over USB, which means one less adapter to carry around. And with its rugged all-metal exterior and durable connectors, it'll stand up to repeated, long-term use.
    • Specifications:

      • Interface: USB 3.0, USB 2.0
      • Os Drivers: UVC and UAC device
      • Dimensions: 3.54" x 2.36" x 0.91" (90 mm x 60 mm x 23 mm)

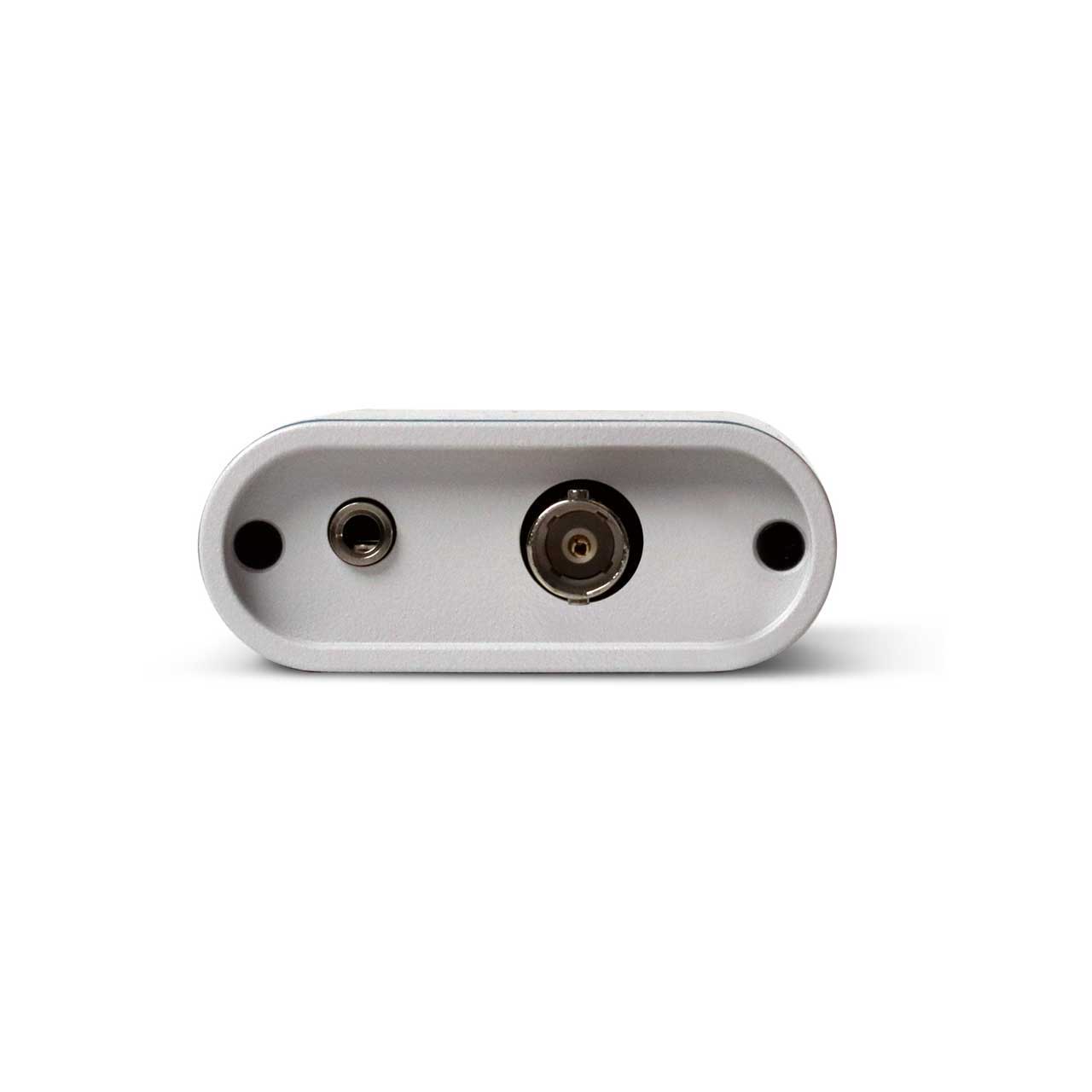

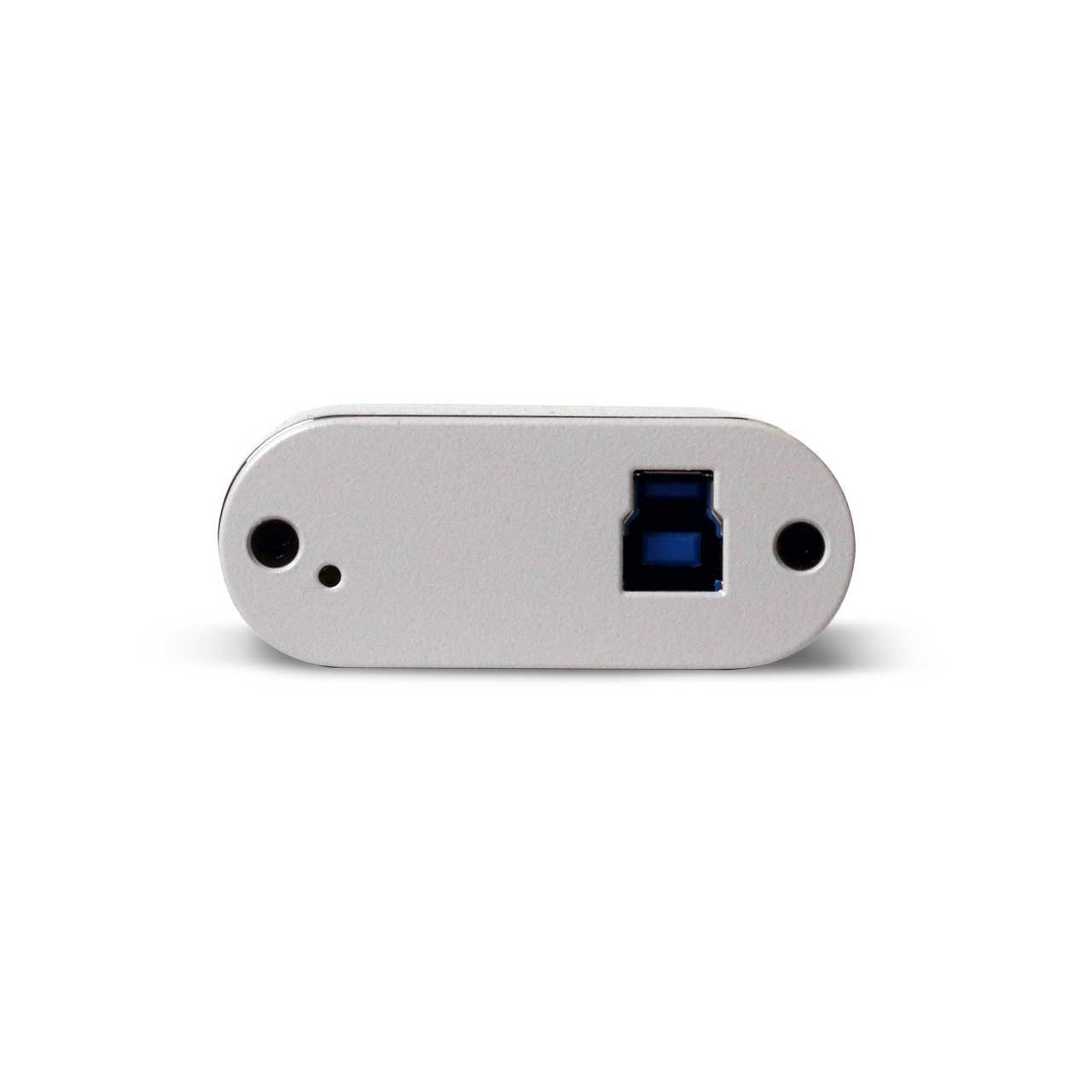

      • Connectors: SDI (BNC-style), USB 3.0 B-Type connector
      • Input: 3G-SDI, HD-SDI, SD-SDI (including embedded audio for 3G-SDI and HD-SDI), 3.5 mm analog (audio)
      • Input Resolution: Up to 1920x1080
      • Output Resolutions: 320x240, 640x360, 640x480, 720x480, 720x576, 768x576, 800x600, 856x480, 960x540, 1024x576, 1024x768, 1152x864, 1280x1024, 1280x720, 1280x800, 1280x960, 1360x768, 1366x768, 1440x900, 1600x1200, 1600x900, 1680x1050, 1920x1080, 1920x1200
      • Available Frame Rates 5 fps to 60 fps
        Note: Third-party software will set frame size and frame rate.
      • Output Color Space: YUV 4:2:2
      • Capture Latency: Near-zero (third-party applications may add to capture delay)
      • SDI Audio (Input): 16-bit and 24-bit PCM encoded audio 48 kHz (audio capture supported from 3G-SDI and HD-SDI)
      • Audio Output: 16-bit 48 kHz stereo audio
      • LED: One LED to indicate status (power, readiness, operation in progress)
      • Power Consumption: < 250 ma
      • OS Support: Windows 7 and up, Mac OS X 10.10 and up, Linux distribution with kernel 3.5.0 or higher supported
    • Item Includes:

      • 1x SDI+ to USB capture card
