ESE ES-185E GPS Master Clock with NTP6 Time Server and GPS Antenna Options

ITEM #: ES-185E-NTP6-ANT MFG #: ES 185E/NTP6 W ANT OPTION

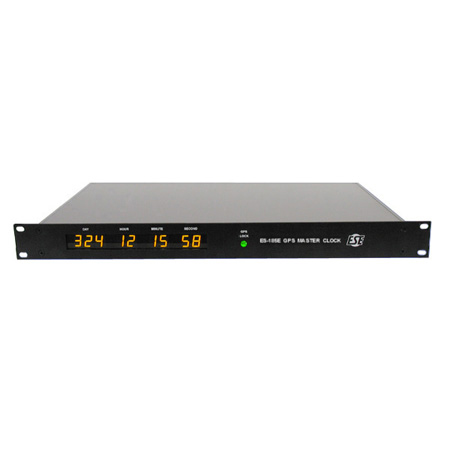

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ES-185E-NTP6-ANT

ES 185E/NTP6 W ANT OPTION - Overview

The ES-185E/NTP6-ANT is a GPS Master Clock/Time Code Generator/NTP Time Server with optional GPS Antenna. The unit receives accurate time and date information from Global Positioning System satellites and supplies this data to the user in a variety of forms. A 12-channel receiver is employed that is capable of tracking up to twelve satellites simultaneously, although reception of only one is required for time data to be output. ESE's ES-185E/NTP6 offers an accuracy of better than 10nS, and is entirely self-setting. The dual battery backup provides a Coin Cell for backing up the GPS receiver and User settings, and a Gel-Cell for a 4-hour operational backup. The ESE & ASCII outputs are operational when running on battery.

  • Features:

    • 12-Channel GPS Receiver
    • SMPTE-LTC/EBU, ESE, IRIG-B, ASCII (RS-232 & USB) Time Code Outputs
    • NTP Output Port (RJ-45, IPv6)
    • Supports Authentication
    • 1 PPS (pulse-per-second) output
    • Front Panel nine digit .56" Yellow LED display
    • Indoor/Outdoor Antenna and 16' cable
    • Automatic Daylight Saving Time Correction
    • Time Zone Offset
    • +/- 10 Second Offset
    • Configuration via RS-232, USB, Telnet or Embedded Web Page(Secure & Normal)
    • New PC Control Panel Software Included
    • Dual battery backup (Coin-Cell & Gel-Cell)
    • GPS Lock LED Indicator and TTL output
    • 1.75" Rackmount enclosure
