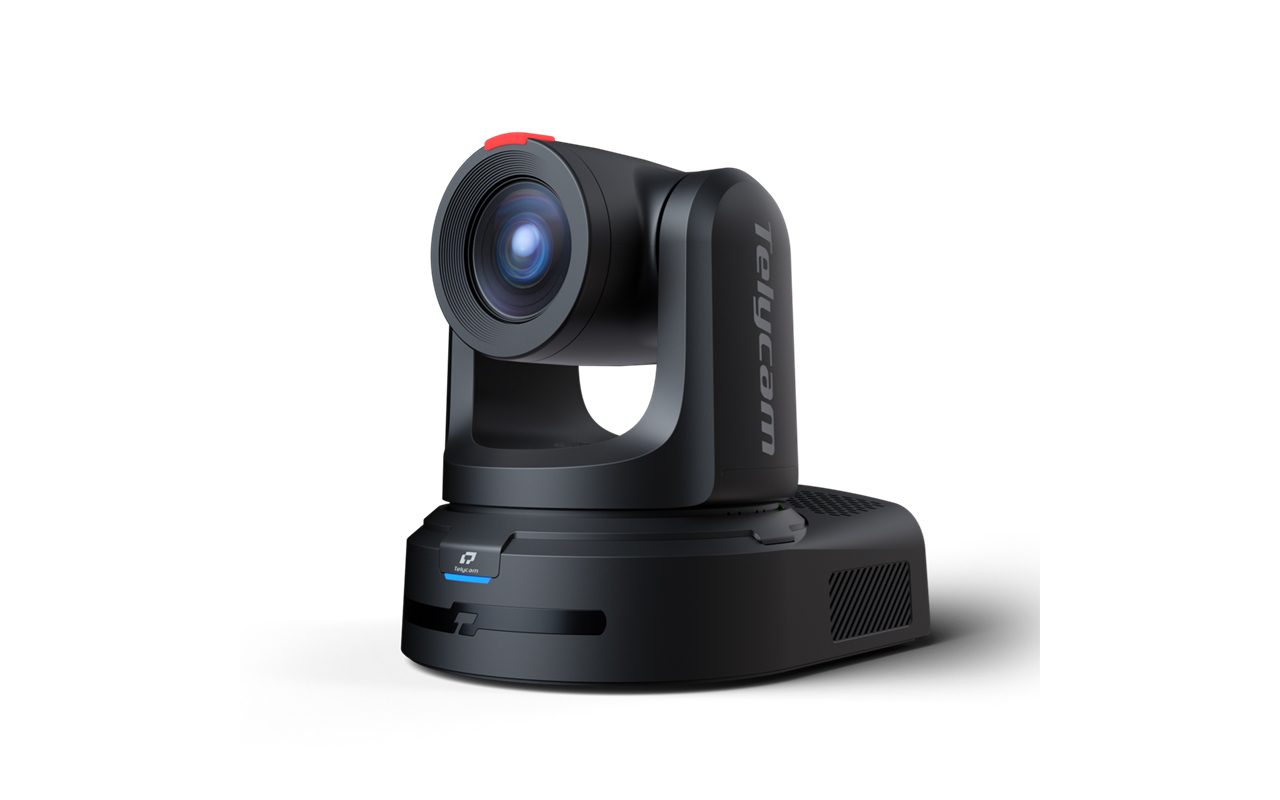

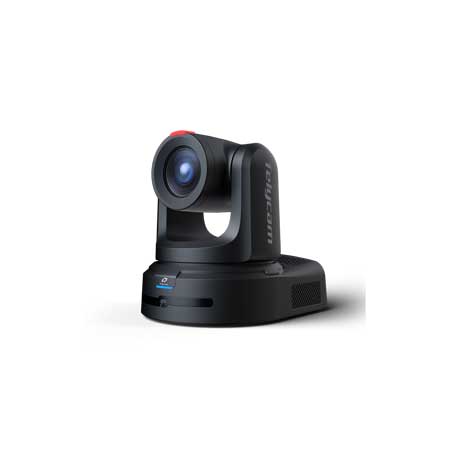

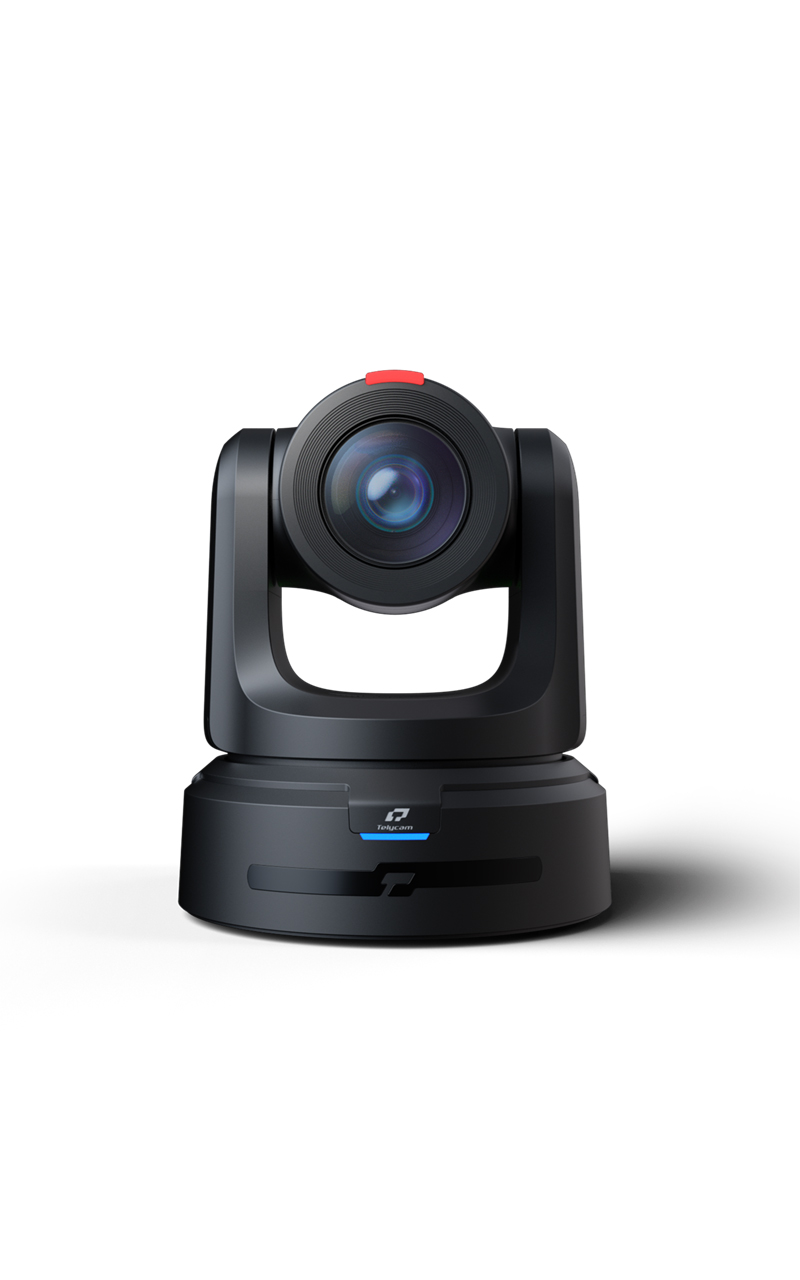

Telycam Explore SE Advanced 4K60p FHD PTZ Camera with 30x Optical Zoom - Black

ITEM #: ES900-30-4K-B MFG #: ES900-30-4K-B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$2,999.00

Availability: Preorder
iAvailability Description Popup


    ES900-30-4K-B - Overview

    High-Performance Sensor and Image Processor

    The Explore SE boasts a Sony 1/1.8-inch 9MP CMOS sensor and a state-of-the-art image processor, to deliver stunning ultra-high-definition images that capture realistic colors and maintain rapid focus.

    This feature ensures that your audience experiences content with the highest level of realism.

    Genlock Functionality
    The Explore SE features Genlock, a valuable synchronization feature, which makes it to function as a primary camera, ensuring precise video synchronization with other sub-cameras in complex broadcast video production and live streaming setups.

    FreeD Technology Integration
    The Explore SE seamlessly integrates FreeD technology, empowering users to explore dynamic shooting angles and perspectives, making it ideal for versatile real-world and virtual-world applications.

    Native AI-Based Auto-Tracking
    The Explore SE incorporates native AI-based auto-tracking technology, this intelligent feature automatically follows subjects, enhancing ease of use and ensuring that important moments are captured flawlessly.

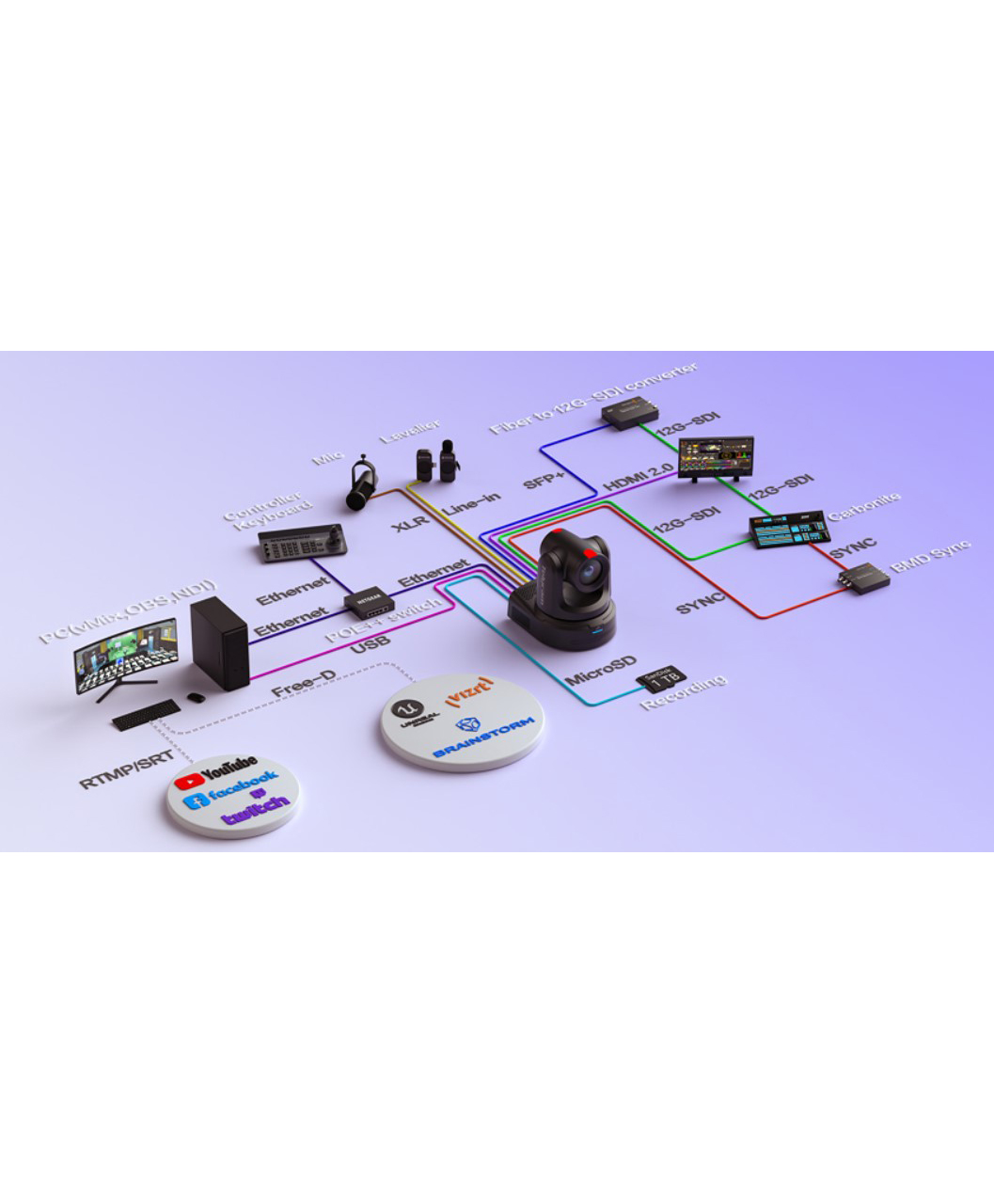

    Versatile Output Options
    This Explore SE offers diverse output options, including 4K60p resolution through NDI|HX, 12G-SDI, HDMI, and SFP+ connections. Users can choose the output method that best suits their production needs, ensuring flexibility and compatibility.

    Robust Audio Capabilities
    The Explore SE features with a 3.5mm line-in input and a Mini XLR audio input. Moreover, the XLR input supports phantom power, providing compatibility with a wide range of microphones and audio equipment.

    MicroSD Card Slots
    MicroSD card slots-one dedicated to firmware upgrades and the other for local recording. With the MicroSD Card Slots, easily record directly onto the camera for instant backup during network issues or for quick access. Retrieving footage from a MicroSD card is faster and more convenient than remote server access, ideal for prompt event review. Plus, MicroSD cards are cost-effective and simple, perfect for smaller setups.

    • Features:

      • 4K60 UHD video resolution
      • 30x optical zoom
      • Support Free-D
      • Built-in auto tracking function
      • NDI®/NDI®|HX /HDMI2.0/12G-SDI/SFP+ video interface
      • Genlock Functionality
      • 3.5mm line-in input and Mini XLR supports phantom power
      • POE++

    • Specifications:

      • Main
      • Sensor: 1/1.8-inch, 9MP UHD CMOS sensor
      • Zoom: 30x optical zoom
      • Lens: f = 6.91 ~ 214.64mm, F1.35 ~ F4.6
      • Horizontal View Angle: 60° (Wide) ~ 2° (Tele)
      • Vertical viewing angle: 34.14° ~ 1.12°
      • Diagonal viewing angle: 67.08° ~ 2.27°
      • Minimum Working Distance: Wide: 1.5m; Tele: 1.5m
      • S/N Ratio: ≥50dB

        Video Format:
      • 12G-SDI: 3840*2160 P60/50/30/25/29.97/24/23.98; 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
      • 3g-SDI: 1920*1080P60/5994/50/30/29.97/25/24/2398; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
      • HDMI2.0: 3840*2160 P60/50/30/25/29.97/24/23.98; 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
      • NDI®/ NDI®|HX Main Stream: 3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60
      • NDI®/ NDI®|HX Sub Stream: 640*360P15~30
      • SFP+: 3840*2160 P60/50/30/25/29.97/24/23.98; 1920*1080P60/50/30/25/59.94/29.97/24/23.98; 1920*1080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
      • USB Type-C NV12: 1920*1080P5;1280*720P15;1024*576P25;800*448P30
      • USB Type-C YUYV: 1920*1080P5;1280*720P15;1024*576P25;800*448P30
      • USB Type-C MJPG: 3840*2160P30;1920*1080P60;1280*720P60;1024*576P60;800*448P60
      • USB Type-C H264/H265: 3840*2160P30;1920*1080P60;1280*720P60;1024*576P60;800*448P60
      • Noise Reduction: 2D&3D
      • Minimum lux: 0.5Lux (50 IRE Max AGC,1/30, F1.8)
      • White Balance: Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature
      • Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
      • Anti-Flicker: OFF,50Hz,60Hz
      • Image Flip: Support
      • Mirroring: Support
      • Focus: Auto/Manual
      • Iris: Auto/Manual
      • Electronic-shutter: Auto/Manual
      • Gamma: Support
      • Backlight Compensation: Support
      • IP Streaming
      • Video Encoding: H.264/H.265
      • Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
      • Bitrate Range: 1024Kbps~61440Kbps
      • Network Port Speed: 1000M
      • Protocol: NDI®, NDI®|HX,SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D

        Pan/Tilt Movement:
      • Preset: Remote controller: 10; Serial port: 256; Accuracy:0.1°
      • Pan Rotation Angle: -170° ~+170°
      • Tilt Rotation Angle: -90° ~+90°
      • Pan Rotation Speed: 0.1°~80°/s
      • Tilt Rotation Speed: 0.1°~60°/s

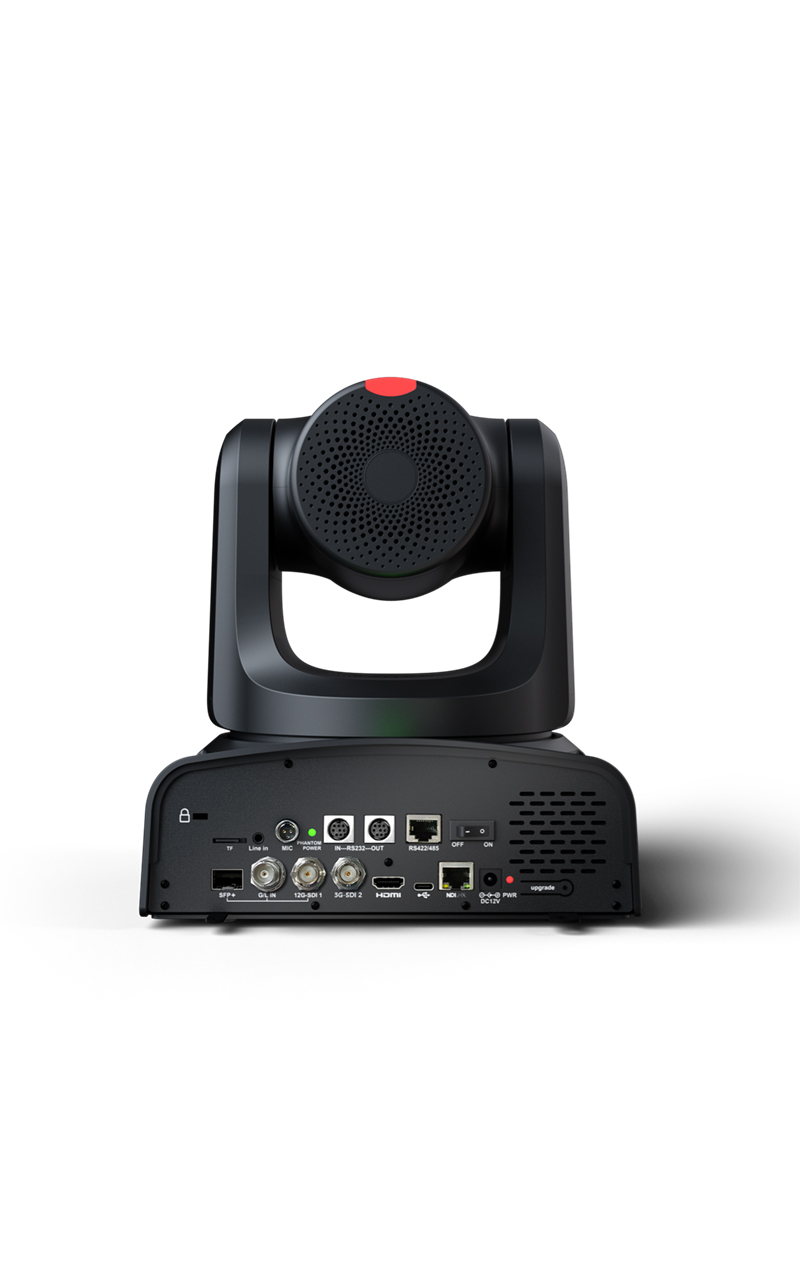

        I/O Interface:
      • Control Port: RS232,RS485,RS422,RJ45,USB, NDI®|HX, NDI®
      • Video Port: NDI®, NDI®|HX, HDMI2.0, SFP+, 3G-SDI, 12G-SDI, USB Type-C
      • Audio Port: Min XLR(with phantom power), Dual 3.5mm line in
      • Tally: Support
      • POE++: Support
      • Daisy Chain: Support

        General:
      • Input Voltage: DC12V, POE++(IEEE802.3bt)
      • Operating Temperature: -10°C~ 50°C
      • Operating Humidity: ≤80%
      • Dimension(LxWxH): 232.5mm x 264mm x 269mm
      • Net Weight: 4.6kg (10.15lbs)
