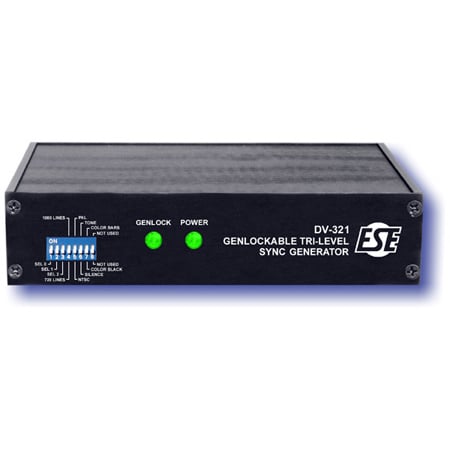

ESE DV-321 Genlockable HD/SD Sync Generator

ITEM #: ESE-DV321 MFG #: DV-321

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    DV-321 - Overview

    Genlockable HD/SD Sync Generator

    The DV-321 is an HD/SD Sync Generator with a genlock input. The genlock input accepts tri-level or bi-level signals. The DV-321 provides four HD sync outputs. These outputs produce an HD tri-level sync output. Eighteen HD output formats are supported on the DV-321. Also provided are two SD sync outputs that can be switched between color black or color bar outputs. An AES11 output and a Wordclock output are also standard features of the DV-321. The AES11 output may be switched between silent and tone modes. All outputs are provided on rear panel BNC connectors. Front panel dip switches allow the user to configure the various outputs.

    • Features:

      • SD/HD Genlock Input
      • 4 HD Sync Outputs (BNC)
      • 2 SD Color Black/Color Bar outputs
      • AES11 Output - Tone or Silent
      • Wordclock Output (48 KHz)
      • 18 HD Formats
      • Various Options available
    • Specifications:

      • POWER: 110 - 120 VAC, 50 - 60 Hz, 5 Watts maximum
      • MECHANICAL: Desktop Enclosure 1.6" H x 7" W x 5" D
      • SD SYNC OUTPUTS: Color black or color bars; 2 BNCs
      • HD SYNC OUTPUTS: Tri-level; 4 BNCs
      • AES11 OUTPUT: Silence or tone (1kHz)
      • Impedance: 75O
      • Single ended, 1 Vpp into 75O, 1 BNC
      • WORD CLOCK OUTPUT: 48 kHz, 0 - 5 V, 1 BNC
      • DV-321 GENLOCK INPUT: Autodetects 15 different reference input signals, see Formats, 1 BNC
      • DV-321 FORMATS: 525i60, 625i50, 720p23.98*, 720p24*, 720p25*, 720p29.97*,
      • 720p30*, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94,
      • 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
      • 1080psf23.98, 1080psf24
      • * indicates unsupported input genlock reference format
      • OPTIONS: DC, J, P, P2, UL, XLR.
