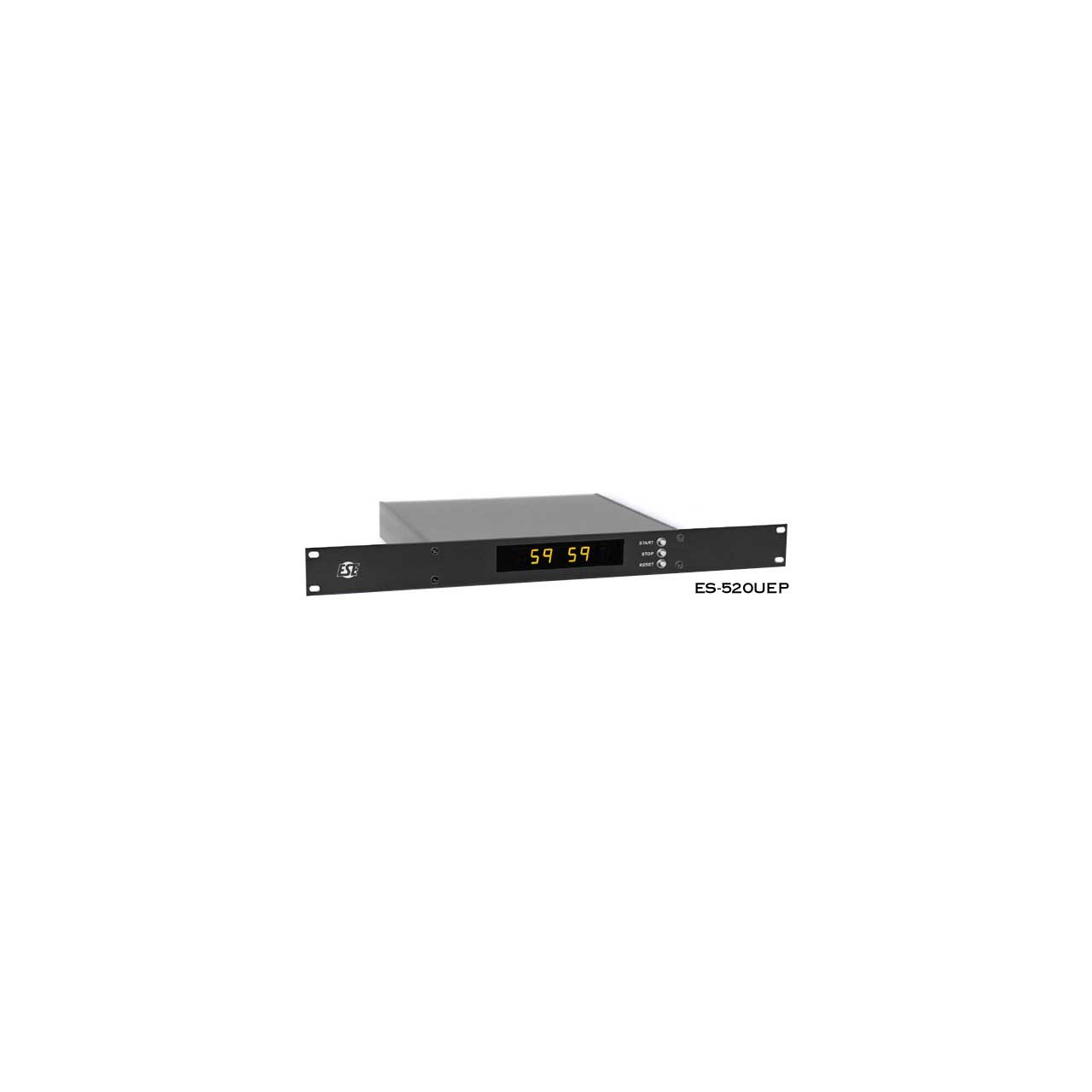

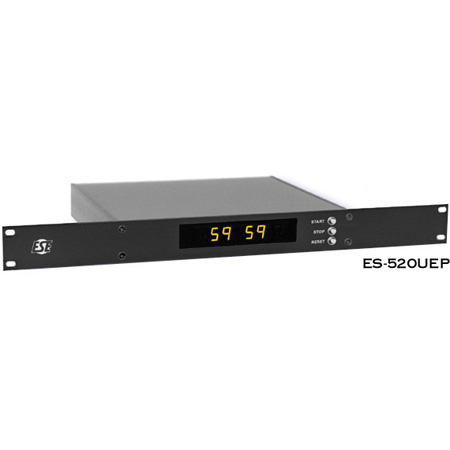

ESE ES-520UE/D/P DB9 .56-Inch Yellow LED/60 Min Up Timer (Min & Sec) - 19 Inch Rack Option with 6 Foot Cable

ITEM #: ESE-ES-520UE-D-P MFG #: ES-520UE/D/P

Primary Image
ESE
Free Shipping with $49 Minimum Order

List Price:

$275.00

Our Price:

$265.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    ES-520UE/D/P - Overview

    ESE ES-520UE is a 60 Minute Up Timer. Start, Stop and Reset controls are provided on the front of the case. A remote control input is accessible on the rear-mounted DB-9 connector, which also supplies ESE Timer Code for driving up to 100 remote slave displays.

    This model includes the following options:
    D - Remote Control: This option consists of a connector wired to switches on a control plate via a six-foot cable.

    P - 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.

    • Features:

      • .56" Yellow LED Display
      • 60 Minute Up count range (00:00 - 59:59)
      • Start, Stop, Reset functions
      • Remote control input
      • 4 Isolated Trigger Reset inputs
      • Optional Tenths of Seconds display
      • ESE Timer CodeT output
      • Optional 1.75" Rackmount enclosure (option "P")
      • 220-240 VAC (110-120 VAC is standard) & UL options available


    • Specifications:

      • Power: 5 Watts
      • Electrical: 117VAC, 50/60Hz
      • Enclosure: Desk Top with 19 Inch rack option
      • Mechanical (HxWxD): 2.5" x 8" x 6"
      • Connector: DB-9
      • Controls: Push-buttons/Remote
      • # of Digits: Four (Min-Sec)
      • Display Height: .56" Yellow
      • Viewing Distance: 20 feet


    • Item Includes:

      • 1x ESE ES-520UE/D/P DB9 .56-Inch Yellow LED/60 Min Up Timer (Min & Sec) - 19 Inch Rack Option with 6 Foot Cable
