    A/B/C/D SWITCH - Overview

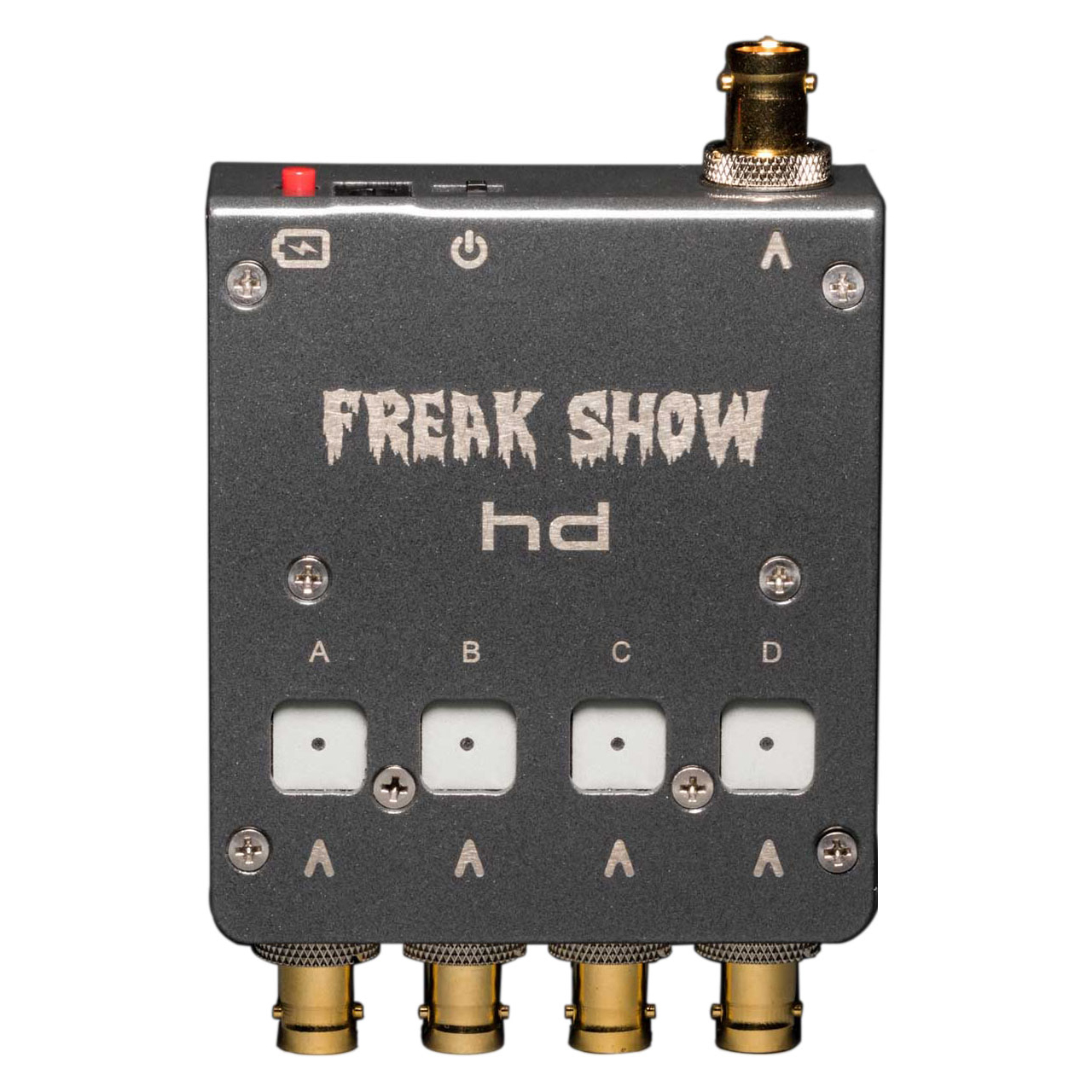

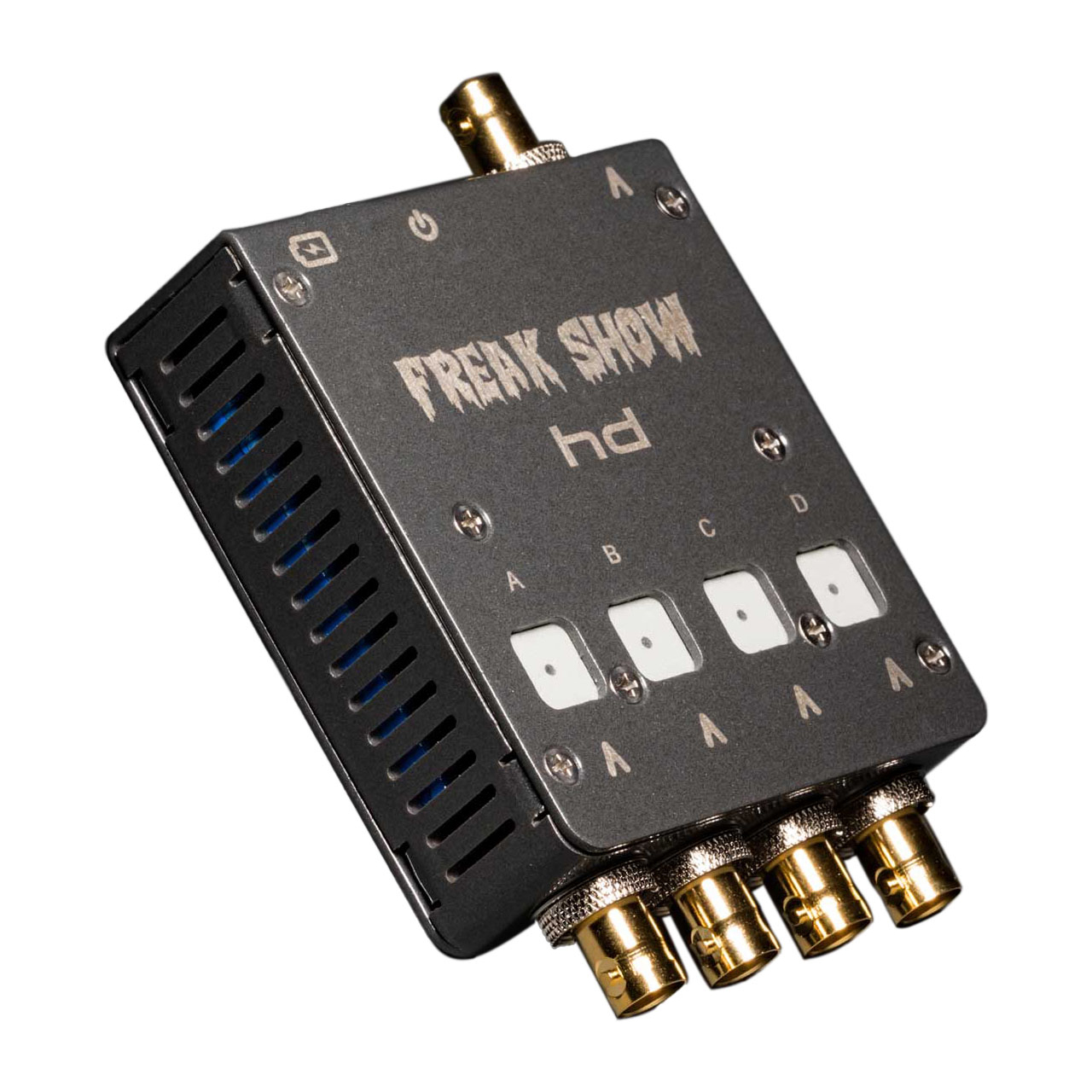

    Multiple sources and only one input, how many times have you run into this dilemma? The Battery Powered A/B/C/D Switch selects between four inputs via an easily controllable top mounted touch pad, and distributes the signal to one output for up to 160 hours of continuous operation all in a rechargeable, convenient and cost effective package.

    Freakshow products are proudly MADE IN THE USA and comes with a 6 month Manufacturer's Warranty.
    PLEASE NOTE: This product contains Lithium-Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

    • Features:

      • Internal Lithium Polymer Battery
      • Accepts both Analog Composite NTSC/PAL and SDI signals
      • 12-36 Volt DC Operation
      • Locking Power Connector
      • Low Battery Indicator
      • Operate and charge while connected to external power
      • AC Adaptor Included
      • Power switch illuminates during charging and shuts off when charging is completed
      • Internal LED blinks when battery hits 15% of capacity and blinks more quickly as the battery continues to discharge
      • Battery is rated for minimum of 500 charge cycles
    • Specifications:

      • Formats: 3G, 1.5G, 270MB; Auto Select - Meets and exceeds SMPTE 292 and 424 Standards

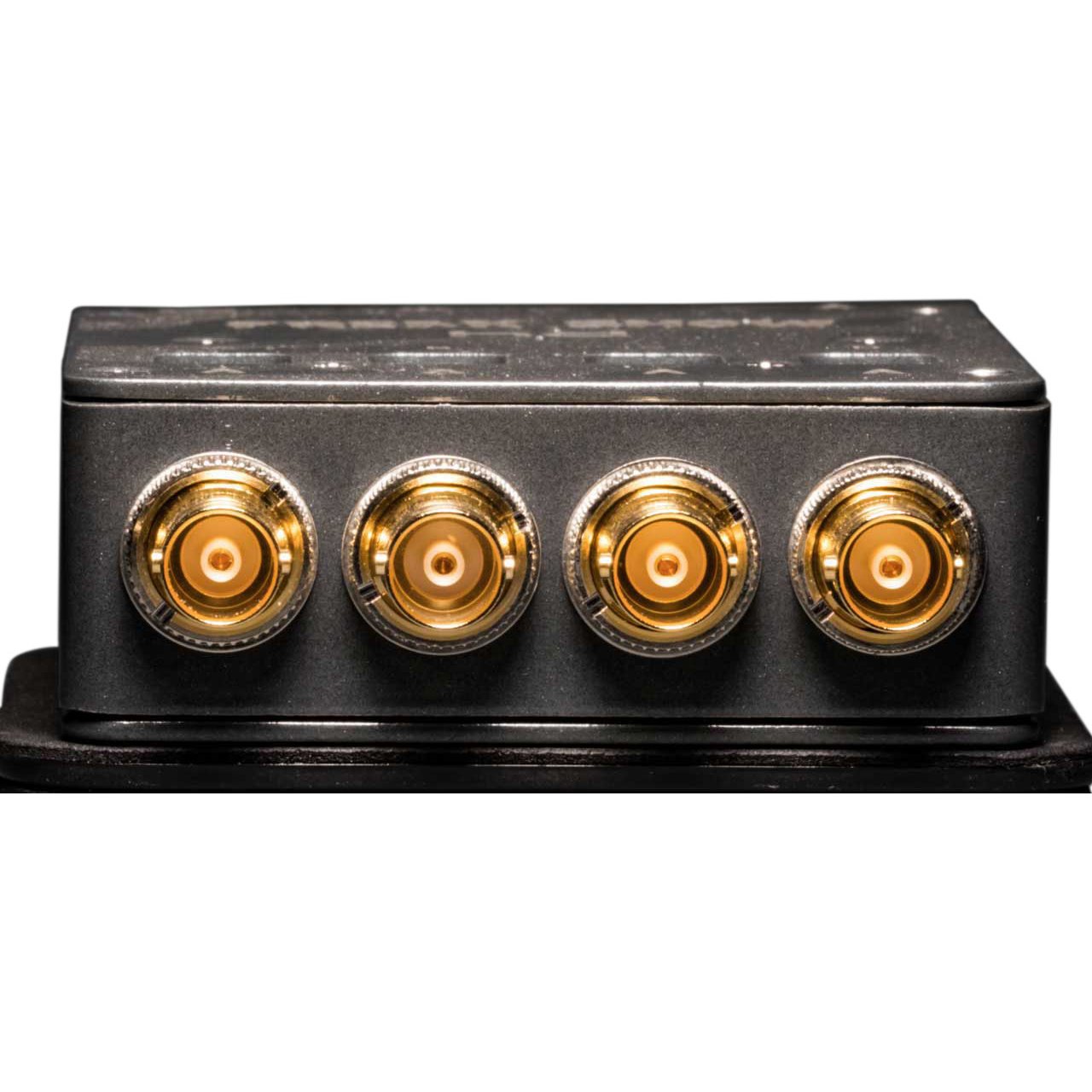

      • Inputs: 4 Selectable HD-SDI, SDI (SMPTE 259/292/296/424), 4x BNC

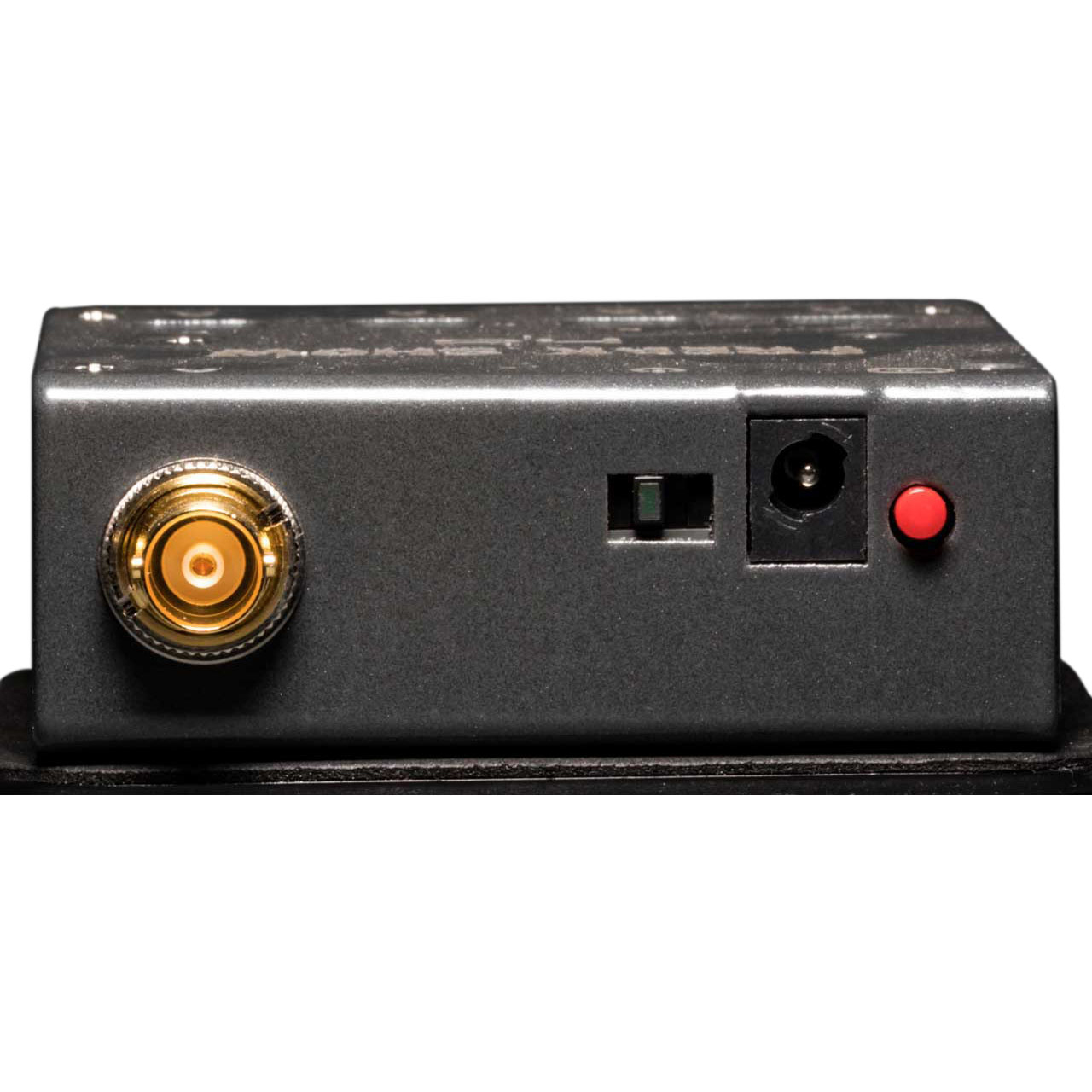

      • Outputs: 3G HD-SDI, HD-SDI, SDI, 1x BNC
      • Size: 4.8" x 2.25" x 1.2" (121mm x 57mm x 30.5mm) (length includes BNC's)
      • Power: +12-36VDC, Regulated
      • Battery: Integrated Lithium-Polymer rechargeable battery provides up to 6 hours of run-time
      • Battery Recharge Time: 3 hours

    A/B/C/D SWITCH - Required Accessories
