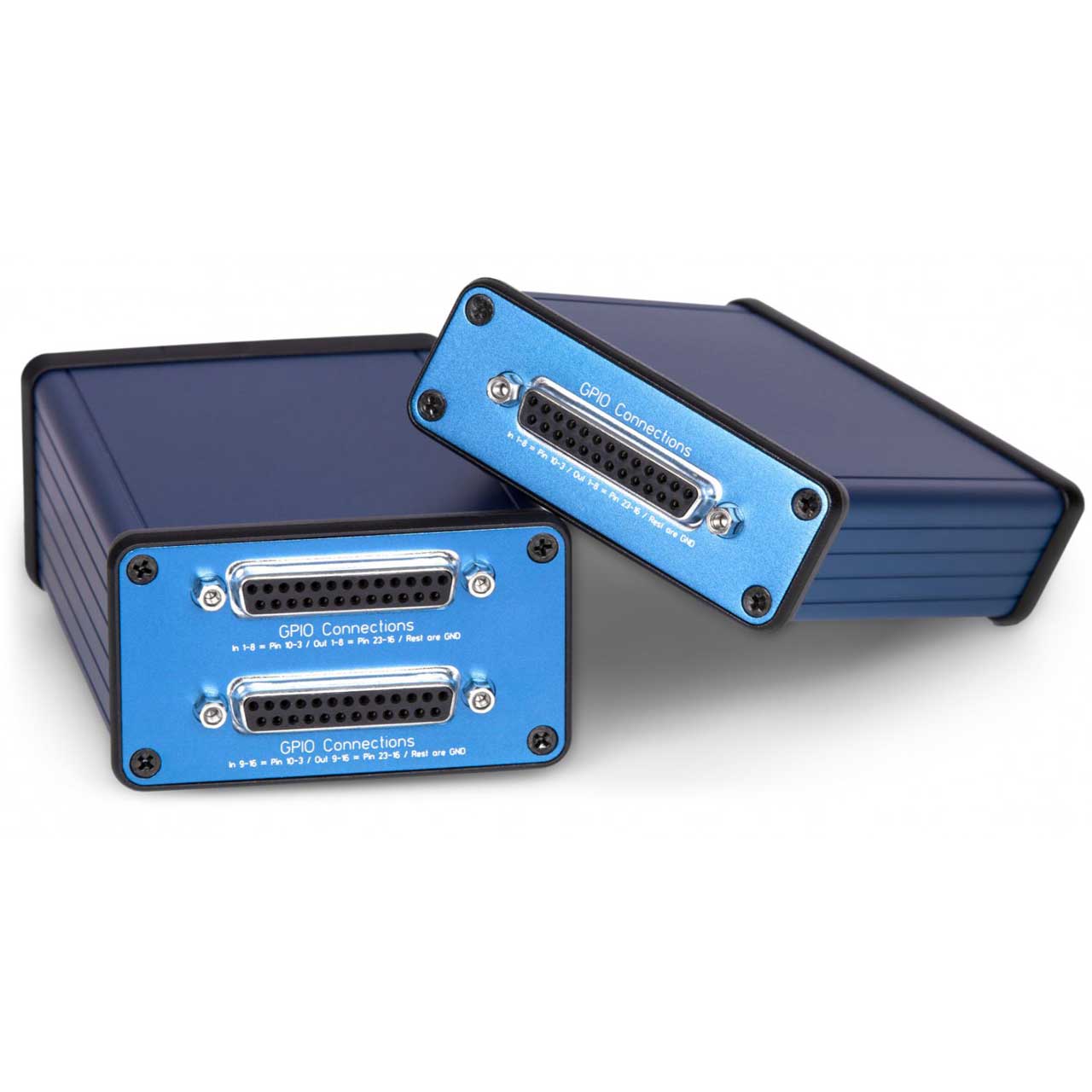

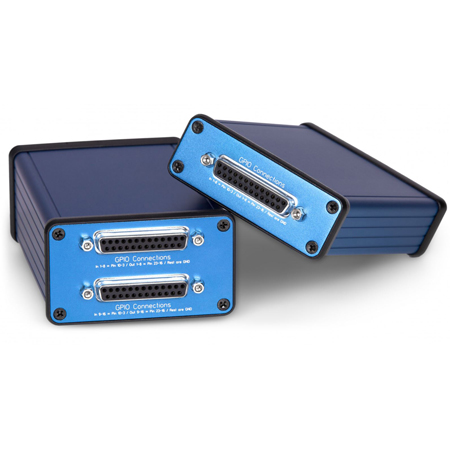

Skaarhoj ETH-GPI-LINK-DUAL-V1 ETH-GPI Link Dual General Purpose Interface

ITEM #: ETH-OPT-DUAL-V1 MFG #: ETH-GPI-LINK-OPT-DUAL-V1

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$999.00

Our Price:

$974.03

Availability: Temporarily Out of Stock
iAvailability Description Popup


    ETH-GPI-LINK-OPT-DUAL-V1 - Overview

    Setting up an I/O device have never been this flexible. Connect and control anything from your tally lamps, trigger ATEM switcher routines, control a HyperDeck, change Scopes on a SmartScope Duo and route inputs/outputs on a VideoHub. Defining parameters - single or multiple - for inputs/outputs is extremely fast, thanks to the drop-down menu structure in UniSketch OS. Connect and control up to 8 devices at the same time!

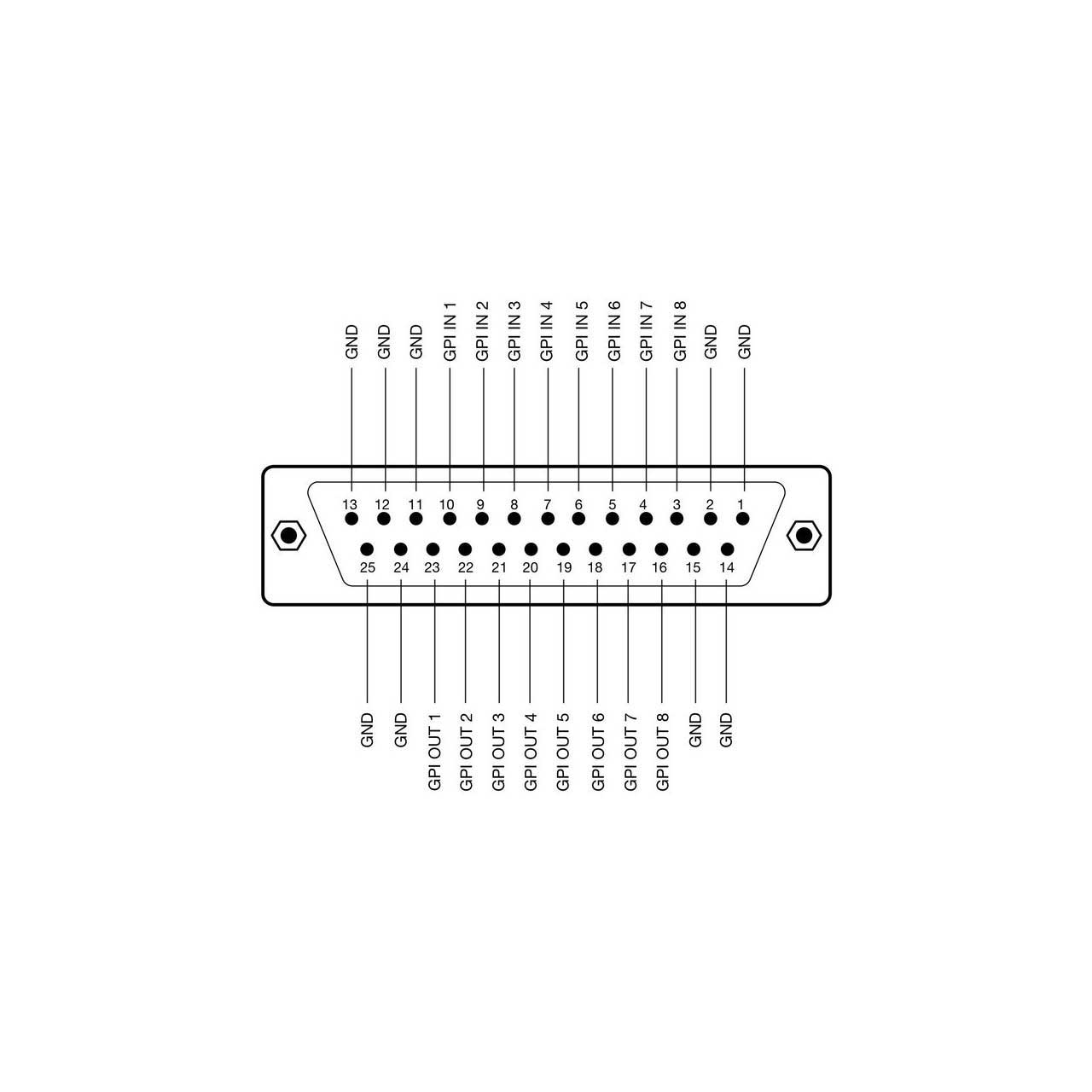

    The general-purpose I/O controllers offer 8/16 inputs and 8/16 outputs, all electrically separated with quality relays and optocouplers. GPO is implemented with relays shorting to GND. GPI implemented with optical isolators shorted to GND.

    Please notice: SKAARHOJ Controllers with GPI inputs accept open collector and relay outputs (pulled to GND). The default HD15 tally connector on the TriCaster TC1 does not provide a direct working signal to the ETH-GPI Link. Converting the 5V potential to GND is needed.

    ETH-GPI-LINK-OPT-DUAL-V1 - Required Accessories

      ETH-GPI-LINK-OPT-DUAL-V1 - Recommended Accessories
